VICTRON ENERGY
EKRANO GX
EKRANO GX
SKU:BPP900480100
Couldn't load pickup availability
The Ekrano GX is a fully featured communication centre, built with the latest remote monitoring capabilities. Gain ultimate control with this latest addition to the GX family and feel the power of truly being in charge.

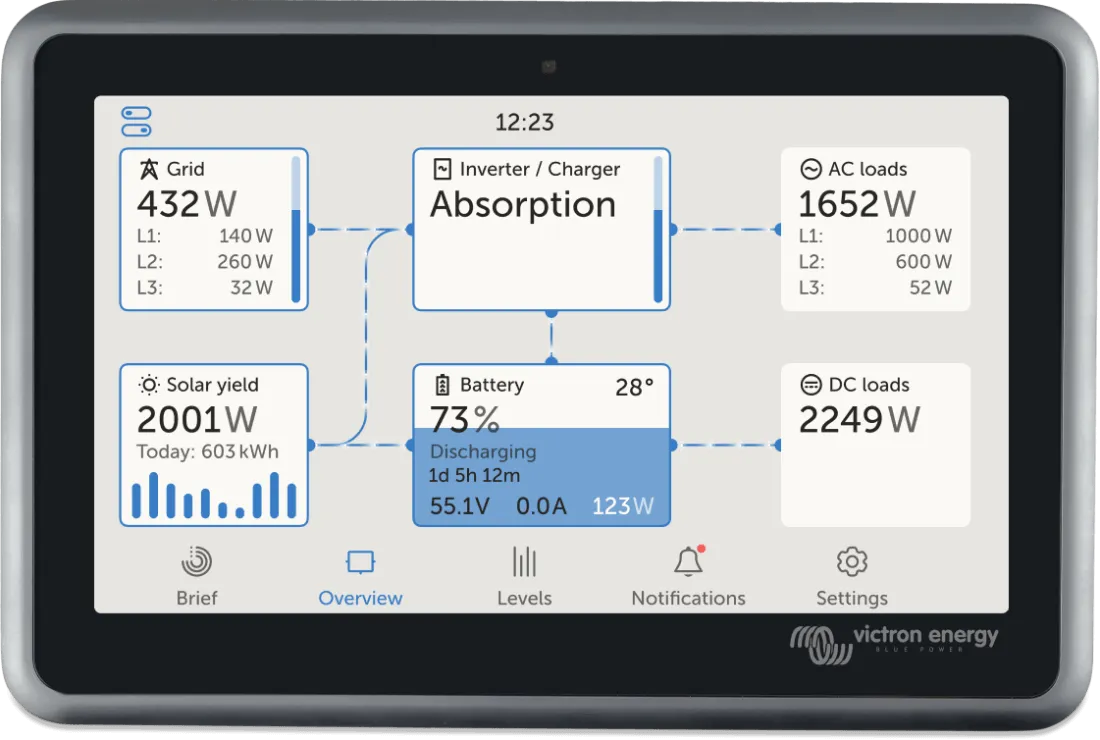

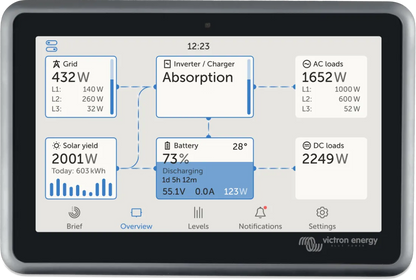

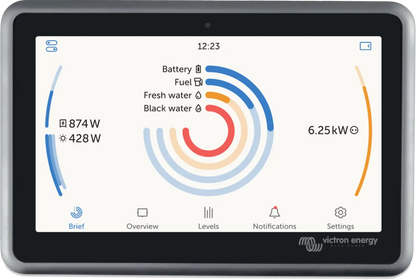

Check real-time data and analysis on your integrated 7-inch touchscreen display, running on the all-new and intuitive Venus OS. The Ekrano GX is a flexible powerhouse that will integrate into any Victron system complete with a range of hardware connectivity to suit every need. It enables you to access and control your system from anywhere, through the Victron Remote Management (VRM) portal and VictronConnect app. Enter a new era of full and dynamic system control with the Ekrano GX.
Extremely powerful processor
The Ekrano GX is our most powerful GX device to date. Its powerful quad-core processor manages all connected Victron products and a large range of supported third party devices with ease.
Venus OS v3.0

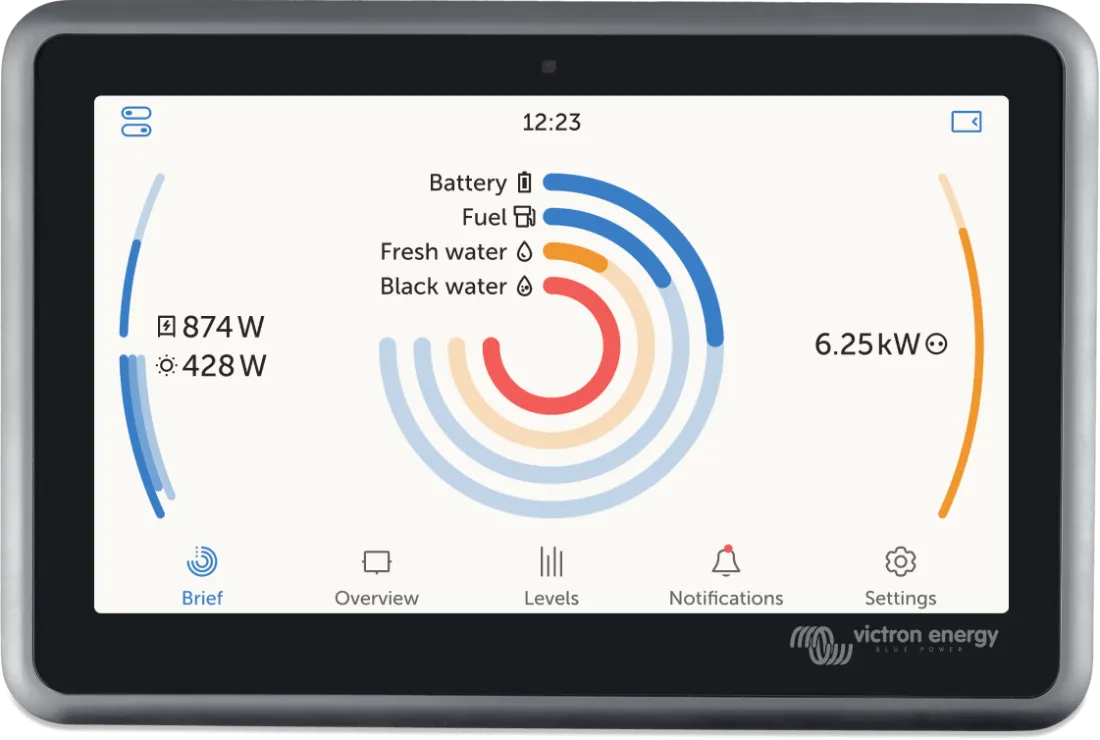

System monitoring just entered a new era, with Venus OS 3.0. Now, keeping up with your electrical system is easier and more intuitive than ever. The sleek human-centred design and updated colour scheme helps you to stay focussed on the things that matter to you most.
GX - Battery compatibility
For seamless integration with an ever growing list of leading third-party lithium battery manufacturers, a GX device is required. Great efforts are made to ensure a deep and hassle-free integration of supported batteries.
Simple mounting and installation

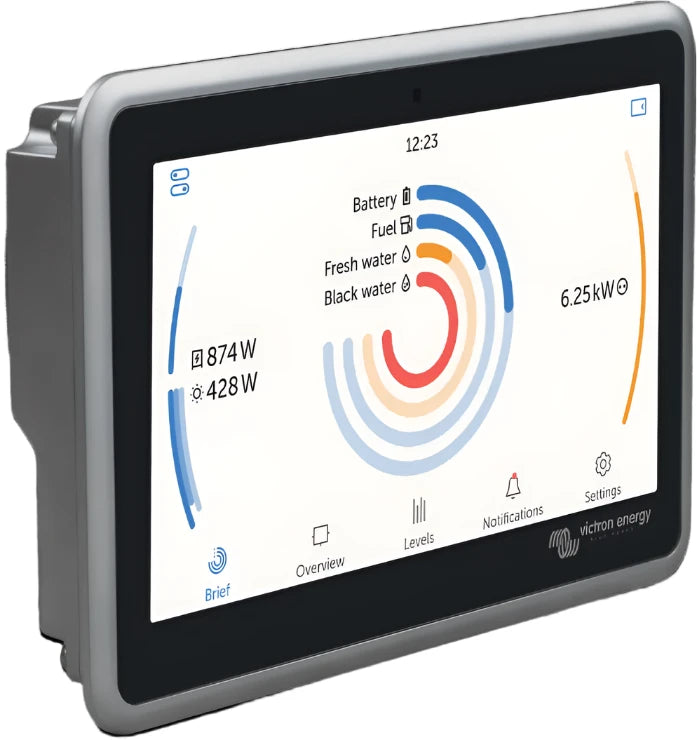

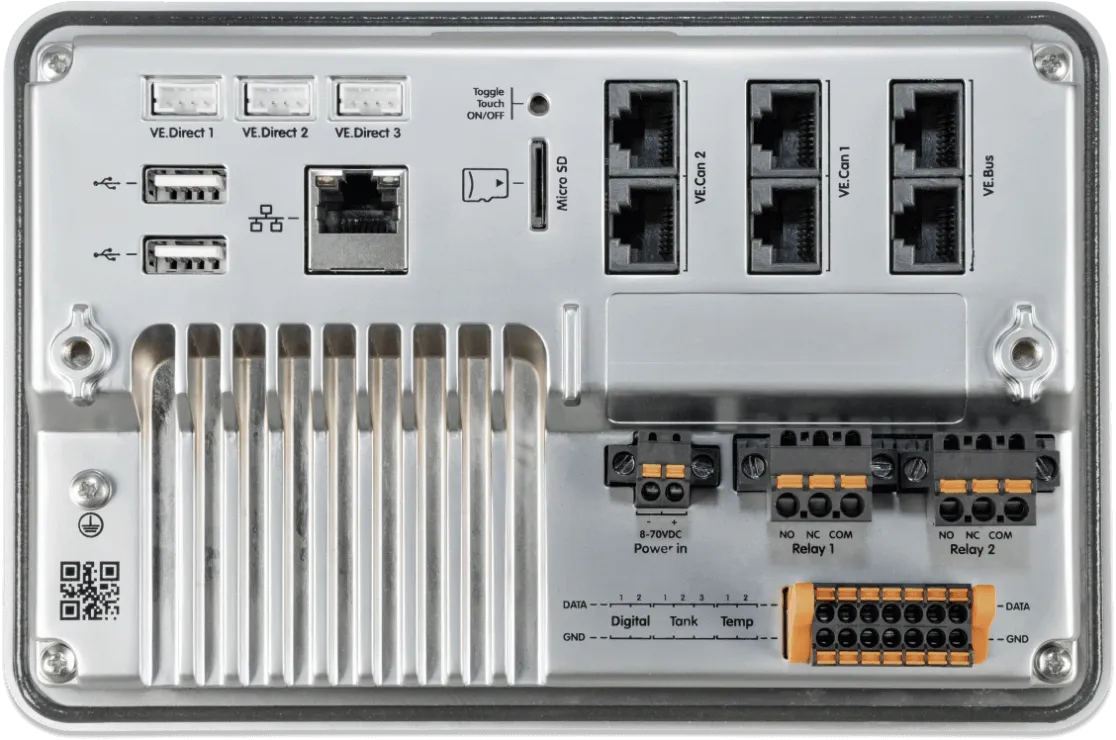

The super slim design offers a lot of flexibility in designing a crisp and clean dashboard. The Ekrano GX is optimised for flush panel or blind hole mounting, with all necessary mounting material included. All ports remain easily accessible from the back.
Watertight
When installed with the steel bracket, the display of the Ekrano GX is protected from dust and water from the outside, rated with IP54.
Touch disabled button
Easily disable the touch function with a recessed button on the back, to prevent unauthorised use. Or enable it again with the push of a button.
Maximize system performance
Your Ekrano GX will actively maximize the performance of your system. Acting as a communication hub it unifies readings and coordinates system-wide actions to optimize performance for all connected devices. The extremely powerful processor and the innovative Venus OS will ensure that your already efficient hardware reaches new levels of efficiency.
Master remote systems

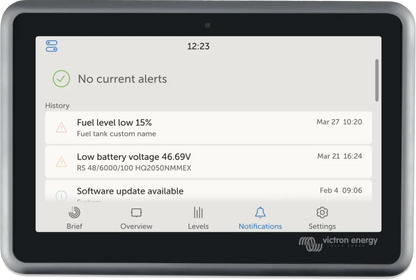

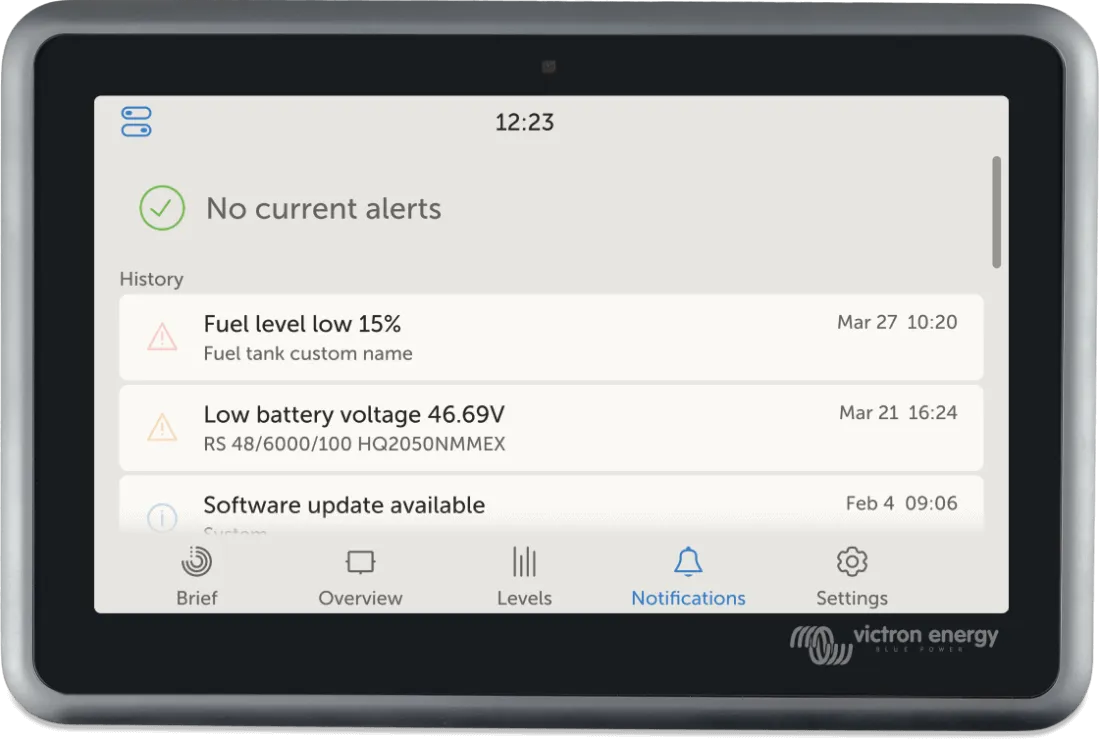

Effortlessly connect to the Victron Remote Monitoring (VRM) portal with your Ekrano GX. Operate your system from a distance with iOS and Android widgets, design custom data views to monitor crucial parameters, manage hundreds of systems at a time and create alerts to prevent serious issues from occurring.
Seamless marine MFD & NMEA integrations
Monitor and control your system right from your glass bridge with our MFD app or use the NMEA2000 marine industry standard integration options.
Advanced automations
Take your system customization even further and create intelligent automation flows with Node-RED - the browser-based low-code editor that makes it ever so easy to wire together flows and automations. Easily connect hardware devices, APIs and online services together with PLC like programming.
| Supply voltage | 8 – 70 VDC |
| Power draw display on (100 % brightness) | 6.2 W @ 12 V | 6.6 W @ 24 V | 7.4 W @ 48 V |
| Power draw display off | 2.6 W 12 V | 3.0 W @ 24 V | 3.7 W @ 48 V |
| Relay | 2 x NO/NC [2] DC up to 30 VDC: 3 A AC: 1 A, 125 VAC |

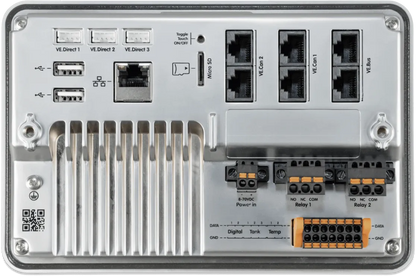

| Communication ports |
| VE.Direct ports (always isolated) | 3 (max. possible VE.Direct devices: 25) |
| VE.Bus (always isolated) | 1 bus with 2 paralleled RJ45 sockets |
| VE.Can 1 | Yes - isolated |
| VE.Can 2 | Yes – non-isolated |
| Ethernet | Yes |
| WiFi | Yes |
| Bluetooth Smart | Yes |
| USB Host ports | Yes – 2 x USB-A (max. 1.5 A@5 V combined) |
| MicroSD Card Slot | Yes – SDHC cards up to max. 32 GB |
| IO |

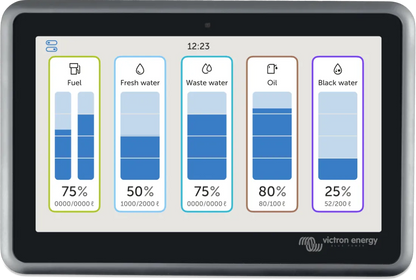

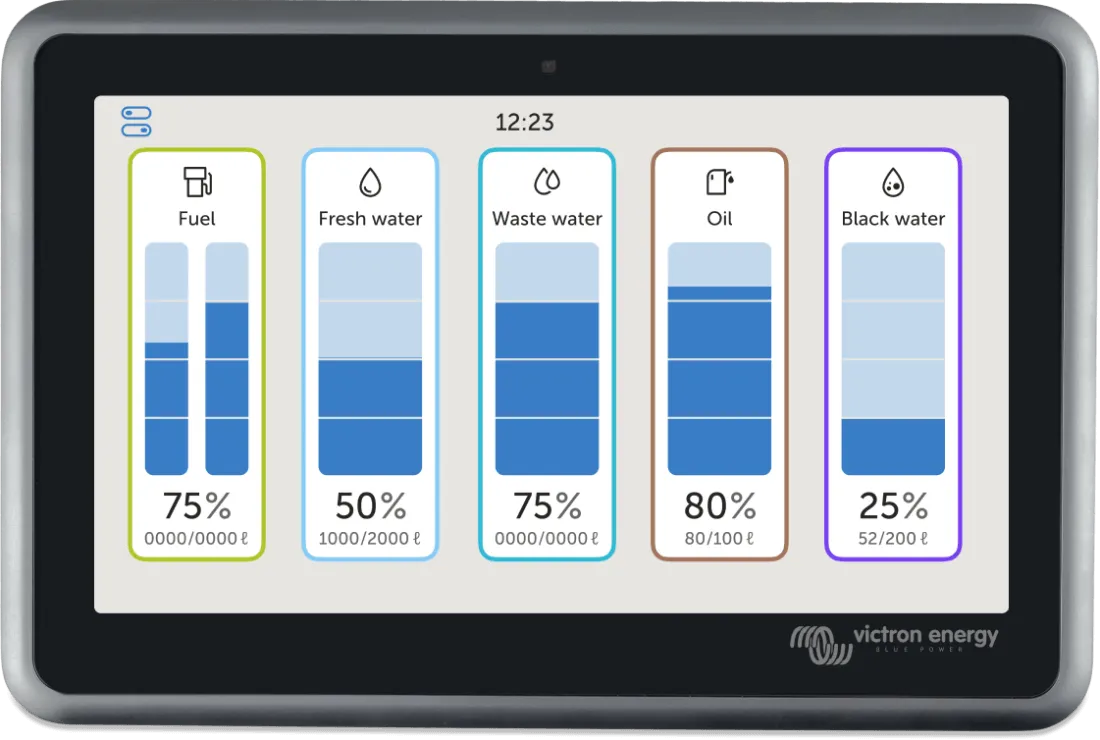

| Resistive tank level inputs | 3 |
| Temperature sense inputs | 2 |
| Digital Inputs | 2 |
| Display |
| Display resolution | 1024 x 600 pixels |
| Display max. backlight brightness | 1000 cd/m2 |
| Backlight dimming | Yes – dynamic via built-in ambient light sensor or manually via Remote Console With timer for auto on/off |
| Touch toggle on/off button | Yes – recessed button on the back (prevents unauthorised use) |
| Dimensions |
| Outer dimensions (h x w x d) | 124 x 187 x 29.8 mm |
| Operating temperature range | -20 to +50 °C |
| Other |
| Mounting | Panel integrated flush mount or blind hole mount with included mounting accessories |
| Buzzer | Yes |
| Protection category | Front: IP54 (when installed with steel bracket) IP31 (when installed with springs) Back: IP21 |
