DUAL SENSING SMART START BATTERY ISOLATOR 24V 100A

DUAL SENSING SMART START BATTERY ISOLATOR 24V 100A

SKU:SBI24D

Regular price $311.50
Regular price Sale price $311.50
Sale Sold out

Tax included. Shipping calculated at checkout.

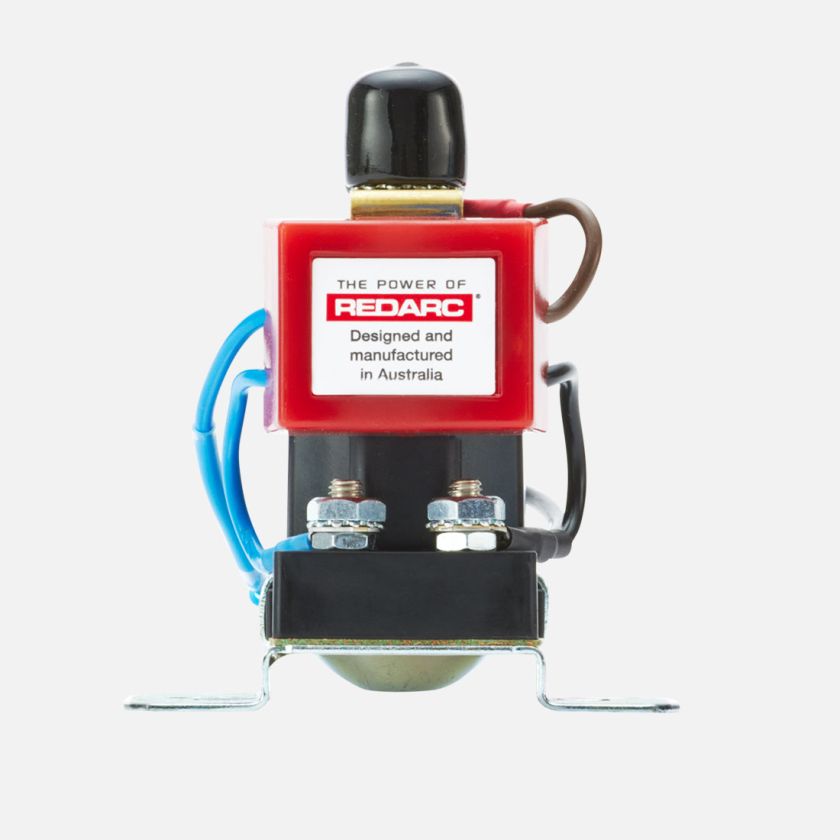

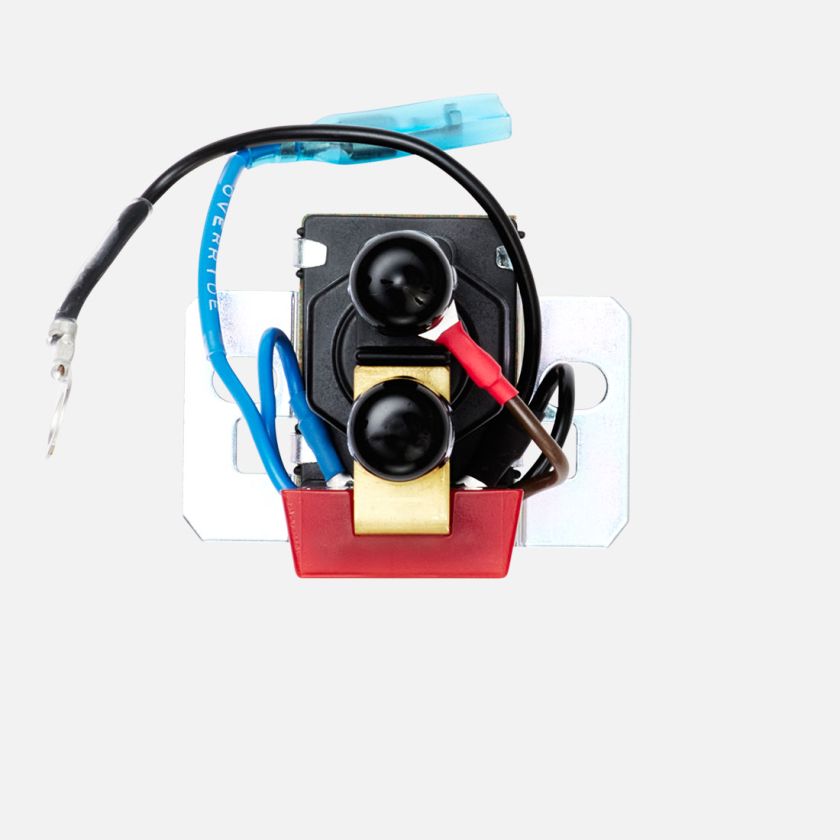

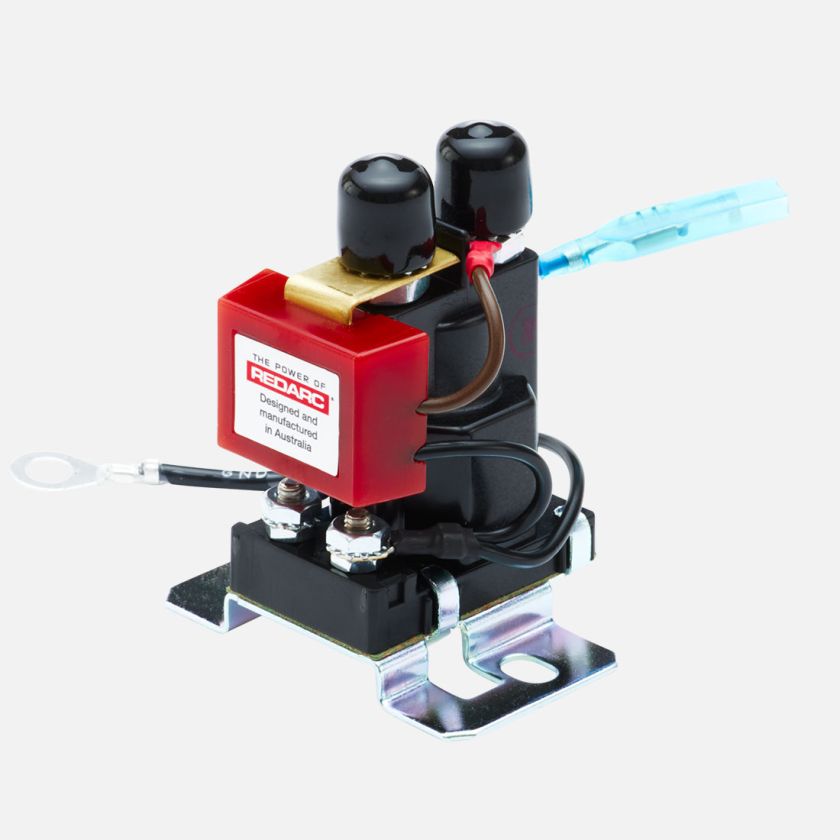

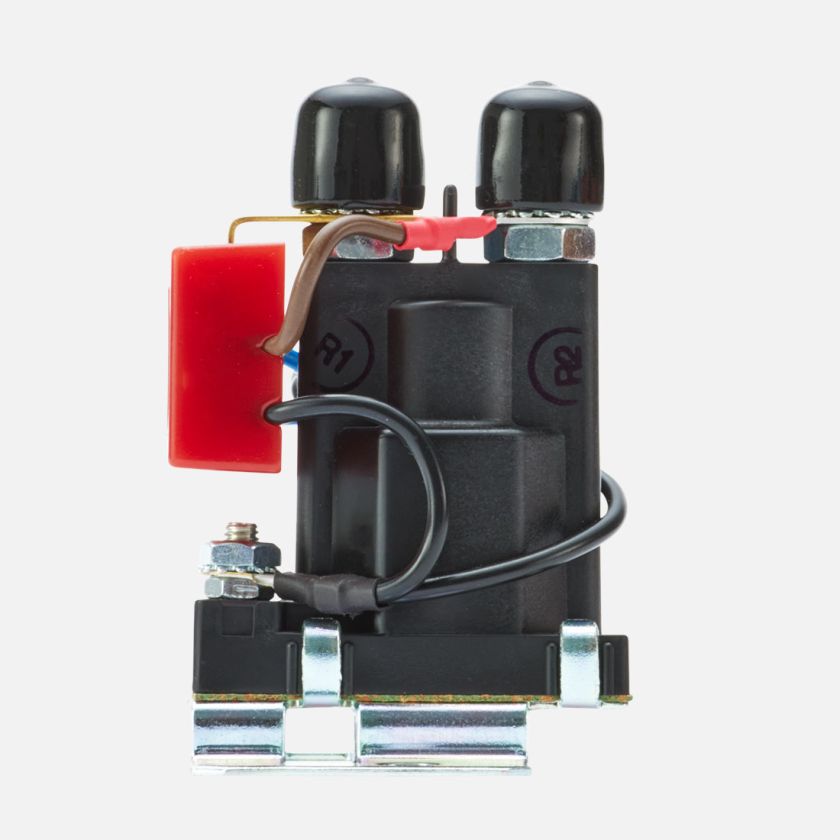

The REDARC Smart Start® SBI24D is a dual battery isolator used to isolate the start and auxiliary batteries in a dual battery system. It will protect the start battery from a low charge in the secondary battery so it won’t drain the primary battery. The SBI24D provides 24 volt DC incorporating 100A of continuous ratings.

DUAL SENSING

The dual sensing model is used to isolate the start and auxiliary batteries in a system where the auxiliary battery may also be charged by an external source such as Solar panels or an external AC battery charger. The SBI24D also allows the start battery to be topped up and charged from the auxiliary battery when the auxiliary battery is being charged by an external source once it reaches 26.4 volts.

POWER SAVING TECHNOLOGY

The Smart Start SBI24D is a microprocessor controlled battery isolator that incorporates electronic components preventing the solenoid from generating high voltage transients. It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.

Used primarily in commercial vehicles, the Smart Start SBI is a safe way to charge auxiliary batteries and should often be installed with a high quality fuse kit.

FEATURES

  • Overmould design
  • Compact in size and easy to install
  • Silver contacts for longer life and suitable for marine applications
  • Power saving technology
  • Fault indication
  • Fully surge protected
MAX. INRUSH CURRENT 400A
MAX. CONTINOUS CURRENT 100A
TURN ON VOLTAGE 26.4V
TURN OFF VOLTAGE 25.4V
TURN ON DELAY 5 seconds
TURN OFF DELAY 10 seconds
STANDBY CURRENT <5mA
WEIGHT 200 g
HEIGHT 70 mm
WIDTH 75 mm
LENGTH 80 mm
WARRANTY 2 Years
SYSTEM VOLTAGE 24V
OUTPUT VOLTAGE 24V DC
INPUT FUSE RATING 100A
OUTPUT FUSE RATING 100A
