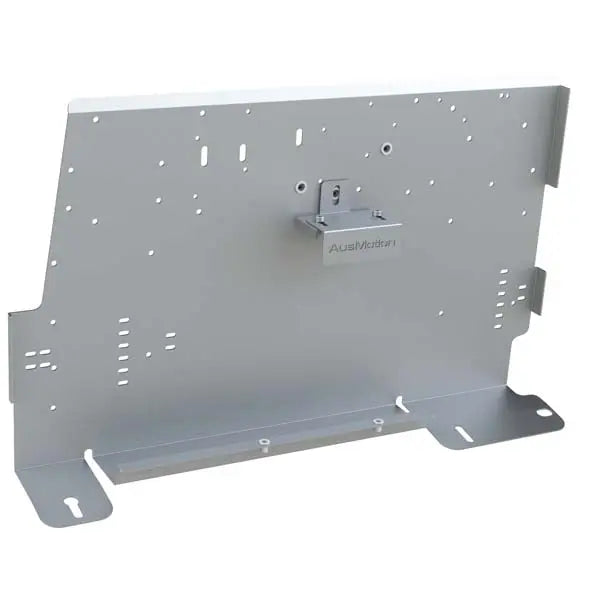

DUAL BATTERY MOUNT DMAX, NAVARA & X-CLASS

Please allow 2 week for manufacture.

Locally designed, engineered and manufactured in Australia.

Battery Compatibility

This product has been designed to mount super-slim lithium batteries from Australia’s favourite battery manufacturers:

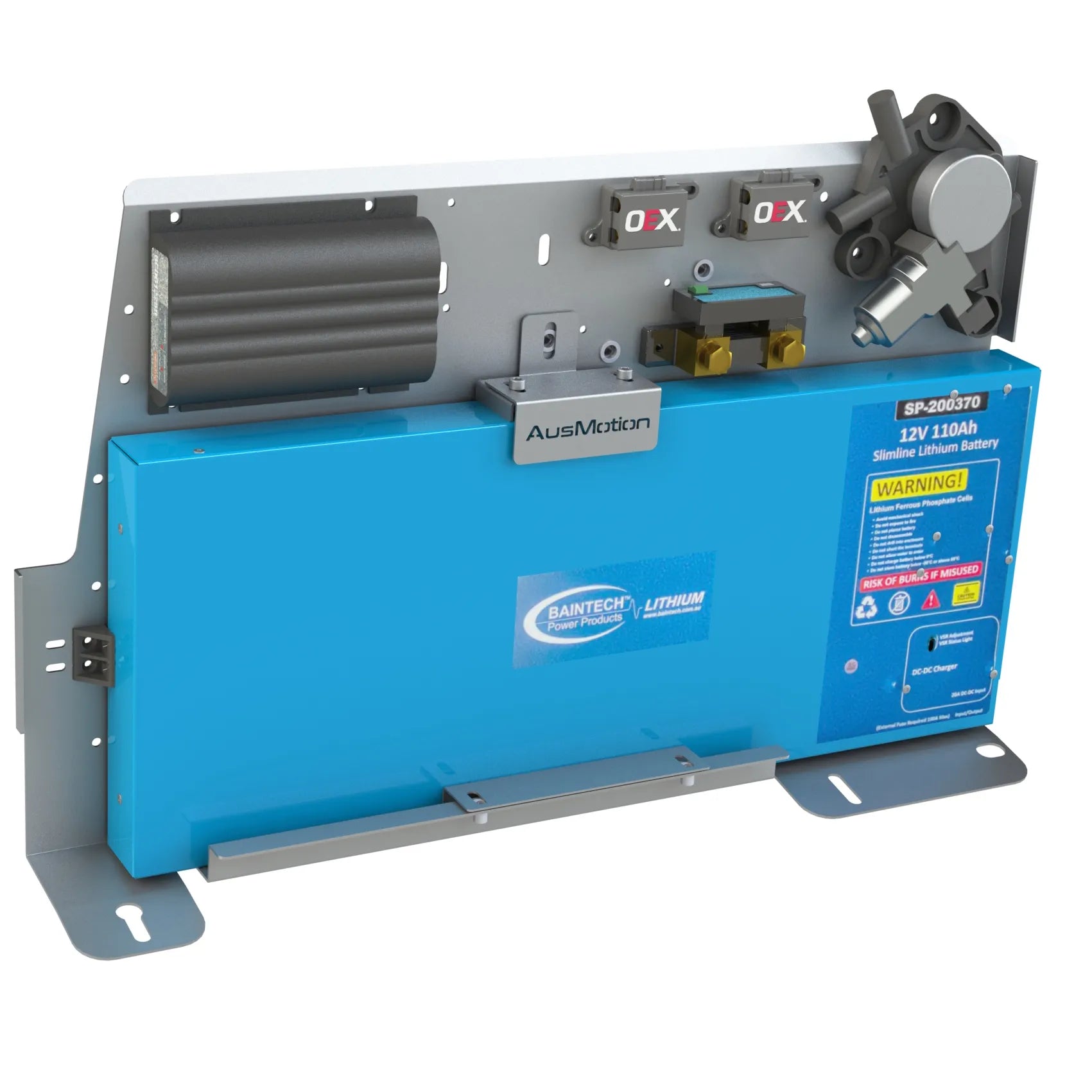

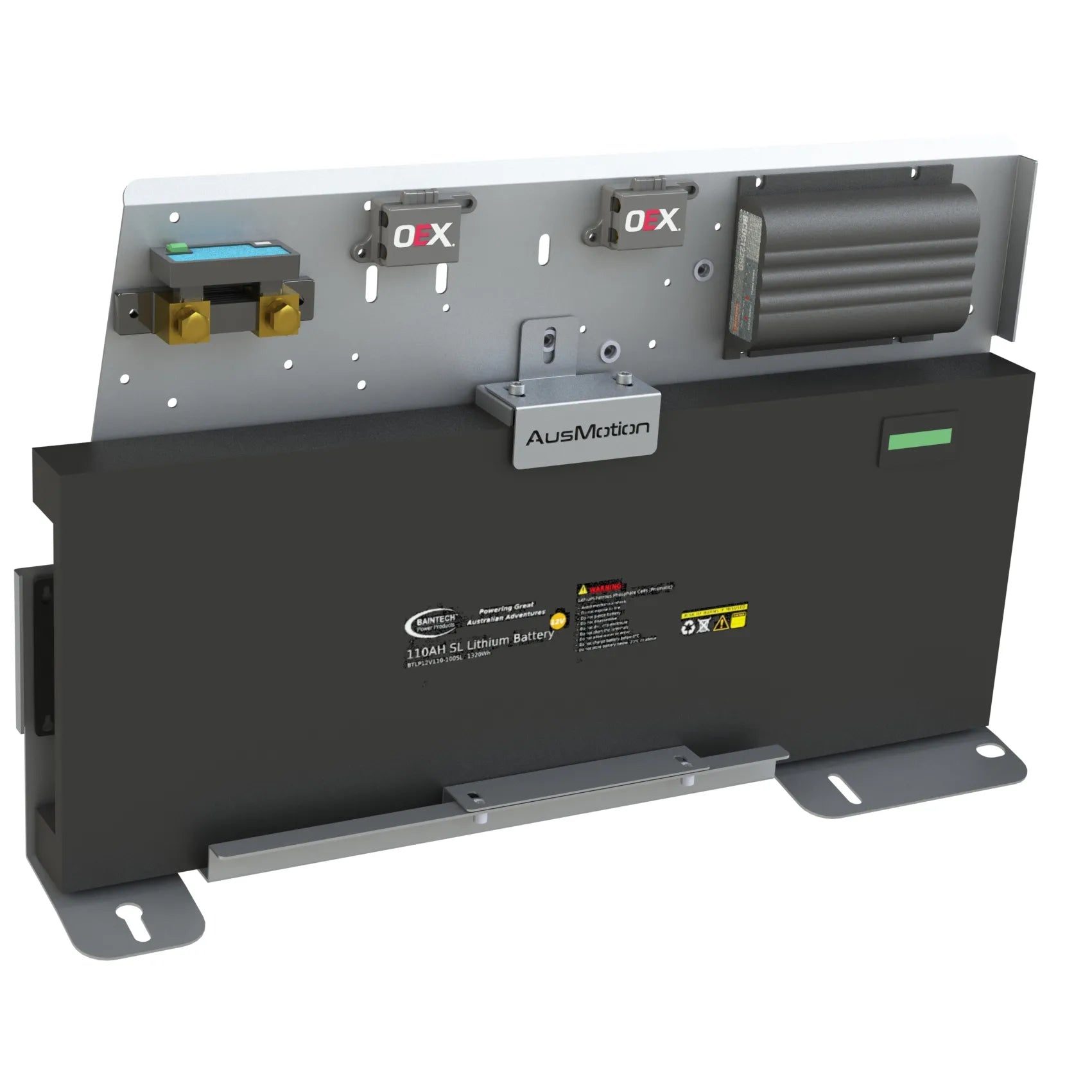

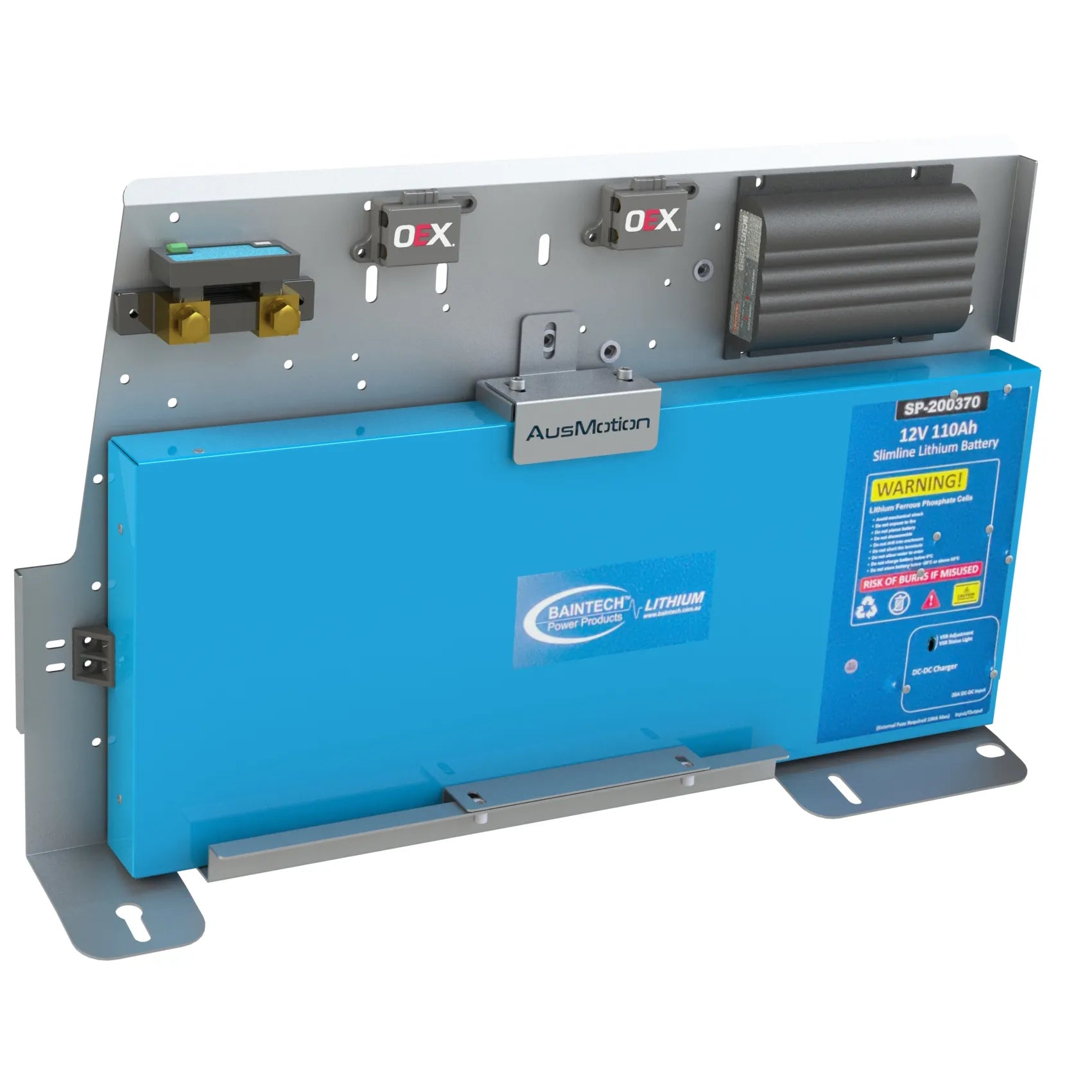

Baintech

• BTLP12V110-100SL (Most recent variant with screw terminals on the end)
• BTLITH-1275-SL
• BTLITH -1275-SL-DCS
• BTLITH -12110-SL
• BTLITH -12110-SL-DCS

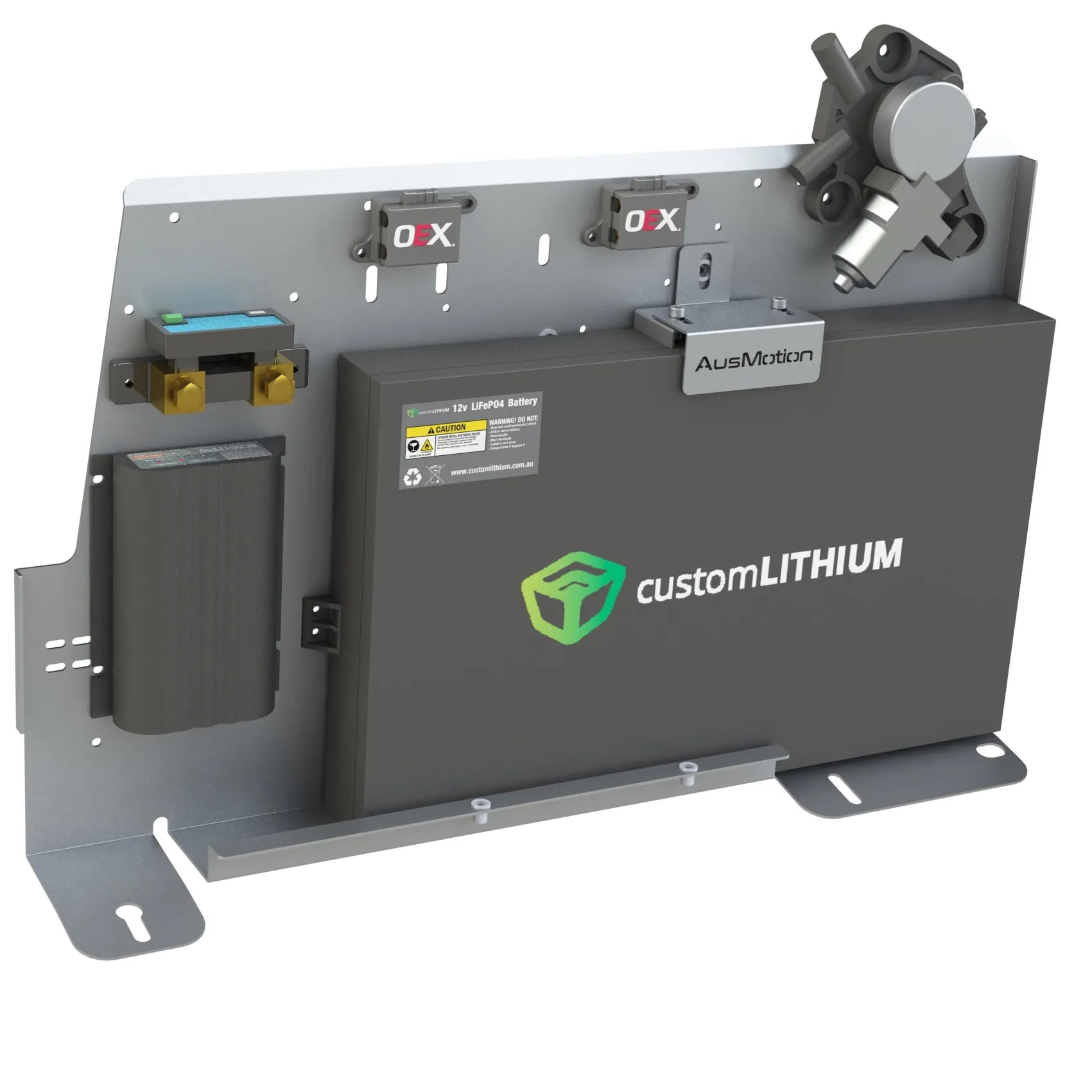

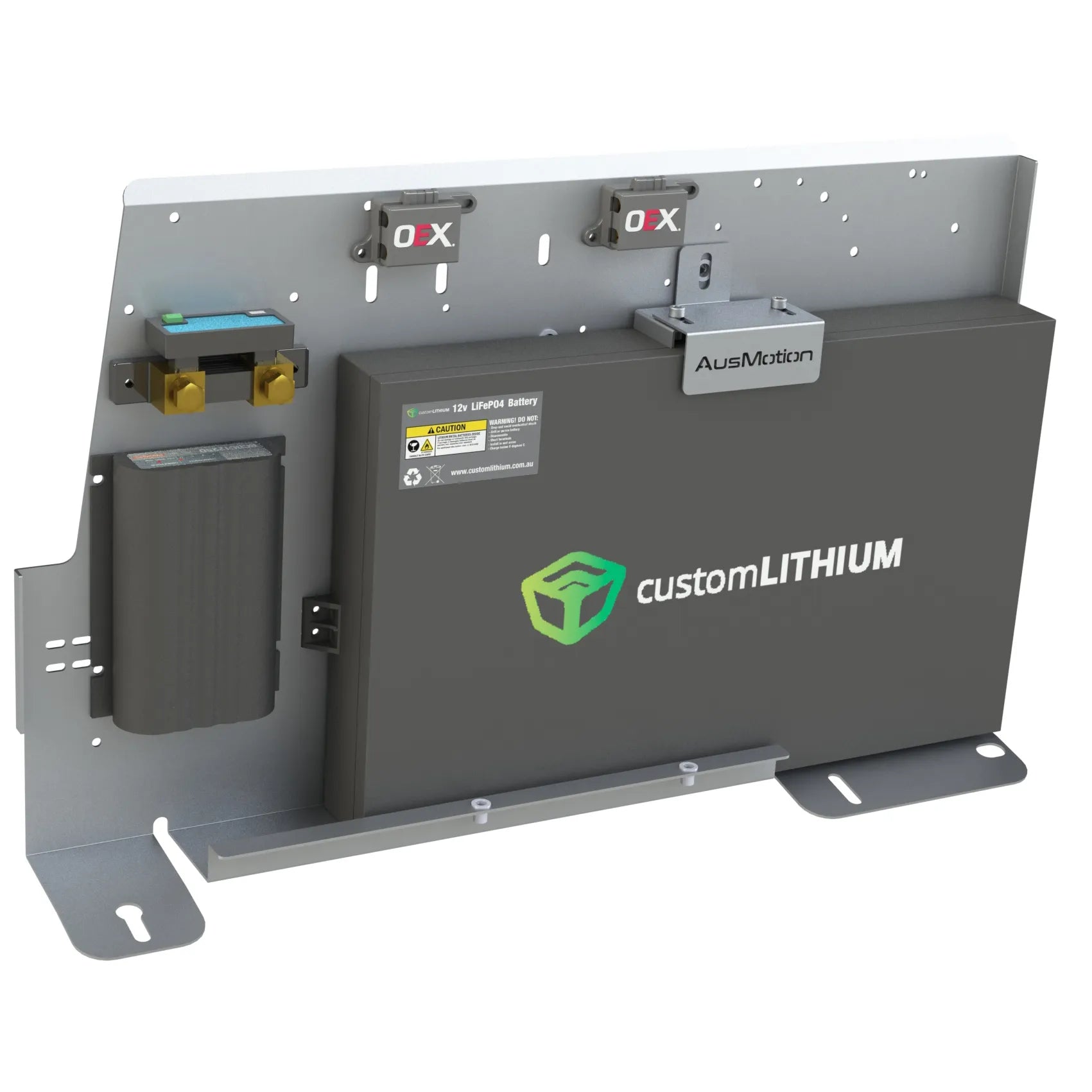

Custom Lithium

• 100Ah Super-slim lithium – Plastic and metal case versions, all terminal types.

Vehicle Compatibility

This product is designed to fit the following vehicles:

• Mazda BT50 4×4 Dual Cab (3rd generation “TF” June 2020 onward)
• Isuzu DMax 4×4 Dual Cab (3rd generation “RD” October 2019 onward)
• Nissan Navara 4×4 Dual Cab (3rd Generation “NP300” June 2014 onward)
• Mercedes X-Class 4×4 Dual Cab

Installation Notes – BT50 and DMax

The installer must use a drill to increase the size of one hole in a bracket on the back wall of the cab (see photo). An M6 thread insert (supplied with the battery mount) must then be fitted to that hole using a simple, cost effective tool available from tool shops and large hardware stores. This product cannot be fitted without the supplied thread insert being added to the vehicle.

The plastic trim panel that is fitted to the back wall of the cab and the other down the side of the back wall will need to be trimmed a little during installation.

Installation Notes – Navara and X-Class

Suitable for all NP300 Navara vehicles, including those with the electric rear sliding window. Early vehicles without ISOFIX rear seat anchors require thread inserts or M10 bolts (not included) to be fitted in the vehicle floor to secure the battery mount.

For vehicles with the electric sliding rear window, the actuator is relocated to above the battery. It’s proven to work well in this new location but the installer will need to extend the wiring to the actuator (a basic two wire cable).

Requires no drilling or cutting of metalwork to install this product in vehicles with ISOFIX rear seat anchors.

Installation Notes – All Vehicles

Installation takes approximately one hour.

Includes pre-cut holes for Redarc BCDC charger, multiple midi fuse holders, Victron shunt.

Carpet on back wall of the cab must be removed to install this product. You may decide to trim the carpet panel and fit the remains on either side of the battery mount but most owners opt to leave the carpet panel out of the vehicle.

Material

• Stainless Steel
• Injection Moulded Plastic
