DOMINATOR EXTREME 2 SERIES DRIVING LIGHTS (PAIR)

The Dominator Extreme 2 (DX2) Series by Roadvision is the ultimate in performance LED lighting. Focused on long range beam penetration with a lower short-range intensity, the DX2 Series are perfect for highway driving. Providing seriously extreme performance, the DX2 delivers a combination beam that reaches up to a whopping 1200m @ 1lx per light! Featuring up to 33 x 6W Osram LED’s and Roadvision’s Thermal Management Technology, the DX2 Series not only outperform, they outlast. Constructed with tough, yet light weight, die cast aluminium mounting brackets, aluminium housings, and polycarbonate lens, they are built for everything extreme.

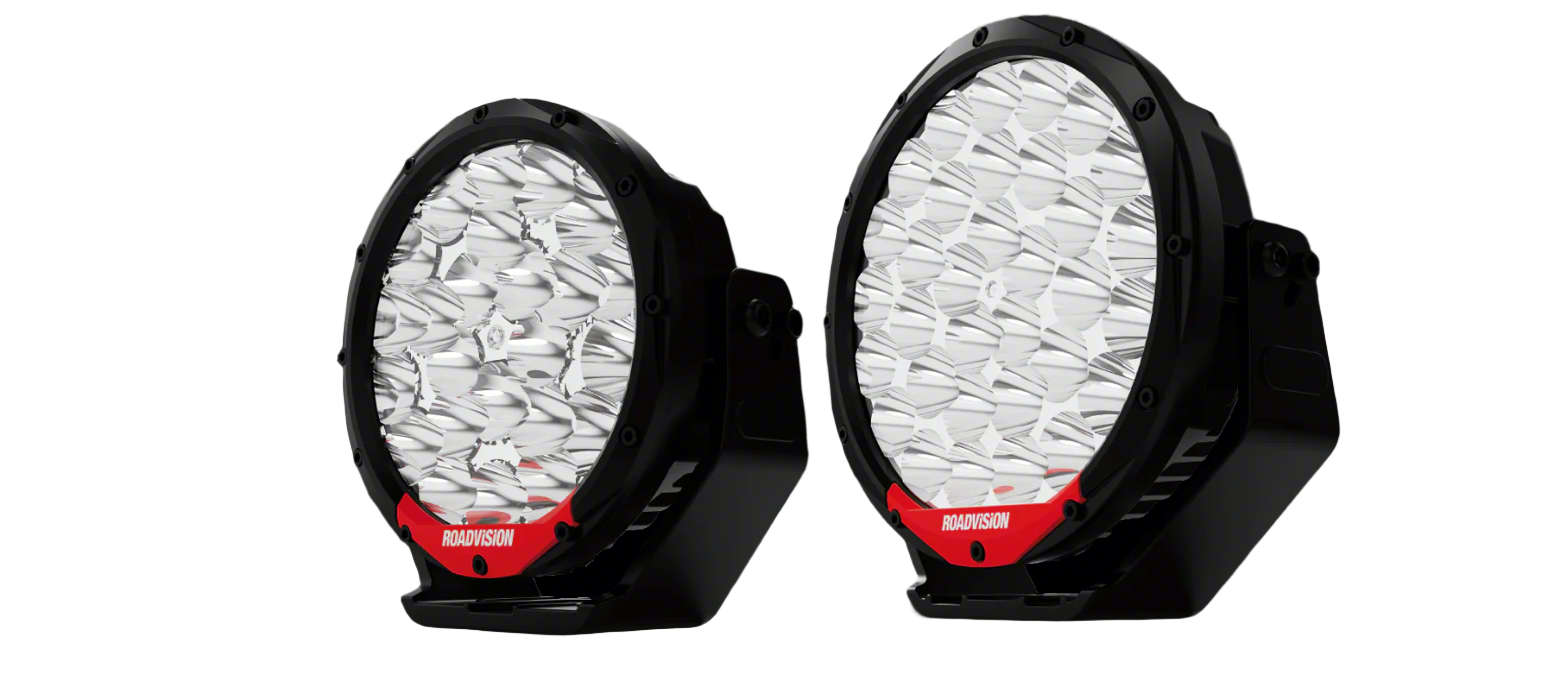

• Dominator Extreme 2 (DX2) Series 7″ and 9” Driving Light
• Blackout mounting hardware

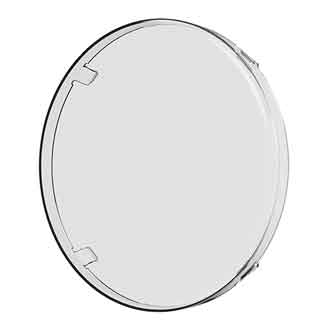

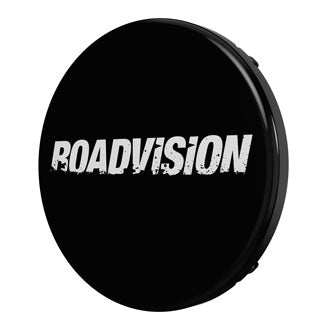

• Includes 2 Protective Covers – Clear & Black
• Bright white light produced by 6W Osram LED’s
• Multi-volt 9-36V DC input & low current draw
• 50,000 hour LED lifespan with solid state technology
• Thermal Management Technology
• Light weight die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP68 rated
• Over/under voltage, reverse polarity protection
• Light weight tough aluminium mounting bracket
• CISPR25 approved

	THERMAL MANAGEMENT TECHNOLOGY
	MULTI-VOLT 9-36 VDC
	POLYCARB LENS
	ALUMINIUM HOUSING
	COLOUR TEMP
	WATERPROOF
	OVER/UNDER VOLTAGE PROTECTION
	REVERSE POLARITY PROTECTION
	DEUTSCH CONNECTOR
	OSRAM LEDS
	EMC
	7 YEAR WARRANTY

7" BEAM PATTERN (RDL5700C)

9" BEAM PATTERN (RDL5900C)

Part Number	RDL5700C	RDL5900C
Description	DLX2 Series 7" LED Driving Light	DLX2 Series 9" LED Driving Light
Beam Pattern	Combination	Combination
Maximum Lumens per Light (pair)	5,671lm (11,342lm)	6,578lm (13,156lm)
Maximum Lux @ 10m per Light (pair)	9,560lx (19,120lx)	14,400lx (28,800lx)
Maximum BEAM DISTANCE @ 1lx per Light (pair)	978m (1,383m)	1,200m (1,697m)
MAXIMUM BEAM DISTANCE @ 0.5LX per Light (pair)	1,383m (1,926m)	1,697m (2400m)
Input Voltage	9-36VDC	9-36VDC
Maximum Watts	133W	150W
Number of LEDS	24 x 6W Osram	33 x 6W Osram
Current Draw @ 13.8V	9.6 Amps	10.9 Amps
Lens Construction	Polycarbonate	Polycarbonate
Housing Construction	Die-Cast Aluminium	Die-Cast Aluminium
Wiring	2 Pin Deutsch Plug	2 Pin Deutsch Plug
Dimensions AxBxC	197 x 80 x 199mm	227 x 100 x 234mm
