DIST POST DUAL M8 RED BRIDGE

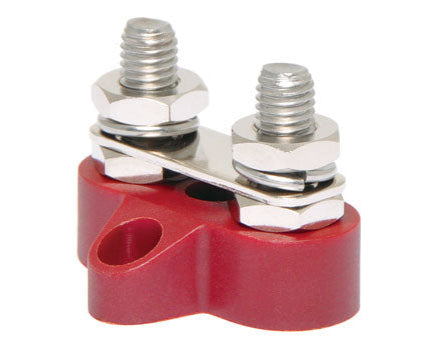

Dual Red M8 Power Distribution Post with Bridge Plate

The Dual Red M8 Power Distribution Post with Bridge Plate provides a safe, reliable way to link and distribute high-current power across multiple circuits. Featuring twin M8 studs joined by a solid bridge plate, it’s ideal for battery banks, inverters, DC systems, and dual battery installations in 4WDs, caravans, boats, and off-grid setups.

Key Features:

• Dual M8 terminals with conductive bridge plate for solid power linking
• High-current handling – ideal for main power feeds and ground distribution
• Red insulation base for easy circuit identification
• Compact and durable design – suited to automotive, marine, and industrial use
• Provides a central point for power distribution, connection, or grounding
• Mounting holes for secure installation to panels or boards

Specifications:

• Stud size: M8
• Configuration: Dual linked posts with conductive bridge plate
• Voltage rating: 12V / 24V DC compatible
• Current rating: High-current capacity (varies by installation)
• Colour: Red (also available in Black for negative)
• Base: Insulated thermoplastic with mounting points

Ideal for:

• Dual battery system linking
• Caravan and 4WD power distribution
• Inverter and DC charger connections
• Custom fuse box and switch panel builds
