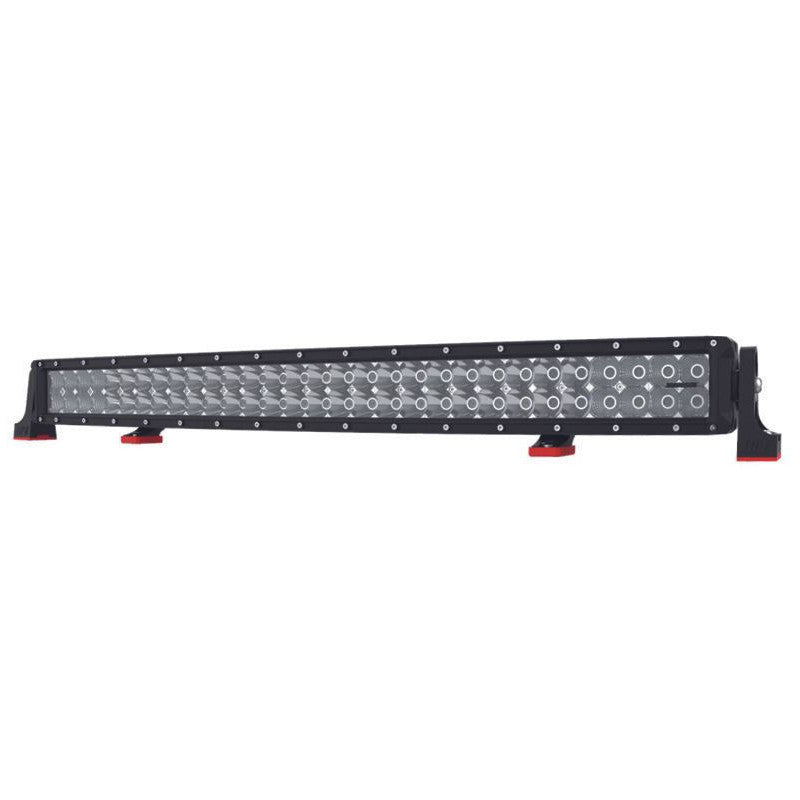

DCX2 Series 32" Dual Row Combo Beam Light Bar

💡 Roadvision DCX2 Series Curved 32" LED Light Bar

Curved Design. Wider Coverage. Maximum Output.

The Roadvision DCX2 Series Curved LED Light Bars deliver next-level lighting performance with enhanced visibility, combining massive output, advanced optics, and a curved design that follows the natural contour of your vehicle.

Producing an incredible 16,200 lumens, the DCX2 Series uses premium 3W Osram Hi-Lux LEDs and precision optical engineering to deliver powerful forward beam distance while dramatically improving side illumination.

The curved light bar design expands your field of view, making it ideal for open roads, off-road tracks, and high-speed night driving, where visibility across the entire road is critical.

Built tough with die-cast aluminium housing, advanced thermal management, and IP67 protection, the DCX2 Series is designed to perform in the harshest Australian conditions.

🚗 Why Choose the DCX2 Series 32" Curved Light Bar?

✔ Curved Light Arc Design – Wider beam angle and better side visibility
✔ Massive Output – 16,200 lumens
✔ Dual Row LED Power – Intense brightness and coverage
✔ Improved Field of View – Ideal for high-speed and off-road driving
✔ Ultra Slim Housing – Only 65mm deep for easier fitment

⚡ Key Features

💡 3W Osram Hi-Lux LEDs – High-efficiency daylight white output
🌙 Curved Beam Pattern – Expands roadside illumination
🌡 Advanced Thermal Management Technology – Maintains peak performance
⚡ Multi-Volt 10–30V DC – Suitable for 12V & 24V systems
🛡 Polycarbonate Lens – Strong and impact resistant
🏗 Die-Cast Aluminium Housing – Lightweight yet durable
💧 IP67 Water & Dust Protection – Built for harsh environments
🔌 Deutsch / ATP Connectors – Secure waterproof connections
🔄 Reverse Polarity Protection – Prevents electrical damage
📡 EMI / EMC Approved – No radio interference
⏳ 50,000 Hour LED Lifespan
🛠 7 Year Warranty

🔧 Advanced Mounting System

✔ 9-Position Adjustable Anti-Vibration End Mounts
✔ Low Profile Slide Mount System
✔ Simple 2-Wire Installation

Perfect for bull bars, roof racks, canopies, and off-road builds.

🔦 DCX2 Series Performance

32” DCX2 Curved Light Bar – RBL6320C

💡 16,200 Lumens
📏 Beam Distance: 818m
⚡ Power: 180W

📏 Dimensions

🛠 Perfect For

🚙 4WD & Off-Road Vehicles
🚚 Trucks & Heavy Vehicles
🌲 Touring & Overlanding
🏕 Open Road Night Driving
🚜 Agricultural & Industrial Applications

🛒 See More. Drive Safer.

Upgrade to the Roadvision DCX2 Series Curved LED Light Bars and experience wider visibility, massive output, and superior off-road lighting performance.
