CYRIX-CT 12/24V-120A BATTERY COMBINER KIT RETAIL

* LAST CHANCE 1 LEFT ONLY*

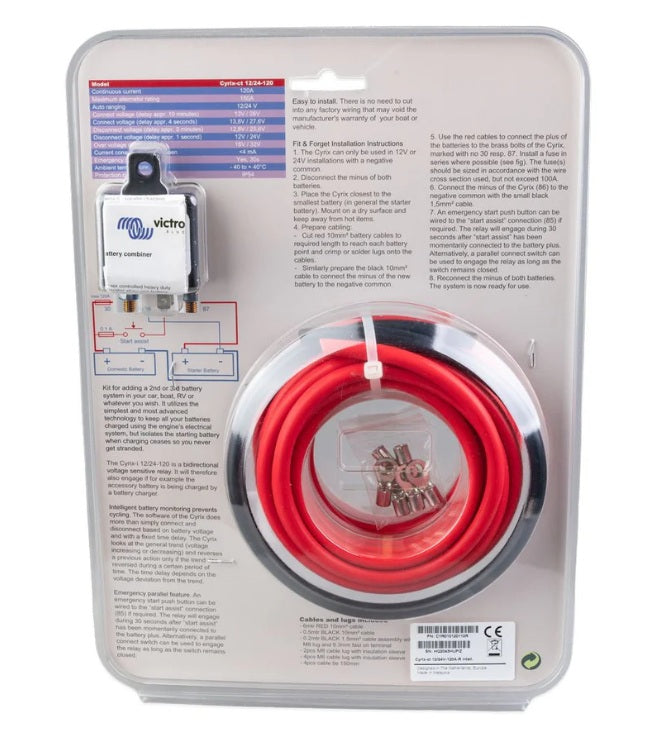

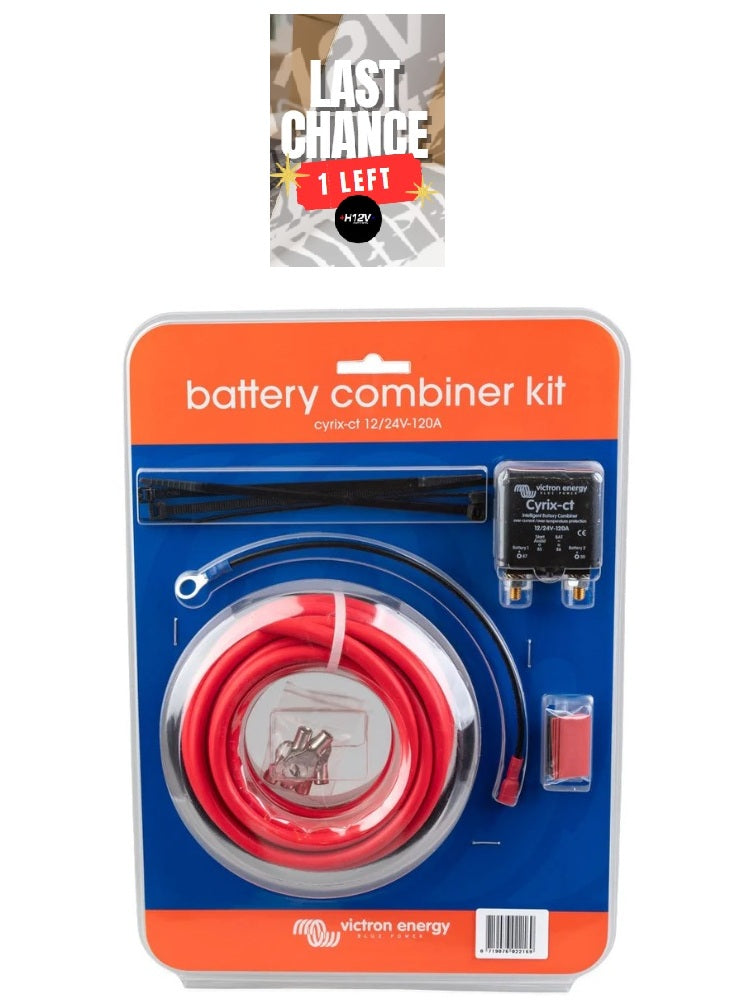

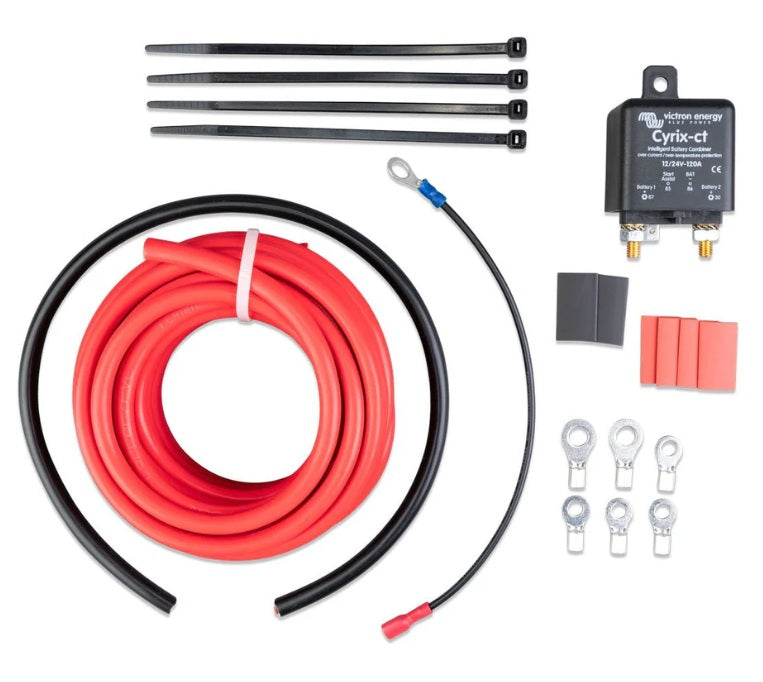

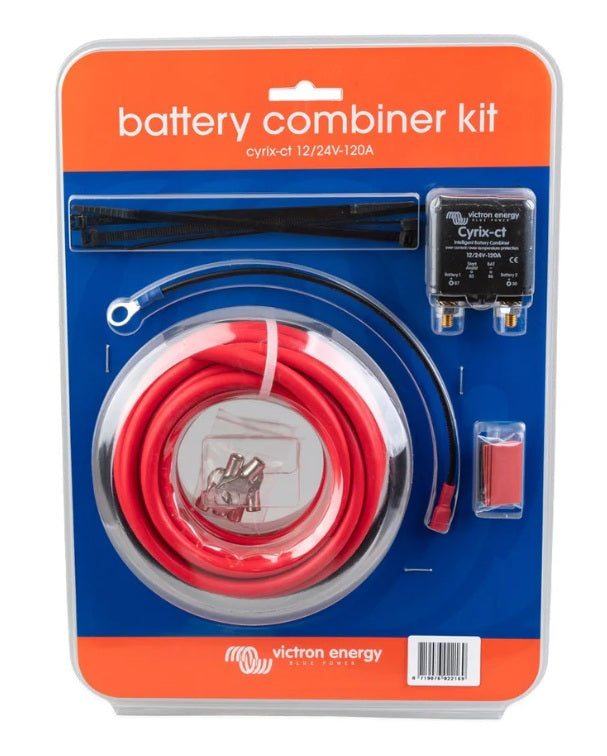

Victron Cyrix-CT 12/24V 120A Battery Combiner Kit – CYR010120110R

The Victron Cyrix-CT 120A Battery Combiner is a smart, automatic voltage-sensitive relay designed to seamlessly manage dual battery systems. Ideal for 12V and 24V setups in 4WDs, caravans, boats, and off-grid systems, it ensures optimal charging and battery isolation—without the need for manual switching or complex wiring.

Key Features:

• Automatic Battery Combining & Isolation – Connects batteries when charging, isolates when voltage drops to protect your start battery.
• 12V/24V Auto Detection – Automatically adapts to system voltage without manual configuration.
• High Current Capacity – Handles up to 120A continuous, suitable for most dual battery setups.
• No Voltage Drop – Solid-state design eliminates the voltage drop commonly found in diode-based isolators.
• Bidirectional Voltage Sensing – Charges from either battery bank—ideal when solar, alternator, or DC-DC chargers are in use.
• LED Indicator – Provides visual confirmation of relay status.
• Ignition-Protected – Safe for use in engine compartments and marine environments.

Specifications:

• Voltage: 12V / 24V auto-sensing
• Continuous Current: 120A
• Peak Current (5 sec): 180A
• IP Rating: IP54
• Part Number: CYR010120110R

Ideal For:

• Dual battery systems in 4WDs, caravans, and RVs
• Marine and off-grid power setups
• Applications where automatic battery management is needed

Backed by Victron’s reputation for quality and innovation, the Cyrix-CT delivers dependable performance in even the harshest conditions.
