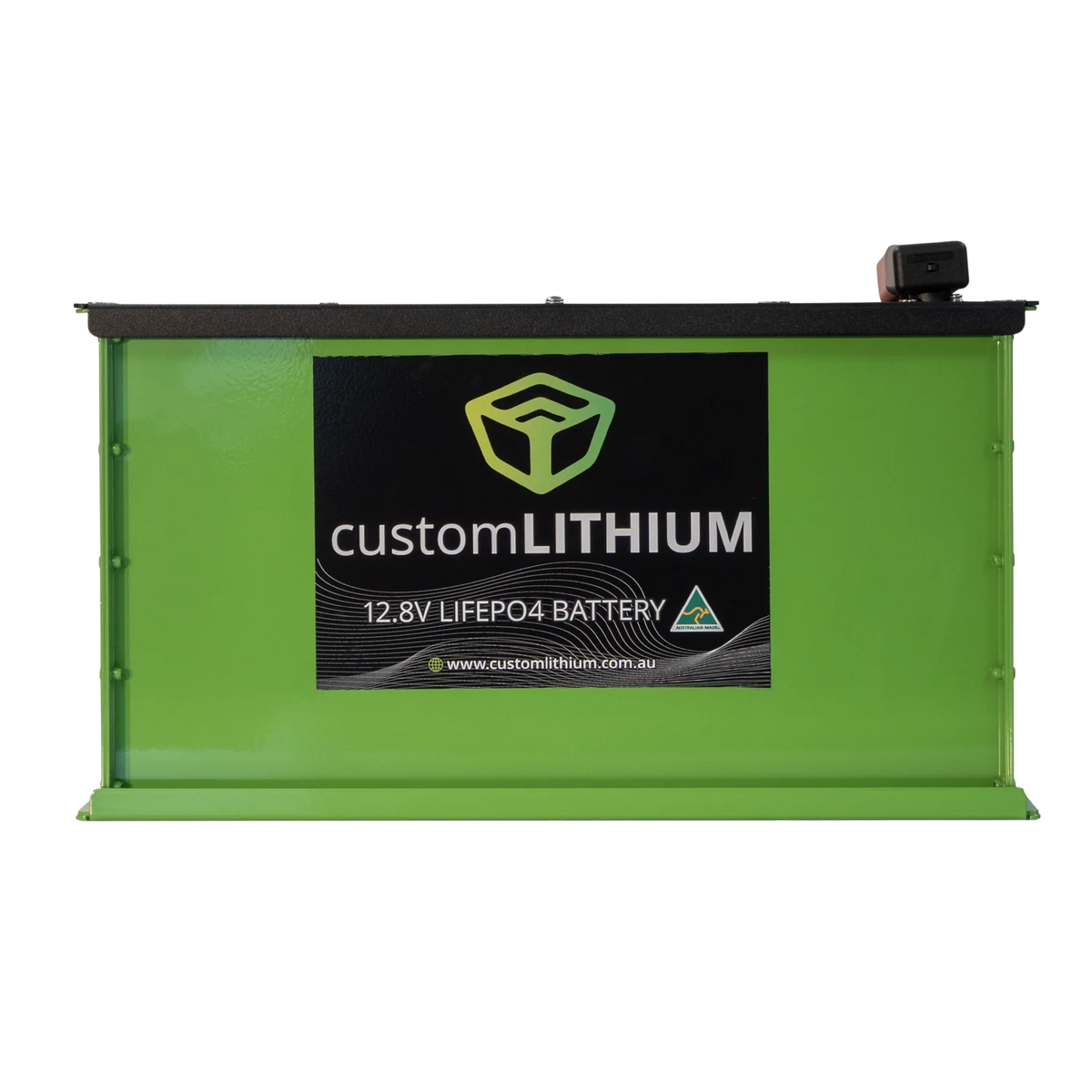

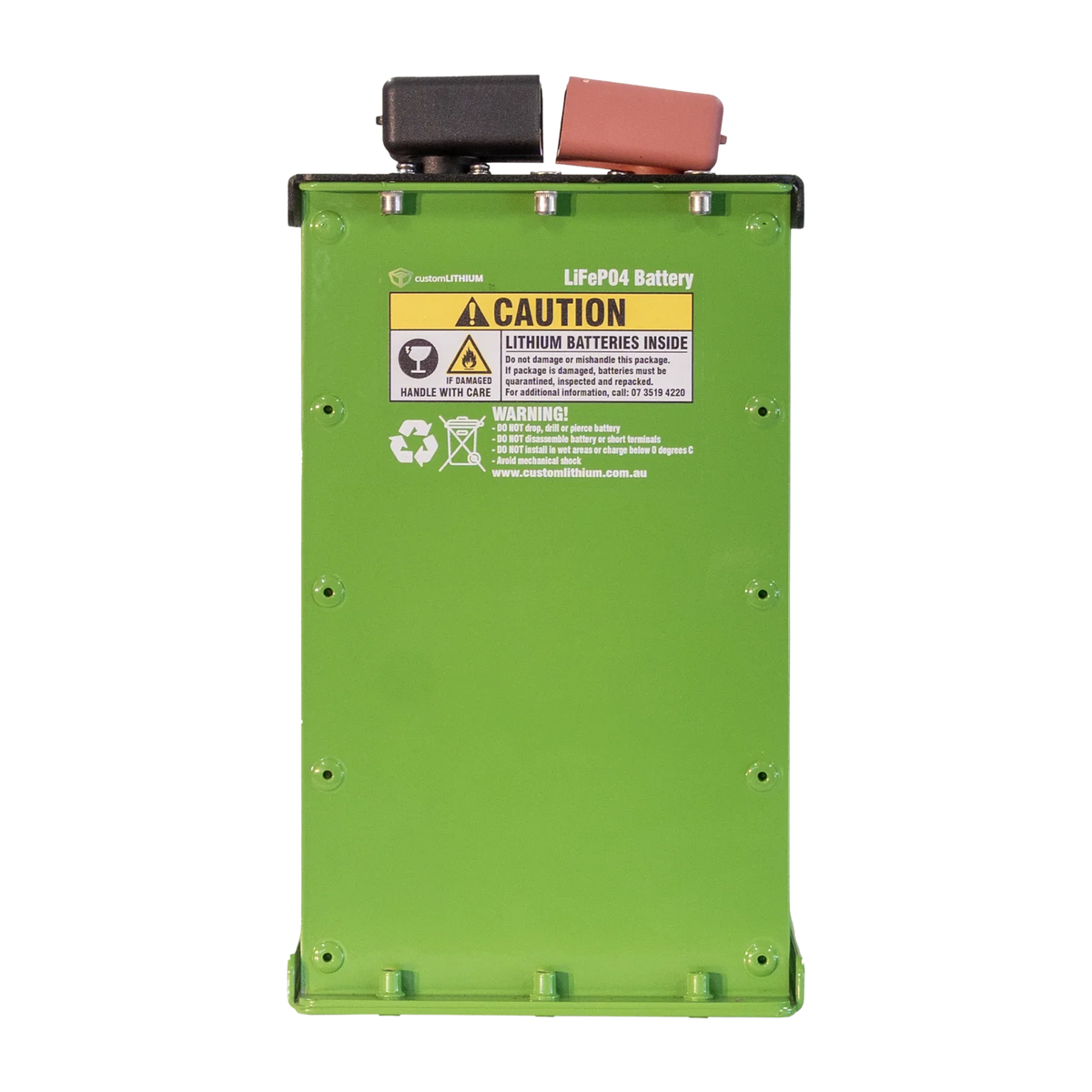

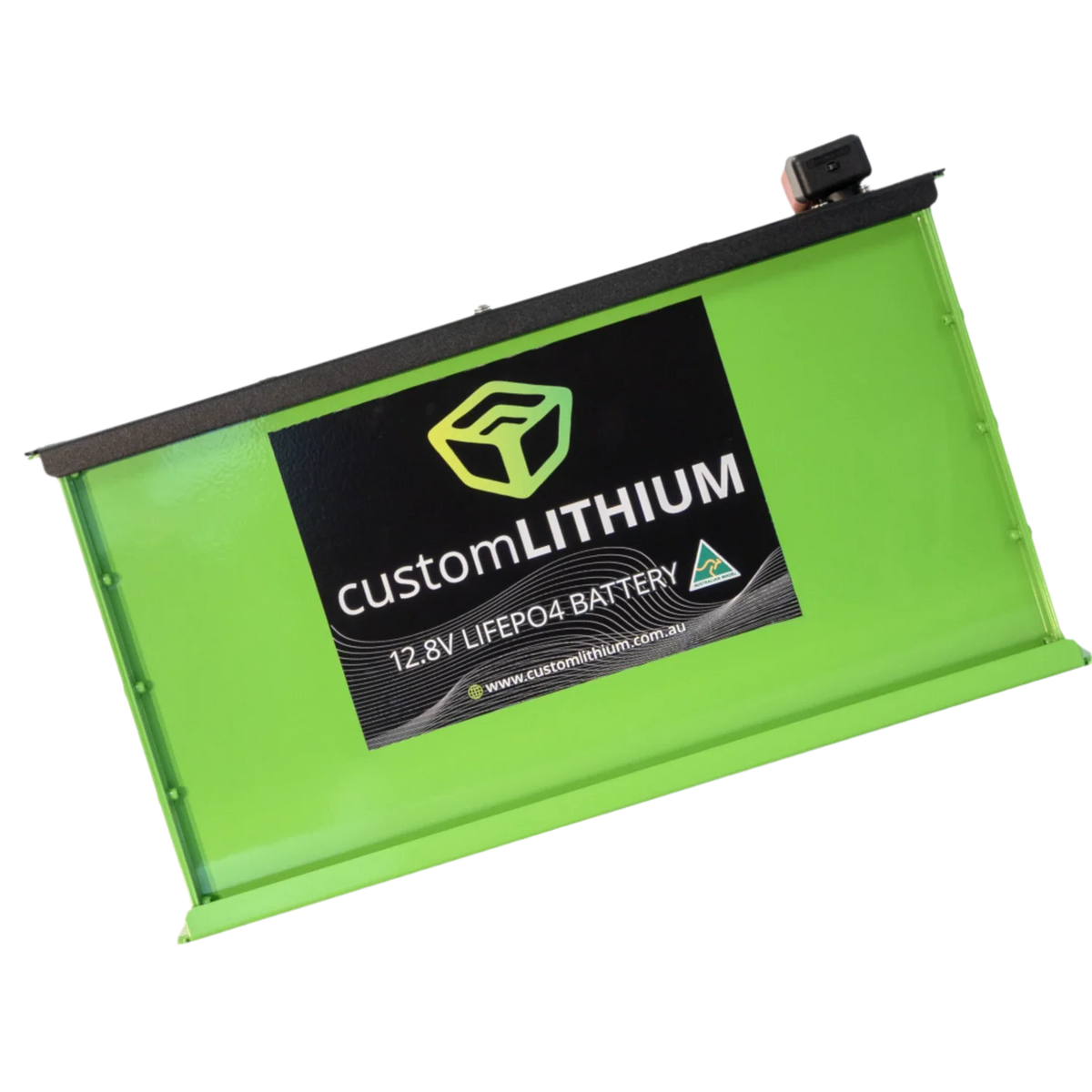

Next Generation Slim 100Ah LiFePO4 Battery | 180A BMS

🔋 CUSTOM LITHIUM NEXT GENERATION SLIM 100AH LiFePO4 BATTERY – AUSTRALIAN MADE

100Ah • 12.8V LiFePO4 • 180A Continuous Discharge • Aluminium Enclosure • Rivnut Mounting • 13.5kg • 7 Year Warranty

The Custom Lithium Next Generation Slim 100Ah Battery is a rugged, space-conscious lithium battery designed for 4WDs, canopies, caravans and custom off-grid installations where durability and compact packaging are critical.

Its upgraded precision-engineered aluminium enclosure incorporates rivnut mounting points to provide a strong and practical installation solution for demanding touring, trade and recreational applications.

With 100Ah of LiFePO4 capacity, a stated 180A continuous discharge capability, premium A-grade automotive cells, a high-current Heltech BMS and active cell balancing, the Next Generation Slim is designed to support both demanding 12V loads and appropriately engineered inverter systems.

---

⭐ KEY FEATURES

🔋 100Ah LiFePO4 Capacity
Provides compact lithium energy storage for 4WD, caravan, canopy and off-grid auxiliary systems.

⚡ 180A Continuous Discharge
High-current capability supports demanding 12V equipment and appropriately designed inverter installations.

🛡️ Precision Aluminium Enclosure
The upgraded aluminium casing is designed to provide strength, durability and long-term protection in harsh touring environments.

🔩 Integrated Rivnut Mounting
Rivnut fasteners provide practical mounting points for secure installation in vehicles, canopies and custom off-grid builds.

📐 Slim Installation Profile
Designed for applications where available battery space is limited and a conventional battery shape may not be suitable.

🔥 Flame-Resistant Internal Construction
The supplied product information states that the upgraded battery incorporates flame-resistant internal materials for additional protection.

🧠 High-Current Heltech BMS
The battery management system helps safeguard against overheating and over-discharge while managing battery operation.

⚖️ Active Cell Balancing
The integrated active balancer helps manage individual cells and maintain consistent battery performance.

🔋 A-Grade Automotive LiFePO4 Cells
Built using premium lithium iron phosphate cells for demanding vehicle and off-grid applications.

🧪 Individually Bench Tested
Each battery is individually bench tested before supply as part of Custom Lithium's quality-control process.

🇦🇺 Australian Made
Built in Brisbane and supplied as a certified Australian Made product.

🛡️ 7 Year Warranty
Backed by a full 7-year manufacturer warranty.

---

🚙 BUILT FOR 4WDS, CANOPIES & OFF-GRID INSTALLATIONS

The Next Generation Slim range is designed for installations where space is limited but strength and performance cannot be compromised.

Suitable applications can include:

• 4WD auxiliary battery systems
• Ute canopy installations
• Caravan & camper systems
• Touring vehicles
• Mobile trade setups
• Remote-work power systems
• Custom off-grid builds

---

🔩 RUGGED NEXT-GENERATION ALUMINIUM CONSTRUCTION

The upgraded battery enclosure is manufactured from precision-engineered aluminium and incorporates integrated rivnut mounting points.

This design is intended to provide a stronger, more installation-friendly battery package for demanding Australian touring conditions, corrugated roads and vehicle-based applications.

Internal components are also described as being protected against vibration to help improve durability during remote and rough-road travel.

---

🚐 POWER FOR YOUR OFF-GRID SETUP

The 100Ah Next Generation Slim can support compatible equipment including:

• ❄️ 12V fridges & freezers
• 💡 Vehicle & camp lighting
• 📡 Starlink
• 💻 Computers & electronics
• 📷 Cameras & charging equipment
• 💨 Air compressors
• 🛠️ Compatible tools & battery chargers
• 🔌 Compatible 240V appliances through a suitable inverter

---

🔋 PREMIUM LiFePO4 CELL TECHNOLOGY

The battery is constructed using A-grade automotive LiFePO4 cells, combined with a high-current BMS and active cell balancing.

The supplied product information describes LiFePO4 as a suitable chemistry for demanding vehicle and off-grid applications where safety, reliability and performance are important.

---

📊 TECHNICAL SPECIFICATIONS

Capacity: 100Ah

Nominal Voltage: 12.8V

Continuous Discharge: 180A

Peak Discharge / Protection: 800–1000A as specified by manufacturer

Recommended Charge Current: 50A

Charge Voltage: 14.2–14.6V

Absorption / Float Voltage: 13.4–13.6V

Low-Voltage Cut-Off: 10.5V

Operating Temperature: 0°C to 60°C

Terminals: M8

Battery Body Dimensions: 422mm L × 150mm W × 205mm H

Overall Dimensions: 422mm L × 150mm W × 245mm H

Weight: Approx. 13.5kg

Battery Chemistry: LiFePO4

BMS: Heltech High-Current BMS

Cell Balancing: Active Balancer

Enclosure: Precision-Engineered Aluminium

Mounting: Integrated Rivnut Fasteners

Warranty: 7 Years

Manufactured: Brisbane, Australia

---

⚡ HIGH-CURRENT PERFORMANCE

The stated 180A continuous discharge capability gives the 100Ah Next Generation Slim substantial current capacity for a battery of its size.

This allows it to support appropriately designed inverter systems and other high-current 12V equipment, provided the inverter, cabling, fusing, connections and complete electrical system are correctly engineered.

---

🔌 CHARGING REQUIREMENTS

The supplied specifications recommend a charge current of up to 50A.

• Bulk / Charge Voltage: 14.2–14.6V
• Absorption / Float Voltage: 13.4–13.6V

Compatible 25A, 30A or 40A DC-DC chargers can also be suitable where configured for the required lithium charging profile, with charging time varying according to charger output.

Your DC-DC charger, solar controller and 240V charger should all be compatible with LiFePO4 batteries and configured to suit the required voltage profile.

---

🇦🇺 AUSTRALIAN MADE

Custom Lithium states that its batteries are Australian Made and built in Brisbane.

Each battery is individually bench tested before supply and backed by a 7-year manufacturer warranty.

---

📋 STANDARDS & COMPONENT COMPLIANCE

Custom Lithium states that its batteries are manufactured using IEC 62619-certified components and meet the recommendations of AS/NZS 3001.

---

❓ QUICK FAQ

Where is the Next Generation Slim 100Ah designed to be installed?

It is designed for compact 4WD, canopy, caravan and off-grid installations where available space is restricted. Its slim aluminium enclosure and integrated rivnut mounting points provide additional flexibility for custom mounting.

Can I replace an AGM battery with this lithium battery?

Potentially, but the complete charging system must be lithium compatible. Check your DC-DC charger, solar charge controller and 240V charger before changing from AGM to LiFePO4.

What charging profile should I use?

The supplied specifications call for a 14.2–14.6V charge voltage and 13.4–13.6V absorption/float voltage.

What size DC-DC charger can I use?

The stated recommended charge current is up to 50A. Compatible lower-output chargers such as 25A, 30A or 40A units can also be used, with recharge time increasing as charger output decreases.

Can this battery run an inverter?

Yes, as part of an appropriately designed system. The supplied continuous discharge rating is 180A, but suitable inverter size depends on DC current demand, surge requirements, cable sizing, fuse protection and BMS limits.

Are Custom Lithium batteries IEC 62619 certified?

The supplied information states that Custom Lithium batteries use IEC 62619-certified components and meet AS/NZS 3001 recommendations. This does not by itself confirm IEC 62619 certification of the complete assembled battery.

---

🔋 100AH OF HIGH-CURRENT LITHIUM POWER IN A RUGGED SLIM PACKAGE

With 100Ah of LiFePO4 capacity, 180A continuous discharge capability, active balancing, integrated rivnut mounting and a precision-engineered aluminium enclosure, the Custom Lithium Next Generation Slim 100Ah is built for demanding installations where space, strength and performance all matter.

Slim profile. Rugged construction. Australian made.
