Compact 310Ah LiFePO4 Battery | 330A BMS

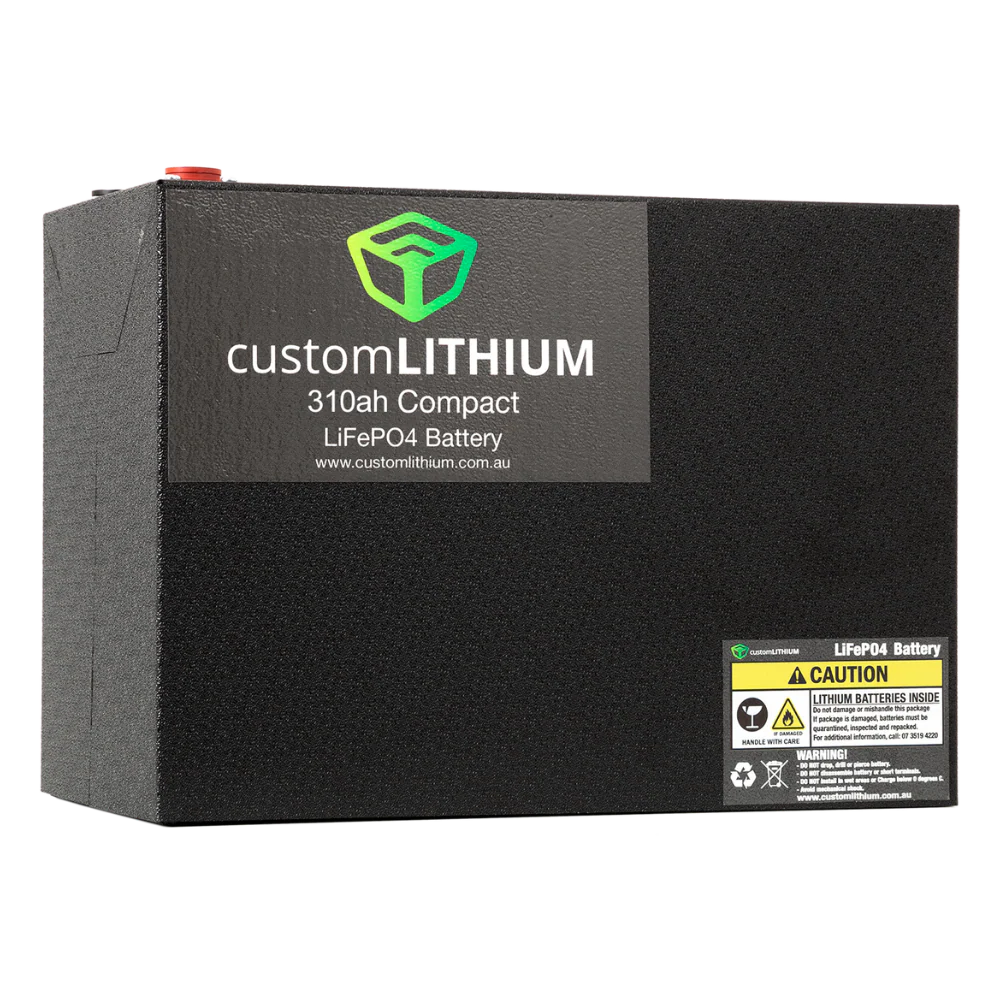

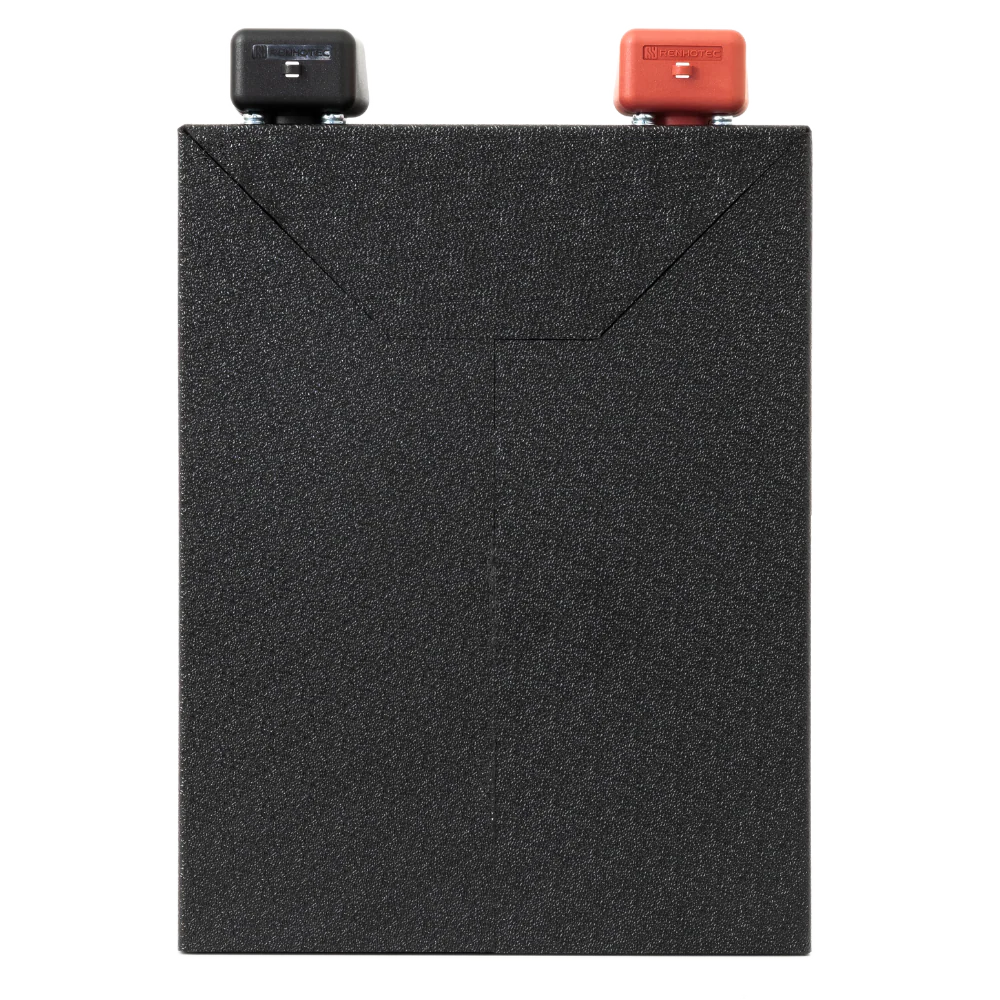

🔋 CUSTOM LITHIUM COMPACT 310AH LiFePO4 BATTERY – AUSTRALIAN MADE

310Ah • 12.8V LiFePO4 • 330A Continuous Discharge • Active Balancing • 25.5kg • 7 Year Warranty

The Custom Lithium Compact 310Ah Battery delivers substantial off-grid energy storage in a compact format designed for caravans, RVs and larger auxiliary power systems.

Built in Brisbane using premium A-grade automotive LiFePO4 cells, it combines a high-current Heltech BMS, active cell balancing and a high-strength ABS enclosure in a package weighing approximately 25.5kg.

With 310Ah of lithium capacity and a stated 330A continuous discharge capability, this battery is well suited to systems running refrigeration, lighting, communications equipment, electronics and appropriately designed high-power inverter loads.

---

⭐ KEY FEATURES

🇦🇺 Australian Made
Built in Brisbane and supplied as a certified Australian Made product.

🔋 310Ah LiFePO4 Capacity
Provides substantial energy storage for caravans, RVs and off-grid auxiliary power systems.

⚡ 330A Continuous Discharge
High-current capability supports demanding 12V equipment and appropriately designed inverter installations.

🧠 High-Current Heltech BMS
The battery management system helps protect against operating conditions such as overheating and over-discharge.

⚖️ Active Cell Balancing
An integrated active balancer helps maintain consistency between individual cells to support stable battery performance.

📐 Compact 338 × 190 × 275mm Overall Size
Packs 310Ah of lithium capacity into a relatively compact footprint for caravan and RV installations.

🛡️ High-Strength ABS Enclosure
The custom enclosure is designed to protect the internal battery components while keeping the footprint manageable.

🚙 Built for Touring
Internal components are insulated against vibration to help protect the battery from corrugations and the effects of remote-area travel.

🧪 Individually Bench Tested
Each battery is individually tested before supply as part of Custom Lithium's quality-control process.

⚖️ Approx. 25.5kg
Provides substantial lithium capacity without the weight typically associated with equivalent lead-acid battery banks.

🛡️ 7 Year Warranty
Backed by a full 7-year manufacturer warranty.

---

🚐 BUILT FOR HIGH-CAPACITY OFF-GRID SYSTEMS

With 310Ah of capacity available, this battery can form the foundation of a substantial caravan or RV electrical system.

It can support compatible equipment including:

• ❄️ 12V fridges & freezers
• 💡 Caravan & camp lighting
• 📡 Starlink
• 💻 Computers & electronics
• 📷 Camera & charging equipment
• 💨 Air compressors
• 🔌 Compatible 240V inverter systems
• ☕ Coffee machines through a correctly sized inverter
• 🍳 Induction cooking through an appropriately designed inverter system

---

🔋 PREMIUM LiFePO4 CELL TECHNOLOGY

The battery is constructed using A-grade automotive LiFePO4 cells combined with a high-current BMS and active balancing system.

The supplied product information describes LiFePO4 as the preferred chemistry for demanding applications where safety, reliability and performance are important.

---

📊 TECHNICAL SPECIFICATIONS

Capacity: 310Ah

Nominal Voltage: 12.8V

Continuous Discharge: 330A

Peak Discharge / Protection: 1060–1600A as specified by manufacturer

Recommended Charge Current: 100A

Charge Voltage: 14.2–14.6V

Absorption / Float Voltage: 13.4–13.6V

Low-Voltage Cut-Off: 10.5V

Operating Temperature: 0°C to 65°C

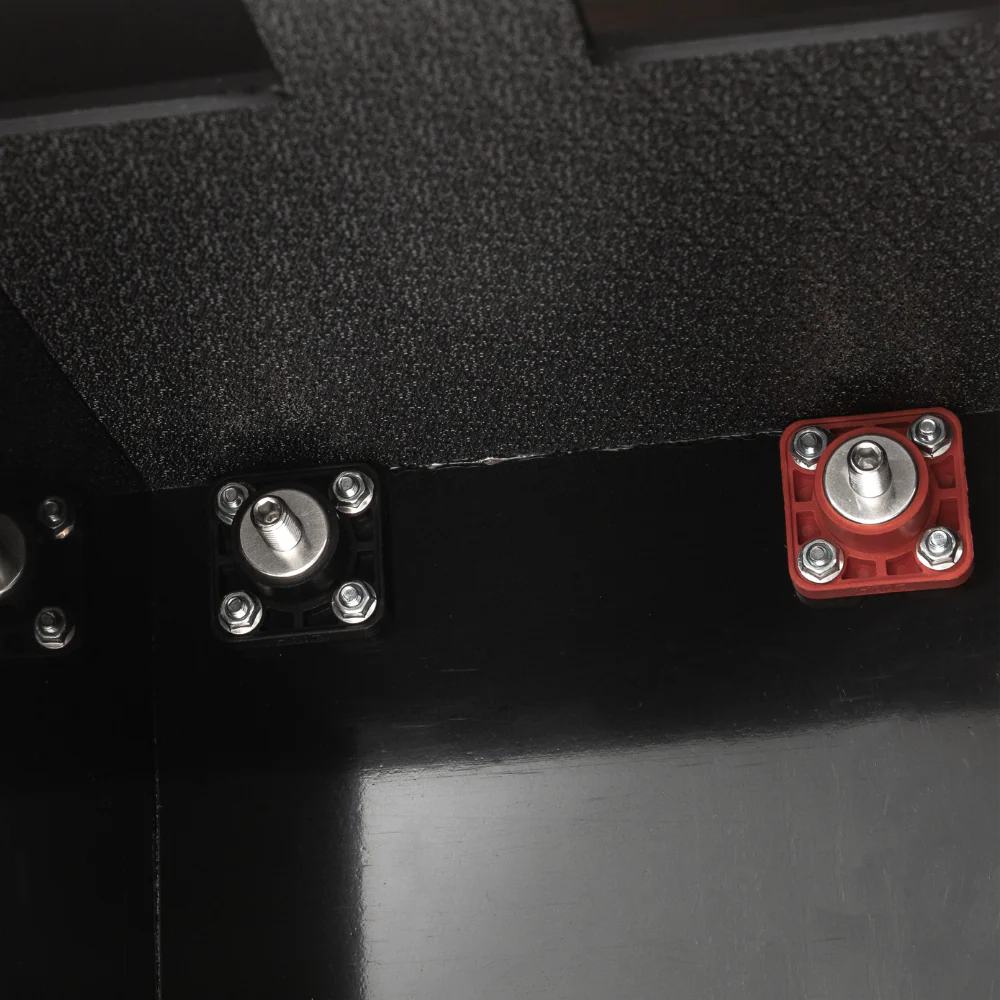

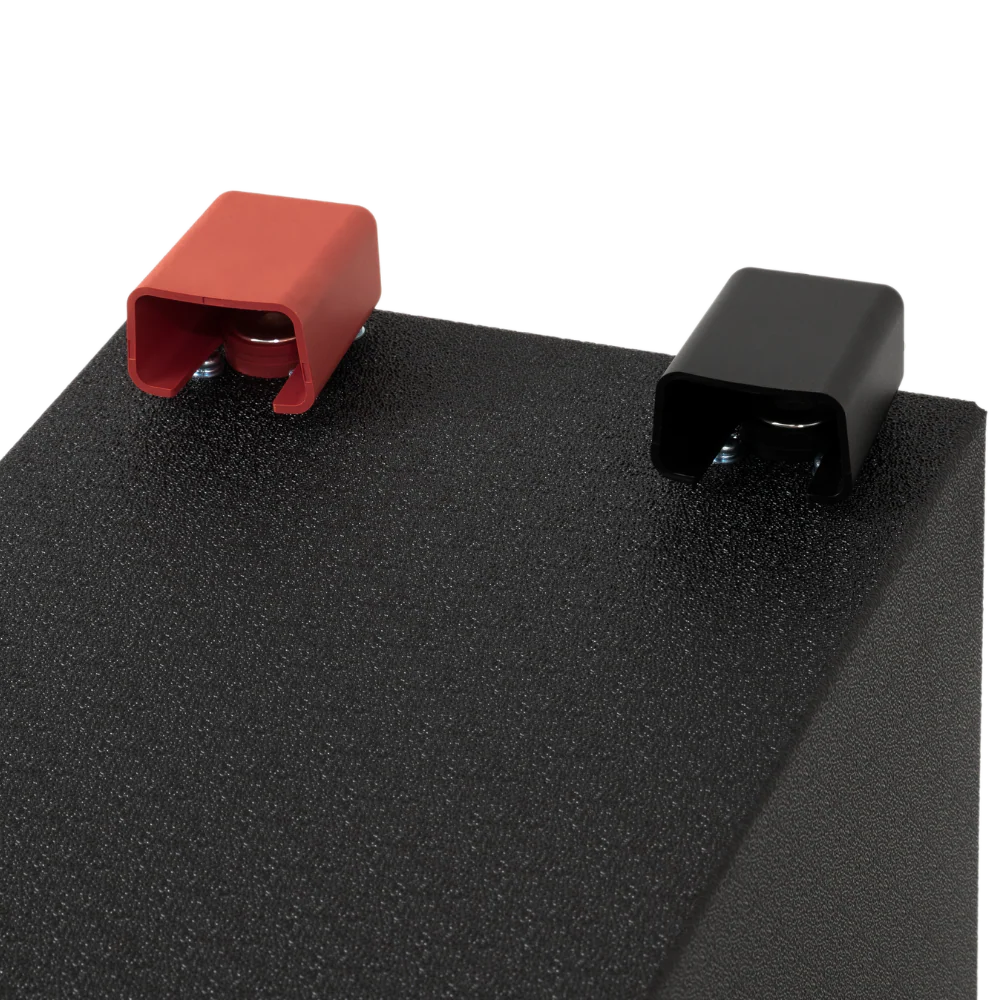

Terminals: M8

Overall Dimensions: 338mm L × 190mm W × 275mm H

Weight: Approx. 25.5kg

Battery Chemistry: LiFePO4

BMS: Heltech High-Current BMS

Cell Balancing: Active Balancer

Warranty: 7 Years

Manufactured: Brisbane, Australia

---

⚡ HIGH-CURRENT PERFORMANCE

The stated 330A continuous discharge capability gives the 310Ah battery substantial current capacity for larger 12V systems.

This makes it suitable for appropriately designed high-power inverter installations, but inverter compatibility must still be assessed against actual DC current, surge requirements, battery state of charge, BMS limits, cable sizing, fusing and connection quality.

---

🔌 CHARGING REQUIREMENTS

The supplied specifications recommend a charge current of up to 100A.

• Bulk / Charge Voltage: 14.2–14.6V
• Absorption / Float Voltage: 13.4–13.6V

If your charger provides a LiFePO4 profile matching these voltage requirements, that setting can be used.

Compatible lower-output DC-DC chargers such as 25A, 30A or 40A units can also be used, but a 310Ah battery will take considerably longer to recharge at lower charging currents.

---

🇦🇺 AUSTRALIAN MADE

Custom Lithium states that these batteries are Australian Made and built in Brisbane.

Each battery is individually bench tested before supply and backed by a 7-year manufacturer warranty.

---

📋 STANDARDS & COMPONENT COMPLIANCE

Custom Lithium states that its batteries are manufactured using IEC 62619-certified components and meet the recommendations of AS/NZS 3001.

---

❓ QUICK FAQ

Can I replace an AGM battery with this lithium battery?

Potentially, but your complete charging system must be lithium compatible. Check your DC-DC charger, solar regulator and 240V charger to ensure they support the required lithium charging profile before replacing an AGM battery.

What charging profile should I use?

The supplied specifications call for a 14.2–14.6V charge voltage and 13.4–13.6V absorption/float voltage.

What size DC-DC charger can I use?

The stated recommended charge current is up to 100A. Smaller compatible chargers such as 25A, 30A or 40A units can also be used, but will take longer to recharge the 310Ah battery.

Can the 310Ah battery run an inverter?

Yes. The stated 330A continuous discharge capability makes it suitable for appropriately designed high-current inverter systems. Actual inverter suitability depends on DC current demand, surge requirements, cable sizing, fuse protection and the complete electrical installation.

How do I recover the battery after a low-voltage BMS shutdown?

The supplied instructions describe using a lithium-compatible 240V charger with a suitable power-supply mode to wake the battery. Battery and charger manufacturer instructions should be followed during recovery.

---

🔋 310AH OF COMPACT AUSTRALIAN-MADE LITHIUM POWER

With 310Ah of capacity, 330A continuous discharge capability, active balancing, a high-current BMS and Australian manufacture, the Custom Lithium Compact 310Ah is designed for caravan and RV systems that demand substantial off-grid capacity and high-current performance.

More capacity. High-current performance. Built for Australian touring.
