Caravan & RV 620Ah LiFePO4 Battery | 380A BMS

🔋 CUSTOM LITHIUM CARAVAN & RV 620AH LiFePO4 BATTERY – AUSTRALIAN MADE

620Ah • 12.8V LiFePO4 • 380A Continuous Discharge • 130A Recommended Charge • 48kg • 7 Year Warranty

The Custom Lithium Caravan & RV 620Ah Battery is designed for serious off-grid electrical systems where maximum energy storage, high-current performance and reliable operation are required.

With a massive 620Ah of lithium capacity, this battery is built for caravans, motorhomes, 4WDs and off-grid setups running equipment such as refrigeration, Starlink, induction cooking, coffee machines, washing machines and appropriately designed air-conditioning and inverter systems.

Built in Brisbane using premium A-grade automotive LiFePO4 cells, it combines a modified Heltech BMS, active cell balancing and a high-strength ABS and aluminium enclosure with a stated 380A continuous discharge capability.

---

⭐ KEY FEATURES

🔋 Massive 620Ah LiFePO4 Capacity
Provides substantial stored energy for extended off-grid travel and high-demand caravan or motorhome electrical systems.

⚡ 380A Continuous Discharge
High-current capability supports demanding 12V loads and appropriately designed high-power inverter installations.

🇦🇺 Australian Made
Built in Brisbane and supplied as a certified Australian Made product.

🧠 Modified Heltech BMS
The integrated BMS helps protect the battery against overheating, over-discharge and low-temperature charging conditions.

⚖️ Active Cell Balancing
The active balancer helps manage individual cells and maintain consistent battery performance.

🔋 A-Grade Automotive LiFePO4 Cells
Built using premium lithium iron phosphate cells for demanding caravan, RV and off-grid applications.

🛡️ ABS & Aluminium Enclosure
The high-strength enclosure is designed to protect the internal cells and components while maintaining a relatively compact footprint for its capacity.

🚙 Built for Touring & Corrugations
Internal components are insulated against vibration to help protect the battery from rough-road and remote-area travel.

🧪 Individually Bench Tested
Each battery is individually bench tested before supply as part of Custom Lithium's quality-control process.

🛡️ 7 Year Warranty
Backed by a full 7-year manufacturer warranty.

---

🚐 MAXIMUM CAPACITY FOR EXTENDED OFF-GRID TOURING

The 620Ah Caravan & RV battery is designed for electrical systems with substantial daily energy demands and customers who want to spend extended periods away from powered sites.

It can form the foundation of a system powering compatible equipment such as:

• ❄️ 12V fridges & freezers
• ❄️ Air conditioning through a suitably engineered inverter system
• 📡 Starlink
• 🍳 Induction cooking
• ☕ Coffee machines
• 🧺 Washing machines
• 💨 Air compressors
• 🛠️ Tools & battery chargers
• 💡 Caravan & camp lighting
• 🔌 Compatible 240V appliances through an appropriately sized inverter

---

🔋 PREMIUM LiFePO4 CELL TECHNOLOGY

The battery is constructed using A-grade automotive LiFePO4 cells combined with a high-current BMS and active cell balancing.

The supplied product information positions LiFePO4 as a suitable battery chemistry for demanding caravan, RV and off-grid applications where safety, reliability and performance are important.

---

📊 TECHNICAL SPECIFICATIONS

Capacity: 620Ah

Nominal Voltage: 12.8V

Continuous Discharge: 380A

Peak Discharge / Protection: 1200–1600A as specified by manufacturer

Recommended Charge Current: 130A

Charge Voltage: 14.2–14.6V

Absorption / Float Voltage: 13.4–13.6V

Low-Voltage Cut-Off: 10.5V

Operating Temperature: 0°C to 65°C

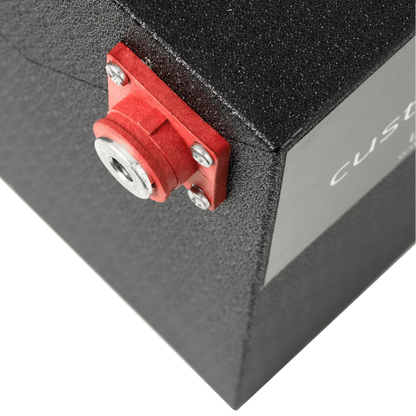

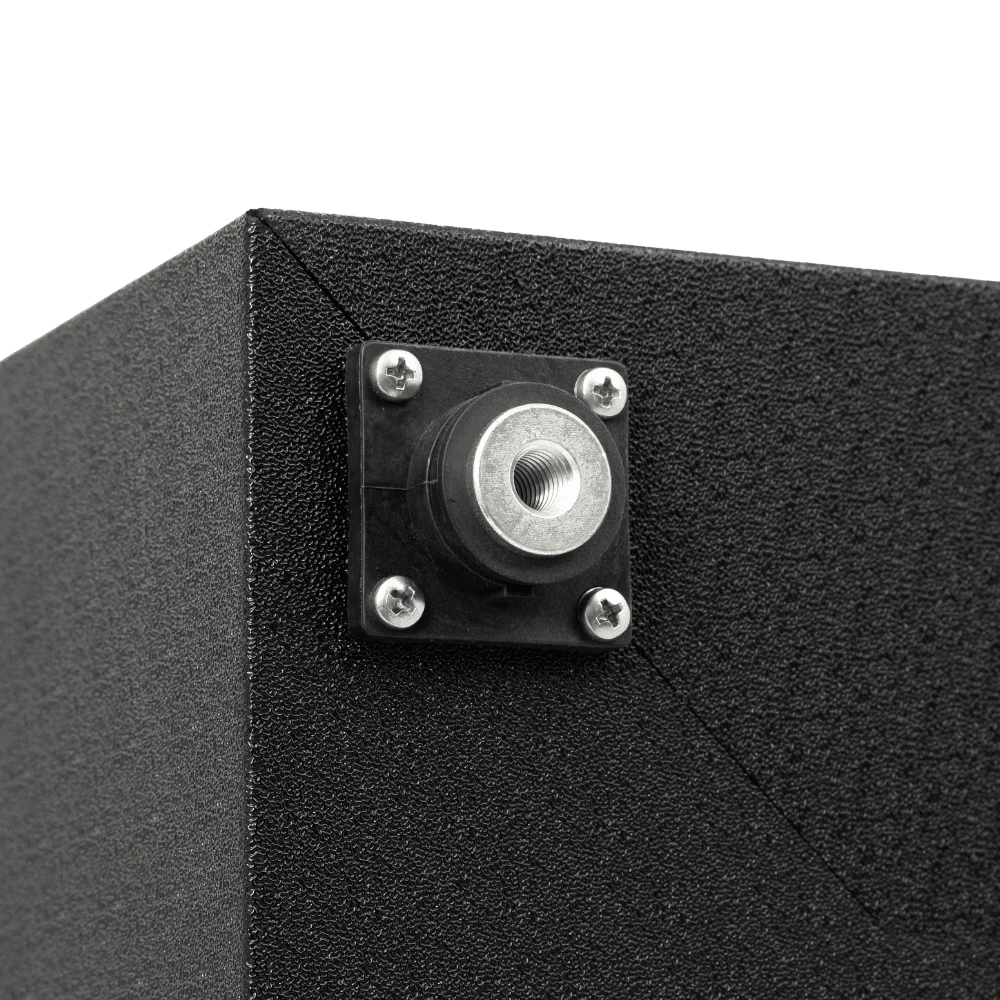

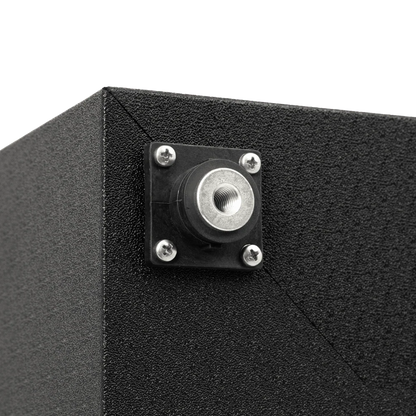

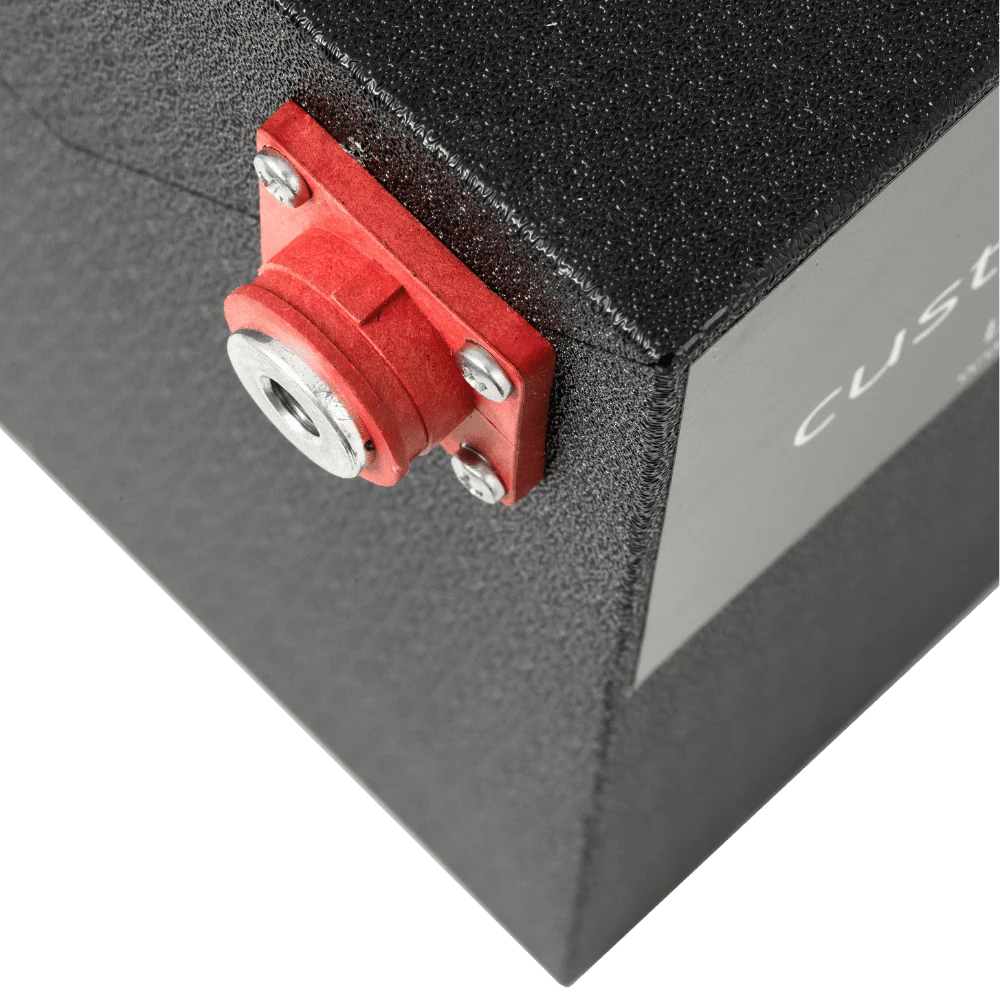

Terminals: M10

Battery Body Dimensions: 408 × 310 × 262mm

Overall Dimensions: 458mm L × 310mm W × 262mm H

Weight: Approx. 48kg

Battery Chemistry: LiFePO4

BMS: Modified Heltech High-Current BMS

Cell Balancing: Active Balancer

Enclosure: High-Strength ABS & Aluminium

Warranty: 7 Years

Manufactured: Brisbane, Australia

---

⚡ HIGH-CURRENT PERFORMANCE

The stated 380A continuous discharge capability provides substantial current availability for high-demand caravan and motorhome electrical systems.

This makes the battery suitable for appropriately engineered high-power inverter installations, but inverter selection must still account for actual DC current demand, surge requirements, battery state of charge, cable sizing, fuse ratings, connection quality and BMS limits.

---

🔌 CHARGING REQUIREMENTS

The supplied specifications recommend a charge current of up to 130A.

• Bulk / Charge Voltage: 14.2–14.6V
• Absorption / Float Voltage: 13.4–13.6V

Compatible lower-output charging systems can also be used, although recharge times will increase substantially with a 620Ah battery.

Your DC-DC charger, solar charge controller and 240V charger should all be configured to suit the required LiFePO4 charging profile.

---

📐 620AH IN A COMPACT HIGH-CAPACITY PACKAGE

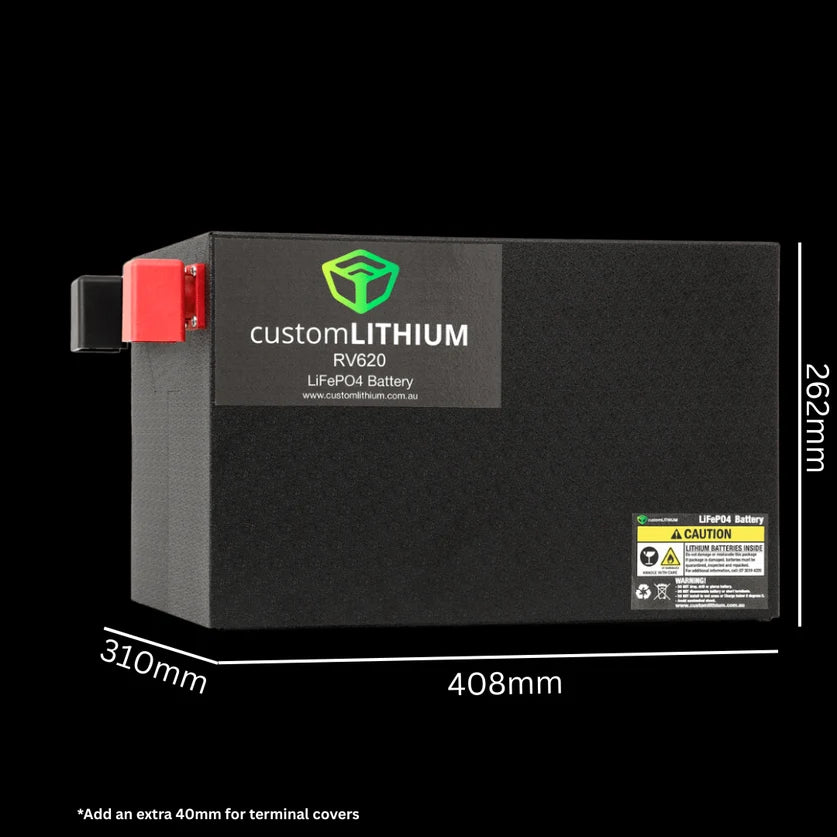

The battery body measures approximately 408 × 310 × 262mm, with stated overall dimensions of 458mm L × 310mm W × 262mm H.

This provides 620Ah of energy storage in a package specifically designed for caravan, motorhome and off-grid systems where battery capacity needs to be maximised without unnecessarily consuming storage space.

---

🇦🇺 AUSTRALIAN MADE

Custom Lithium states that its Caravan & RV batteries are Australian Made and built in Brisbane.

Each battery is individually bench tested before supply and backed by a 7-year manufacturer warranty.

---

🛠️ PROFESSIONAL INSTALLATION RECOMMENDED

With 620Ah of capacity and a 380A continuous discharge rating, correct system design is particularly important.

⚠️ Custom Lithium recommends installation by a qualified auto electrician. Correct cable sizing, fuse protection, isolation, mounting and charging configuration are essential for safe and reliable operation.

---

❓ QUICK FAQ

Can I replace an AGM battery bank with this 620Ah lithium battery?

Potentially, but your complete charging system must be compatible with lithium batteries. Check your DC-DC charger, solar charge controller, 240V charger and other connected equipment before changing from AGM to LiFePO4.

What charging profile does the battery require?

The supplied specifications call for a 14.2–14.6V charge voltage and 13.4–13.6V absorption/float voltage.

What charge current is recommended?

The stated recommended charge current is 130A. Lower-output compatible charging systems can also be used, but a 620Ah battery will take considerably longer to recharge.

Can it run air conditioning, induction cooking or a washing machine?

It can be used as part of an appropriately engineered inverter system supplying high-demand appliances. Actual suitability and runtime depend on appliance wattage, inverter efficiency, surge demand and the complete electrical system.

Can the 620Ah battery run a large inverter?

The stated 380A continuous discharge capability provides substantial current availability. Suitable inverter size still depends on DC current demand, surge requirements, cable sizing, fuse protection and BMS limits.

---

🔋 620AH OF SERIOUS OFF-GRID POWER – BUILT FOR CARAVANS & RVS

With 620Ah of lithium capacity, 380A continuous discharge capability, active balancing, a modified Heltech BMS and Australian manufacture, the Custom Lithium Caravan & RV 620Ah is designed for high-demand electrical systems built to spend extended periods away from mains power.

Maximum energy storage. High-current capability. Built for serious Australian touring.
