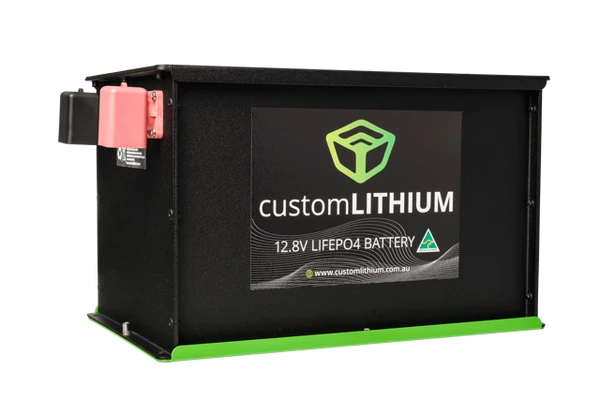

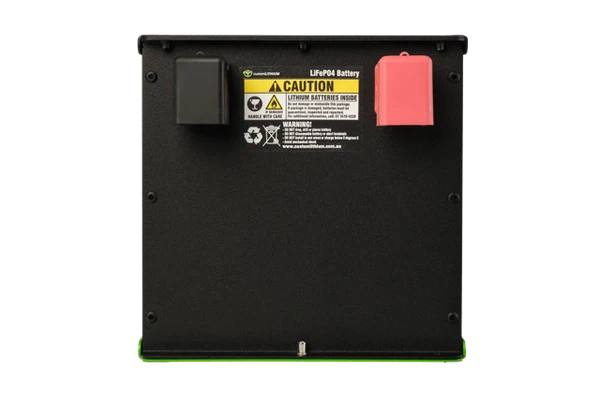

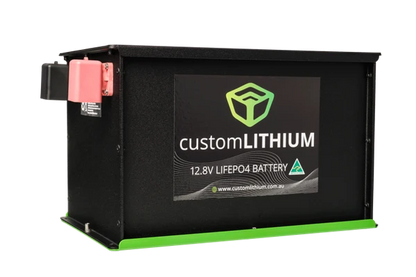

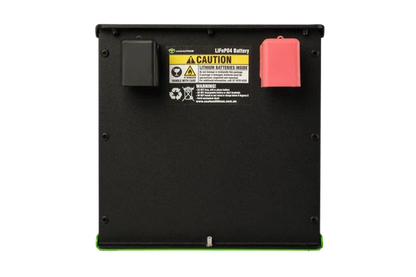

Aluminium Enclosure 460Ah LiFePO4 Battery | 380A BMS

🔋 CUSTOM LITHIUM ALUMINIUM ENCLOSURE CARAVAN & RV 460AH LiFePO4 BATTERY – AUSTRALIAN MADE

460Ah • 12.8V LiFePO4 • 380A Continuous Discharge • 130A Recommended Charge • 42.2kg • 7 Year Warranty

The Custom Lithium Aluminium Enclosure Caravan & RV 460Ah Battery is designed for high-demand touring and off-grid electrical systems requiring substantial energy storage, high-current performance and a compact installation footprint.

With 460Ah of lithium capacity, it can form the foundation of a serious caravan, motorhome or 4WD electrical system powering refrigeration, Starlink, induction cooking, coffee machines, washing machines and appropriately engineered air-conditioning and inverter systems.

Built in Brisbane using premium A-grade automotive LiFePO4 cells, the battery combines a modified Heltech BMS, active cell balancing and the manufacturer's stated high-strength ABS & aluminium enclosure with a 380A continuous discharge capability.

---

⭐ KEY FEATURES

🔋 460Ah LiFePO4 Capacity
Substantial energy storage for larger caravan, motorhome, 4WD and extended off-grid electrical systems.

⚡ 380A Continuous Discharge
High-current capability supports demanding 12V equipment and appropriately designed high-power inverter installations.

🇦🇺 Australian Made
Built in Brisbane and supplied as a certified Australian Made product.

🧠 Modified Heltech BMS
The integrated battery management system helps protect against overheating, over-discharge and low-temperature charging conditions.

⚖️ Active Cell Balancing
The active balancer helps manage individual cells and maintain consistent battery performance.

🔋 A-Grade Automotive LiFePO4 Cells
Manufactured using premium lithium iron phosphate cells for demanding auxiliary and off-grid applications.

🛡️ High-Strength Enclosure
The supplied product information describes a high-strength ABS & aluminium enclosure designed to protect the internal battery cells and components while maintaining a compact footprint.

🚙 Built for Touring & Corrugations
Internal components are insulated against vibration to help protect the battery from the effects of rough-road and remote-area travel.

🧪 Individually Bench Tested
Each battery is individually bench tested before supply as part of Custom Lithium's quality-control process.

🛡️ 7 Year Warranty
Backed by a full 7-year manufacturer warranty.

---

🚐 SERIOUS CAPACITY FOR CARAVANS & RVS

The 460Ah Caravan & RV battery is designed for electrical systems with substantial daily energy requirements and customers wanting to spend longer periods away from powered sites.

It can support compatible equipment including:

• ❄️ 12V fridges & freezers
• ❄️ Air conditioning through a suitably engineered inverter system
• 📡 Starlink
• 🍳 Induction cooking
• ☕ Coffee machines
• 🧺 Washing machines
• 💨 Air compressors
• 🛠️ Tools & battery chargers
• 💡 Caravan & camp lighting
• 🔌 Compatible 240V appliances through an appropriately sized inverter

---

🔋 PREMIUM LiFePO4 CELL TECHNOLOGY

The battery is constructed using A-grade automotive LiFePO4 cells, combined with a high-current BMS and active cell balancing.

The supplied product information positions LiFePO4 as a suitable battery chemistry for demanding caravan, RV and off-grid applications where safety, reliability and high-current performance are important.

---

📊 TECHNICAL SPECIFICATIONS

Capacity: 460Ah

Nominal Voltage: 12.8V

Continuous Discharge: 380A

Peak Discharge / Protection: 1200–1600A as specified by manufacturer

Recommended Charge Current: 130A

Charge Voltage: 14.2–14.6V

Absorption / Float Voltage: 13.4–13.6V

Low-Voltage Cut-Off: 10.5V

Operating Temperature: 0°C to 65°C

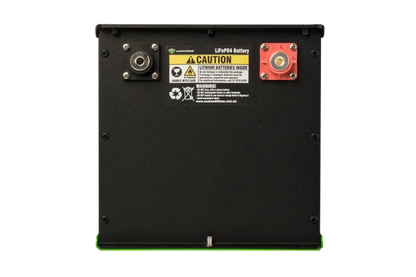

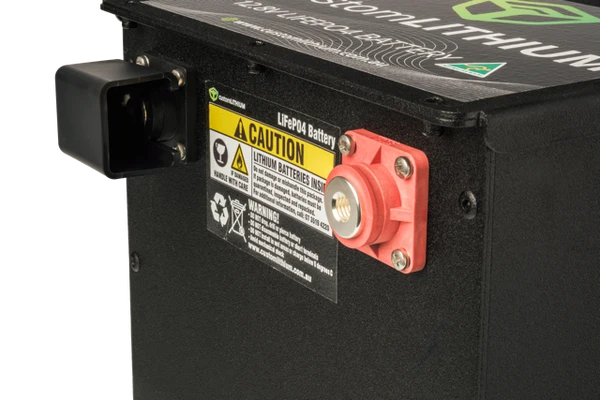

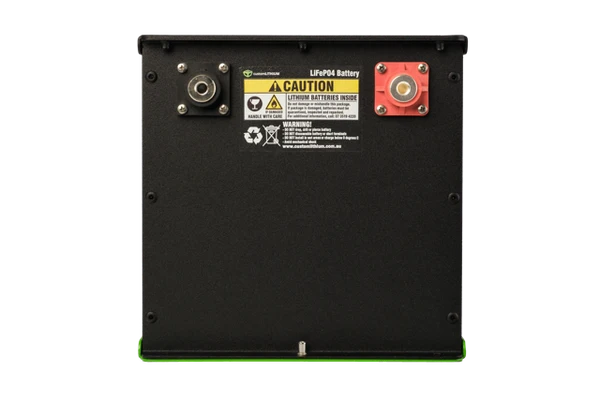

Terminals: M10

Battery Body Dimensions: 425 × 265 × 262mm

Overall Dimensions: 465mm L × 265mm W × 262mm H

Weight: Approx. 42.2kg

Battery Chemistry: LiFePO4

BMS: Modified Heltech High-Current BMS

Cell Balancing: Active Balancer

Enclosure: High-Strength ABS & Aluminium as specified by manufacturer

Warranty: 7 Years

Manufactured: Brisbane, Australia

---

⚡ HIGH-CURRENT PERFORMANCE

The stated 380A continuous discharge capability gives the 460Ah battery substantial current availability for demanding caravan, RV and off-grid systems.

This makes it suitable for appropriately engineered high-power inverter installations, but inverter selection must still account for actual DC current demand, surge requirements, battery state of charge, cable sizing, fuse protection, connection quality and BMS limits.

---

🔌 CHARGING REQUIREMENTS

The supplied specifications recommend a charge current of up to 130A.

• Bulk / Charge Voltage: 14.2–14.6V
• Absorption / Float Voltage: 13.4–13.6V

Compatible lower-output charging systems can also be used, although recharge times will increase considerably with a 460Ah battery.

Your DC-DC charger, solar charge controller and 240V charger should all be configured to suit the required LiFePO4 charging profile.

---

📐 COMPACT HIGH-CAPACITY DESIGN

The battery body measures approximately 425 × 265 × 262mm, with stated overall dimensions of 465mm L × 265mm W × 262mm H.

This provides substantial 460Ah capacity in a relatively compact package designed for caravan, motorhome, 4WD and off-grid installations where available battery space is valuable.

---

🇦🇺 AUSTRALIAN MADE

Custom Lithium states that its Caravan & RV batteries are Australian Made and built in Brisbane.

Each battery is individually bench tested before supply and backed by a 7-year manufacturer warranty.

---

🛠️ PROFESSIONAL INSTALLATION RECOMMENDED

With 460Ah of capacity and a 380A continuous discharge rating, correct electrical system design is particularly important.

---

❓ QUICK FAQ

Can I replace an AGM battery bank with this 460Ah lithium battery?

Potentially, but your complete charging system must be lithium compatible. Check your DC-DC charger, solar charge controller, 240V charger and other connected equipment before changing from AGM to LiFePO4.

What charging profile does it require?

The supplied specifications call for a 14.2–14.6V charge voltage and 13.4–13.6V absorption/float voltage.

What charge current is recommended?

The stated recommended charge current is 130A. Lower-output compatible chargers can also be used, but will take longer to recharge the 460Ah battery.

Can it run air conditioning, induction cooking or a washing machine?

It can be used as part of an appropriately engineered inverter system supplying high-demand appliances. Actual suitability and runtime depend on appliance wattage, inverter efficiency, surge demand and the complete electrical system.

Can the 460Ah battery run a large inverter?

The stated 380A continuous discharge capability provides substantial current availability. Suitable inverter size still depends on actual DC current demand, surge requirements, cable sizing, fuse protection and BMS limits.

---

🔋 460AH OF AUSTRALIAN-MADE OFF-GRID POWER

With 460Ah of lithium capacity, 380A continuous discharge capability, active balancing, a modified Heltech BMS and Australian manufacture, this Custom Lithium Caravan & RV battery is designed for demanding touring and high-capacity off-grid electrical systems.

More capacity. High-current performance. Built for serious Australian touring.
