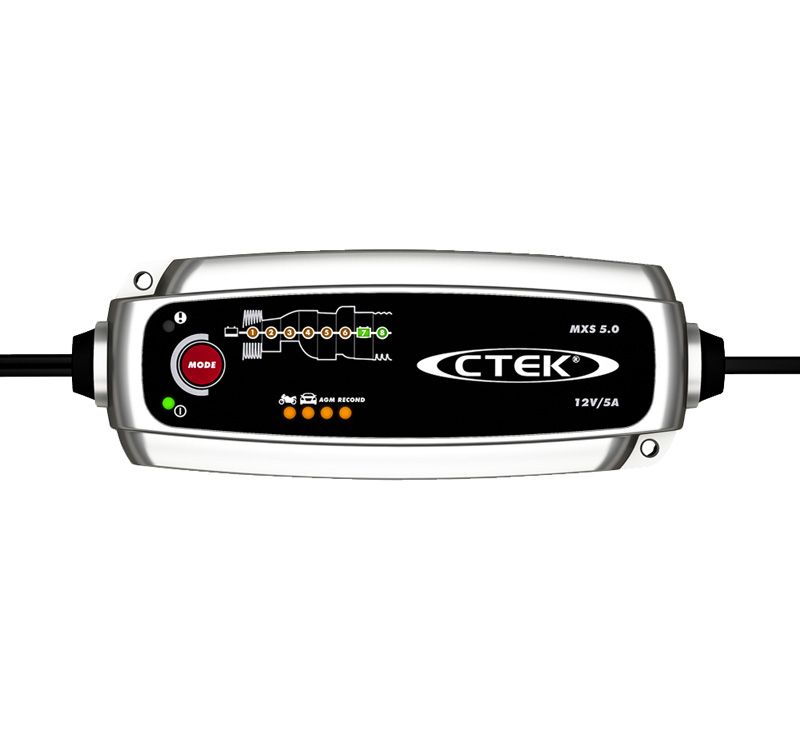

CTEK MXS 5.0 Battery Charger 8 Stage Charge Profile 5A 12V

🔋 CTEK MXS 5.0 5A 12V BATTERY CHARGER

8-Step Automatic Charging • AGM & Recond Modes • Temperature Compensation • IP65

The CTEK MXS 5.0 is an advanced 5A smart battery charger designed for 12V lead-acid batteries in cars, motorcycles and other vehicles.

With a fully automatic 8-step charging profile, built-in temperature compensation, battery diagnosis, desulphation and dedicated AGM and Recond programs, the MXS 5.0 provides intelligent charging and long-term battery maintenance in one compact unit.

⚡ KEY FEATURES

🔋 Fully Automatic 8-Step Charging
Connect the charger, select the required program and the MXS 5.0 automatically manages the charging process.

🌡️ Automatic Temperature Compensation
Charging voltage is automatically adjusted according to ambient temperature to optimise charging performance.

🧪 Battery Diagnosis
Checks whether the connected battery can accept and retain a charge.

⚡ Automatic Desulphation
CTEK's patented desulphation program helps recover suitable sulphated lead-acid batteries as part of the charging cycle.

🚗 AGM Program
Dedicated AGM charging option designed to support suitable AGM batteries, including many Stop/Start vehicle applications.

♻️ Recond Mode
Special reconditioning program for suitable deeply discharged lead-acid batteries.

🔄 Float / Pulse Maintenance
CTEK's patented maintenance system allows compatible batteries to remain connected for extended periods.

🛡️ Built-In Electrical Protection
Spark-free operation with reverse-polarity protection and short-circuit protection.

💧 IP65 Protection
Splash- and dust-resistant construction for practical workshop and garage use.

🛡️ 5 Year Warranty
Backed by CTEK's supplied 5-year warranty.

🔋 BATTERY COMPATIBILITY

Battery Voltage: 12V

Battery Chemistry: Lead Acid

Compatible Battery Types:

• WET
• MF
• Ca/Ca
• AGM
• EFB
• GEL

Charging Battery Capacity: 1.2Ah – 110Ah

Maintenance Capacity: Up to 160Ah

📋 TECHNICAL SPECIFICATIONS

Model: MXS 5.0

Charger Type: 8-Step Fully Automatic

Input: 220–240V AC, 50–60Hz, 0.6A

Output Voltage: 14.4V / 14.7V / 15.8V

Maximum Charge Current: 5.0A

Start Voltage: 2.0V

Battery Capacity: 1.2Ah – 110Ah

Maintenance Capacity: Up to 160Ah

Back Current Drain: Less Than 1Ah / Month

Ripple: Less Than 4%

Ambient Operating Temperature: +5°C to +50°C

Temperature Compensation: Built In

Protection Rating: IP65

Warranty: 5 Years

🚗 CHARGING PROGRAMS

• 🏍️ Smaller Battery Program
• 🚗 Normal Battery Program
• 🔋 AGM Program
• ♻️ Recond Program

🛡️ SAFE & SIMPLE TO USE

The MXS 5.0 features an easy-to-read LED display and is designed around CTEK's connect-and-forget charging process.

• Spark-free operation
• Reverse-polarity protected
• Short-circuit protected
• Automatic charging and maintenance

🚙 IDEAL FOR

• 🚗 Cars
• 🏍️ Motorcycles
• 🔋 AGM & EFB batteries
• 🚘 Many Stop/Start vehicle batteries
• 🧰 Workshop & garage battery maintenance
• 🚙 Vehicles stored for extended periods

❓ QUICK FAQ

What size batteries can the MXS 5.0 charge?

It is specified for charging 12V lead-acid batteries from 1.2Ah to 110Ah, with maintenance charging for batteries up to 160Ah.

Does it charge AGM batteries?

Yes. The MXS 5.0 includes a dedicated AGM charging program.

What does Recond mode do?

Recond mode is designed for reconditioning suitable deeply discharged lead-acid batteries.

Can it stay connected for long-term maintenance?

Yes. The charger uses CTEK's float/pulse maintenance system for compatible batteries that remain connected for extended periods.

Is it suitable for lithium batteries?

No lithium battery compatibility is stated in the supplied specifications. The MXS 5.0 is specified for 12V lead-acid battery chemistries.

🔋 SMART 12V BATTERY CHARGING & MAINTENANCE FROM CTEK

With automatic 8-step charging, AGM and Recond programs, temperature compensation and intelligent long-term maintenance, the CTEK MXS 5.0 is a practical charger for keeping compatible 12V lead-acid batteries charged, maintained and ready to use.
