❄️ BUSHMAN DF40-HD 40L DRAWER FRIDGE – HEAVY DUTY SERIES

12V / 24V • +4°C Refrigeration in 50°C Heat • Secop Danfoss BD50K Compressor • 7 Year Compressor Warranty

The Bushman DF40-HD is a heavy-duty 40L drawer fridge designed for 4WD canopies, drawer systems, touring vehicles and permanent 12V / 24V installations operating in extreme Australian conditions.

Using the same external dimensions as the DF30-HD but with increased refrigerated storage, the DF40-HD provides 35 litres of usable drawer tub capacity and is capable of maintaining approximately +4°C refrigeration in ambient temperatures up to 50°C.

⚡ KEY FEATURES

🌡️ +4°C Refrigeration in Up to 50°C Ambient
Designed to maintain reliable refrigeration performance even in extremely hot operating environments.

🧊 Freezing Down to -10°C
Can operate down to -10°C, including -10°C operation in ambient temperatures up to 40°C, making it suitable for short-term mild freezer use.

⚙️ Genuine Secop® Danfoss BD50K Compressor
Uses a heavy-duty compressor platform designed for demanding mobile refrigeration applications.

🌬️ Twin Cross-Flow Heat Extraction Fans
Dual cooling fans help remove heat efficiently from the refrigeration system in high ambient temperatures.

🧱 Up to 2 Inches of Closed-Cell Insulation
Heavy insulation helps retain cold and improve efficiency in hot conditions.

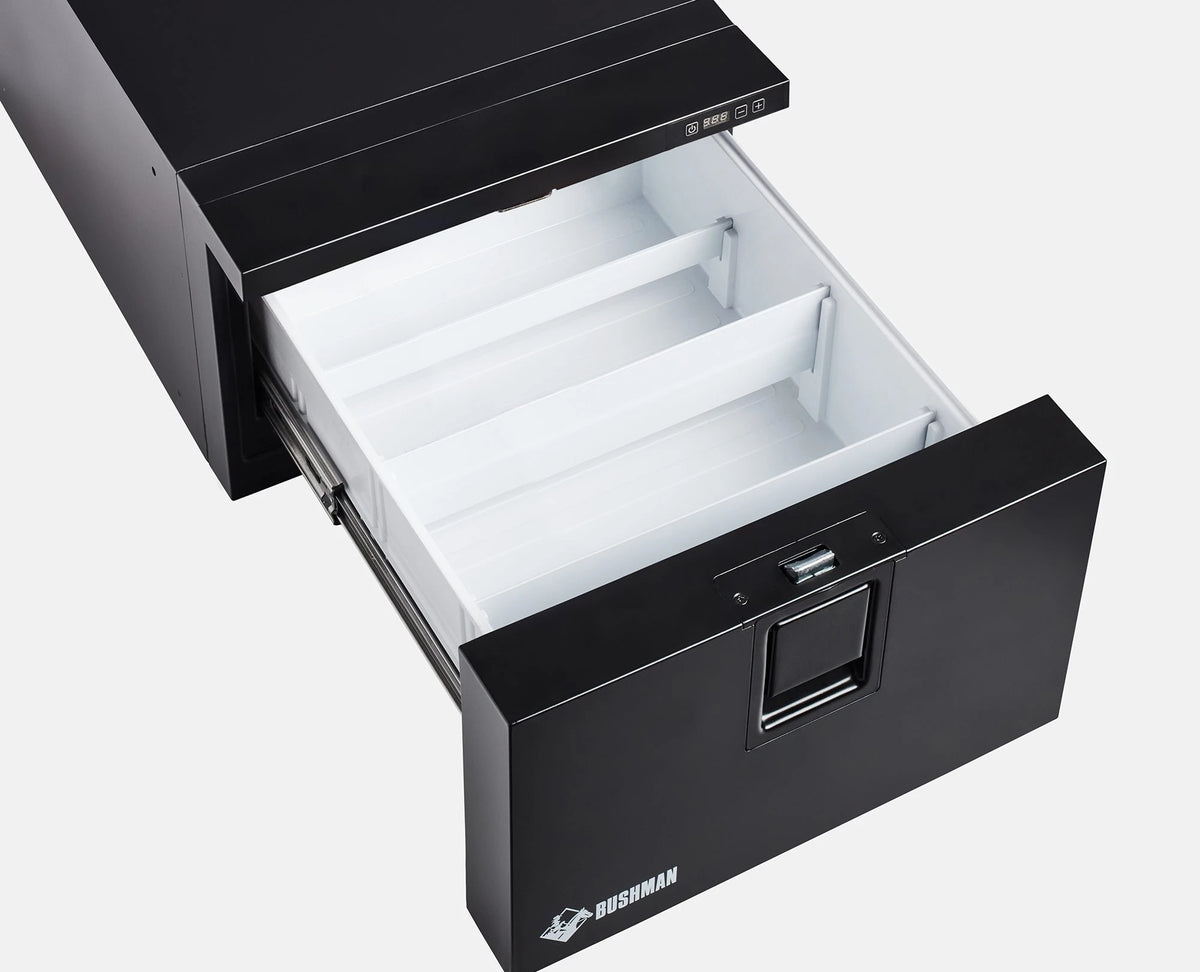

🧺 35L Drawer Tub Storage
Provides increased usable fridge space for food and drinks while retaining compact external dimensions.

🛡️ Stainless Steel Drawer Hardware
Features 100% stainless steel drawer runners, steel hardware and a heavy-duty slam latch.

🌨️ Automatic Frost-Free Function
Automatic frost management helps minimise ice build-up during regular use.

🔋 Efficient 12V / 24V Operation
Designed for vehicle, canopy and off-grid battery systems with low average power consumption under normal refrigeration conditions.

🔩 Mounting L-Brackets Included
Supplied with mounting brackets for secure installation into suitable vehicle and drawer-system applications.

🛡️ 7 Year Compressor Warranty
Backed by Bushman's stated 7 year compressor warranty.

📋 TECHNICAL SPECIFICATIONS

Model: DF40-HD

Nominal Capacity: 40L

Drawer Tub Storage: 35L

Operating Voltage: 12V / 24V DC

Temperature Range: -10°C to +6°C

Refrigeration Performance: +4°C in up to 50°C ambient

Freezer Performance: -10°C in up to 40°C ambient

Compressor: Genuine Secop® Danfoss BD50K

Height: 310mm

Width: 440mm

Depth: 840mm

Weight: 24kg

Recommended Cut-Out Cavity Depth: 880mm

Rear Ventilation Clearance: 40mm

12V / 24V Anderson Lead Length: 1.5m

Compressor Warranty: 7 Years

🔋 POWER CONSUMPTION

Average at +4°C in 25°C Ambient: 0.6Ah per hour

Average at -10°C in 25°C Ambient: 1.2Ah per hour

Average at +4°C in 40°C Ambient: 1.2Ah per hour

Average at -10°C in 40°C Ambient: 2.0Ah per hour

⚠️ Actual power consumption will vary depending on ambient temperature, selected temperature, ventilation, installation, fridge contents and frequency of drawer opening.

🚙 IDEAL FOR

• 🚙 4WD canopy installations
• 🛻 4X4 drawer systems
• 🥤 Dedicated drinks fridge use
• 🥩 Food storage in extreme heat
• 🧊 Short-term mild freezer applications
• 🏕️ Camping & remote touring
• 🚚 Work & commercial vehicles

❓ QUICK FAQ

Can the DF40-HD operate in very hot conditions?

Yes. Bushman specifies +4°C refrigeration performance in ambient temperatures up to 50°C.

Can the DF40-HD be used as a freezer?

Yes, for mild freezer applications. Its temperature range extends down to -10°C, with Bushman specifying -10°C operation in ambient temperatures up to 40°C.

How much usable drawer space does it have?

The DF40-HD has 35 litres of drawer tub storage within its 40L nominal fridge design.

How much installation depth is required?

The fridge is 840mm deep. Bushman recommends an 880mm cavity depth to provide a 40mm ventilation gap at the rear.

❄️ HEAVY-DUTY REFRIGERATION BUILT FOR EXTREME HEAT

With +4°C refrigeration performance in up to 50°C ambient temperatures, a Secop Danfoss BD50K compressor, stainless steel hardware and efficient 12V / 24V operation, the Bushman DF40-HD is built for demanding 4WD, canopy and touring installations.
