12V/24V 85L Upright Caravan Fridge (DC85-X)

❄️ BUSHMAN DC85-X 85L HEAVY DUTY UPRIGHT CARAVAN FRIDGE

2026 Heavy Duty 85L 12V/24V Upright Fridge – Secop Danfoss BD35-HD Compressor, Internal Cooling Fan, 43°C Tropical Rating & Free Mounting Kit

🚙 Built for 4X4 canopies, caravans, campers and serious Australian touring, the Bushman DC85-X 85L Caravan Fridge combines excellent usable storage with compact dimensions, efficient 12V/24V operation and a heavy-duty refrigeration system.

Bushman describes the DC85-X as its top-selling 12V upright fridge for 4X4 canopies and its go-to model for this type of installation. Its compact cabinet also makes it suitable for campers, caravans, tiny houses and compatible boat installations.

Updated for the 2026 Heavy Duty Series, the DC85-X features the Secop Danfoss BD35-HD variable-speed compressor, an oversized Bushman refrigeration unit, an internal circulation fan for more even cooling and a supplied tropical rating for ambient temperatures up to 43°C.

Inside, the fridge provides large door shelves capable of holding suitable 2L milk bottles, room for tall bottles, a plastic crisper tub, heavy-duty wire shelves and a compact 6L freezer for items such as ice cubes and ice packs.

---

⚡ KEY FEATURES

❄️ 85L Upright Fridge
Excellent usable storage capacity in a compact upright format designed for mobile and built-in installations.

🚙 Bushman’s Go-To 4X4 Canopy Fridge
The supplied Bushman information describes the DC85-X as its top-selling 12V upright fridge for 4X4 canopy installations.

⚙️ Secop Danfoss BD35-HD Compressor
The updated 2026 Heavy Duty Series uses Bushman’s heavy-duty Secop Danfoss compressor platform for dependable mobile refrigeration.

🛡️ 7-Year 12V Compressor Warranty
Backed by the supplied 7-year compressor warranty.

🌴 Tropical Rated to 43°C Ambient
Designed for demanding Australian conditions with a supplied tropical rating of approximately 43°C ambient.

🌬️ Internal Cooling Fan
Built-in internal fan helps circulate cold air throughout the refrigerator for more even cooling.

⚡ Oversized Bushman Refrigeration System
Bushman uses an oversized refrigeration unit in the DC85-X to provide efficient cooling with low overall power consumption.

🔋 12V / 24V DC Operation
Suitable for common 4X4, caravan, camper, canopy, boat and off-grid battery systems.

🔗 Anderson Plug Connection
Includes an approximately 1.2m 12V/24V Anderson lead for connection to a compatible electrical system.

🔩 Free Mounting Kit Included
Supplied with a mounting kit to assist with secure built-in installation.

🥛 Door Storage for Suitable 2L Milk Bottles
Large door shelves provide practical storage for suitable 2L milk bottles and other everyday fridge items.

🍾 Room for Tall Bottles
Internal layout provides useful vertical clearance for suitable tall drink bottles.

❄️ 6L Freezer
Compact internal freezer provides approximately 6L of storage for items such as ice cubes and ice packs.

🥬 Plastic Crisper Tub
Dedicated storage area helps keep fruit, vegetables and smaller refrigerated items organised.

🔩 Heavy-Duty Wire Shelves
Upgraded shelves are designed to better handle vibration and bumps during off-road travel.

🛞 Soft Custom Rubber Feet
Bushman’s custom soft rubber feet are designed to help cushion the refrigerator during mobile use.

📞 Lifetime Bushman Customer Support
Lifetime Bushman customer support is included according to the supplied product information.

---

🚙 BUILT FOR 4X4 CANOPIES

The DC85-X is specifically positioned by Bushman as a leading choice for 4X4 canopy installations.

Its combination of approximately 85L capacity, relatively compact external dimensions, front-opening access and low average power demand makes it practical for touring builds where storage space and electrical efficiency are both important.

The fridge can suit compatible canopy systems where adequate ventilation, secure mounting and the correct electrical supply are provided.

---

⚙️ 2026 SECOP DANFOSS BD35-HD COMPRESSOR

The updated 2026 Heavy Duty Series DC85-X uses a Secop Danfoss BD35-HD compressor.

Bushman describes this compressor as a heavy-duty platform designed for demanding mobile, trucking and off-road refrigeration applications.

Compressor: Secop Danfoss BD35-HD

Drive type: Variable speed

Supplied operating current range: Approximately 2A to 4.5A

12V compressor warranty: 7 Years

The supplied product information also describes the compressor platform as German designed and Japanese owned.

---

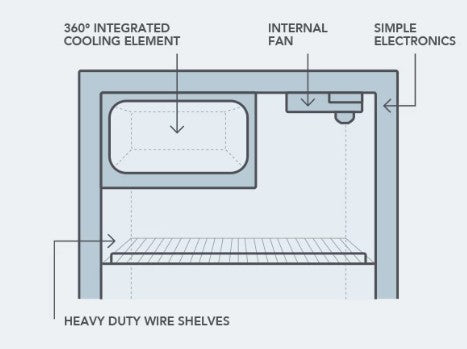

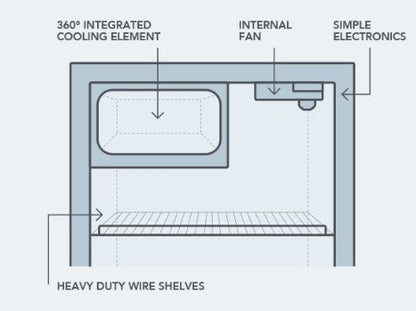

🌬️ INTERNAL FAN FOR MORE EVEN COOLING

The DC85-X incorporates an internal circulation fan designed to help distribute cold air more evenly throughout the refrigerator compartment.

This is particularly useful in an upright fridge where food and drinks may be stored across multiple shelf levels.

The fan works alongside Bushman’s refrigeration system to support more consistent cooling throughout the cabinet.

---

❄️ OVERSIZED REFRIGERATION UNIT

Bushman uses an oversized refrigeration unit in the DC85-X.

The supplied product information states that this design helps create an efficient cooling system while maintaining relatively low overall electrical consumption.

This combination of cooling capacity and efficiency is one of the reasons Bushman positions the DC85-X as its go-to refrigerator for 4X4 canopies.

---

🌴 TROPICAL RATED TO 43°C AMBIENT

The DC85-X carries a supplied tropical rating for ambient temperatures up to approximately 43°C.

This makes it particularly useful for Australian touring installations where the refrigerator may be operating in hot canopy, caravan or camper environments.

⚠️ IMPORTANT: The 43°C tropical rating does not remove the need for correct installation ventilation. Adequate airflow around the refrigeration system remains essential.

---

⚡ LOW-POWER OPERATION

The DC85-X uses a variable-speed compressor and Bushman-designed refrigeration system to provide efficient cooling.

The supplied descriptive information states an average consumption of approximately 1.25 Amp/hr over 24 hours at 25°C ambient with the fridge operating at approximately 4°C.

The supplied technical specification rounds this to approximately 1.3Ah per hour at 25°C ambient on a 12V system.

Supplied average power use: Approximately 1.25–1.3Ah per hour

Ambient test temperature: 25°C

Typical fridge temperature: Approximately 4°C

Supply voltage for stated specification: 12V

Variable-speed compressor current draw: Approximately 2A to 4.5A

⚠️ IMPORTANT: Actual electrical consumption and battery runtime will vary according to ambient temperature, fridge contents, thermostat setting, ventilation, door-opening frequency, battery condition, wiring and other electrical loads.

---

❄️ FRIDGE & FREEZER TEMPERATURES

The DC85-X combines a main refrigerator compartment with a compact internal freezer.

Supplied refrigerator temperature: Approximately 4°C ±2°C

Supplied freezer temperature: Approximately -12°C ±2°C

This provides everyday refrigerated storage together with a dedicated frozen compartment for smaller items.

---

🧊 6L INTERNAL FREEZER

The DC85-X includes an approximately 6L freezer compartment.

Bushman specifically identifies this compartment as useful for items such as ice cubes and ice packs.

The freezer operates at a supplied nominal temperature of approximately -12°C ±2°C.

---

🥛 LARGE DOOR SHELVES FOR 2L MILK BOTTLES

The DC85-X has large door shelves designed to provide practical storage for commonly used bottles and containers.

The supplied product information specifically states that suitable 2L milk bottles can be stored in the door.

This helps preserve valuable main-cabinet shelf space for food and other supplies.

---

🍾 ROOM TO STAND TALL BOTTLES

The refrigerator interior also provides room for suitable tall bottles to stand upright.

This makes the DC85-X practical for a variety of drinks and food-storage arrangements during longer camping and touring trips.

---

🥬 PLASTIC CRISPER TUB

A plastic crisper tub is incorporated into the DC85-X storage layout.

This gives fruit, vegetables and smaller food items a dedicated storage area while helping organise the main refrigerator compartment.

---

🔩 HEAVY-DUTY WIRE SHELVES

Bushman equips the DC85-X with upgraded heavy-duty wire shelves.

The shelves are designed to cope with the vibration and movement encountered in touring, trucking and off-road applications.

This supports the fridge’s intended use in 4X4 canopies, campers and other mobile installations.

---

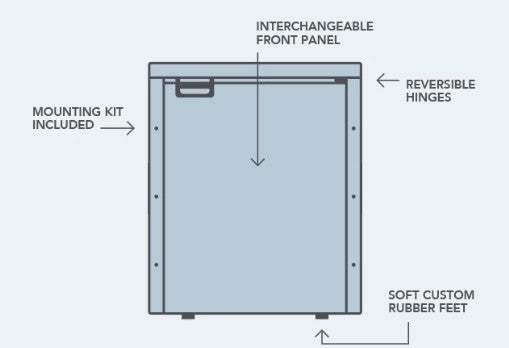

🛞 CUSTOM SOFT RUBBER FEET

Bushman’s custom soft rubber feet are designed to help cushion the refrigerator during travel.

This complements the heavy-duty shelf and refrigeration design for installations regularly exposed to rough roads and vibration.

---

🔩 FREE MOUNTING KIT INCLUDED

Every DC85-X is supplied with a mounting kit according to the supplied Bushman product information.

This helps simplify installation into compatible caravan, camper, canopy, tiny-house or boat cabinetry.

⚠️ IMPORTANT: The fridge should be securely mounted to a structurally suitable installation surface and the required ventilation clearances must be maintained.

---

📐 MINIMUM CABINET CUT-OUT

The supplied minimum installation cut-out dimensions are:

Height: Approximately 630mm

Width: Approximately 480mm

Depth: Approximately 550mm

The supplied information states that this arrangement allows approximately 50mm of rear space when the refrigerator is installed with the door sitting proud of the cabinetwork.

⚠️ IMPORTANT: Confirm ventilation, wiring, door clearance and service-access requirements before constructing or modifying cabinetry.

---

🔋 12V & 24V DC OPERATION

The Bushman DC85-X supports both 12V and 24V DC electrical systems.

This makes it suitable for compatible:

• 🚙 4X4 auxiliary battery systems
• 🛻 Ute canopy electrical systems
• 🚐 Caravan battery systems
• ⛺ Camper trailer installations
• 🚐 Campervan conversions
• 🚚 Truck electrical systems
• 🚤 Boat battery systems
• 🏠 Tiny-house DC systems
• 🔋 Off-grid battery banks

---

🔗 1.2M ANDERSON POWER LEAD

The DC85-X is supplied with an approximately 1.2m 12V/24V Anderson lead.

The Anderson connection provides a robust interface for compatible fixed and semi-permanent mobile installations.

⚠️ IMPORTANT: Ensure wiring size, connectors, circuit protection and the supporting battery system are appropriate for the installation.

---

🚐 COMPACT SIZE WITH EXCELLENT USABLE STORAGE

Bushman describes the DC85-X as small and light relative to the amount of usable internal storage it provides.

This balance makes the refrigerator particularly useful in installations where the available cabinet footprint is limited but a larger amount of upright food and drink storage is still required.

---

🚙 DESIGNED FOR OFF-ROAD USE

The supplied Bushman information positions the DC85-X for demanding trucking and off-road environments.

Its heavy-duty wire shelves, oversized refrigeration unit, internal circulation fan, variable-speed compressor and soft rubber feet are designed around mobile applications where vibration and rough roads are expected.

---

🚐 SUITABLE FOR CAMPERS & CARAVANS

The approximately 85L capacity provides useful food and drink storage for compatible camper and caravan installations without requiring the dimensions of a much larger upright refrigerator.

The included mounting kit helps integrate the fridge into suitable cabinetwork.

---

🚤 SUITABLE FOR COMPATIBLE BOAT INSTALLATIONS

Boats are included among the supplied applications for the DC85-X.

Its 12V/24V electrical compatibility allows it to work with appropriate marine battery systems where secure mounting, ventilation and suitable electrical installation are provided.

---

🏠 SUITABLE FOR TINY HOUSES

The supplied product information also identifies tiny houses as a suitable application for the DC85-X.

Its compact upright form can provide useful refrigeration capacity where available kitchen or cabinet space is limited.

---

📏 FRIDGE DIMENSIONS & WEIGHT

Cabinet height: Approximately 625mm

Height including handle: Approximately 630mm

Width: Approximately 475mm

Depth: Approximately 550mm

Weight: Approximately 22.5kg

---

📐 MINIMUM INSTALLATION CUT-OUT

Minimum cut-out height: Approximately 630mm

Minimum cut-out width: Approximately 480mm

Minimum cut-out depth: Approximately 550mm

Supplied rear allowance: Approximately 50mm when installed as specified with the door sitting proud of the cabinetwork

---

📋 TECHNICAL SPECIFICATIONS

Brand: Bushman

Product: DC85-X Caravan Fridge

Series: 2026 Heavy Duty Upright Fridge Series

Capacity: 85L

Operating voltage: 12V / 24V DC

Power connection: Anderson

Anderson lead length: Approximately 1.2m

Compressor: Secop Danfoss BD35-HD

Compressor type: Variable-speed drive

Supplied compressor current draw: Approximately 2A to 4.5A

Cooling system: Genuine Bushman-designed oversized refrigeration system

Internal circulation fan: Yes

Fridge temperature: Approximately 4°C ±2°C

Freezer temperature: Approximately -12°C ±2°C

Freezer capacity: Approximately 6L

Tropical rating: Approximately 43°C ambient

Supplied average power use: Approximately 1.25–1.3Ah per hour

Power-use test condition: Approximately 25°C ambient, 4°C fridge temperature, 12V operation

External dimensions: Approximately 625mm H × 475mm W × 550mm D

Height including handle: Approximately 630mm

Minimum cut-out: Approximately 630mm H × 480mm W × 550mm D

Weight: Approximately 22.5kg

Door shelves: Large shelves suitable for compatible 2L milk bottles

Tall bottle storage: Yes

Crisper tub: Plastic crisper included

Shelves: Upgraded heavy-duty wire shelves

Mounting kit: Included

12V compressor warranty: 7 Years

Customer support: Lifetime Bushman customer support as supplied

---

🏆 PRODUCTREVIEW CARAVAN FRIDGE RECOGNITION

The supplied Bushman information states that the range has received ProductReview Best Caravan Fridge recognition across the years from 2020 through 2026.

• 🏆 2020
• 🏆 2021
• 🏆 2022
• 🏆 2023
• 🏆 2024
• 🏆 2025
• 🏆 2026

---

🚐 SUITABLE APPLICATIONS

• 🚙 4X4 touring builds
• 🛻 4X4 and ute canopies
• 🚐 Caravans
• ⛺ Campers and camper trailers
• 🚐 Campervans
• 🚤 Compatible boat installations
• 🏠 Tiny houses
• 🚚 Trucks and work vehicles
• 🔋 12V auxiliary battery systems
• ⚡ 24V vehicle systems
• 🏜️ Remote touring
• 🗺️ Off-grid travel

---

📦 WHAT’S INCLUDED?

• ❄️ 1 × Bushman DC85-X 85L Heavy Duty Upright Fridge
• 🔩 1 × Supplied Mounting Kit
• 🔗 1 × Approximately 1.2m 12V/24V Anderson Lead
• 🔩 Heavy-Duty Wire Shelves
• 🥬 1 × Plastic Crisper Tub
• ❄️ Integrated Approximately 6L Freezer Compartment
• 🌬️ Internal Circulation Fan
• 🛡️ Supplied 7-Year 12V Compressor Warranty
• 📞 Lifetime Bushman Customer Support as stated in the supplied information

⚠️ No 240V power adaptor, battery, solar equipment or other accessories are stated as included in the supplied product information.

---

⚠️ INSTALLATION & FITMENT INFORMATION

The DC85-X is designed for built-in mobile installations, so cabinet dimensions, refrigeration ventilation and electrical supply should be planned before installation.

Check the following:

• Required refrigerator capacity – 85L
• Available cabinet height
• Available cabinet width
• Available cabinet depth
• Minimum cut-out dimensions
• Rear ventilation allowance
• Door-opening clearance
• Access to food, shelves and controls
• Suitable location for the supplied mounting kit
• Suitable 12V or 24V DC power supply
• Correct cable size and Anderson connection
• Appropriate circuit protection
• Battery condition and usable capacity
• Adequate airflow around the refrigeration system

⚠️ IMPORTANT: The supplied minimum installation cut-out is approximately 630mm high × 480mm wide × 550mm deep.

⚠️ IMPORTANT: The supplied installation information states that the cut-out arrangement allows approximately 50mm rear clearance with the door sitting proud of the cabinetwork.

⚠️ IMPORTANT: Maintain suitable ventilation around the refrigerator and oversized cooling system, particularly inside enclosed cabinetry.

⚠️ IMPORTANT: Use correctly sized wiring, connectors and circuit protection for the installation.

⚠️ IMPORTANT: Confirm that your battery system has sufficient usable capacity for the expected refrigerator runtime.

---

❓ FREQUENTLY ASKED QUESTIONS

What is the Bushman DC85-X?

The DC85-X is an 85L heavy-duty upright 12V/24V refrigerator designed for built-in installations in 4X4 canopies, caravans, campers, boats, tiny houses and other mobile applications.

Is the DC85-X part of Bushman’s 2026 Heavy Duty Series?

Yes. The supplied information identifies the DC85-X as part of the updated 2026 Heavy Duty Upright Fridge Series.

Is the DC85-X suitable for a 4X4 canopy?

Yes. Bushman describes the DC85-X as its go-to fridge and top-selling 12V upright model for 4X4 canopy applications.

What compressor does the DC85-X use?

The supplied specification lists a Secop Danfoss BD35-HD variable-speed compressor.

What is the compressor warranty?

The supplied Bushman information states a 7-year warranty on the 12V compressor.

Is the DC85-X tropical rated?

Yes. The supplied tropical rating is approximately 43°C ambient.

Does the DC85-X have an internal fan?

Yes. An internal fan is included to help provide more even cooling throughout the refrigerator cabinet.

Why does the DC85-X use an oversized refrigeration unit?

Bushman states that the oversized refrigeration unit helps create an efficient cooling system while maintaining relatively low overall power consumption.

Does it run on 12V?

Yes. The DC85-X supports 12V DC operation.

Does it run on 24V?

Yes. It also supports 24V DC systems.

Does it include an Anderson lead?

Yes. An approximately 1.2m 12V/24V Anderson lead is supplied.

How much power does the DC85-X use?

The supplied information states approximately 1.25 Amp/hr over 24 hours under one description and approximately 1.3Ah per hour in the technical specifications, both at approximately 25°C ambient conditions.

Why are there two slightly different power figures?

The supplied product information uses approximately 1.25 Amp/hr in the descriptive section and rounds the technical specification to approximately 1.3Ah per hour. Both figures have therefore been retained as a supplied range rather than altering either value.

What is the compressor current draw?

The supplied variable-speed compressor current range is approximately 2A to 4.5A while operating.

Will real-world power use vary?

Yes. Actual energy consumption and battery runtime depend on ambient temperature, fridge setting, stored contents, ventilation, door use, wiring, battery voltage and other loads.

What temperature does the refrigerator operate at?

The supplied refrigerator temperature is approximately 4°C ±2°C.

What temperature does the freezer operate at?

The supplied freezer temperature is approximately -12°C ±2°C.

How large is the freezer?

The supplied product information states that the internal freezer has approximately 6L capacity.

What can the freezer be used for?

Bushman specifically mentions items such as ice cubes and ice packs as suitable uses for the compact freezer compartment.

Can 2L milk bottles fit in the door?

Yes. The supplied product information states that the large door shelves can accommodate suitable 2L milk bottles.

Can tall bottles stand upright?

Yes. Bushman specifically identifies room for suitable tall bottles within the fridge.

Does it have a crisper?

Yes. A plastic crisper tub is included.

Are the shelves heavy duty?

Yes. The supplied product information describes upgraded heavy-duty wire shelves designed to handle the bumps associated with mobile and off-road travel.

Is a mounting kit included?

Yes. The DC85-X is supplied with a mounting kit as standard.

Can the DC85-X be installed into cabinetry?

Yes. It is designed for built-in installations where the supplied cut-out dimensions, rear clearance and ventilation requirements can be accommodated.

What size cabinet cut-out does it require?

The supplied minimum cut-out is approximately 630mm high × 480mm wide × 550mm deep.

How much rear clearance is required?

The supplied installation information states that the specified cut-out allows approximately 50mm of rear space when the door is installed sitting proud of the cabinetwork.

How tall is the DC85-X?

The supplied cabinet height is approximately 625mm.

How tall is it including the handle?

The supplied overall height including the handle is approximately 630mm.

How wide is the fridge?

The supplied width is approximately 475mm.

How deep is the DC85-X?

The supplied depth is approximately 550mm.

How much does the fridge weigh?

The supplied weight is approximately 22.5kg.

Is it suitable for a camper?

Yes. Campers are specifically included among the supplied suitable applications.

Is it suitable for a caravan?

Yes. The DC85-X is part of Bushman’s upright caravan refrigerator range and is designed for compatible built-in caravan installations.

Can it be used in a boat?

Yes. Boats are included among the supplied applications, subject to appropriate mounting, electrical installation and ventilation.

Can it be installed in a tiny house?

Yes. Tiny-house installations are specifically mentioned in the supplied product information.

Is it designed for off-road travel?

Bushman describes the compressor system and heavy-duty shelves as designed for demanding trucking and off-road applications.

What are the soft rubber feet for?

The custom soft rubber feet are designed to help provide a smoother ride for the refrigerator during mobile use.

Does Bushman provide customer support?

Yes. Lifetime Bushman customer support is stated as included in the supplied product information.

Has the Bushman caravan fridge received ProductReview recognition?

The supplied information states ProductReview Best Caravan Fridge recognition across the period from 2020 through 2026.

Does the DC85-X include a 240V adaptor?

No 240V adaptor or transformer is stated as included in the supplied product information. The DC85-X specifications supplied here identify 12V/24V DC operation.

What comes with the Bushman DC85-X?

The supplied product information includes the 85L refrigerator, mounting kit, approximately 1.2m Anderson lead, heavy-duty wire shelving, plastic crisper tub, internal fan and integrated 6L freezer.

How do I know if the DC85-X will fit my setup?

Compare the available installation space against the fridge’s approximately 625mm × 475mm × 550mm external dimensions and the approximately 630mm × 480mm × 550mm minimum cut-out. Also allow for the stated rear space, door access, ventilation, wiring and mounting requirements.

---

❄️ THE HEAVY-DUTY 85L UPRIGHT FRIDGE BUILT FOR 4X4 CANOPIES & TOURING

Choose the Bushman DC85-X when you need excellent upright storage capacity, low electrical demand and a robust refrigeration system in a compact package designed for Australian mobile installations.

With the 2026 Secop Danfoss BD35-HD compressor, oversized Bushman cooling system, internal circulation fan, 43°C tropical rating, 12V/24V operation, 6L freezer, large door shelves, crisper tub and supplied mounting kit, the DC85-X is built for serious 4X4, caravan, camper, boat and off-grid setups.

Get dependable 85L upright refrigeration backed by the supplied 7-year 12V compressor warranty and lifetime Bushman customer support.
