12V/24V 225L Caravan Fridge Freezer (DC225L-X)

❄️ BUSHMAN DC225L-X 225L HEAVY DUTY UPRIGHT CARAVAN FRIDGE

225L 12V/24V Two-Door Caravan Fridge – Secop Danfoss BD80CN High Capacity Compressor, Full Copper Refrigeration System & 43°C Tropical Rating

🚐 Built for serious caravanning, long-distance touring and demanding Australian conditions, the Bushman DC225L-X is Bushman’s largest supplied Heavy Duty Series 12V caravan fridge.

Developed from the successful DC190L-X platform, the DC225L-X increases total capacity to 225L while retaining the heavy-duty refrigeration technology designed for hot Australian environments.

At the heart of the system is a Secop Danfoss BD80CN High Capacity compressor paired with a full internal copper refrigeration circuit, large external heat exchanger, internal circulation fan and substantial insulation. The supplied tropical rating extends to ambient temperatures of approximately 43°C.

The large two-door cabinet incorporates a 45L freezer, wide door storage for suitable 2L milk bottles, a simple set-and-forget thermostat and a practical mobile-use door latch.

With 12V/24V operation, an included mounting kit and approximately 2.3m Anderson lead, the DC225L-X is designed for high-capacity caravan and off-grid refrigeration installations where cooling performance, storage space and reliability are priorities.

---

⚡ KEY FEATURES

❄️ Massive 225L Capacity
Bushman’s largest supplied Heavy Duty Series caravan fridge provides substantial refrigerated and frozen storage for extended travel.

🚪 Two-Door Upright Design
Separate-door configuration provides convenient access to the large refrigerator and freezer storage areas.

⚙️ Secop Danfoss BD80CN High Capacity Compressor
Uses the high-capacity BD80CN compressor platform for demanding 12V/24V refrigeration.

🛡️ 7-Year 12V Compressor Warranty
Backed by Bushman’s supplied 7-year warranty on the 12V compressor.

🌴 Tropical Rated to 43°C Ambient
Climate Class T design is intended to maintain refrigeration performance in ambient temperatures up to approximately 43°C.

🟠 Full Internal Copper Refrigeration System
More than 15 metres of copper is used internally according to the supplied Bushman information.

🔥 Large External Heat Exchanger
Bushman describes the refrigeration system as using Australia’s largest heat exchanger to support efficient heat rejection.

🌬️ Internal Cooling Fan
Helps circulate cold air through the refrigerator compartment for more even cooling.

🧱 Heavy Insulation
Approximately 80mm of freezer insulation and 50mm of refrigerator insulation help reduce unwanted heat transfer.

❄️ Large 45L Freezer
Provides substantial frozen storage for longer trips and larger food loads.

🥛 Wide Door Storage for 2L Milk Bottles
Provides convenient storage for suitable 2L bottles and other frequently accessed items.

🌡️ Set & Forget Thermostat
Simple thermostat control is designed for straightforward day-to-day operation.

🔒 Mobile-Use Door Latch
Helps keep the refrigerator securely closed while the caravan or vehicle is moving.

🧱 Full Steel Cabinet
Robust cabinet construction designed for long-term mobile use.

🔩 Multiple Mounting Options
Supports installation using the included mounting kit or a compatible flush-fit arrangement.

🔋 12V / 24V DC Operation
Suitable for compatible caravan, RV and off-grid battery systems.

🔗 2.3m Anderson Lead
Supplied with an approximately 2.3m 12V/24V Anderson power lead.

🔩 Free Mounting Kit Included
Factory-supplied mounting hardware assists with secure built-in installation.

📞 Lifetime Bushman Customer Support
Lifetime customer support is included according to the supplied Bushman information.

---

❄️ BUSHMAN’S LARGEST HEAVY DUTY 12V CARAVAN FRIDGE

The DC225L-X is described by Bushman as its largest 12V Heavy Duty Series caravan fridge.

Its 225L capacity provides substantially more storage than smaller upright models, making it particularly attractive for longer trips, larger families and touring setups where food needs to be carried for extended periods.

The two-door layout also provides practical separation between chilled and frozen storage.

---

⚙️ SECOP DANFOSS BD80CN HIGH CAPACITY COMPRESSOR

The DC225L-X uses a Secop Danfoss BD80CN High Capacity compressor.

The supplied Bushman information positions this compressor platform as part of its advanced large-capacity 12V refrigeration system.

Compressor: Secop Danfoss BD80CN

Series: High Capacity

Operating voltage: 12V / 24V DC

12V compressor warranty: 7 Years

---

🟠 100% COPPER INTERNAL REFRIGERATION CIRCUIT

The DC225L-X uses a full internal copper refrigeration system.

Bushman states that more than 15 metres of copper tubing is used inside the refrigerator.

The supplied product information explains that using copper throughout the internal refrigeration circuit reduces the number of aluminium-to-copper joins that can otherwise introduce additional potential leak points.

This design is intended to support long-term reliability in demanding caravan refrigeration applications.

---

🌴 GENUINE TROPICAL “T” RATING TO 43°C

The DC225L-X carries a supplied tropical Climate Class T rating for operation in ambient temperatures up to approximately 43°C.

This makes it particularly relevant for northern Australian touring and other high-temperature environments.

⚠️ IMPORTANT: A 43°C tropical rating does not eliminate the need for correct installation ventilation. Adequate airflow around the refrigeration system remains essential.

---

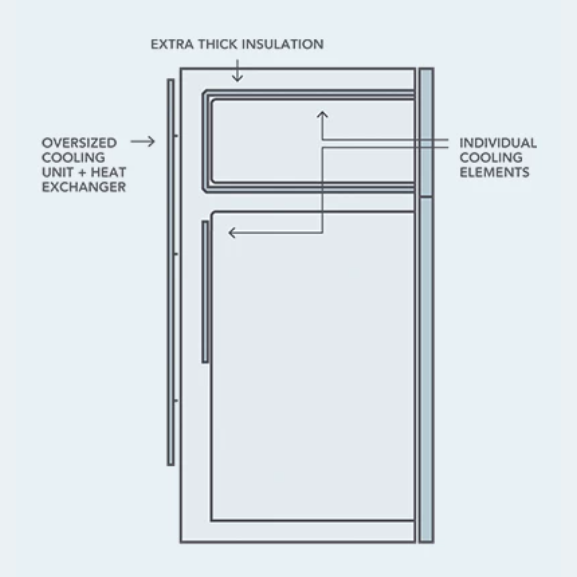

🔥 LARGE EXTERNAL HEAT EXCHANGER

Bushman describes the DC225L-X as using Australia’s largest heat exchanger as part of its cooling system.

The large heat-exchange area is designed to improve the refrigerator’s ability to reject heat, particularly when surrounding temperatures are high.

This is a key part of the fridge’s hot-weather-focused refrigeration system.

---

🌬️ INTERNAL FAN FOR EVEN COOLING

An internal circulation fan helps distribute cold air through the refrigerator cabinet.

This helps reduce temperature variation between different areas of the large upright compartment and provides more even cooling across stored food and drinks.

---

🧱 SUPER-THICK INSULATION

The DC225L-X uses substantial insulation to help reduce heat entering the refrigerator and freezer sections.

Freezer insulation: Approximately 80mm

Fridge insulation: Approximately 50mm

This insulation works with the compressor, heat exchanger and cooling system to support energy efficiency and hot-weather performance.

---

⚡ POWER CONSUMPTION AT 25°C AMBIENT

At approximately 25°C ambient temperature, the supplied average power-use figure is:

Approximately 2.4Ah per hour

This provides a reference point for battery and charging-system planning under moderate ambient conditions.

---

🔥 POWER CONSUMPTION AT 35°C AMBIENT

At approximately 35°C ambient temperature, the supplied average power-use figure is:

Approximately 3.4Ah per hour

This reflects the increased cooling demand experienced as surrounding temperatures rise.

⚠️ IMPORTANT: Actual power consumption and battery runtime will vary with ambient temperature, thermostat setting, fridge and freezer contents, ventilation, door-opening frequency, battery voltage, wiring and other electrical loads.

---

❄️ FRIDGE & FREEZER TEMPERATURES

The DC225L-X provides separate chilled and frozen storage within its two-door cabinet.

Supplied refrigerator temperature: Approximately 4°C ±2°C

Supplied freezer temperature: Approximately -15°C ±2°C

This provides everyday fresh-food refrigeration together with substantial frozen-food capacity.

---

🧊 LARGE 45L FREEZER

The DC225L-X incorporates an approximately 45L freezer compartment.

This provides substantial space for frozen meat, prepared meals, ice and other freezer supplies during longer caravan and off-grid trips.

The supplied freezer operating temperature is approximately -15°C ±2°C.

---

🥛 WIDE DOOR STORAGE FOR 2L MILK BOTTLES

The refrigerator incorporates wide door storage designed to accommodate suitable 2L milk bottles.

This keeps commonly accessed bottles organised while preserving valuable main-shelf space for larger food containers.

---

🌡️ SIMPLE SET & FORGET THERMOSTAT

The DC225L-X uses a straightforward thermostat arrangement designed for easy day-to-day operation.

Once the desired refrigerator setting is selected, the refrigeration system automatically cycles as required to maintain temperature.

---

🔒 SIMPLE DOOR LATCH FOR MOBILE USE

A practical door latch is included to help keep the refrigerator closed while travelling.

This is particularly important in caravan and mobile applications where movement, braking and uneven roads can otherwise place loads on refrigerator doors.

---

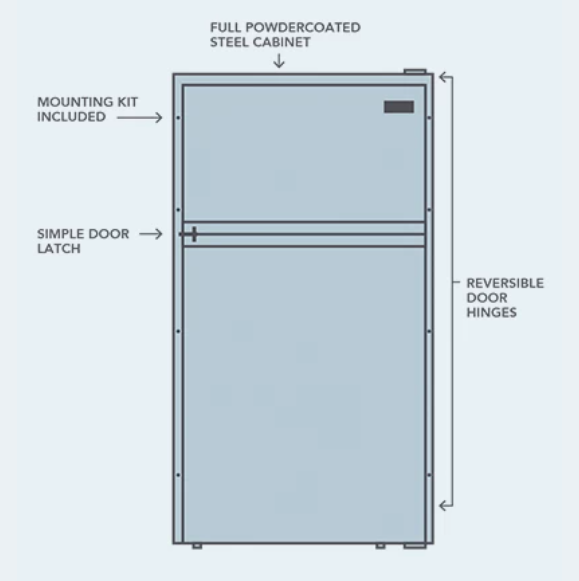

🧱 FULL STEEL CABINET

The DC225L-X uses a full steel cabinet as part of Bushman’s heavy-duty construction approach.

The robust enclosure is designed around long-term caravan and mobile use rather than lightweight temporary refrigeration.

---

🔩 MULTIPLE MOUNTING OPTIONS

The DC225L-X supports more than one installation method.

The supplied specifications provide separate cut-out dimensions for:

• Installation using the supplied mounting kit
• Flush-fit installation

This provides additional flexibility when integrating the fridge into caravan or off-grid cabinetry.

---

📐 MINIMUM CUT-OUT WITH MOUNTING KIT

The supplied minimum cut-out dimensions when using the mounting kit are:

Height: Approximately 1555mm

Width: Approximately 615mm

Depth: Approximately 555mm

The supplied information states that this arrangement allows approximately 50mm of rear space when the refrigerator doors sit proud of the cabinetwork.

---

📐 MINIMUM FLUSH-FIT CUT-OUT

The supplied minimum flush-fit cut-out dimensions are:

Height: Approximately 1555mm

Width: Approximately 605mm

Depth: Approximately 555mm

The supplied information states that this arrangement also allows approximately 50mm of space at the rear when the doors sit proud of the cabinetwork.

⚠️ IMPORTANT: Confirm all mounting, ventilation, wiring, door-clearance and service-access requirements before constructing cabinetry.

---

🔋 12V & 24V DC OPERATION

The Bushman DC225L-X supports both 12V and 24V DC operation.

This makes it suitable for compatible:

• 🚐 Caravan auxiliary battery systems
• 🚐 RV electrical systems
• 🏠 Off-grid battery systems
• 🚚 12V and 24V vehicle installations
• 🔋 High-capacity lithium battery banks
• 🔋 Deep-cycle battery installations
• ☀️ Solar-supported touring systems

---

🔗 2.3M 12V / 24V ANDERSON LEAD

An approximately 2.3m Anderson lead is supplied with the DC225L-X.

The additional cable length provides installation flexibility when connecting the refrigerator to a compatible 12V or 24V electrical system.

⚠️ IMPORTANT: Ensure all wiring, Anderson connections, fusing or circuit protection and the supporting battery system are appropriately sized for the refrigerator installation.

---

☀️ BUILT FOR HOT-WEATHER TOURING

Bushman positions the DC225L-X as a genuine hot-weather refrigerator designed for northern Australian conditions.

The combination of the tropical rating, large heat exchanger, heavy insulation, copper refrigeration circuit and high-capacity compressor is intended to provide dependable refrigeration when ambient temperatures become demanding.

Correct installation remains critical to achieving this performance.

---

🚐 DESIGNED FOR SERIOUS CARAVAN INSTALLATIONS

At 225L, the DC225L-X is intended for installations requiring significantly more storage than a compact upright caravan fridge.

Its separate freezer, wide door storage and large main refrigerator compartment make it practical for longer trips where carrying larger quantities of fresh and frozen food reduces the need for frequent resupply.

---

📏 FRIDGE DIMENSIONS & WEIGHT

Height: Approximately 1550mm

Width: Approximately 600mm

Depth: Approximately 600mm

Weight: Approximately 57kg

⚠️ IMPORTANT: The refrigerator weighs approximately 57kg before food and drinks are added. Ensure the supporting structure and mounting arrangement are suitable for the complete installed load.

---

📋 TECHNICAL SPECIFICATIONS

Brand: Bushman

Product: DC225L-X Caravan Fridge

Series: Heavy Duty Upright Fridge Series

Total capacity: 225L

Configuration: Two-door upright fridge freezer

Freezer capacity: Approximately 45L

Operating voltage: 12V / 24V DC

Power connection: Anderson

Anderson lead length: Approximately 2.3m

Compressor: Secop Danfoss BD80CN High Capacity

Cooling system: Bushman-designed refrigeration system

Internal refrigeration piping: 100% copper

Supplied internal copper tubing length: More than 15 metres

Internal cooling fan: Yes

External heat exchanger: Large Bushman heat exchanger

Fridge temperature: Approximately 4°C ±2°C

Freezer temperature: Approximately -15°C ±2°C

Tropical rating: Climate Class T – approximately 43°C ambient

Freezer insulation: Approximately 80mm

Fridge insulation: Approximately 50mm

Power use at 25°C ambient: Approximately 2.4Ah per hour

Power use at 35°C ambient: Approximately 3.4Ah per hour

Thermostat: Simple set-and-forget control

Door storage: Wide storage suitable for compatible 2L milk bottles

Door latch: Included for mobile use

Cabinet: Full steel

External dimensions: Approximately 1550mm H × 600mm W × 600mm D

Minimum cut-out with mounting kit: Approximately 1555mm H × 615mm W × 555mm D

Minimum flush-fit cut-out: Approximately 1555mm H × 605mm W × 555mm D

Supplied rear installation allowance: Approximately 50mm with doors proud of the cabinetwork

Weight: Approximately 57kg

Mounting kit: Included

12V compressor warranty: 7 Years

Customer support: Lifetime Bushman customer support as supplied

---

📦 WHAT’S INCLUDED?

• ❄️ 1 × Bushman DC225L-X 225L Heavy Duty Upright Caravan Fridge
• 🧊 Integrated Approximately 45L Freezer
• 🔩 1 × Supplied Mounting Kit
• 🔗 1 × Approximately 2.3m 12V/24V Anderson Lead
• 🌬️ Internal Fridge Circulation Fan
• 🔒 Mobile-Use Door Latch
• 🛡️ Supplied 7-Year 12V Compressor Warranty
• 📞 Lifetime Bushman Customer Support as stated in the supplied information

⚠️ No 240V power adaptor, battery, battery charger, solar system or other accessories are stated as included in the supplied product information.

---

⚠️ INSTALLATION & FITMENT INFORMATION

The DC225L-X is a large built-in caravan refrigerator, so correct cabinetry, ventilation, electrical capacity and structural mounting should be planned before installation.

Check the following:

• Required total capacity – 225L
• Available installation height
• Available installation width
• Available installation depth
• Mounting-kit or flush-fit installation method
• Rear ventilation allowance
• Door-opening clearance
• Access to refrigerator and freezer compartments
• Service access to refrigeration components
• Suitable 12V or 24V DC power supply
• Correct wiring size
• Appropriate circuit protection
• Battery usable capacity
• Charging-system capacity
• Solar capacity where applicable
• Structural support for the approximately 57kg empty fridge plus contents

⚠️ IMPORTANT: Minimum cut-out using the supplied mounting kit is approximately 1555mm H × 615mm W × 555mm D.

⚠️ IMPORTANT: Minimum flush-fit cut-out is approximately 1555mm H × 605mm W × 555mm D.

⚠️ IMPORTANT: Both supplied installation arrangements reference approximately 50mm of rear space with the doors sitting proud of the cabinetwork.

⚠️ IMPORTANT: Do not obstruct the refrigeration system or heat exchanger. Adequate ventilation is essential, particularly in high ambient temperatures.

⚠️ IMPORTANT: Confirm that the battery and charging system can support the refrigerator’s expected electrical consumption, particularly during hot-weather operation.

---

❓ FREQUENTLY ASKED QUESTIONS

What is the Bushman DC225L-X?

The DC225L-X is a 225L heavy-duty two-door 12V/24V upright caravan fridge freezer designed for high-capacity mobile and off-grid refrigeration.

Is the DC225L-X Bushman’s largest 12V Heavy Duty caravan fridge?

Yes. The supplied Bushman product information describes it as the company’s largest 12V Heavy Duty Series caravan fridge.

Is the DC225L-X based on the DC190L-X?

Yes. The supplied information states that the 225L model is built upon the DC190L-X platform.

Does the DC225L-X have two doors?

Yes. The supplied description identifies it as a 225L two-door caravan refrigerator.

What compressor does it use?

The supplied specification lists a Secop Danfoss BD80CN High Capacity compressor.

What warranty does the compressor have?

The supplied Bushman information states a 7-year warranty on the 12V compressor.

Is the DC225L-X tropical rated?

Yes. The supplied tropical rating is approximately 43°C ambient and is described as Climate Class T.

Is it suitable for northern Australian touring?

Bushman specifically positions the DC225L-X as a hot-weather refrigerator for demanding Australian conditions up to the supplied 43°C ambient rating.

Does it use copper refrigeration piping?

Yes. The supplied information states that the internal refrigeration system uses 100% copper piping.

How much copper is used?

Bushman states that more than 15 metres of copper tubing is used inside the refrigerator.

Why does Bushman use full copper?

The supplied information states that full-copper construction reduces the number of aluminium-to-copper welded joins, which Bushman identifies as potential leak points.

Does the DC225L-X have an internal fan?

Yes. An internal fan is fitted to help provide more even cooling through the refrigerator compartment.

What type of heat exchanger does it use?

The supplied product information describes it as using Australia’s largest heat exchanger as part of Bushman’s cooling system.

How thick is the insulation?

The supplied figures are approximately 80mm around the freezer and 50mm around the refrigerator section.

How large is the freezer?

The supplied freezer capacity is approximately 45L.

What temperature does the refrigerator operate at?

The supplied refrigerator temperature is approximately 4°C ±2°C.

What temperature does the freezer operate at?

The supplied freezer temperature is approximately -15°C ±2°C.

How much power does the DC225L-X use at 25°C ambient?

The supplied average figure is approximately 2.4Ah per hour.

How much power does it use at 35°C ambient?

The supplied average figure is approximately 3.4Ah per hour.

Will power consumption increase in hotter weather?

Typically yes. Higher ambient temperatures increase refrigeration demand, so the compressor generally needs to operate for longer periods.

Will actual battery runtime vary?

Yes. Actual runtime depends on usable battery capacity, ambient temperature, refrigerator settings, stored contents, ventilation, door use, wiring and other connected loads.

Does the DC225L-X run on 12V?

Yes. It supports 12V DC operation.

Does it run on 24V?

Yes. It also supports 24V DC electrical systems.

How long is the Anderson lead?

The supplied 12V/24V Anderson lead is approximately 2.3m long.

Is a 240V adaptor included?

No 240V adaptor or transformer is stated as included in the supplied product information.

Can 2L milk bottles fit in the door?

Yes. The supplied information specifies wide door storage for suitable 2L milk bottles.

What type of thermostat does it use?

The supplied information describes a simple set-and-forget thermostat.

Does the fridge have a travel latch?

Yes. An easy door latch is included for mobile use.

What is the outer cabinet made from?

The supplied information identifies a full steel cabinet.

Is a mounting kit included?

Yes. A mounting kit is supplied with the DC225L-X.

Can it be flush fitted?

Yes. Bushman supplies separate minimum installation dimensions for flush-fit and mounting-kit configurations.

What cut-out is required with the mounting kit?

The supplied minimum cut-out is approximately 1555mm high × 615mm wide × 555mm deep.

What cut-out is required for a flush fit?

The supplied minimum flush-fit cut-out is approximately 1555mm high × 605mm wide × 555mm deep.

Why is the listed fridge depth 600mm but the cut-out depth only 555mm?

The supplied installation information states that the cut-out arrangements allow the refrigerator doors to sit proud of the cabinetwork while maintaining approximately 50mm of space at the rear. The supplied dimensions have been retained as provided.

How much rear space is specified?

The supplied installation information references approximately 50mm at the rear with the doors sitting proud of the cabinetwork.

How tall is the DC225L-X?

The supplied refrigerator height is approximately 1550mm.

How wide is the fridge?

The supplied width is approximately 600mm.

How deep is it?

The supplied external depth is approximately 600mm.

How much does the DC225L-X weigh?

The supplied empty weight is approximately 57kg.

Do I need to consider the weight once the fridge is loaded?

Yes. The mounting structure should be suitable for the approximately 57kg empty refrigerator plus the weight of all food, drinks and frozen contents.

Is the DC225L-X suitable for long-term caravan touring?

The supplied Bushman information positions it specifically as a heavy-duty, high-capacity caravan refrigerator designed for hot-weather and long-term mobile applications.

Does Bushman provide customer support?

Yes. Lifetime Bushman customer support is stated as included.

What comes with the Bushman DC225L-X?

The supplied package includes the DC225L-X refrigerator, approximately 45L integrated freezer, mounting kit, approximately 2.3m Anderson lead, internal circulation fan and mobile-use door latch.

How do I know if the DC225L-X will fit my caravan?

Compare your installation area against the approximately 1550mm × 600mm × 600mm external dimensions and use the applicable mounting-kit or flush-fit cut-out specification. Also allow for rear ventilation, door movement, electrical wiring and service access.

---

❄️ MAXIMUM BUSHMAN CAPACITY FOR SERIOUS CARAVAN & OFF-GRID TOURING

Choose the Bushman DC225L-X when you need maximum upright refrigeration capacity combined with a heavy-duty cooling system designed for demanding Australian travel.

With 225L total capacity, a 45L freezer, Secop Danfoss BD80CN High Capacity compressor, full-copper refrigeration system, large heat exchanger, internal circulation fan, substantial insulation and genuine 43°C tropical rating, the DC225L-X is built around hot-weather performance and long-term mobile use.

Get high-capacity 12V/24V refrigeration backed by Bushman’s supplied 7-year 12V compressor warranty, included mounting kit and lifetime customer support.
