12V/24V 190L Upright Caravan Fridge (DC190-X)

❄️ BUSHMAN DC190L-X 190L HEAVY DUTY UPRIGHT CARAVAN FRIDGE

2026 Heavy Duty 190L 12V/24V Caravan Fridge – Secop Danfoss BD80CN High Capacity Compressor, Full Copper Cooling System & 43°C Tropical Rating

🚐 Built for serious caravanning, off-grid travel and demanding Australian conditions, the Bushman DC190L-X 190L Caravan Fridge is the largest and most advanced upright refrigerator in Bushman’s supplied Heavy Duty Series information.

New for 2026, the DC190L-X introduces a full-copper refrigeration system, Secop Danfoss BD80CN High Capacity compressor, large external heat exchanger and both internal and external cooling fans to deliver dependable refrigeration in ambient temperatures up to 43°C.

With a generous 190L cabinet, large 45L freezer, wide door storage for suitable 2L milk bottles, adjustable lockable shelves and substantial insulation, it is designed for caravans and off-grid installations where storage capacity, hot-weather performance and power efficiency are priorities.

The supplied technical information lists approximately 2.0Ah per hour consumption at 25°C ambient and approximately 3.0Ah per hour at 35°C ambient on a 12V system, while Bushman’s descriptive information states approximately 4Ah per hour may be expected in extreme heat.

---

⚡ KEY FEATURES

❄️ Large 190L Upright Fridge Freezer
Generous storage capacity designed for caravans, long-distance touring and larger off-grid refrigeration requirements.

⚙️ Secop Danfoss BD80CN High Capacity Compressor
The 2026 DC190L-X features Bushman’s first supplied use of the Secop Danfoss BD80CN High Capacity compressor.

🛡️ 7-Year 12V Compressor Warranty
Backed by Bushman’s supplied 7-year compressor warranty.

🌴 Climate Class T – Tropical Rated to 43°C
Designed for refrigeration performance in demanding ambient temperatures up to approximately 43°C.

🟠 100% Copper Internal Refrigeration Piping
Uses more than 15 metres of copper internally according to the supplied Bushman information, reducing the number of dissimilar-metal joins in the refrigeration circuit.

⚡ Ultra-Low-Power Bushman Cooling System
Supplied technical consumption is approximately 2.0Ah per hour at 25°C ambient and 3.0Ah per hour at 35°C ambient on 12V.

🌬️ Internal & External Cooling Fans
Multiple fans support stronger cooling and improved airflow through the refrigeration system.

🔥 Large External Heat Exchanger
Bushman describes the DC190L-X as using Australia’s biggest external heat exchanger for maximum efficiency.

🧱 Super-Thick Insulation
Supplied insulation thickness is approximately 80mm around the freezer and 50mm around the refrigerator section.

❄️ Large 45L Freezer
Provides substantial dedicated frozen storage for longer trips and larger food loads.

🥛 Wide Door Storage for 2L Milk Bottles
Large door storage provides convenient space for suitable 2L milk bottles and everyday refrigerator items.

🔩 Adjustable Height Lockable Shelves
Shelves can be repositioned and secured to suit different food, bottle and container sizes while travelling.

🔒 Simple Door Latch
A practical latch helps keep the refrigerator closed during mobile use.

🔩 Multiple Mounting Options
Supports different installation approaches, including the supplied mounting kit or flush-fit installation.

🧱 Full Steel Cabinet
Heavy-duty outer construction designed for long-term mobile use.

🔋 12V / 24V DC Operation
Designed for compatible caravan, RV and off-grid DC battery systems.

🔗 2.3m Anderson Lead
Supplied with an approximately 2.3m 12V/24V Anderson power lead.

🔩 Free Mounting Kit Included
A mounting kit is supplied to assist with secure installation.

📞 Lifetime Bushman Customer Support
Lifetime customer support is included according to the supplied Bushman product information.

---

🆕 NEW 2026 HEAVY DUTY SERIES

The DC190L-X represents an updated Bushman refrigeration platform for 2026.

Key changes highlighted in the supplied information include:

• Secop Danfoss BD80CN High Capacity compressor
• Full-copper internal refrigeration piping
• Ultra-low-power cooling system
• Large external heat exchanger
• Internal and external cooling fans
• 43°C tropical rating
• Single-piece moulded interior

The design is focused on long-term performance in large caravan and off-grid installations.

---

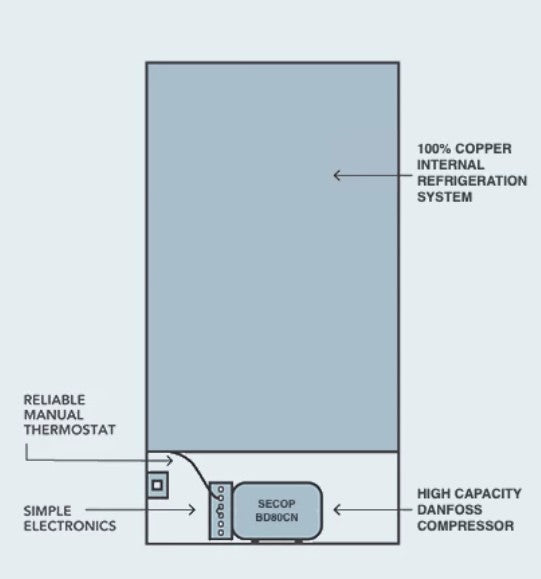

⚙️ SECOP DANFOSS BD80CN HIGH CAPACITY COMPRESSOR

The Bushman DC190L-X uses a Secop Danfoss BD80CN High Capacity compressor.

The supplied Bushman information identifies this as its first use of the BD80-CN High Capacity series compressor in this fridge platform.

The compressor works with the fridge’s copper refrigeration circuit, large heat exchanger and fan-assisted cooling system to maintain reliable refrigeration in demanding conditions.

Compressor: Secop Danfoss BD80CN

Operating voltage: 12V / 24V DC

12V compressor warranty: 7 Years

---

🟠 100% COPPER INTERNAL REFRIGERATION SYSTEM

One of the major features of the DC190L-X is its full-copper internal refrigeration piping.

Bushman states that more than 15 metres of copper tubing is used inside the refrigerator.

The supplied product information explains that using copper throughout the internal refrigeration system reduces the need for aluminium-to-copper joins that can create additional potential failure points.

This design is intended to improve long-term reliability in caravan and mobile refrigeration applications.

---

🌴 GENUINE TROPICAL RATING FOR 43°C AMBIENT

The DC190L-X carries a supplied Climate Class “T” tropical rating for ambient temperatures up to approximately 43°C.

This makes it particularly relevant for northern Australian touring and other installations exposed to high surrounding temperatures.

⚠️ IMPORTANT: Tropical rating does not remove the need for correct ventilation. Appropriate airflow around the heat exchanger, compressor and cooling system remains essential.

---

🔥 LARGE EXTERNAL HEAT EXCHANGER

Bushman describes the DC190L-X as incorporating Australia’s biggest external heat exchanger for maximum efficiency.

A large heat-exchange area helps the refrigeration system transfer heat away from the cabinet, particularly in demanding ambient conditions.

This works alongside the internal and external fans to support hot-weather cooling performance.

---

🌬️ INTERNAL & EXTERNAL COOLING FANS

The DC190L-X incorporates both internal and external fans.

The internal fan assists with distributing cold air through the refrigerator cabinet for more even cooling.

The external fan assists the refrigeration system with heat removal through the external cooling components.

---

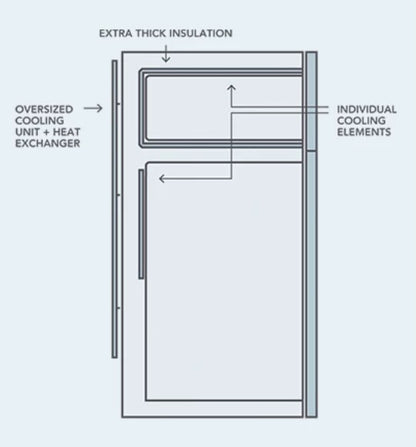

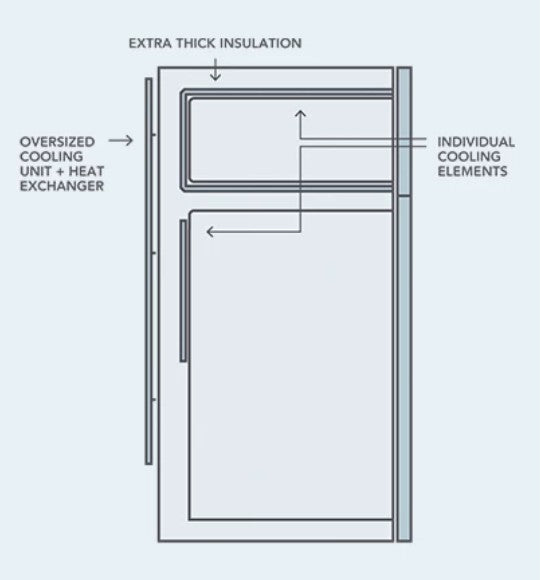

🧱 SUPER-THICK INSULATION

The supplied Bushman specifications highlight substantial insulation around both sections of the refrigerator.

Freezer insulation: Approximately 80mm

Fridge insulation: Approximately 50mm

This heavy insulation helps reduce unwanted heat transfer and supports the fridge’s hot-weather performance and electrical efficiency.

---

⚡ POWER USE AT 25°C AMBIENT

At approximately 25°C ambient temperature on a 12V system, the supplied technical specification lists:

Average power use: Approximately 2.0Ah per hour

This represents Bushman’s stated typical consumption in moderate operating conditions.

---

🔥 POWER USE AT 35°C AMBIENT

At approximately 35°C ambient temperature on a 12V system, the supplied technical specification lists:

Average power use: Approximately 3.0Ah per hour

This illustrates the additional refrigeration load created by higher ambient temperatures.

---

🌡️ POWER USE IN EXTREME HEAT

The supplied descriptive information states that power consumption may be approximately 4Ah per hour in extreme heat.

No specific ambient temperature is attached to that particular figure in the supplied information, so it should be treated as a general extreme-condition reference rather than a fixed test result.

⚠️ IMPORTANT: Actual power consumption and battery runtime will vary according to ambient temperature, fridge and freezer temperatures, food load, ventilation, door-opening frequency, battery voltage, wiring and other electrical loads.

---

❄️ FRIDGE & FREEZER TEMPERATURES

The supplied operating temperatures are:

Fridge temperature: Approximately 4°C ±2°C

Freezer temperature: Approximately -15°C ±2°C

This provides chilled food storage together with a substantial dedicated freezer compartment.

---

🧊 LARGE 45L FREEZER

The DC190L-X includes a large approximately 45L freezer.

This provides significantly more frozen storage than smaller upright caravan refrigerators and is well suited to extended trips where frozen food needs to be carried for longer periods.

---

🥛 WIDE DOOR STORAGE FOR 2L MILK BOTTLES

The door storage is designed to accommodate suitable 2L milk bottles and other larger everyday items.

Using the door for bottles helps preserve the main shelf area for food containers and larger supplies.

---

🔩 ADJUSTABLE HEIGHT LOCKABLE SHELVES

The DC190L-X incorporates shelves that can be adjusted vertically to suit different storage requirements.

The supplied information also describes them as lockable, helping maintain their selected position during mobile use.

This is particularly useful in caravans where the refrigerator may regularly experience movement and vibration.

---

🔒 SIMPLE DOOR LATCH FOR MOBILE USE

A simple mechanical door latch is incorporated into the DC190L-X design.

The latch helps prevent the refrigerator door opening unexpectedly while the caravan or vehicle is moving.

---

🧱 SINGLE-PIECE MOULDED INTERIOR

The 2026 DC190L-X features a single-piece moulded interior.

This simple construction complements Bushman’s focus on durability and long-term reliability.

---

🔩 MULTIPLE MOUNTING OPTIONS

The DC190L-X is designed to accommodate different installation methods.

The supplied information provides dimensions for both:

• Installation using the supplied mounting kit
• Flush-fit installation

This gives installers greater flexibility when integrating the refrigerator into caravan or off-grid cabinetry.

---

📐 MINIMUM CUT-OUT WITH MOUNTING KIT

The supplied minimum cut-out dimensions when using the mounting kit are:

Height: Approximately 1385mm

Width: Approximately 615mm

Depth: Approximately 570mm

The supplied installation information states that this configuration allows approximately 50mm of rear space with the doors sitting proud of the cabinetwork.

---

📐 MINIMUM FLUSH-FIT CUT-OUT

The supplied minimum cut-out dimensions for a flush-fit installation are:

Height: Approximately 1385mm

Width: Approximately 605mm

Depth: Approximately 570mm

This configuration also allows approximately 50mm of rear space with the doors sitting proud of the cabinetwork according to the supplied information.

⚠️ IMPORTANT: Confirm the complete mounting, ventilation, wiring and service-access requirements before constructing cabinetry.

---

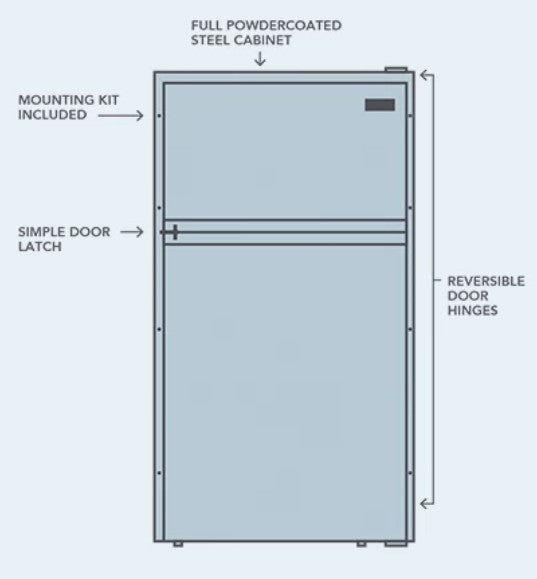

🧱 FULL STEEL CABINET

The DC190L-X uses a full steel cabinet as part of Bushman’s heavy-duty construction approach.

The robust enclosure is designed for long-term use in caravan and mobile applications where strength and durability are important.

---

🔋 12V & 24V DC OPERATION

The DC190L-X supports both 12V and 24V DC electrical systems.

This makes it suitable for compatible:

• 🚐 Caravan auxiliary battery systems
• 🚐 RV electrical systems
• 🏠 Off-grid battery installations
• 🚚 12V and 24V vehicle systems
• 🔋 Large lithium or deep-cycle battery banks
• ☀️ Solar-supported off-grid systems

---

🔗 2.3M ANDERSON LEAD

The DC190L-X is supplied with an approximately 2.3m 12V/24V Anderson lead.

The longer lead provides additional flexibility when connecting the refrigerator to a compatible battery and electrical system.

⚠️ IMPORTANT: Ensure the wiring, Anderson connection, circuit protection and battery system are appropriately sized for the refrigerator and installation.

---

📏 FRIDGE DIMENSIONS & WEIGHT

Height: Approximately 1380mm

Width: Approximately 600mm

Depth: Approximately 595mm

Weight: Approximately 53kg

---

📋 TECHNICAL SPECIFICATIONS

Brand: Bushman

Product: DC190L-X Caravan Fridge

Series: 2026 Heavy Duty Upright Fridge Series

Capacity: 190L

Operating voltage: 12V / 24V DC

Power connection: Anderson

Anderson lead length: Approximately 2.3m

Compressor: Secop Danfoss BD80CN High Capacity

Cooling system: Genuine Bushman-designed refrigeration system

Internal refrigeration piping: 100% copper

Supplied internal copper tubing length: More than 15 metres

External heat exchanger: Large Bushman external heat exchanger

Internal cooling fan: Yes

External cooling fan: Yes

Fridge temperature: Approximately 4°C ±2°C

Freezer temperature: Approximately -15°C ±2°C

Freezer capacity: Approximately 45L

Tropical rating: Climate Class T – up to approximately 43°C ambient

Freezer insulation thickness: Approximately 80mm

Fridge insulation thickness: Approximately 50mm

Power use at 25°C ambient, 12V: Approximately 2.0Ah per hour

Power use at 35°C ambient, 12V: Approximately 3.0Ah per hour

Supplied extreme-heat reference: Approximately 4Ah per hour

Cabinet: Full steel

Interior: Single-piece moulded interior

Shelves: Adjustable height and lockable

Door storage: Wide storage suitable for compatible 2L milk bottles

Door latch: Included

External dimensions: Approximately 1380mm H × 600mm W × 595mm D

Minimum cut-out with mounting kit: Approximately 1385mm H × 615mm W × 570mm D

Minimum flush-fit cut-out: Approximately 1385mm H × 605mm W × 570mm D

Supplied rear installation allowance: Approximately 50mm with doors proud of the cabinetwork

Weight: Approximately 53kg

Mounting kit: Included

12V compressor warranty: 7 Years

Customer support: Lifetime Bushman customer support as supplied

---

⭐ SUPPLIED CUSTOMER REVIEW INFORMATION

The supplied Bushman product information states a ProductReview rating of approximately 4.7 stars from 50 reviews.

The supplied material also references customer feedback highlighting hot-weather performance in Australian touring conditions, including operation around 43°C ambient temperatures.

These customer-review references are reproduced as supplied product information and have not been independently verified in this listing.

---

🚐 SUITABLE APPLICATIONS

• 🚐 Caravans
• 🚐 RVs and motorhomes
• 🏠 Off-grid homes and cabins
• 🏜️ Northern Australian touring
• ☀️ Hot-climate installations
• 🔋 Large 12V auxiliary battery systems
• ⚡ 24V DC systems
• ☀️ Solar-supported off-grid setups
• 🗺️ Long-distance touring
• 🏕️ Extended remote travel

---

📦 WHAT’S INCLUDED?

• ❄️ 1 × Bushman DC190L-X 190L Heavy Duty Upright Fridge
• 🔩 1 × Supplied Mounting Kit
• 🔗 1 × Approximately 2.3m 12V/24V Anderson Lead
• ❄️ Integrated Approximately 45L Freezer
• 🔩 Adjustable Height Lockable Shelves
• 🌬️ Internal Fridge Cooling Fan
• 🌬️ External Refrigeration Fan
• 🔒 Mobile-Use Door Latch
• 🛡️ Supplied 7-Year 12V Compressor Warranty
• 📞 Lifetime Bushman Customer Support as stated in the supplied information

⚠️ No 240V power adaptor, battery, battery charger, solar equipment or other accessories are stated as included in the supplied product information.

---

⚠️ INSTALLATION & FITMENT INFORMATION

The DC190L-X is a large built-in refrigerator, so cabinetry, ventilation, electrical capacity and secure mounting should be planned carefully before installation.

Check the following:

• Required refrigerator capacity – 190L
• Available installation height
• Available installation width
• Available installation depth
• Mounting-kit or flush-fit installation method
• Rear ventilation clearance
• Door-opening clearance
• Service access to the compressor and heat exchanger
• Suitable 12V or 24V DC power supply
• Correct cable size for the electrical load
• Appropriate electrical circuit protection
• Battery condition and usable capacity
• Charging and solar capacity where applicable
• Secure structural mounting for a 53kg refrigerator

⚠️ IMPORTANT: Minimum cut-out using the mounting kit is approximately 1385mm H × 615mm W × 570mm D.

⚠️ IMPORTANT: Minimum flush-fit cut-out is approximately 1385mm H × 605mm W × 570mm D.

⚠️ IMPORTANT: Both supplied installation arrangements reference approximately 50mm of rear clearance with the doors sitting proud of the cabinetwork.

⚠️ IMPORTANT: Do not obstruct the external heat exchanger or cooling fans. Suitable airflow is essential for hot-weather performance.

⚠️ IMPORTANT: Confirm your battery and charging system can support the refrigerator’s expected power consumption, particularly in high ambient temperatures.

---

❓ FREQUENTLY ASKED QUESTIONS

What is the Bushman DC190L-X?

The DC190L-X is a 190L heavy-duty upright 12V/24V caravan fridge freezer designed for larger caravan and off-grid refrigeration installations.

Is the DC190L-X new for 2026?

Yes. The supplied information identifies this configuration as the updated 2026 Heavy Duty Series DC190L-X.

What compressor does the DC190L-X use?

The supplied specification lists a Secop Danfoss BD80CN High Capacity compressor.

Is this the same compressor as the smaller Bushman DC-X fridges?

No. The supplied information specifically identifies the DC190L-X as using Bushman’s first Secop Danfoss BD80-CN High Capacity series compressor.

What warranty does the compressor have?

The supplied Bushman information states a 7-year warranty on the 12V compressor.

Is the DC190L-X tropical rated?

Yes. The supplied specification identifies Climate Class T operation for ambient temperatures up to approximately 43°C.

Is it suitable for northern Australian conditions?

Bushman specifically positions the DC190L-X as a hot-weather fridge for northern adventures, subject to correct installation and ventilation.

What is special about the cooling system?

The supplied features include a full-copper internal refrigeration circuit, large external heat exchanger, internal and external fans, substantial insulation and the Secop Danfoss BD80CN compressor.

Does the refrigerator really use copper piping?

Yes. The supplied information states that 100% copper is used for the internal refrigeration piping.

How much copper is inside the fridge?

Bushman states that more than 15 metres of copper tubing is used inside the DC190L-X.

Why does Bushman use full copper?

The supplied information states that using copper throughout reduces the number of aluminium-to-copper welded joins, which Bushman identifies as potential refrigeration-system failure points.

Does it have an internal fan?

Yes. An internal fan is included to help provide more even refrigerator cooling.

Does it also have an external fan?

Yes. The supplied product information specifies both internal and external fans.

How thick is the insulation?

The supplied information lists approximately 80mm of freezer insulation and 50mm of refrigerator insulation.

How large is the freezer?

The supplied freezer capacity is approximately 45L.

What temperature does the fridge operate at?

The supplied refrigerator temperature is approximately 4°C ±2°C.

What temperature does the freezer operate at?

The supplied freezer temperature is approximately -15°C ±2°C.

How much power does the DC190L-X use at 25°C?

The supplied technical specification lists approximately 2.0Ah per hour at 25°C ambient on a 12V system.

How much power does it use at 35°C?

The supplied technical specification lists approximately 3.0Ah per hour at 35°C ambient on 12V.

How much power does it use in extreme heat?

The supplied descriptive information states approximately 4Ah per hour in extreme heat. No exact ambient temperature is attached to that figure in the supplied information.

Why does power use increase in hot weather?

Higher ambient temperature increases the amount of heat the refrigeration system must remove, causing the compressor and cooling system to operate more frequently.

Will actual power use vary?

Yes. Actual consumption depends on ambient temperature, fridge and freezer settings, stored contents, ventilation, door-opening frequency, battery voltage, wiring and other system loads.

Does it run on 12V?

Yes. The DC190L-X supports 12V DC operation.

Does it run on 24V?

Yes. It also supports 24V DC systems.

How long is the supplied Anderson lead?

The supplied 12V/24V Anderson lead is approximately 2.3m long.

Does it include a 240V adaptor?

No 240V adaptor or transformer is stated as included in the supplied product information.

Can 2L milk bottles fit in the door?

Yes. The supplied product information specifies wide door storage for suitable 2L milk bottles.

Are the shelves adjustable?

Yes. The shelves are height adjustable.

Can the shelves be locked in place?

Yes. The supplied product information describes the shelves as adjustable and lockable.

Does it have a travel latch?

Yes. A simple door latch is included for mobile use.

What is the fridge interior made like?

The supplied information states that the DC190L-X uses a single-piece moulded interior.

What is the outer cabinet made from?

The supplied product information identifies a full steel cabinet.

Is a mounting kit included?

Yes. A mounting kit is supplied as standard.

Can the fridge be flush fitted?

Yes. Bushman provides separate minimum cut-out dimensions for mounting-kit and flush-fit installations.

What cut-out is required with the mounting kit?

The supplied minimum cut-out is approximately 1385mm high × 615mm wide × 570mm deep.

What cut-out is required for flush fitting?

The supplied minimum flush-fit cut-out is approximately 1385mm high × 605mm wide × 570mm deep.

How much rear clearance is required?

The supplied installation information states that both specified cut-outs allow approximately 50mm at the rear when the doors sit proud of the cabinetwork.

How tall is the DC190L-X?

The supplied fridge height is approximately 1380mm.

How wide is it?

The supplied width is approximately 600mm.

How deep is the fridge?

The supplied depth is approximately 595mm.

How much does the DC190L-X weigh?

The supplied weight is approximately 53kg.

Is the fridge suitable for long-term caravan travel?

The DC190L-X is specifically positioned by Bushman for heavy-duty caravan use, including hot-weather and extended touring applications.

Does Bushman provide customer support?

Yes. Lifetime Bushman customer support is stated as included.

What customer review information is supplied?

The supplied product information states approximately 4.7 stars from 50 ProductReview reviews and references customer feedback regarding performance in hot Australian conditions.

What comes with the DC190L-X?

The supplied package includes the 190L refrigerator, mounting kit, approximately 2.3m Anderson lead, 45L freezer, adjustable lockable shelving, internal and external cooling fans and mobile-use door latch.

How do I know if the DC190L-X will fit my cabinetry?

Compare your installation against the approximately 1380mm × 600mm × 595mm fridge dimensions and choose the applicable supplied cut-out dimensions for mounting-kit or flush-fit installation. Also account for rear ventilation, door movement, electrical wiring and service access.

---

❄️ HEAVY-DUTY 190L COOLING BUILT FOR AUSTRALIAN HEAT

Choose the Bushman DC190L-X when you need large-capacity upright refrigeration engineered for demanding caravan and off-grid environments.

With its Secop Danfoss BD80CN High Capacity compressor, full-copper refrigeration system, large external heat exchanger, internal and external fans, 43°C tropical rating, 45L freezer and substantial insulation, the DC190L-X is designed to keep performing when ambient temperatures climb.

Get high-capacity 12V/24V refrigeration backed by Bushman’s supplied 7-year compressor warranty, included mounting kit and lifetime customer support.
