12V/24V 130L Upright Caravan Fridge (DC130-X)

❄️ BUSHMAN DC130-X 130L HEAVY DUTY UPRIGHT CARAVAN FRIDGE

2026 Heavy Duty 130L 12V/24V Upright Fridge – Secop Danfoss BD35-HD Compressor, Internal Cooling Fan, 43°C Tropical Rating & Free Mounting Kit

🚐 Designed for caravans, RVs, tiny houses and smaller off-grid installations, the Bushman DC130-X 130L Caravan Fridge delivers generous upright storage while retaining a compact under-bench format.

Bushman describes the DC130-X as its top-selling model for caravans, RVs, tiny houses and smaller off-grid setups, combining high usable capacity with low power consumption, straightforward controls and heavy-duty construction.

Updated for the 2026 Heavy Duty Series, the DC130-X features a Secop Danfoss BD35-HD variable-speed compressor, an internal fridge fan for more even cooling and a supplied tropical rating for ambient temperatures up to 43°C.

A unique deep and narrow freezer layout creates additional room in the refrigerator compartment for larger bottles, while height-adjustable heavy-duty shelves, large door balconies with stainless steel retaining rails, a plastic crisper tub and a single-piece perspex crisper shelf provide practical everyday storage.

---

⚡ KEY FEATURES

❄️ 130L Upright Fridge
Generous refrigerator and freezer storage in an under-bench format designed for caravans, RVs, tiny houses and off-grid installations.

⚙️ 2026 Secop Danfoss BD35-HD Compressor
Updated Heavy Duty Series compressor designed for dependable mobile refrigeration and demanding off-road applications.

🛡️ 7-Year 12V Compressor Warranty
Backed by Bushman’s supplied 7-year warranty on the 12V compressor.

🌴 Tropical Rated to 43°C Ambient
Designed for hot Australian conditions with a supplied tropical rating of approximately 43°C ambient.

🌬️ Internal Fridge Fan
Helps circulate cold air throughout the refrigerator compartment for more even cooling.

⚡ Low-Power Bushman Cooling System
The supplied product information gives approximately 1.4–1.5Ah per hour under 25°C ambient test conditions.

🔋 12V / 24V DC Operation
Suitable for caravan, RV, vehicle and compatible off-grid battery systems.

🔗 Anderson Plug Connection
Includes an approximately 1.2m 12V/24V Anderson lead.

🔩 Free Mounting Kit Included
Supplied mounting hardware helps integrate the refrigerator into suitable cabinetry.

↔️ Reversible Door
Provides additional installation flexibility where surrounding cabinetry determines the preferred opening direction.

🥛 Large Door Shelves for 2L Milk Bottles
Large door balconies provide practical storage for suitable 2L milk bottles and commonly used fridge items.

🛡️ Stainless Steel Door Rails
Built-in stainless steel retaining rails help prevent door-stored items moving during transit.

❄️ Deep & Narrow Freezer
The freezer layout is designed to preserve more usable refrigerator space and provide additional room for larger bottles.

🔩 Height-Adjustable HD Wire Shelves
Allows the refrigerator layout to be changed to suit different food containers and bottle sizes.

🥬 Plastic Crisper Tub
Dedicated storage area helps organise fruit, vegetables and smaller refrigerated items.

🧱 HD Single-Piece Perspex Crisper Shelf
Provides a strong, simple shelf arrangement above the crisper compartment.

🛞 Soft Custom Rubber Feet
Bushman’s custom rubber feet are designed to help cushion the fridge during mobile use.

📞 Lifetime Bushman Customer Support
Lifetime customer support is included according to the supplied Bushman product information.

---

🚐 BUSHMAN’S TOP SELLER FOR CARAVANS, RVS & TINY HOUSES

The DC130-X is positioned by Bushman as its top-selling upright model for caravans, RVs, tiny houses and smaller off-grid setups.

Its approximately 750mm-high cabinet allows it to fit beneath many suitable kitchen benches while still providing substantial refrigerator storage.

This makes the DC130-X particularly useful where a larger upright fridge is required without moving to a full-height domestic-style refrigerator.

---

⚙️ 2026 SECOP DANFOSS BD35-HD COMPRESSOR

The DC130-X Heavy Duty Series is fitted with the Secop Danfoss BD35-HD compressor.

Bushman describes this compressor platform as designed for demanding mobile, heavy-trucking and off-road refrigeration applications.

Compressor: Secop Danfoss BD35-HD

Drive type: Variable speed

Supplied current draw: Approximately 2A to 4.5A

12V compressor warranty: 7 Years

The supplied information also describes the compressor platform as German designed and Japanese owned.

---

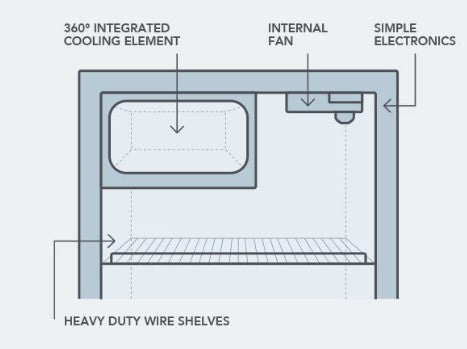

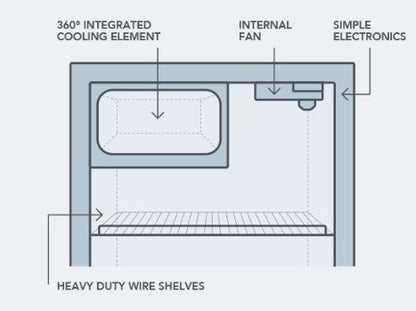

🌬️ INTERNAL FAN FOR MORE EVEN COOLING

An internal refrigerator fan helps circulate cold air through the DC130-X cabinet.

This is particularly useful in a larger upright refrigerator where food and drinks may be stored across several shelf levels.

The fan works with Bushman’s refrigeration system to support more even cooling throughout the main refrigerator compartment.

---

🌴 TROPICAL RATED TO 43°C AMBIENT

The DC130-X carries a supplied tropical rating for ambient temperatures up to approximately 43°C.

This makes it suitable for demanding Australian caravan and touring applications where surrounding cabinet temperatures can become high.

⚠️ IMPORTANT: Correct ventilation remains essential. The 43°C tropical rating does not remove the need for adequate airflow around the refrigeration system.

---

⚡ LOW-POWER OPERATION

The DC130-X combines Bushman’s cooling-system design with a variable-speed compressor to provide efficient refrigeration.

The supplied descriptive information states approximately 1.4 Amp/hr average consumption over 24 hours at 25°C ambient with the refrigerator at approximately 4°C.

The supplied technical specification separately states approximately 1.5Ah per hour at 25°C ambient on a 12V system.

Supplied average power-use range: Approximately 1.4–1.5Ah per hour

Ambient test temperature: 25°C

Typical fridge temperature: Approximately 4°C

Supply voltage for technical figure: 12V

Variable-speed compressor draw: Approximately 2A to 4.5A

⚠️ IMPORTANT: Actual energy use and battery runtime will vary with ambient temperature, food load, thermostat setting, ventilation, door-opening frequency, wiring condition, battery voltage and other connected loads.

---

❄️ FRIDGE & FREEZER TEMPERATURES

The DC130-X combines a large main refrigerator compartment with an integrated freezer section.

Supplied refrigerator temperature: Approximately 4°C ±2°C

Supplied freezer temperature: Approximately -12°C ±2°C

This provides everyday refrigerated storage with a dedicated area for suitable frozen goods.

---

🧊 DEEP & NARROW FREEZER DESIGN

One of the distinctive features of the DC130-X is its deep and narrow freezer design.

Rather than consuming excessive width inside the main refrigerator cabinet, the freezer layout is designed to leave additional usable space for larger bottles and refrigerated food.

This helps maximise the practical storage available within the overall 130L refrigerator format.

---

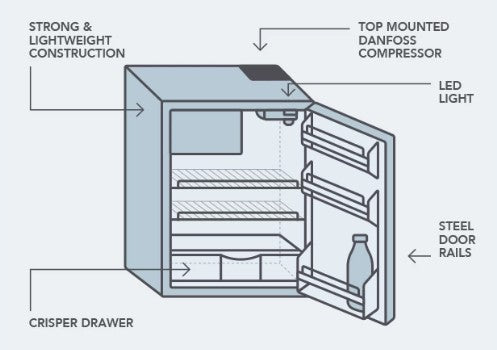

🥛 LARGE DOOR SHELVES FOR 2L MILK BOTTLES

The DC130-X features large door balconies designed to hold suitable 2L milk bottles and other everyday items.

Using the door for larger bottles helps preserve the main shelf space for food containers and other touring supplies.

---

🛡️ STAINLESS STEEL RETAINING RAILS

The large door balconies incorporate stainless steel retaining rails.

These rails help keep bottles and other stored items in position when travelling on rough roads or during normal vehicle movement.

This is particularly useful in caravan, RV and off-road installations.

---

🔩 HEIGHT-ADJUSTABLE HEAVY-DUTY WIRE SHELVES

The refrigerator shelves can be adjusted vertically to suit different storage requirements.

Bushman also specifies upgraded heavy-duty wire shelves designed to handle vibration and bumps associated with mobile and off-road travel.

This makes it easier to configure the cabinet around tall bottles, food containers and larger items.

---

🥬 PLASTIC CRISPER TUB

A plastic crisper tub provides dedicated storage for fruit, vegetables and smaller food items.

The separate compartment helps keep fresh produce organised within the larger refrigerator cabinet.

---

🧱 HD SINGLE-PIECE PERSPEX CRISPER SHELF

The DC130-X incorporates a heavy-duty single-piece perspex shelf above the crisper compartment.

The simple one-piece construction provides a practical storage surface while maintaining access to the crisper below.

---

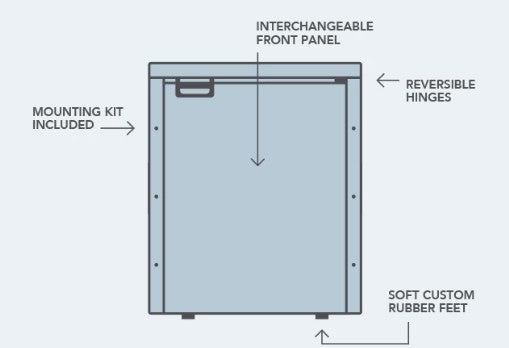

🔩 FREE MOUNTING KIT INCLUDED

The DC130-X is supplied with a mounting kit for secure built-in installation.

It can also be flush mounted into suitable cabinet work where the supplied installation dimensions and ventilation requirements are maintained.

⚠️ IMPORTANT: The refrigerator must be secured to a structurally suitable installation and adequate ventilation must be maintained.

---

📐 MINIMUM FLUSH-MOUNT CUT-OUT

The supplied minimum installation cut-out is:

Height: Approximately 755mm

Width: Approximately 530mm

Depth: Approximately 550mm

The supplied information states that this arrangement allows approximately 50mm of space at the rear when installed with the door sitting proud of the cabinetwork.

⚠️ IMPORTANT: Confirm ventilation, door clearance, wiring and service access before constructing or modifying cabinetry.

---

↔️ REVERSIBLE DOOR

The DC130-X features a reversible door to provide greater installation flexibility.

This allows the door-opening direction to be configured around surrounding cabinetry, benches and other equipment where appropriate.

---

🛞 CUSTOM SOFT RUBBER FEET

Bushman uses custom soft rubber feet designed to help cushion the refrigerator during travel.

This complements the fridge’s heavy-duty shelving and off-road-focused refrigeration system.

---

🔋 12V & 24V DC OPERATION

The Bushman DC130-X operates from both 12V and 24V DC power systems.

This makes it suitable for compatible:

• 🚐 Caravan auxiliary battery systems
• 🚐 RV electrical systems
• 🏠 Tiny-house DC installations
• 🛻 4X4 and canopy battery systems
• ⛺ Camper installations
• 🚚 Truck electrical systems
• 🔋 Off-grid battery banks

---

🔗 1.2M ANDERSON POWER LEAD

The DC130-X is supplied with an approximately 1.2m 12V/24V Anderson lead.

This provides a robust connection method for compatible fixed and semi-permanent DC electrical installations.

⚠️ IMPORTANT: Use correctly sized wiring, suitable connectors and appropriate circuit protection for the refrigerator installation.

---

🚚 DESIGNED FOR DEMANDING MOBILE USE

Bushman positions the DC130-X refrigeration system for heavy-trucking and off-road applications.

The combination of the Secop Danfoss BD35-HD compressor, heavy-duty wire shelving, stainless steel door rails and soft rubber feet is designed around installations exposed to vibration and regular travel.

---

🏠 UNDER-BENCH STORAGE WITH SERIOUS CAPACITY

The DC130-X provides an outstanding amount of usable space for a fridge designed to fit beneath a suitable kitchen bench.

At approximately 750mm high, 525mm wide and 550mm deep, it provides substantial upright storage while remaining practical for compact caravan, RV and tiny-house cabinetry.

---

👫 PRACTICAL STORAGE FOR COUPLES & FAMILY TRIPS

Bushman describes the DC130-X as providing substantial fridge storage for a couple or for shorter trips with a family.

The adjustable shelving, large door balconies, deep freezer and crisper arrangement allow the 130L interior to be configured around different touring requirements.

---

📏 FRIDGE DIMENSIONS & WEIGHT

Cabinet height: Approximately 750mm

Height including handle: Approximately 755mm

Width: Approximately 525mm

Depth: Approximately 550mm

Weight: Approximately 27.2kg

---

📐 MINIMUM INSTALLATION CUT-OUT

Minimum cut-out height: Approximately 755mm

Minimum cut-out width: Approximately 530mm

Minimum cut-out depth: Approximately 550mm

Supplied rear allowance: Approximately 50mm when installed as specified with the door sitting proud of the cabinetwork

---

📋 TECHNICAL SPECIFICATIONS

Brand: Bushman

Product: DC130-X Caravan Fridge

Series: 2026 Heavy Duty Upright Fridge Series

Capacity: 130L

Operating voltage: 12V / 24V DC

Power connection: Anderson

Anderson lead length: Approximately 1.2m

Compressor: Secop Danfoss BD35-HD

Compressor type: Variable-speed drive

Supplied compressor current draw: Approximately 2A to 4.5A

Cooling system: Genuine Bushman-designed cooling system

Internal fridge fan: Yes

Fridge temperature: Approximately 4°C ±2°C

Freezer temperature: Approximately -12°C ±2°C

Freezer design: Deep and narrow

Tropical rating: Approximately 43°C ambient

Supplied average power use: Approximately 1.4–1.5Ah per hour

Power-use test condition: Approximately 25°C ambient, 4°C fridge temperature, 12V operation

External dimensions: Approximately 750mm H × 525mm W × 550mm D

Height including handle: Approximately 755mm

Minimum cut-out: Approximately 755mm H × 530mm W × 550mm D

Weight: Approximately 27.2kg

Door: Reversible

Door shelves: Large balconies suitable for compatible 2L milk bottles

Door retaining rails: Stainless steel

Shelves: Height-adjustable heavy-duty wire shelves

Crisper tub: Plastic crisper included

Crisper shelf: Heavy-duty single-piece perspex

Mounting kit: Included

12V compressor warranty: 7 Years

Customer support: Lifetime Bushman customer support as supplied

---

🏆 PRODUCTREVIEW CARAVAN FRIDGE RECOGNITION

The supplied Bushman information states that the range has received ProductReview Best Caravan Fridge recognition across the years from 2020 through 2026.

• 🏆 2020
• 🏆 2021
• 🏆 2022
• 🏆 2023
• 🏆 2024
• 🏆 2025
• 🏆 2026

---

🚐 SUITABLE APPLICATIONS

• 🚐 Caravans
• 🚐 RVs and motorhomes
• 🏠 Tiny houses
• 🔋 Smaller off-grid systems
• 🚙 4X4 touring builds
• 🛻 Ute and canopy installations
• ⛺ Campers and camper trailers
• 🚚 Trucks and work vehicles
• 🗺️ Long-distance touring
• 🏜️ Remote travel

---

📦 WHAT’S INCLUDED?

• ❄️ 1 × Bushman DC130-X 130L Heavy Duty Upright Fridge
• 🔩 1 × Supplied Mounting Kit
• 🔗 1 × Approximately 1.2m 12V/24V Anderson Lead
• 🔩 Height-Adjustable Heavy-Duty Wire Shelves
• 🥬 1 × Plastic Crisper Tub
• 🧱 1 × Heavy-Duty Single-Piece Perspex Crisper Shelf
• 🌬️ Internal Fridge Circulation Fan
• 🚪 Reversible Door Assembly
• 🛡️ Supplied 7-Year 12V Compressor Warranty
• 📞 Lifetime Bushman Customer Support as stated in the supplied information

⚠️ No 240V power adaptor, battery, charger or solar equipment is stated as included in the supplied product information.

---

⚠️ INSTALLATION & FITMENT INFORMATION

The DC130-X is designed for built-in installations, so cabinetry, electrical supply and refrigeration ventilation should be planned carefully before installation.

Check the following:

• Required refrigerator capacity – 130L
• Available cabinet height
• Available cabinet width
• Available cabinet depth
• Minimum flush-mount cut-out dimensions
• Rear ventilation allowance
• Door-opening clearance
• Required hinge direction
• Access to shelves, crisper and controls
• Suitable mounting location for the included kit
• Suitable 12V or 24V DC power supply
• Correct cable size
• Appropriate circuit protection
• Battery condition and usable capacity
• Service access around the refrigeration system

⚠️ IMPORTANT: The supplied minimum cut-out is approximately 755mm high × 530mm wide × 550mm deep.

⚠️ IMPORTANT: The supplied installation information states that this cut-out allows approximately 50mm of rear space when the refrigerator door is sitting proud of the cabinetwork.

⚠️ IMPORTANT: Maintain suitable ventilation around the refrigeration system, especially in enclosed under-bench cabinetry.

⚠️ IMPORTANT: Use correctly sized wiring, suitable connectors and appropriate circuit protection.

⚠️ IMPORTANT: Confirm your battery system provides sufficient usable capacity for the expected refrigerator runtime.

---

❓ FREQUENTLY ASKED QUESTIONS

What is the Bushman DC130-X?

The DC130-X is a 130L heavy-duty upright 12V/24V fridge designed for built-in caravan, RV, tiny-house and off-grid installations.

Is the DC130-X part of Bushman’s 2026 Heavy Duty Series?

Yes. The supplied product information identifies this model as part of the updated 2026 Heavy Duty Upright Fridge Series.

What applications is the DC130-X designed for?

Bushman positions the DC130-X primarily for caravans, RVs, tiny houses and smaller off-grid setups.

Can the DC130-X fit under a kitchen bench?

Bushman describes the DC130-X as an under-bench-style refrigerator. Actual fitment depends on the available space and the supplied minimum cut-out and ventilation requirements.

What compressor does it use?

The supplied specification lists a Secop Danfoss BD35-HD variable-speed compressor.

What is the compressor warranty?

The supplied product information states a 7-year warranty on the 12V compressor.

Is the DC130-X tropical rated?

Yes. The supplied tropical rating is approximately 43°C ambient.

Does the fridge have an internal circulation fan?

Yes. An internal fridge fan is included to help provide more even cooling.

Does the DC130-X run on 12V?

Yes. It supports 12V DC operation.

Does it run on 24V?

Yes. The DC130-X also supports 24V DC systems.

Does it include an Anderson plug?

Yes. An approximately 1.2m 12V/24V Anderson lead is supplied.

How much power does the DC130-X use?

The supplied information gives approximately 1.4 Amp/hr in the descriptive section and approximately 1.5Ah per hour in the technical specification under 25°C ambient conditions.

Why are two power-use figures listed?

The supplied Bushman material gives both values. This listing therefore retains the supplied range of approximately 1.4–1.5Ah per hour rather than replacing either figure.

What is the compressor current draw?

The supplied variable-speed compressor range is approximately 2A to 4.5A while operating.

Will actual power consumption vary?

Yes. Actual consumption depends on ambient temperature, thermostat setting, fridge contents, ventilation, door-opening frequency, wiring condition, battery voltage and other electrical loads.

What temperature does the fridge operate at?

The supplied refrigerator temperature is approximately 4°C ±2°C.

What temperature does the freezer operate at?

The supplied freezer temperature is approximately -12°C ±2°C.

What is special about the freezer design?

The freezer is designed to be deep and narrow, helping preserve more space in the refrigerator section for larger bottles and everyday food storage.

Can 2L milk bottles fit in the door?

Yes. Bushman specifically states that the large door shelves can accommodate suitable 2L milk bottles.

Do the door shelves have retaining rails?

Yes. The large door balconies have built-in stainless steel rails designed to help prevent items moving during transit.

Are the shelves adjustable?

Yes. The supplied product information states that all the main shelves are height adjustable.

Are the shelves suitable for off-road use?

Bushman describes the upgraded wire shelves as heavy-duty and designed to handle bumps associated with off-road and mobile travel.

Does the DC130-X have a crisper?

Yes. A plastic crisper tub is included.

What is the crisper shelf made from?

The supplied product information specifies a heavy-duty single-piece perspex crisper shelf.

Can the door opening direction be changed?

Yes. The DC130-X includes a reversible door.

Is a mounting kit included?

Yes. Bushman supplies a mounting kit with the DC130-X.

Can the DC130-X be flush mounted?

Yes. The supplied product information states that it can be flush mounted to compatible cabinetwork.

What size cabinet cut-out does it need?

The supplied minimum cut-out is approximately 755mm high × 530mm wide × 550mm deep.

Does it require rear clearance?

The supplied installation information states that the specified cut-out allows approximately 50mm at the rear when installed with the door sitting proud of the cabinetwork.

How tall is the DC130-X?

The supplied cabinet height is approximately 750mm.

How tall is it including the handle?

The supplied height including the handle is approximately 755mm.

How wide is the fridge?

The supplied width is approximately 525mm.

How deep is the DC130-X?

The supplied depth is approximately 550mm.

How much does it weigh?

The supplied weight is approximately 27.2kg.

Is it suitable for a couple?

Bushman describes the DC130-X as providing substantial fridge storage for a couple.

Is it suitable for a family?

The supplied information describes the storage capacity as suitable for shorter trips for a family, depending on individual storage requirements.

Is it suitable for off-road use?

Bushman describes the compressor platform and heavy-duty shelving as designed for demanding trucking and off-road environments.

What are the soft rubber feet designed to do?

The custom soft rubber feet are designed to help cushion the refrigerator during mobile use.

Does Bushman provide customer support?

Yes. Lifetime Bushman customer support is stated as included.

Has the Bushman caravan fridge received ProductReview recognition?

The supplied information states ProductReview Best Caravan Fridge recognition across the years from 2020 through 2026.

Does the DC130-X include a 240V adaptor?

No 240V adaptor or transformer is stated as included in the supplied information. The DC130-X specifications provided here identify 12V/24V DC operation.

What comes with the DC130-X?

The supplied product information includes the 130L refrigerator, mounting kit, approximately 1.2m Anderson lead, adjustable heavy-duty shelving, plastic crisper tub, perspex crisper shelf, reversible door and internal cooling fan.

How do I know if the DC130-X will fit my cabinetry?

Compare your available space with the fridge’s approximately 750mm × 525mm × 550mm external dimensions and the approximately 755mm × 530mm × 550mm minimum cut-out. Also allow for rear ventilation, door movement, electrical wiring and service access.

---

❄️ HIGH-CAPACITY UNDER-BENCH COOLING FOR CARAVANS, RVS & OFF-GRID LIVING

Choose the Bushman DC130-X when you want substantial upright refrigerator storage in a compact under-bench package designed for demanding mobile and off-grid installations.

With the 2026 Secop Danfoss BD35-HD compressor, internal cooling fan, 43°C tropical rating, 12V/24V operation, deep and narrow freezer, adjustable heavy-duty shelves, reversible door, crisper system and supplied mounting kit, the DC130-X combines practical storage with Bushman’s heavy-duty refrigeration design.

Get dependable 130L upright refrigeration backed by the supplied 7-year 12V compressor warranty and lifetime Bushman customer support.
