REDARC

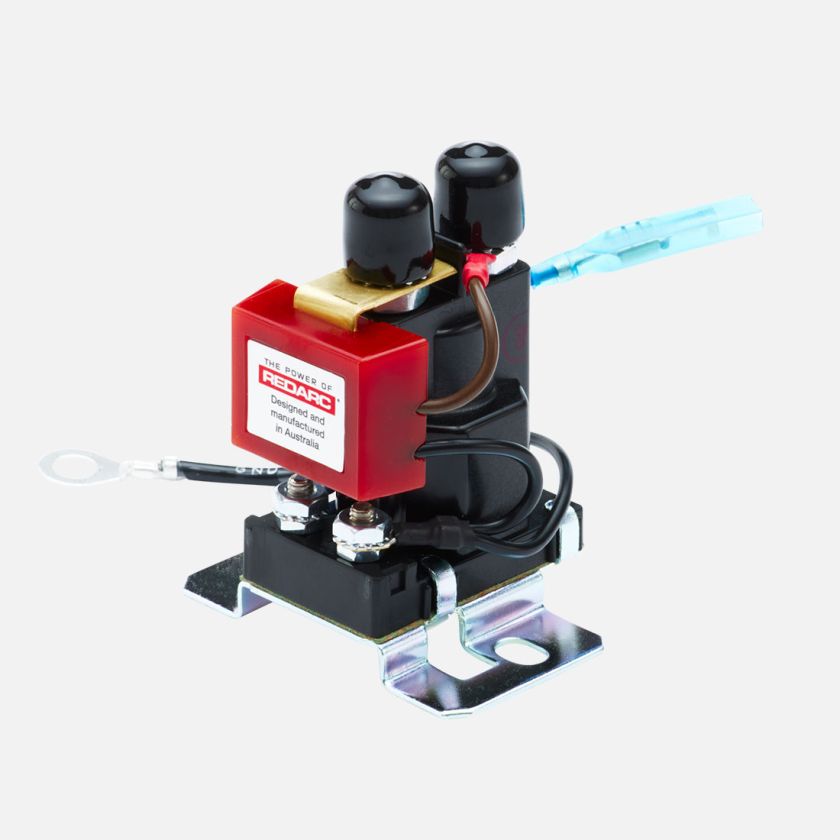

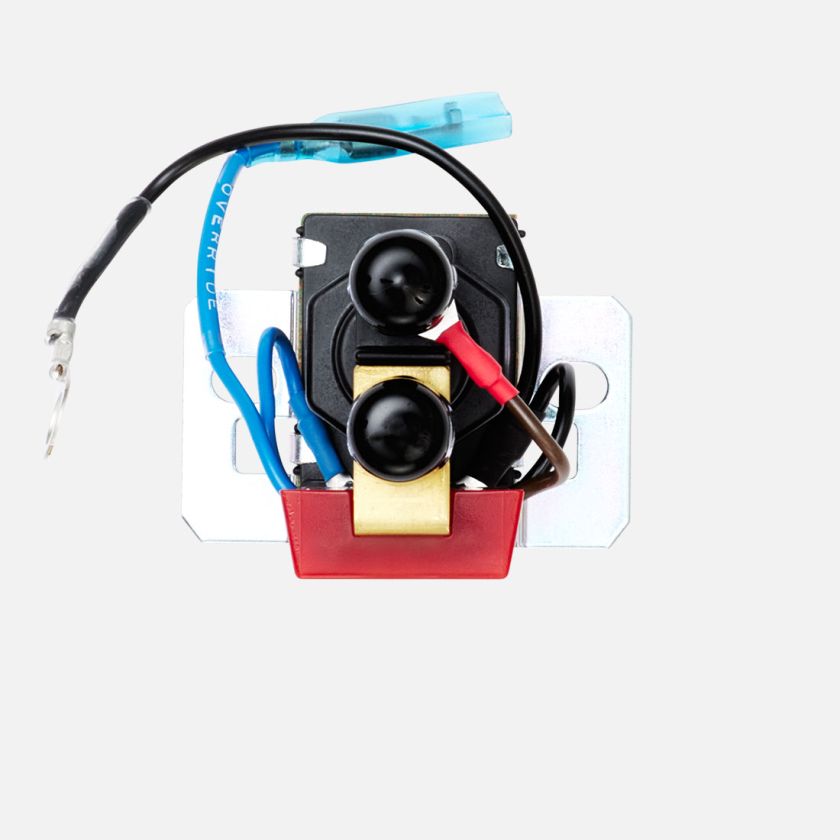

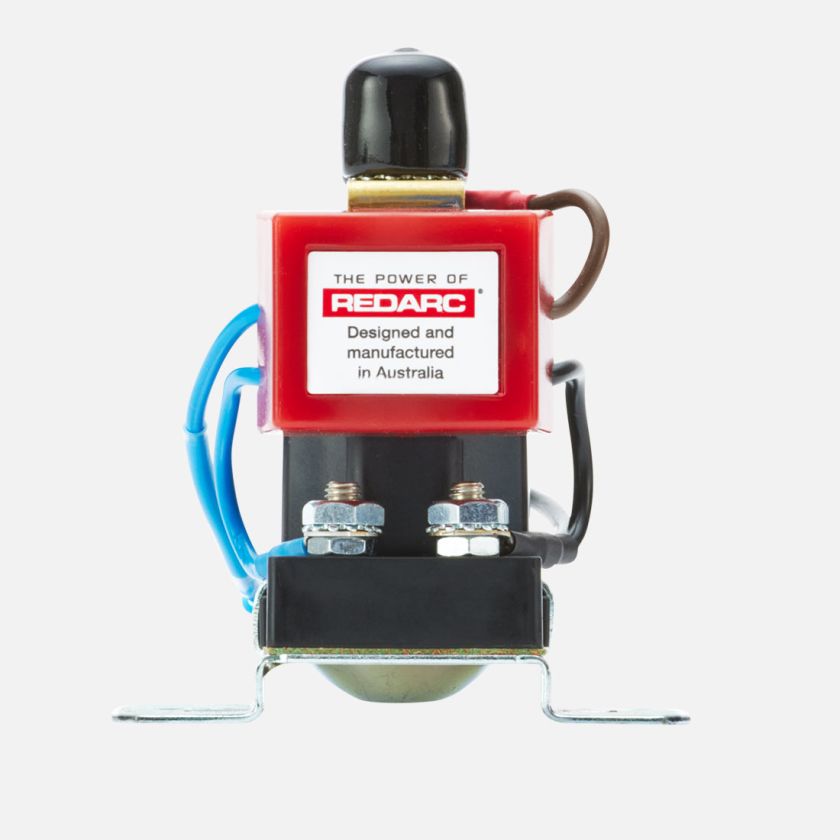

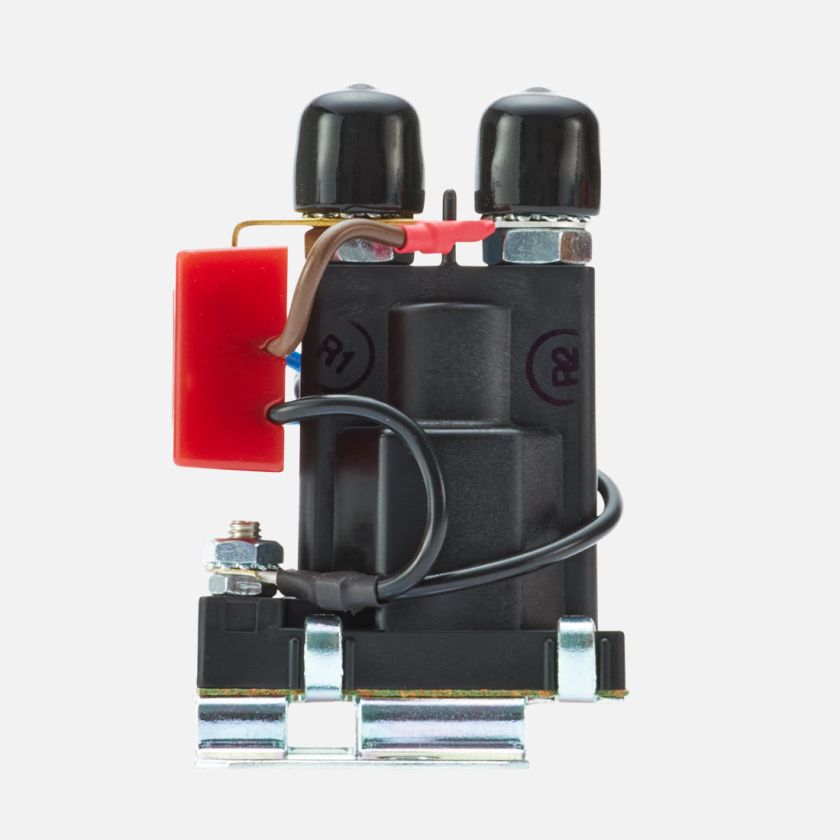

BMS LOAD DISCONNECT ISOLATOR

BMS LOAD DISCONNECT ISOLATOR

SKU:SBI12-BLD

Regular price $215.00
Regular price Sale price $215.00
Sale Sold out
Tax included. Shipping calculated at checkout.

The SBI12-BLD is used in conjunction with a REDARC Manager30 BMS to protect the auxiliary battery from excessive discharge. Specifically designed for use as the load disconnect solenoid controlled by the BMS, the black (earth wire) should be connected to the load pin of the BMS.

The BMS sets the turn on and turn off points through its settings and switches this black wire (earth when loads should be on, no earth when loads should be off), and there is additional voltage thresholds monitored by the Smart Start SBI12-BLD to ensure reliable solenoid engagement.

VOLTAGE SPIKE PROTECTION

The SBI12-BLD smart start battery isolator incorporates a number of spike protection components specifically designed to reduce the risk of damaging the unit, and is designed to prevent any spikes generated by the solenoid coil from affecting vehicle equipment.

 FEATURES

  • Overmould design
  • Compact in size and easy to install
  • Silver contacts for longer life and suitable for marine applications
  • Power saving technology
  • Fault indication
  • Fully surge protected
MAX. INRUSH CURRENT 400A
MAX. CONTINOUS CURRENT 100A
TURN ON VOLTAGE 10.2V
TURN OFF VOLTAGE 10V
TURN ON DELAY 5 seconds
TURN OFF DELAY 10 seconds
STANDBY CURRENT <5mA
OPERATING CURRENT <0.1A
WEIGHT 200 g
HEIGHT 70 mm
WIDTH 75 mm
LENGTH 80 mm
WARRANTY 2 Years
SYSTEM VOLTAGE 12V
OUTPUT VOLTAGE 12V DC
INPUT FUSE RATING 100A
OUTPUT FUSE RATING 100A
