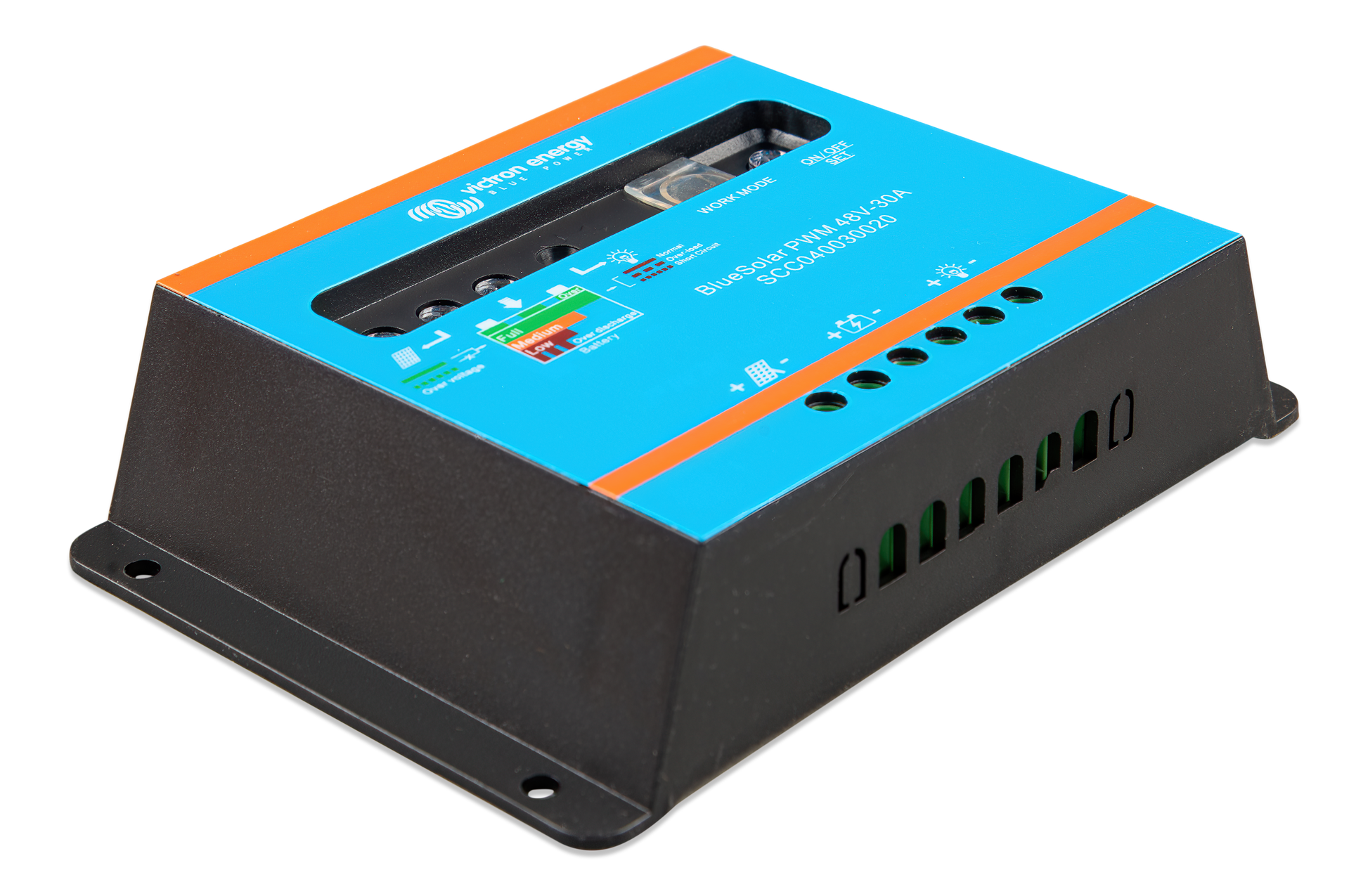

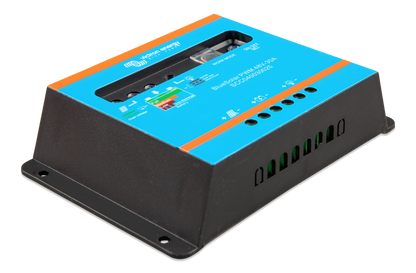

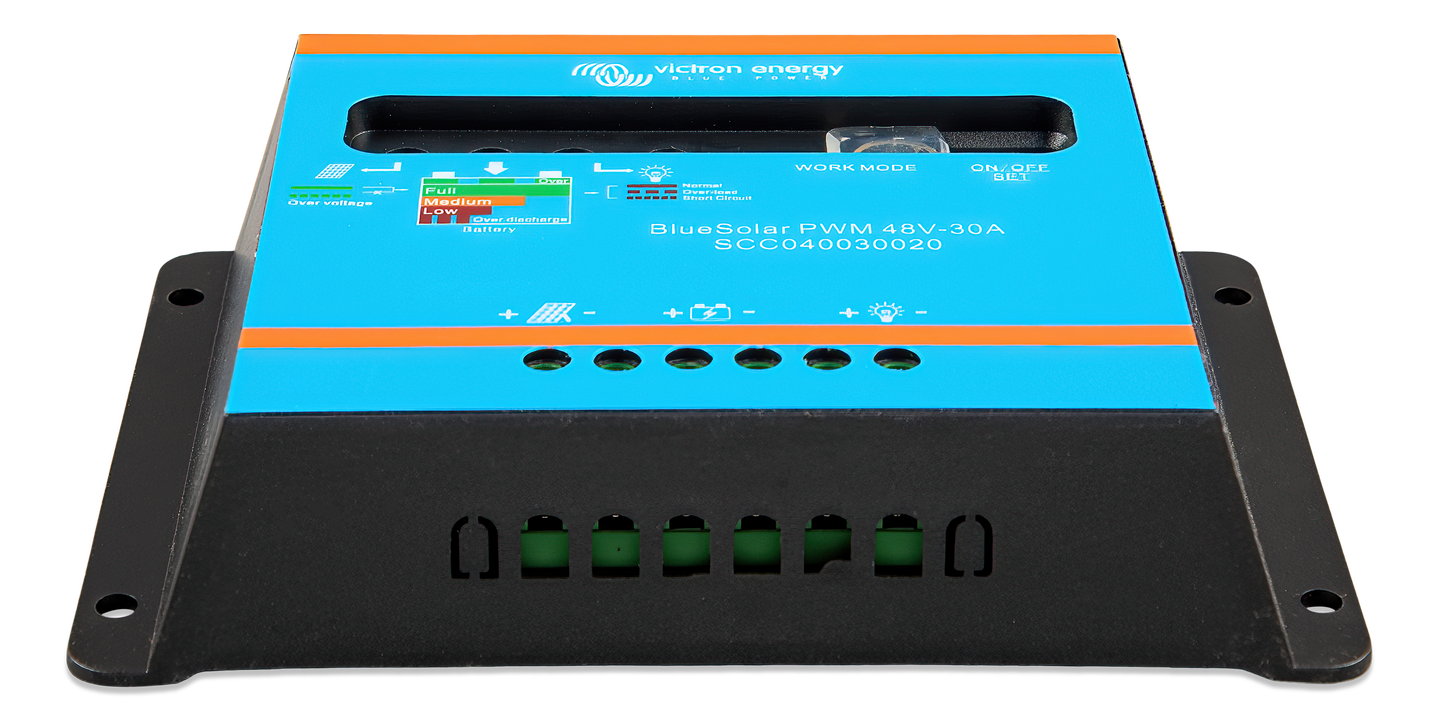

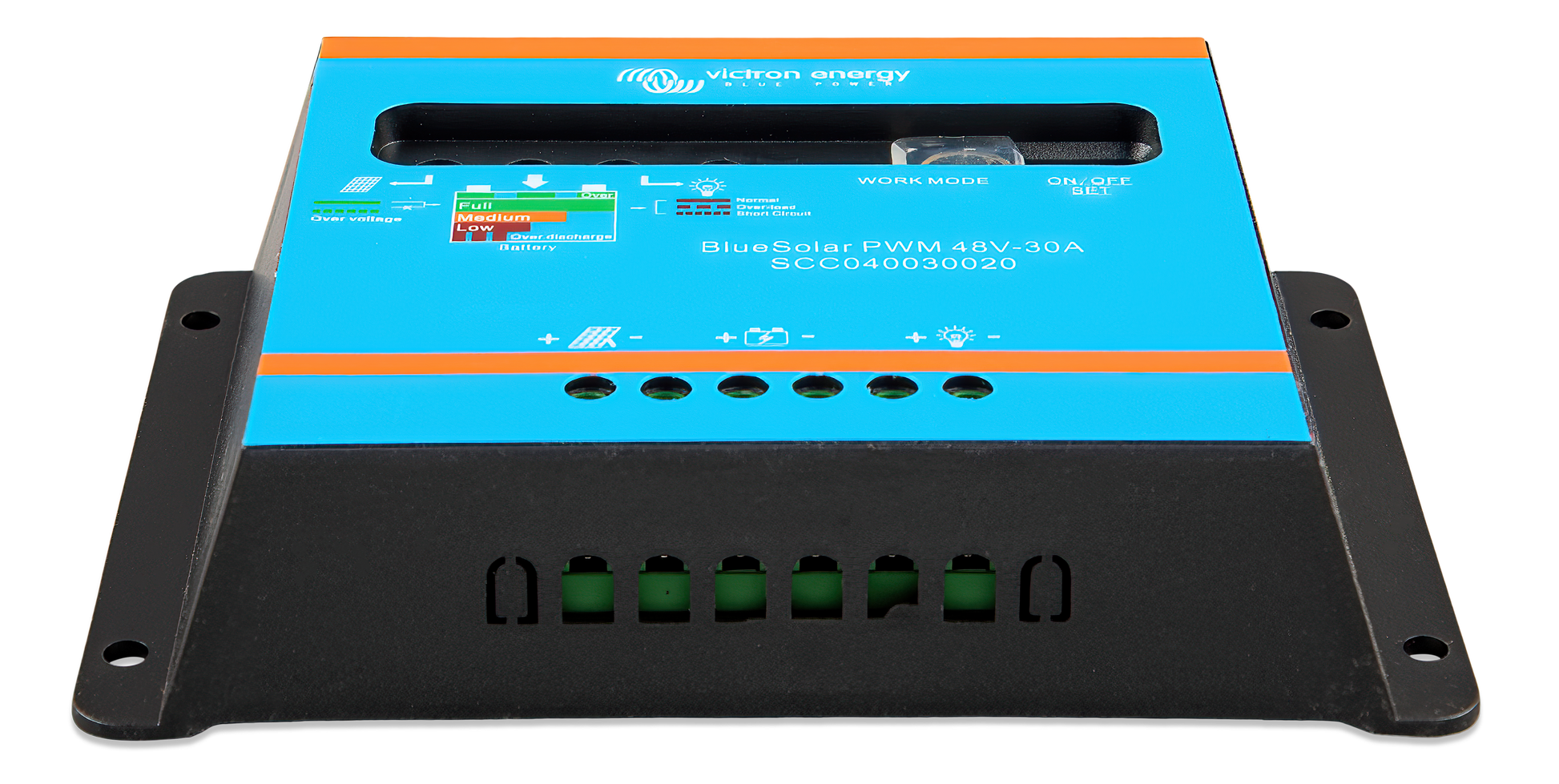

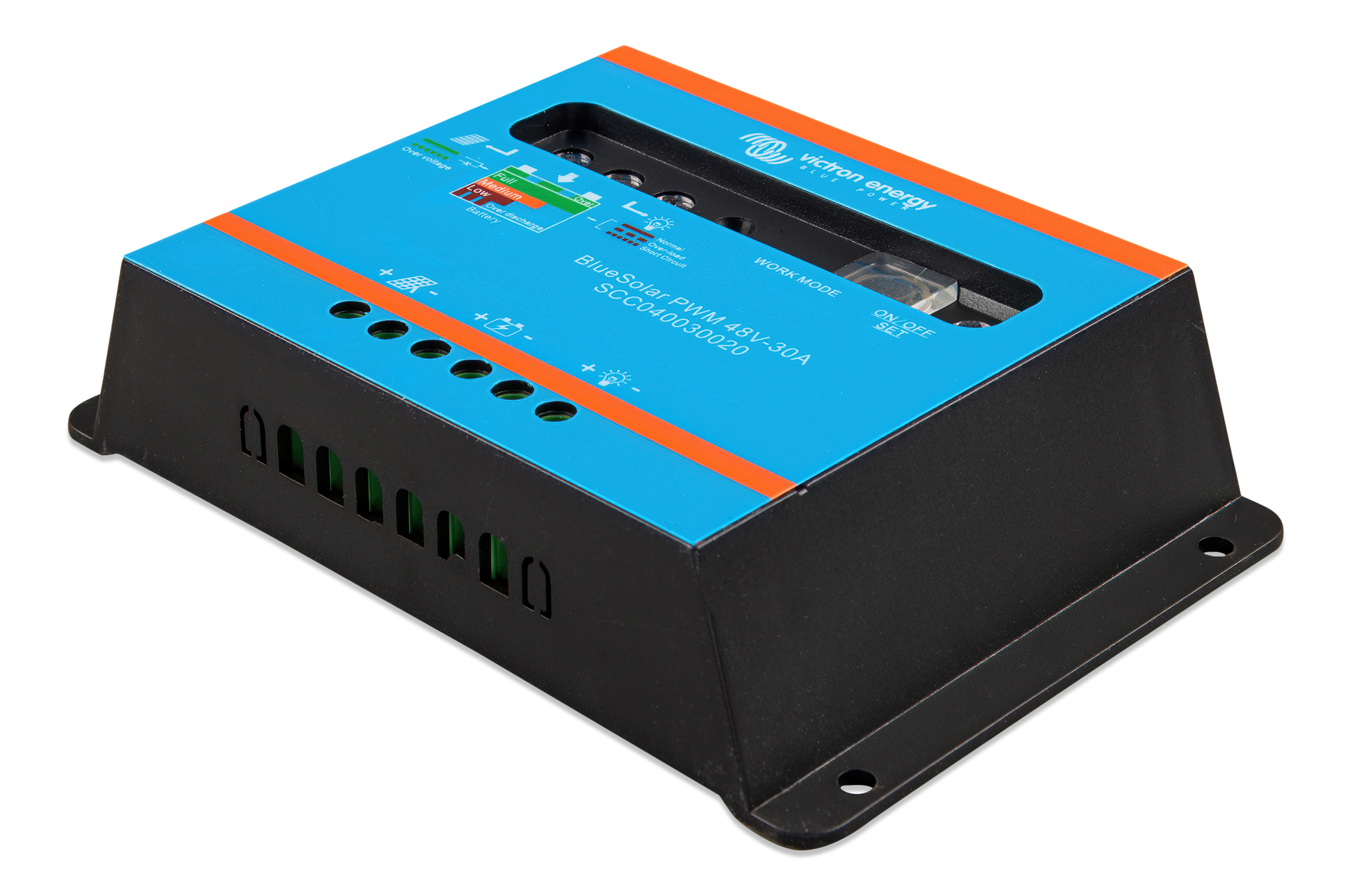

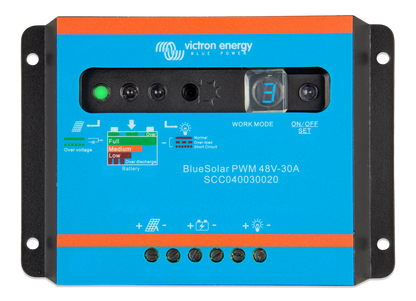

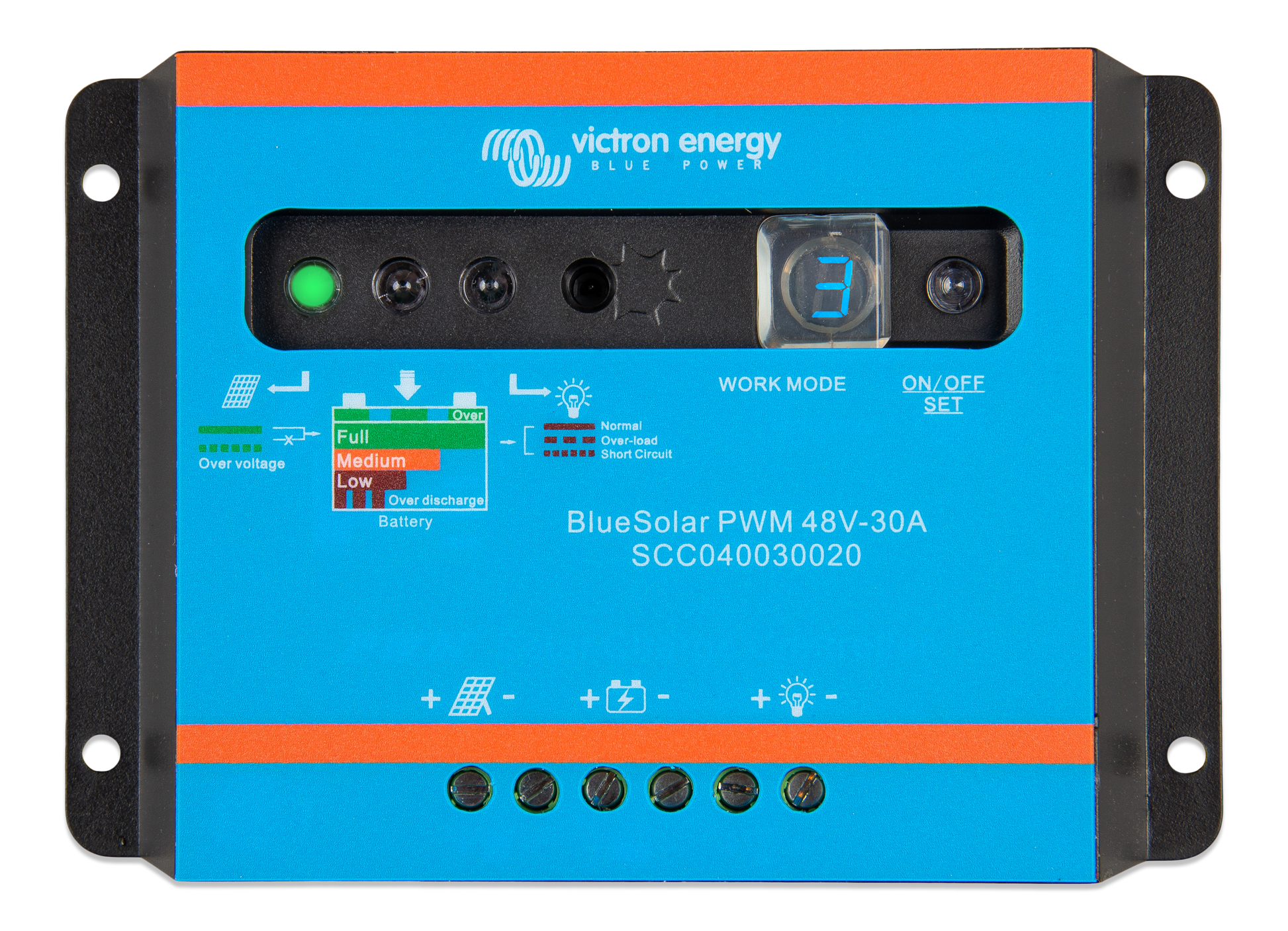

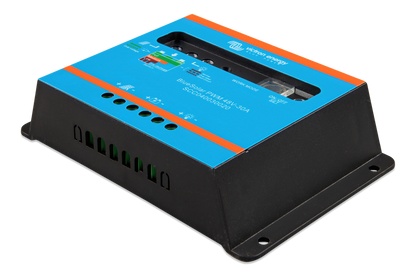

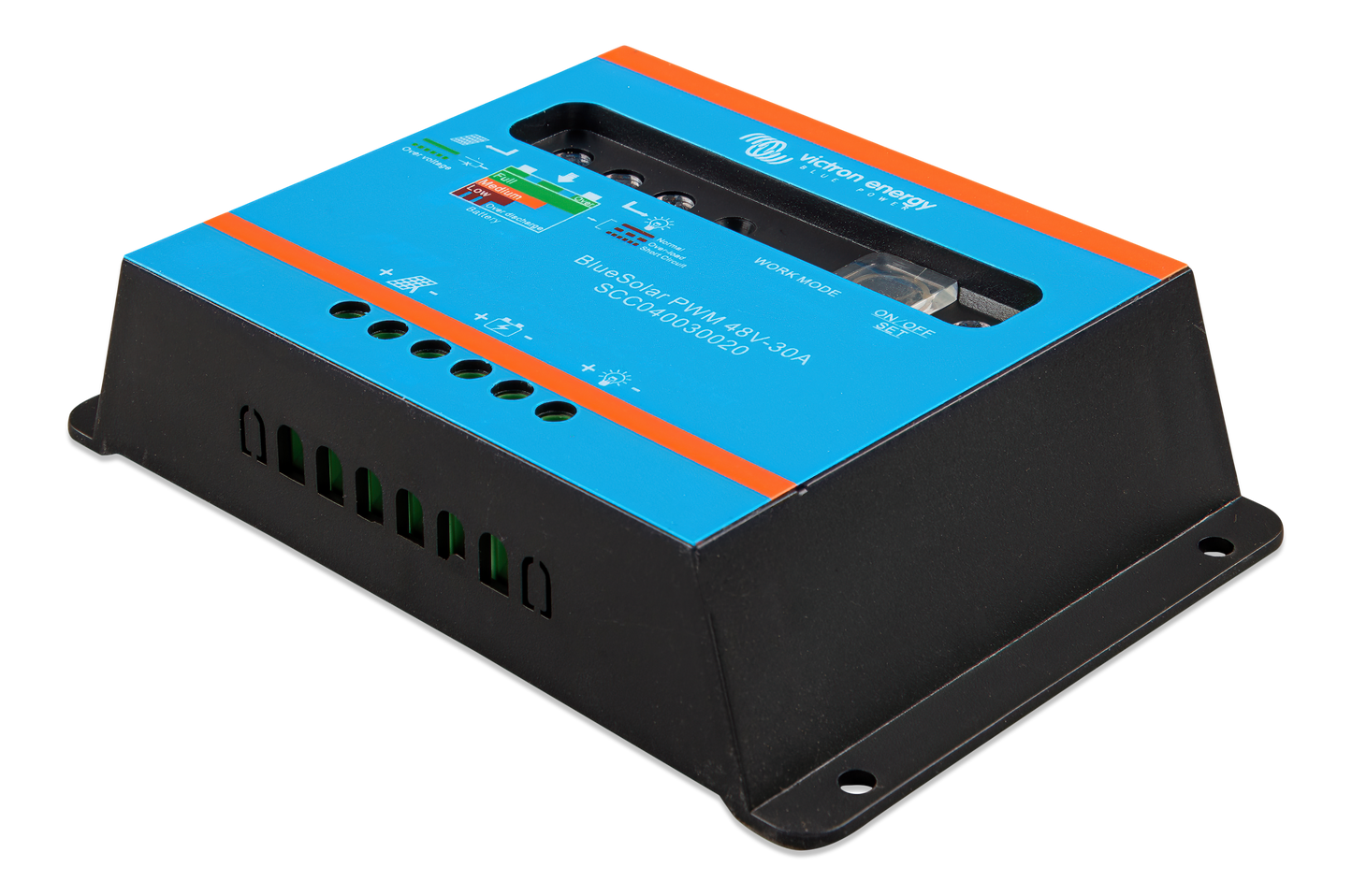

BLUESOLAR PWM-LIGHT CHARGE CONTROLLER 48V-30A
BLUESOLAR PWM-LIGHT CHARGE CONTROLLER 48V-30A
SKU:SCC040030020
Couldn't load pickup availability
BlueSolar PWM-Light
• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
• Three stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.
• Day/night timing options
| SPECIFICATIONS |
| Battery Voltage | 48V |
| Rated charge current | 30A |
| Automatic load disconnect | YES |
| Maximum solar voltage | 100V |
| Self-consumption | < 10 mA |
| Load output | Manual control + low voltage disconnect |
| Protection |
Battery reverse polarity (fuse) Output short circuit Over temperature |
| Overload protection |
Shut down after 60 s in case of 130% load Shut down after 5 s in case of 160% load Short circuit: immediate shut down |
| Grounding |
Common positive |
| Operating temp. range |
-20 to +50°C (full load) |
| Humidity (non-condensing) |
Max 95% |
| BATTERY |
| Charge voltage 'absorption' | 56.8V |
| Charge voltage 'float' | 55.2V |
| Low voltage load disconnect | 44.8V |
| Low voltage load reconnect |
50,4V (manual) 52,4V (automatic) |
| USB |
| Voltage | 5V |
| Current | 2A (total from 2 outputs) |
| ENCLOSURE |
| Protection class | IP20 |
| Terminal size | 6 mm² / AWG10 |
| Weight | 0,17 kg |
| Dimensions (h x w x d) | 95 x 140 x 33,5 mm |
