Battery Hub Getaway Thumper Lithium 240AH 2000W Inverter 40A DC ALL-IN-ONE

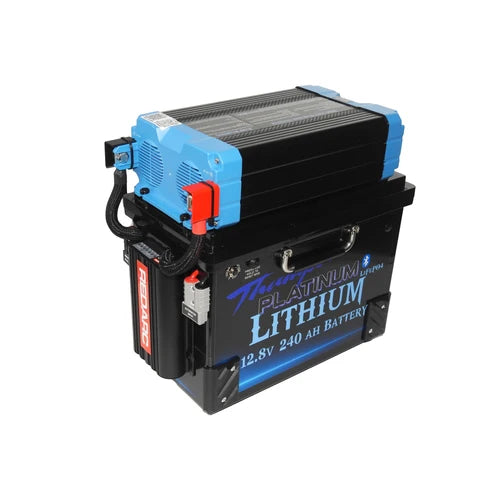

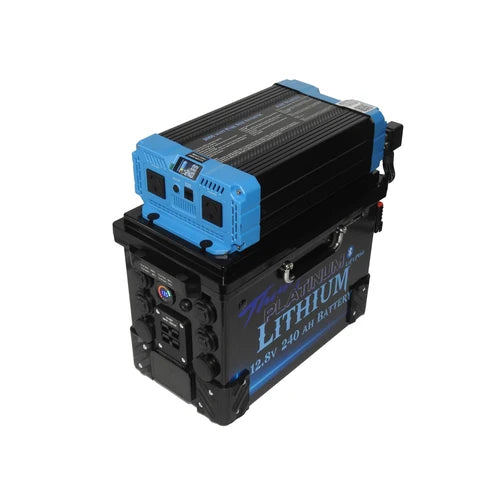

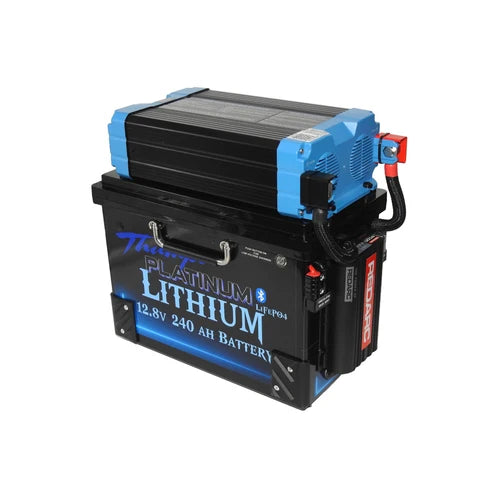

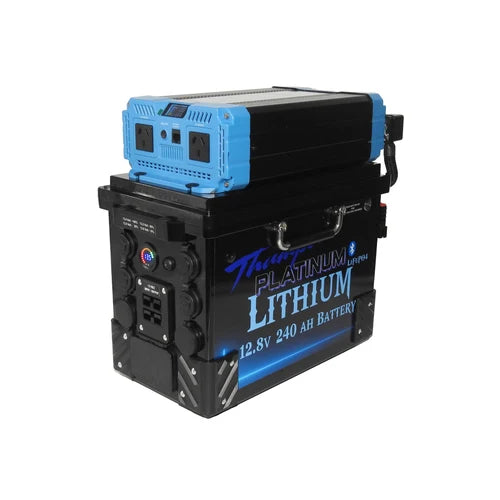

🔋 THUMPER LITHIUM BATTERY HUB GETAWAY 240AH – 2000W INVERTER

240Ah LiFePO4 • 3,072Wh Storage • 2000W Pure Sine Wave Inverter • REDARC DC-DC Charging • MPPT Solar

The Thumper Lithium Battery Hub Getaway 240Ah is a high-capacity Australian-made off-grid power system combining lithium battery storage, vehicle charging, solar charging and integrated 240V power into one compact unit.

With 240Ah of usable LiFePO4 capacity, approximately 3,072Wh (3kWh) of stored energy and an integrated 2000W Pure Sine Wave inverter, it is designed for serious touring, caravanning, camping, overlanding and remote-work applications.

⚡ KEY FEATURES

🔋 240Ah LiFePO4 Battery
Provides 240Ah of usable lithium capacity with approximately 3,072Wh of stored energy.

⚡ Integrated 2000W Pure Sine Wave Inverter
Provides clean 240V AC power for compatible appliances and sensitive electronics including laptops, chargers, televisions, coffee machines and suitable power tools.

🚙 REDARC DC-DC Charging
Integrated REDARC charging allows the Hub to be replenished from a compatible vehicle electrical system.

☀️ MPPT Solar Charging
A dedicated unregulated solar input provides solar charging through the integrated MPPT regulator.

🔌 20A 240V Lithium Charger Included
A regulated LiFePO4 mains charger is supplied for charging from suitable 240V AC power.

🚗 Vehicle Wiring Loom Included
A complete vehicle charging loom is supplied for compatible installations.

🚨 Integrated Jump Start Capability
Includes surge-protected jump leads and reverse-polarity protection, with supplied guidance for petrol engines up to approximately 6.0L and diesel engines up to approximately 4.5L.

📱 Bluetooth Monitoring
Monitor state of charge, voltage, charge and discharge current, estimated runtime, cell information and other battery data through the Thumper Batteries app.

⚡ 200A Continuous BMS
Supports approximately 200A continuous discharge, equivalent to up to approximately 2400W of 12V load capacity.

🔩 Secure Mounting Tray Included
Supplied with a dedicated mounting tray for secure vehicle or touring installation.

🇦🇺 Australian Designed & Manufactured
Designed and manufactured in Australia for Australian touring and off-grid conditions.

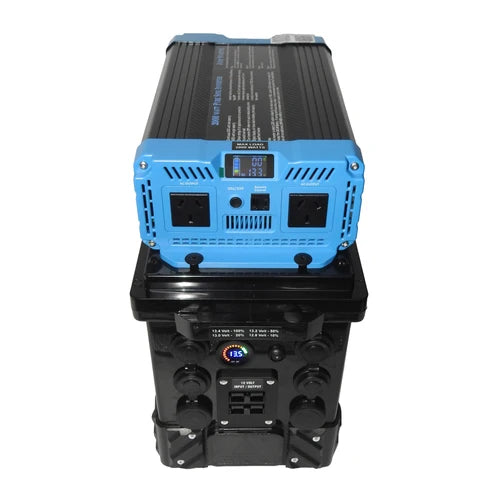

🔌 CONNECTIONS & OUTPUTS

• 2 × 50A Anderson Input / Output Connectors
• 1 × 120A Anderson Input / Output / Jump Start Connection
• 1 × 50A Anderson Unregulated Solar Input
• 1 × 50A Anderson Alternator Input
• 3 × Marine-Grade Cigarette Sockets
• 1 × Engel-Style 2-Pin Socket
• 2 × USB-A Ports
• 4 × USB-C Ports
• 2 × 240V Outlets via Inverter
• 1 × Digital LED Voltmeter
• 1 × BMS Reset Switch
• Bluetooth App Monitoring

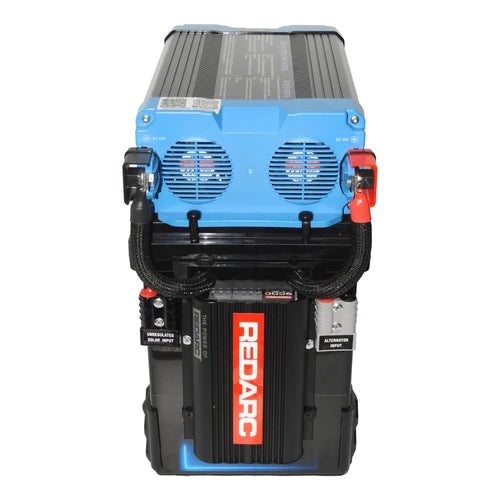

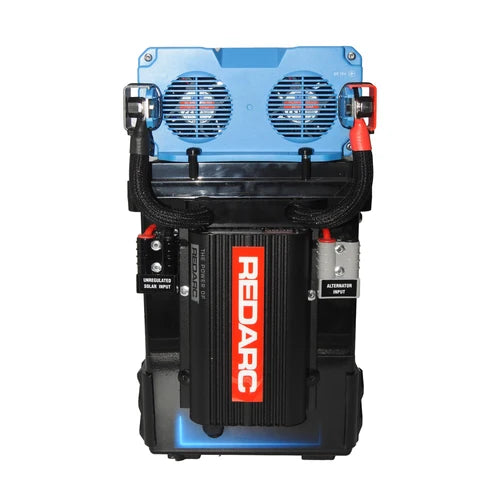

☀️ VEHICLE & SOLAR CHARGING

Alternator Input Voltage: 9–32V

Solar Input Voltage: 9–32V

Solar Regulation: MPPT

The dedicated solar input is designed for an unregulated solar panel. The supplied information states the solar input must be approximately 9–33V and must not exceed 420W.

🚨 JUMP START CAPABILITY

Jump Start Capability: Yes

Jump Leads: Included – Surge Protected

Reverse Polarity Protection: Yes

Maximum Starting Current: 900A

Peak Discharge Current: Up to 4000A

Supplier-Stated Engine Guide: Up to Approx. 6.0L Petrol / 4.5L Diesel

📱 BLUETOOTH BATTERY MANAGEMENT

• Battery capacity & voltage
• Remaining state of charge
• Charging current
• Discharge current
• Estimated runtime
• Estimated charging time
• Remaining amp-hours
• Cell balancing information
• High & low cell voltage monitoring
• Remote charge / discharge control
• Parallel battery capacity adjustment

📋 TECHNICAL SPECIFICATIONS

Part Numbers: TBH240-2000-RD25 / TBH240-2000-RD40

Battery Capacity: 240Ah Usable

Stored Energy: Approximately 3,072Wh

Battery Chemistry: LiFePO4

Cell Type: Prismatic

BMS Capacity: 200A Continuous

12V Continuous Load Capacity: Approximately 2400W

Integrated Inverter: 2000W Pure Sine Wave

Case Material: ABS

BMS: Built In

Recommended Charge Current: 10–100A

Maximum Charge Current: 200A

Recommended Charge Voltage: 14.2–14.6V ±0.20V

Maximum Charge Voltage: 14.8V ±0.20V

Self-Discharge Rate: ≤3% Per Month

📐 DIMENSIONS & WEIGHT

Total Length: Approximately 400mm including REDARC DC-DC charger

Lower Base Length: Approximately 360mm

Total Width: Approximately 215mm including handles

Base Width: Approximately 200mm

Total Height: Approximately 373mm including inverter

Weight: Approximately 25.45kg

🌡️ OPERATING TEMPERATURES

Discharge Temperature: Approximately -23°C to +65°C

Charge Temperature: Approximately -3°C to +65°C

Storage Temperature: Approximately -20°C to +45°C

BMS High Temperature Cut-Out: Approximately 80°C

BMS Reconnect Temperature: Approximately 50°C

📦 WHAT'S INCLUDED

• 🔋 Thumper 240Ah Lithium Battery Hub Getaway
• ⚡ Integrated 2000W Pure Sine Wave Inverter
• 🚙 REDARC DC-DC Charging System
• ☀️ Integrated MPPT Solar Regulation
• 🔌 240V 20A LiFePO4 Battery Charger
• 🚗 Complete Vehicle Charging Loom
• 🚨 1.5m Surge-Protected Jump Leads
• 🔩 Heavy-Duty Secure Mounting Tray

🛡️ WARRANTY

Battery Warranty: 5 Years

REDARC DC-DC Charger Warranty: 2 Years

🏕️ IDEAL FOR

• 🚙 4WD touring
• 🛻 Ute & canopy systems
• 🚐 Caravans & camper trailers
• 🏕️ Extended remote camping
• 🧰 Mobile trades & remote work
• ☀️ Solar-supported off-grid systems

❓ QUICK FAQ

Can it run 240V appliances?

Yes. The Battery Hub incorporates a 2000W Pure Sine Wave inverter with two 240V outlets. Connected appliances must remain within the inverter and battery system's operating limits.

Can it charge from the vehicle?

Yes. The Hub includes integrated REDARC DC-DC charging and a vehicle wiring loom for compatible installations.

Can I connect solar?

Yes. The dedicated unregulated solar input feeds the integrated MPPT regulator. The supplied information states approximately 9–33V input and a maximum solar capacity of 420W.

Can it jump start a vehicle?

Yes. Surge-protected jump leads are included, with supplied guidance listing petrol engines up to approximately 6.0L and diesel engines up to approximately 4.5L.

Can I monitor it from my phone?

Yes. The Thumper Batteries Bluetooth app provides battery state-of-charge, voltage, current, runtime estimates and detailed BMS information.

🔋 3KWH OF PORTABLE 12V & 240V OFF-GRID POWER

With 240Ah of LiFePO4 capacity, approximately 3,072Wh of stored energy, a 2000W Pure Sine Wave inverter, REDARC vehicle charging, MPPT solar, 240V mains charging and integrated jump-start capability, the Thumper Getaway 240Ah is built for demanding touring and off-grid applications.
