B-TEC 12V 300AH SLIMLINE LITHIUM BATTERY

B-TEC 12V 300Ah Slimline Lithium Battery

High capacity. Ultra-slim design. The B-TEC 12V 300Ah Slimline Lithium Battery is engineered for modern off-grid and touring setups where space is tight but power demand is high. Perfect for caravans, camper trailers, 4WD canopies, marine builds and off-grid cabins, this battery delivers reliable lithium performance with advanced monitoring — all in a sleek, space-saving package.

Key Features & Benefits:

• Large 300Ah capacity: Easily run fridges, lighting, water pumps and high-draw inverters up to 3000W (within spec).
• Slimline footprint: Compact dimensions (W 630mm x H 498mm x D 176.5mm) fit behind seats, under beds, or in narrow canopy spaces.
• Lightweight lithium build: Nearly 50% lighter and 30% smaller than comparable AGM batteries — freeing up payload and storage.
• Advanced LiFePO4 cells: Over 2500+ cycles at 80% depth of discharge (DOD) for years of reliable service.
• Built-in BMS (Battery Management System): Automatically protects against overcharge, over-discharge, short circuits and temperature extremes; manages each prismatic cell individually for balanced, safe performance.
• Water-resistant case (IP52): Powder-coated metal casing with overlapping frames, blind bolts and rubber seals help reduce water ingress risk (internal installation only).
• Smartphone monitoring: Free Enerdrive B-TEC app (iOS & Android) displays:
• State of Charge (SOC), State of Health (SOH), battery cycles
• Live voltage & current, individual cell voltages, battery temperature
• Alarms, event log and more
• Remote reset port: Keeps the battery case sealed while making recovery from protection trips simple and user-friendly.

Performance Highlights:

• Max charge current: 150A for 30 mins (recommended: 60–120A for longer life)
• Max discharge current: 250A for 30 mins; pulse up to 450A for 1 sec
• Discharge cut-off voltage: <11.20V
• Charge voltage range: 14.20–14.60V (requires lithium charger)
• Built to stay cool and handle high-discharge applications

Perfect for:

·       Caravans & camper trailers for long off-grid stays

·       4WD canopy setups needing big inverter capacity

·       Marine & boating builds

·       Tiny homes, mobile workshops & off-grid cabins

·       Powering high-draw appliances like coffee machines, microwaves & induction cooktop

Why choose B-TEC?

• Trusted premium brand used by thousands of travellers and boat owners nationwide
• Proven performance in harsh Australian conditions
• Wireless app keeps you informed at all times
• Lightweight & compact for easier installation and better vehicle balance
• Superior lifespan, stable voltage delivery and minimal maintenance

Important installation notes:

• Designed for internal installations only (IP52) – not suitable for engine bays, trays, wet areas or compartments carrying gas.
• For best performance, limit to max four batteries in parallel; total loads must not exceed the BMS rating of a single battery.

Available now at Home of 12 Volt Northern – your local experts in lithium power, off-grid energy systems and custom installations.

Features

Enerdrive | Dometic B-TEC LiFeP04 12v 300Ah Slimline Lithium Battery

The new 300Ah ePOWER B-TEC Slimline lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

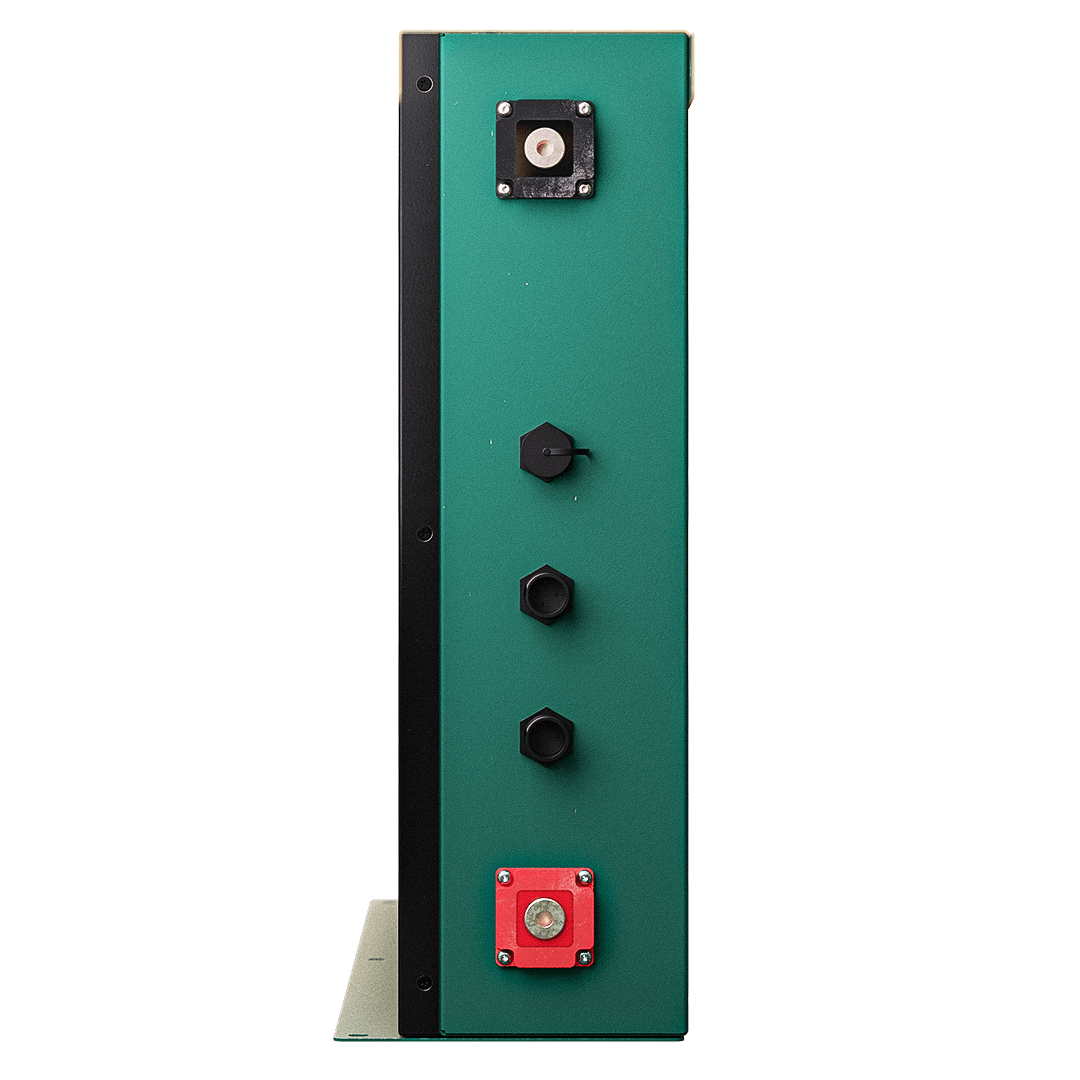

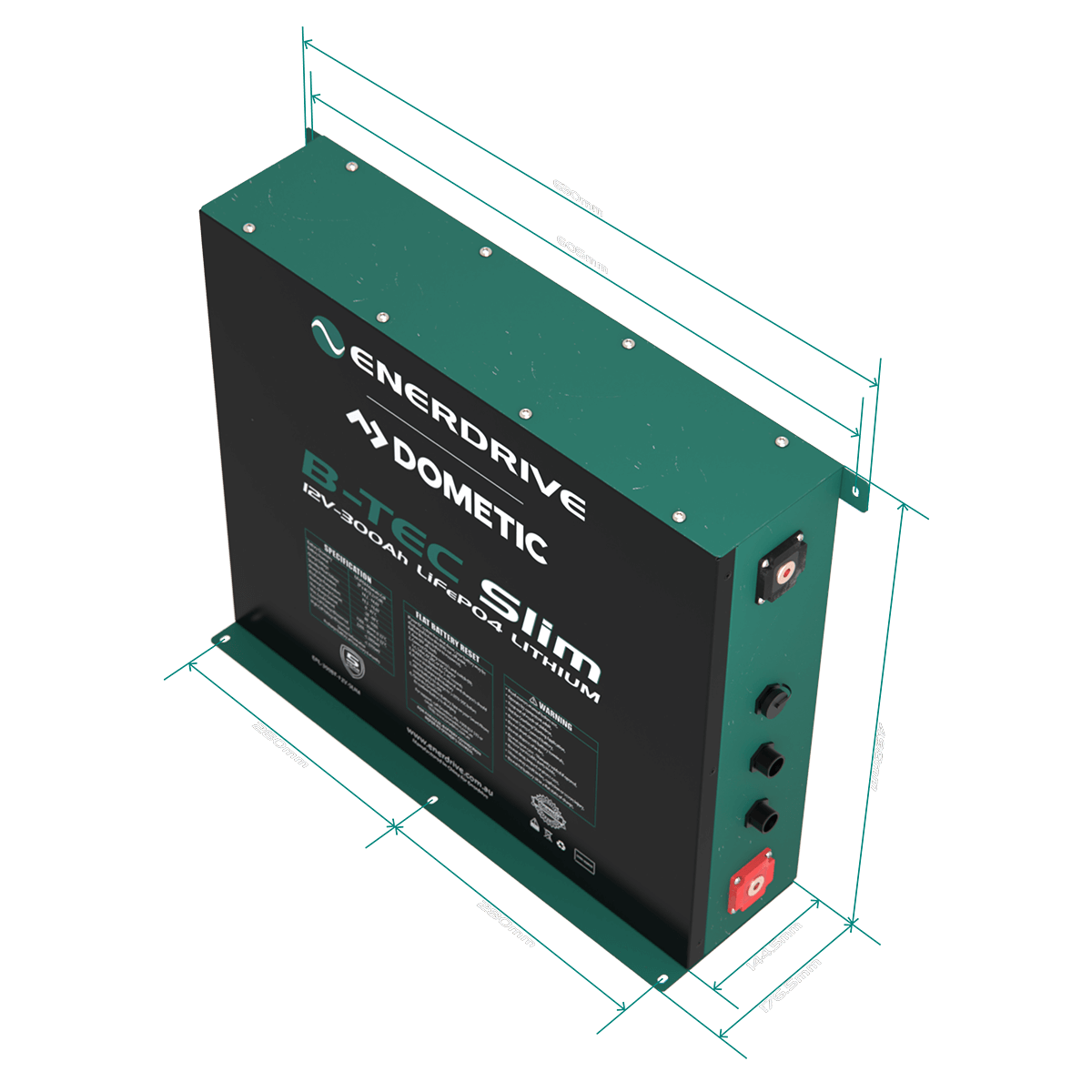

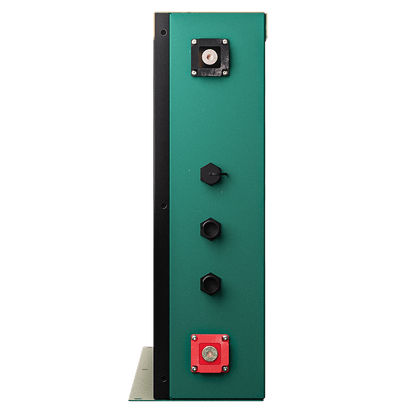

• Extremely compact size W 630 x H 498 x D 176.5 mm. All connection points for the battery are at one end including all Comms Ports and Reset Port.
• Reset button is not included on the battery itself, we have opted for a button that can be remotely mounted elsewhere in the install. This allows for a much easier restart process for customers and also keeps the battery more water tight with less chance of water ingress.
• Comms Ports are both RJ45 remote ports with CAN output. Both are reserved for future integration and functionality.
• Water resistant metal casing meeting IP52 rating and all external bolts and fittings are blind so limits the chance for water to travel from external to internal. Rubber style seals between all metal framing. Frames overlap as well to help avoid water ingress.

Smart Phone Monitoring System

The Enerdrive B-TEC Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

• Battery Capacity
• Battery Voltage
• Battery Current (Amps)
• Battery State of Charge (SOC)
• Battery State of Health (SOH)
• Battery Status
• Individual Cell Voltage
• Battery Temperature
• Battery Cycles
• Battery Alarms
• Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery. Please note that a fully discharged battery (BMS is off) requires charging within 14 days to avoid cell damage.

Size & Weight Savings

Lithium v AGM Capacities;

• 100Ah Lithium = 160Ah AGM
• 125Ah Lithium = 200Ah AGM
• 200Ah Lithium = 320Ah AGM
• 300Ah Lithium = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

With over a decade of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With thousands of complete systems in operation Australia wide, Enerdrive | Dometic is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note; The B-TEC Slimline battery is capable to be paralleled to a second B-TEC 12V 300Ah Slimline Lithium Battery. For maximum performance and lifespan of your B-TEC Slimline battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single battery’s BMS.

The 300Ah Slimline battery is able to accept a maximum inverter capacity of 3000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

Please note B-TEC batteries must not be installed –
• In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
• In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
• Inside compartments dedicated to carrying gas.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.
