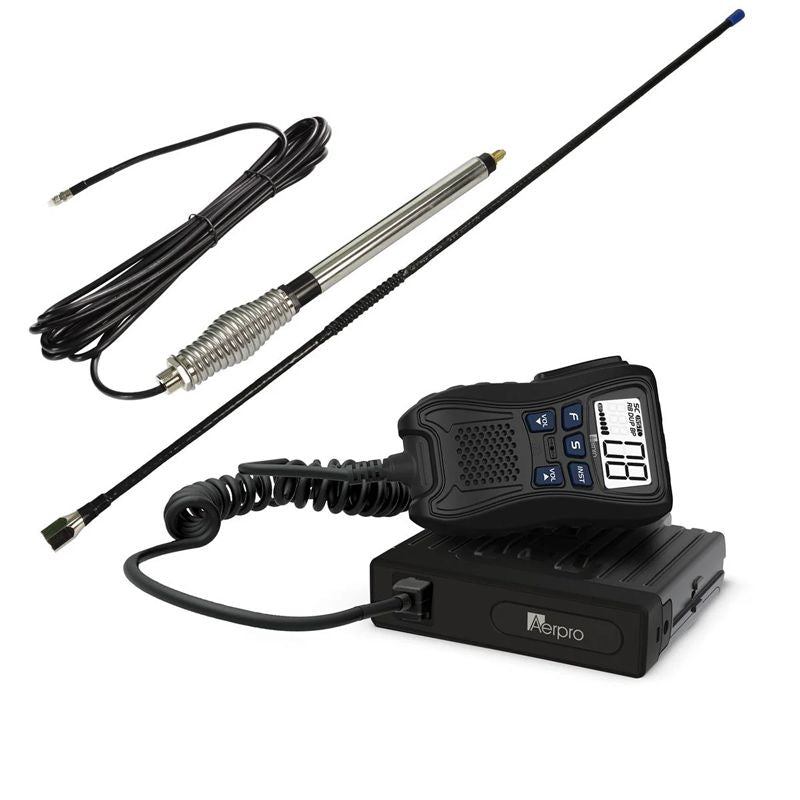

AP477HPK 5W Hideaway UHF Radio & 6dBi Antenna Pack

📻 AERPRO AP477HPK 5W HIDEAWAY UHF CB RADIO & ANTENNA PACK

5W Hideaway UHF • 80 Channels • 6dBi Elevated Feed Antenna • 12V / 24V Compatible

The Aerpro AP477HPK combines the compact AP477H 5W Hideaway UHF CB Radio with the CBA6F1L 6dBi Elevated Feed UHF Antenna in one convenient vehicle communications package.

Designed for cars, utes, 4WDs, trucks, vans and motorhomes, the package provides a discreet radio installation with remote speaker microphone control and a ground-independent antenna suited to a wide range of vehicle mounting positions.

---

📦 PACKAGE INCLUDES

• 📻 1 × Aerpro AP477H 5W Hideaway UHF CB Radio
• 📡 1 × Aerpro CBA6F1L 6dBi 477MHz Elevated Feed UHF Antenna

---

⚡ KEY FEATURES

📡 5 Watt / 80 Channel UHF CB
Full 5W transmission power across Australia's 80-channel UHF CB band.

🎙️ Remote Speaker Microphone
Provides radio controls, audio and display access from the driver's position while the main chassis remains hidden.

🧰 Ultra-Compact Hideaway Radio
Aluminium die-cast radio chassis is designed for discreet installation beneath a dashboard, seat or other suitable location.

🌈 7-Colour Backlit Display
Choose from seven display colours to suit your vehicle interior or personal preference.

🔋 12V / 24V Compatible
Suitable for compatible passenger, 4WD and commercial vehicle electrical systems.

📡 6dBi Elevated Feed Antenna
Medium-gain antenna with an elliptical radiation pattern suited to general touring, suburban, town and woodland environments.

🚙 Ground-Independent Antenna
Designed to provide greater mounting flexibility on suitable bullbars, guards and other vehicle locations.

🔩 Medium-Duty Stainless Steel Spring
Provides flexibility for vehicles exposed to vibration and touring conditions.

🔌 Solder-Free Antenna Connection
Pre-terminated RG58 cable with Female FME connector and supplied FME-to-PL259 adaptor simplifies connection to the radio.

---

📻 AP477H RADIO FEATURES

• 5 Watt transmission power
• 80 UHF CB channels
• CTCSS & DCS selective squelch codes
• Duplex / repeater mode
• Channel scan
• Automatic squelch control
• Busy channel lockout
• Call tone adjustment
• Roger beep
• Button beep
• Volume control
• 7-colour backlit display
• External speaker port
• Vehicle stereo mute output

⚠️ CTCSS and DCS codes provide selective squelch only. They do not make UHF CB communications private or encrypted.

---

📡 CBA6F1L ANTENNA FEATURES

Frequency: 477MHz

Gain: 6dBi

Total Length: Approximately 945mm

Whip Length: Approximately 650mm

Whip Diameter: Approximately 6.5mm

Whip Type: Solid Fibreglass

Colour: Silver Base / Black Whip

Ground Independent: Yes

Elevated Feed: Yes

Spring: Medium-Duty Stainless Steel

Antenna Mounting Thread: 16mm

Whip Mounting Thread: 5/16"

Cable: RG58

Cable Length: Approximately 4.9m

Cable Termination: Female FME

Adaptor: FME to PL259 Included

---

📋 AP477H RADIO SPECIFICATIONS

Transmission Power: 5 Watt

Frequency: 476.425 – 477.4125MHz

Channels: 80

Radio Type: Ultra-Compact Hideaway Chassis

Microphone: Remote Speaker Microphone

Operating Voltage: 12V / 24V DC Compatible

CTCSS / DCS: Yes

Duplex Mode: Yes

Channel Scan: Yes

Squelch Control: Yes

Busy Channel Lockout: Yes

External Speaker Port: Yes

Mute Output: Yes

Antenna Connection: PL259

---

📦 RADIO INCLUSIONS

• 📻 1 × AP477H UHF CB Radio
• 🎙️ 1 × Remote Speaker Microphone
• 🔩 1 × Microphone Mounting Clip
• 🧰 1 × Radio Mounting Bracket
• 📏 1 × 2m Microphone Extension Cable

📦 ANTENNA INCLUSIONS

• 📡 1 × CBA6F1L 6dBi Antenna
• 🔌 1 × FME-to-PL259 Adaptor
• 🔩 Mounting Nut
• 🔧 Installation Spanner

---

🛡️ WARRANTY

Radio Warranty: 5 Years

Antenna Warranty: 1 Year

---

🚙 IDEAL FOR

• 🚙 4WD touring
• 🛻 Utes
• 🚚 Trucks
• 🚐 Vans & motorhomes
• 🚗 Cars
• 🏕️ Touring & camping vehicles

---

❓ QUICK FAQ

Is the antenna included?

Yes. The AP477HPK includes the Aerpro CBA6F1L 6dBi 477MHz elevated-feed antenna.

Can the radio body be hidden?

Yes. The AP477H uses an ultra-compact hideaway chassis, with the remote speaker microphone providing access to the main controls.

Is the antenna ground independent?

Yes. The supplied CBA6F1L antenna is specified as both ground independent and elevated feed.

Will the 6dBi antenna guarantee a certain communication range?

No. Actual UHF range depends on terrain, antenna location, installation quality, surrounding obstacles, interference and whether a compatible repeater is being used.

---

📻 COMPLETE HIDEAWAY UHF PACKAGE FOR TOURING & 4WD USE

With a compact 5W hideaway radio, remote speaker microphone and 6dBi ground-independent elevated-feed antenna, the Aerpro AP477HPK provides a clean and practical communications package for touring, work and recreational vehicles.
