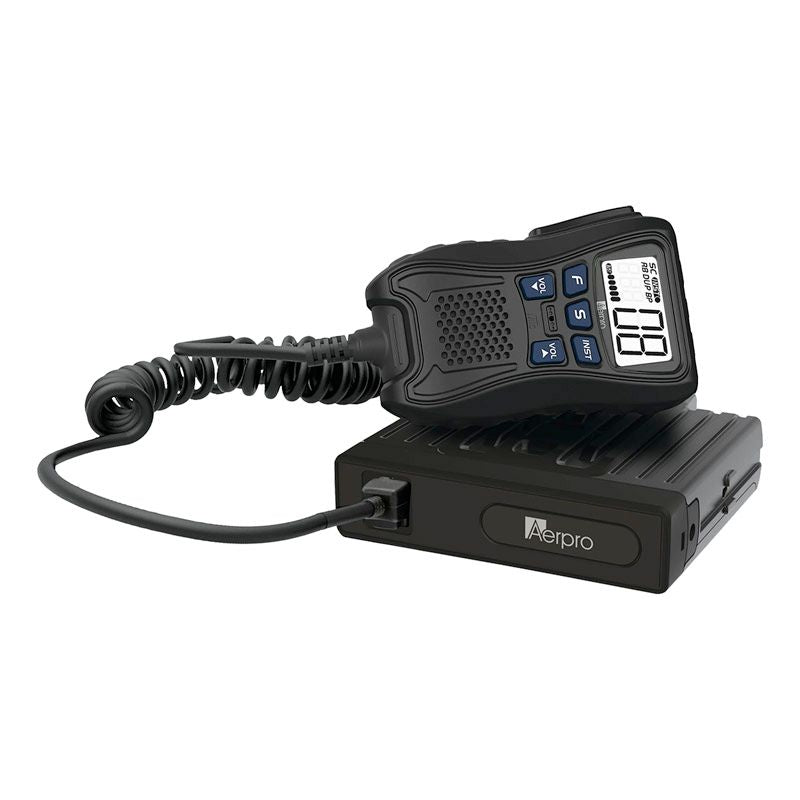

📻 AERPRO AP477H 5W ULTRA COMPACT HIDEAWAY UHF CB RADIO

5 Watt • 80 Channels • Remote Speaker Microphone • 7-Colour Display • 12V / 24V Compatible

The Aerpro AP477H is an ultra-compact 5W UHF CB radio designed for discreet installation in cars, utes, 4WDs, trucks, vans and motorhomes.

The main radio chassis can be hidden beneath a dashboard or seat, while the supplied remote speaker microphone provides access to the radio controls, audio and large backlit LCD display from the driver's position.

⚡ KEY FEATURES

📡 5 Watt UHF CB Transmission
Full 5W transmission power across Australia's 80-channel UHF CB band.

🎙️ Remote Speaker Microphone
Control the radio from the microphone without needing direct access to the hidden main chassis.

🌈 7-Colour Backlit Display
Choose from seven display colours to suit your vehicle interior or personal preference.

🧰 Ultra-Compact Hideaway Chassis
Compact aluminium die-cast radio body can be mounted discreetly under a dashboard, seat or other suitable location.

🔋 12V / 24V Compatible
Suitable for compatible passenger vehicles, 4WDs and commercial vehicles using 12V or 24V DC electrical systems.

🔁 Duplex / Repeater Mode
Supports duplex operation for use with compatible UHF CB repeaters where available, which can extend practical communication coverage beyond direct radio-to-radio operation.

🔎 Channel Scan
Scan available UHF CB channels to locate active conversations.

🔇 Automatic Squelch Control
Helps reduce background noise when no usable signal is being received.

🚫 Busy Channel Lockout
Helps prevent transmission over an already active channel.

🔊 External Speaker Port
Allows connection of a compatible external speaker when required.

🎵 Stereo Mute Output
Provides a mute output for compatible vehicle audio installations.

🔐 CTCSS & DCS CODES

The AP477H supports CTCSS and DCS selective squelch codes, allowing compatible radios within a group to reduce unwanted received traffic on the selected channel.

⚠️ CTCSS and DCS do not make UHF CB communications private or encrypted. Other users on the same channel can still receive transmissions.

📋 TECHNICAL SPECIFICATIONS

Model: AP477H

Transmission Power: 5 Watt

Frequency Range: 476.425 – 477.4125MHz

Channels: 80

CTCSS / DCS Codes: Yes

Duplex Mode: Yes

Channel Scan: Yes

Automatic Squelch Control: Yes

Busy Channel Lockout: Yes

Call Tone Alter: Yes

Roger Beep: Yes

Button Beep: Yes

Volume Control: Yes

Display: 7-Colour Backlit

Radio Type: Ultra-Compact Hideaway Chassis

Microphone: Remote Speaker Microphone

Operating Voltage: 12V / 24V DC Compatible

External Speaker Port: Yes

Mute Output: Yes

Antenna Connection: PL259, as supplied

📦 WHAT'S INCLUDED

• 📻 1 × Aerpro AP477H UHF CB Radio
• 🎙️ 1 × Remote Speaker Microphone – Male Connector
• 🔗 1 × RJ45 Female-to-Female Coupler
• 📏 1 × 2m Microphone Extension Cable – Male-to-Male
• 🔩 1 × Microphone Mounting Clip
• 🧰 1 × Radio Mounting Bracket

🚙 IDEAL FOR

• 🚙 4WD & touring vehicles
• 🛻 Utes
• 🚗 Cars
• 🚚 Trucks
• 🚐 Vans & motorhomes
• 🧰 Vehicles where dashboard space is limited

❓ QUICK FAQ

Can the main radio be hidden out of sight?

Yes. The ultra-compact chassis is designed for discreet mounting, while the remote speaker microphone provides access to the radio functions.

Does it work on both 12V and 24V vehicles?

Yes. The AP477H is specified as compatible with 12V and 24V DC electrical systems.

Does duplex mode increase range?

Duplex mode allows the radio to operate through compatible UHF CB repeaters where available. Actual communication range depends on terrain, antenna installation, surrounding obstacles, interference and repeater availability.

Does it have a speaker in the microphone?

Yes. The supplied remote microphone incorporates a speaker as well as the radio controls and display.

📻 FULL 5W UHF PERFORMANCE WITHOUT CLUTTERING YOUR DASH

With its ultra-compact hideaway chassis, remote speaker microphone, 80 UHF CB channels, 7-colour display and 12V / 24V compatibility, the Aerpro AP477H is a practical communications solution for vehicles where space and clean installation matter.
