REDARC
80W FIXED SOLAR PANEL
80W FIXED SOLAR PANEL
SKU:SMRP1080

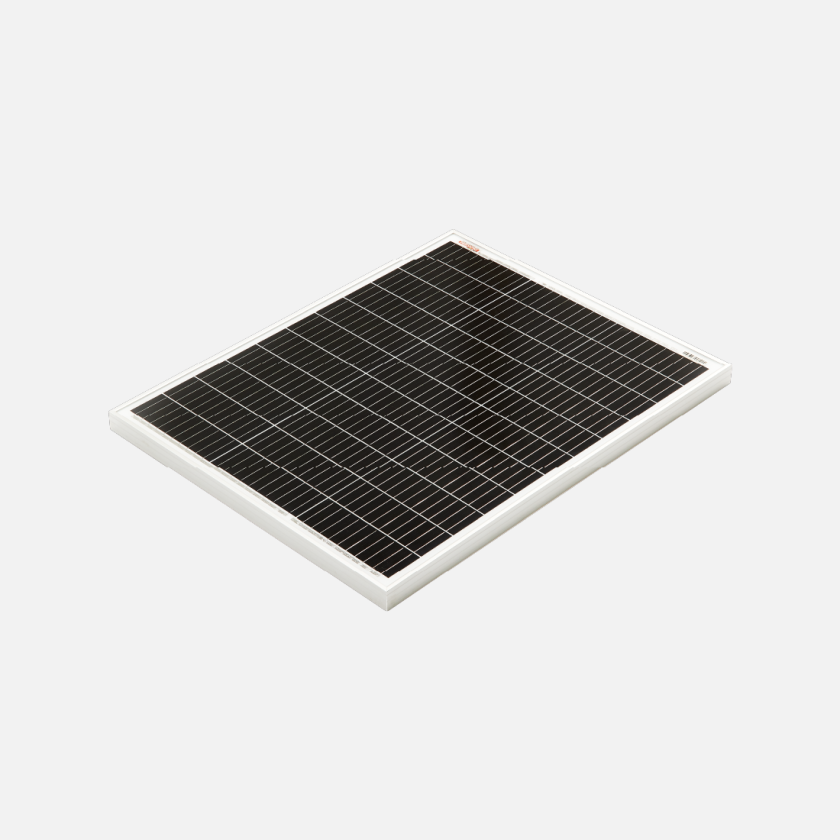

Looking for the best 80w solar panel for camping? REDARC's monocrystalline flat panels are highly efficient with a robust design. A tempered glass coating and a sturdy aluminium frame ensure that our panels will withstand harsh road conditions and extreme weather conditions.
These are designed for a fixed installation, typically on the roof area of caravans, RV’s, motorhomes, as well as some camper trailer and 4x4 vehicle applications.

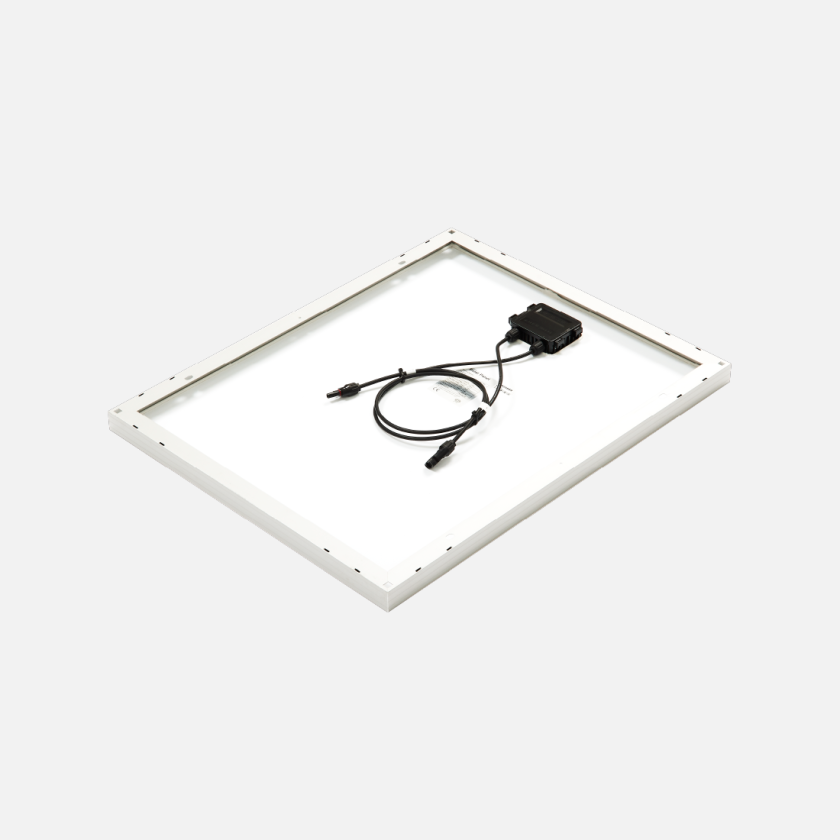

Featuring an anodised aluminium frame and tempered glass coating they are well suited for outdoor use and employ quality MC4 style connectors for easy installation.
Fixed Solar Panels feature a weight improvement and smaller footprint design for their power output, effectively contributing to a lighter, smaller design with greater cell efficiency.
The Fixed Solar Panels will integrate into the REDARC product line and will be supported by existing Solar Regulator and Solar Accessory products.
Each panel is tested at time of manufacture to conform to CE standards, so you can be sure that the panel output is exactly as described in its specification.
FEATURES
- Monocrystalline construction
- Anodised Aluminium Frame
- Robust tempered glass coating
- Qualty MC4 connectors
SOLAR CELL TYPE | Monocrystalline |
OPEN CIRCUIT VOLTAGE | 22.56V |
FRAME | Anodized Aluminium |
MAX. POWER VOLTAGE | 18.8V |
SHORT CIRCUIT CURRENT | 4.47A |
OPERATING TEMPERATURE | –40°C to +85°C |
CABLE LENGTH | 900mm |
WEIGHT | 4.8kg |
HEIGHT | 740mm |
WIDTH | 590mm |
WARRANTY | 2 Years |
MAX POWER CURRENT | 4.26A |
CONNECTOR TYPE | MC4 |
