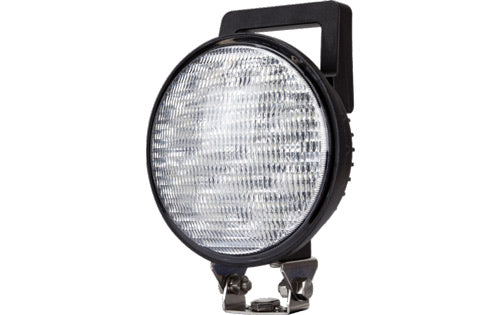

636 SERIES 36W LED FLOOD BEAM WORK LIGHT

The Roadvision RWL636 LED work light allows for total control right from the light source. Featuring an in built switch on the rear of the lamp and a handle, you can take total control of when and where you need light the most. Producing 2880lm of light and housed in a tough die-cast aluminium housing with polycarbonate lens, the RWL636 Series is a durable and flexible work light perfect for tradies and utility applications.

• RWL636 Series LED work lamps produce 2880lm of instant light output
• Integrated handle & switch
• 3W Cree LED’s produce super white light close to daylight
• Multi-volt 10-30V DC input
• Super low current draw
• 50,000 hour LED lifespan with solid state technology
• Light weight tough die-cast aluminium housing & polycarbonate lens
• Water & dust proof IP67 rated
• Simple 2 wire installation
• Over/under voltage, reverse polarity protection & EMI/EMC radio interference approved.

MULTI-VOLT 10-30 VDC

POLYCARB LENS

COLOUR TEMP

WATER & DUST PROOF

OVER/UNDER VOLTAGE PROTECTION

REVERSE POLARITY PROTECTION

3W CREE LEDS

RADIO INTERFERENCE APPROVED

5 YEAR WARRANTY

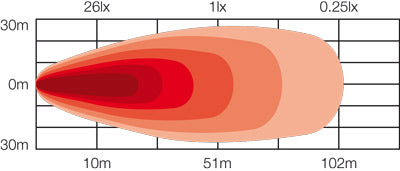

BEAM PATTERN

Part Number	RWL636FHS
Description	6 Series LED Work Lamp 36W Flood with Switch & Handle
Beam Type	Flood Beam
Lumens Light Output (Effective)	2880lm
Beam Distance	102m
Total Watts	36W
Light Source	12 x 3W CREE LED's
Input Voltage	10-30V DC
Current Draw Amps	1.34A @ 13.8V DC
Dimensions	145x94x200mm
Wiring	300mm Lead
Lux @ 10m	26 Lux
Meters @ 1 Lux	102m
Meters @ 0.5 Lux	51m
