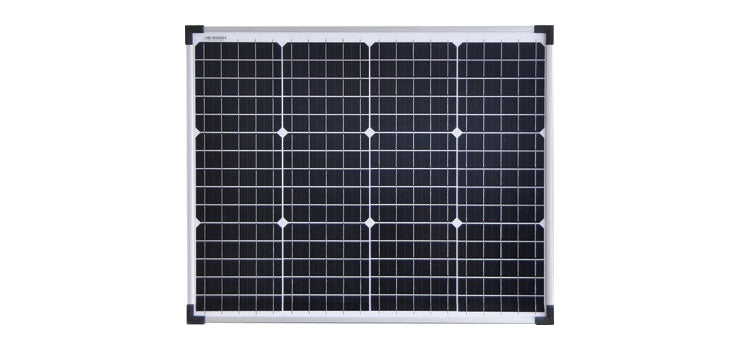

40W 12V MONOCRYSTALLINE SOLAR PANEL
40W 12V MONOCRYSTALLINE SOLAR PANEL
SKU:N0040F
This quality 40W 12V monocrystalline solar panel module is designed for direct connection to a solar charge controller for use in remote power systems. The compact size makes it perfect for battery maintenance in low power equipment. It is constructed with an extruded aluminium framing and tempered dust resistant glass panel for installation in the most demanding of Australian conditions. Backed by a 25 year output warranty and a 5 year manufacturer defect warranty these panels are manufactured to a high standard by one of the worlds leading suppliers since 1992.
Typical Applications Include:
Power for remote cameras
Electric fence battery banks
Remote sensors and monitoring
Battery powered lighting systems and much more
Includes a bypass diode and a junction box.
Maximum power: 40W
Nominal voltage: 12V
Short circuit current (ISC): 2.50A
Open circuit voltage: 21.5V
Maximum power current (IMP): 2.33A
Maximum power voltage: 17.2V
Connection: MC-4 Plug (1m lead)

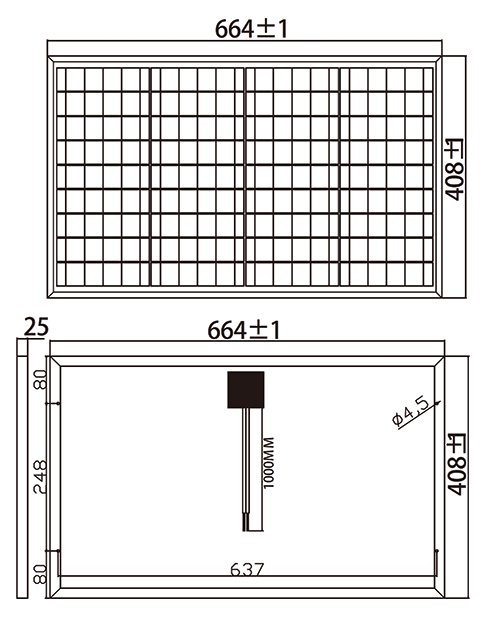

Dimensions: 664 x 408 x 25 mm
Operating temperature: -40°C to +85°C
