SUNMAN

235W eARC SOLAR BLANKET

235W eARC SOLAR BLANKET

SKU:eAPSMF235M

Regular price $899.00
Regular price Sale price $899.00
Sale Sold out

Tax included. Shipping calculated at checkout.

Designed by Sunman, using their lightweight robust eArc monocrystalline solar panels, this premium 235w portable solar panel is made with a Patented composite material similar to those used in airplane windows.

eArc solar panels are are about 75 percent lighter than conventional photovoltaic panels.

Lightweight and compact

Made with 48 solar cells in four sections of 12 solar cells each fold into a compact carry bag with handle that is easy to carry and store

  • Dimensions folded  - 670 x 540 x 24 mm
  • Dimensions un-folded  - 670 x 2600 x 5 mm

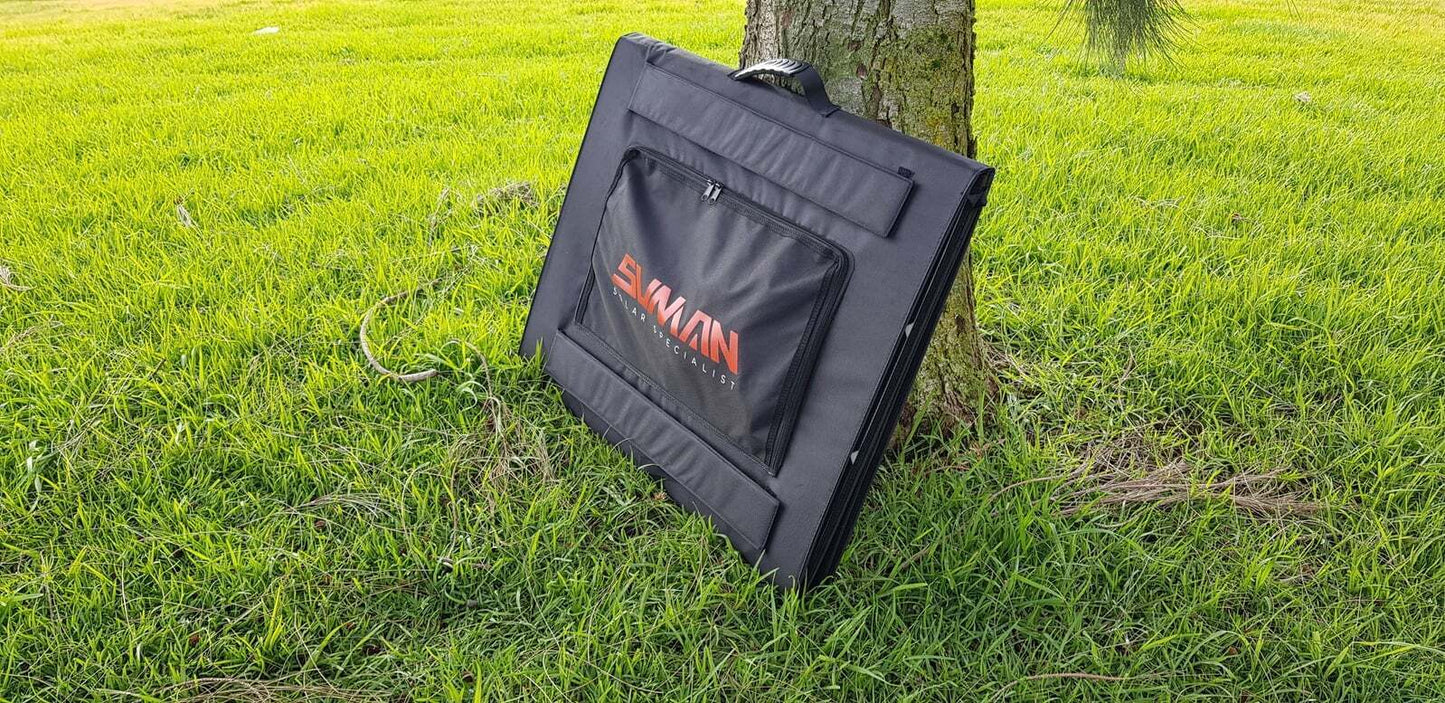

The functional storage pouch keeps the cables and solar charge controller neatly protected and stored when not in use.



High Efficiency

The output warranty is the same as high grade rigid solar panels used on buildings: above 80% of the original power by the 25th year.

Unfolded, without shade this panel can produce more than 500wh per day in most areas.

Durable

The top encapsulation layer is a high-strength fluorine polymer that is corrosion and stain resistant, non-stick self cleaning, and retains its clarity (and therefore light transmittance) ensuring long service life for solar panels.  It will not discolour or degrade from exposure to environmental pollution, UV light, harsh chemicals or extreme temperature variations.

The surface is textured for extra robustness.

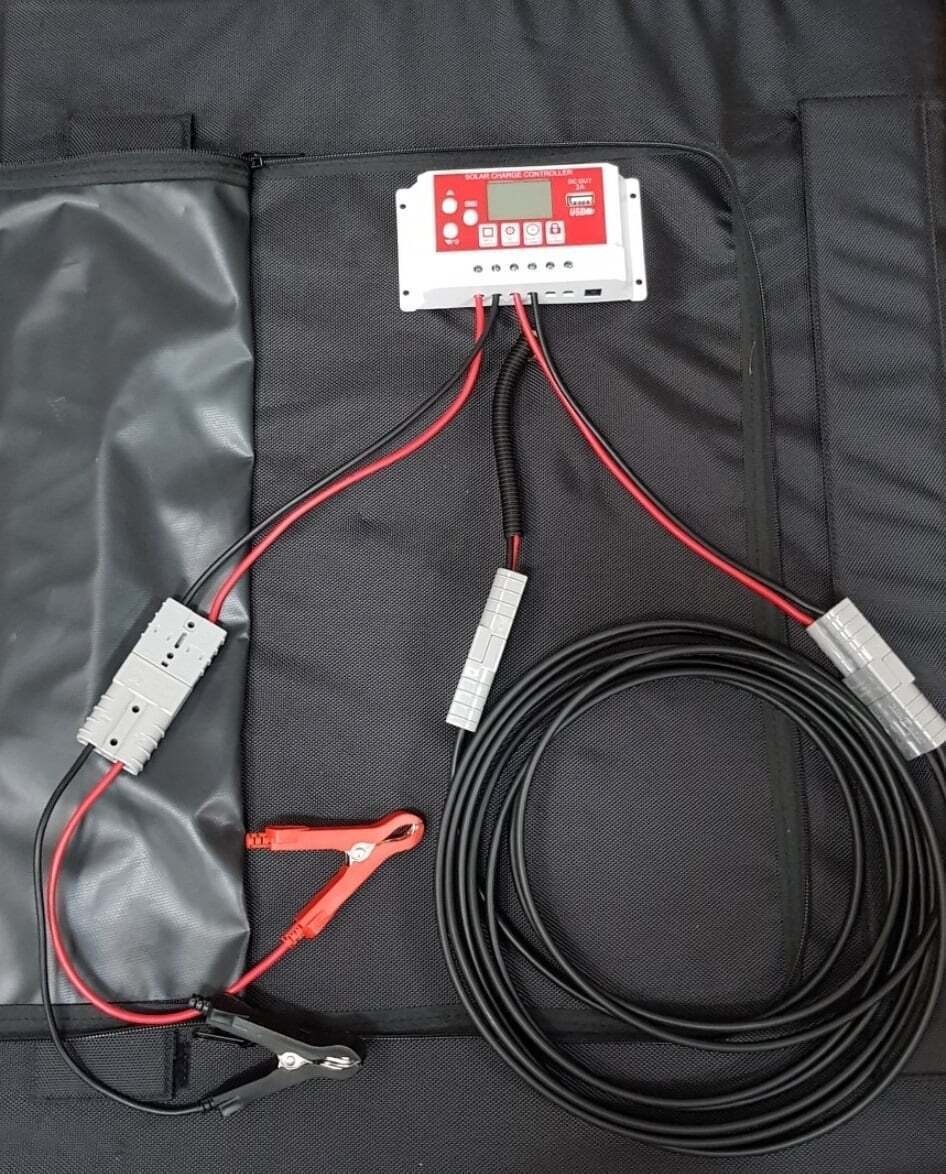

Included Accessories

  • PWM charge controller with LCD display (lithium compatible)
  • 5m 4mm² PV1-F extension cable with Anderson Plugs.
  • Alligator clips for easy battery connection
  • 5 years for the Blanket
  • 1 year for the accessories (Cables and Solar Controller)

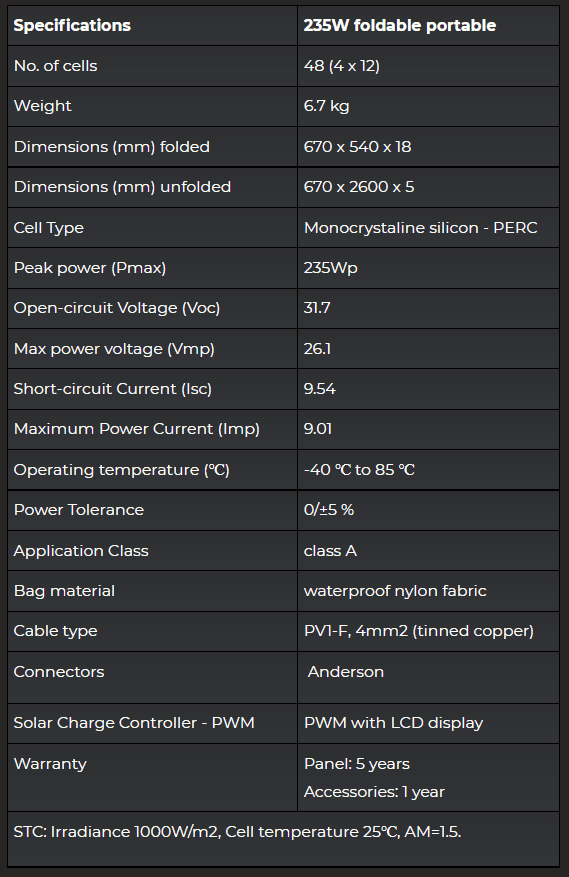

No. of cells 48 (4 x 12)
Dimensions (mm) folded 670 x 540 x 18
Dimensions (mm) unfolded 670 x 2600 x 5
Cell Type Monocrystaline silicon - PERC
Peak power (Pmax) 235Wp
Open-circuit Voltage (Voc) 31.7
Max power voltage (Vmp) 26.1
Short-circuit Current (Isc) 9.54
Maximum Power Current (Imp) 9.01
Operating temperature (℃) -40 ℃ to 85 ℃
Power Tolerance 0/±5 %
Application Class Class A
Bag material Waterproof nylon fabric
Cable type PV1-F, 4mm2 (tinned copper)
Connectors  50A Anderson
Solar Charge Controller - PWM PWM with LCD display
Warranty Panel: 5 years
Accessories: 1 year
