215W eARC FLEXIBLE SHADE RESISTANT SOLAR PANEL

215W eARC FLEXIBLE SHADE RESISTANT SOLAR PANEL

SKU:eARC215W

Regular price $379.00
Regular price Sale price $379.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Half-Cut Shade Resistant

New Half cut design jusing the latest M6 monocrystalline passivated emitter rear contact (PERC) cells reduces internal resistance and creates two independant strings within the panel.  Effectively reducing the effect of shading when on one side. PERC cells improve the year round performance compared to conventional cells as some of the light that hits the back of the cell is reflected back and converted to current.

New Version: Compact and Efficient Mono-PERC Solar Panels

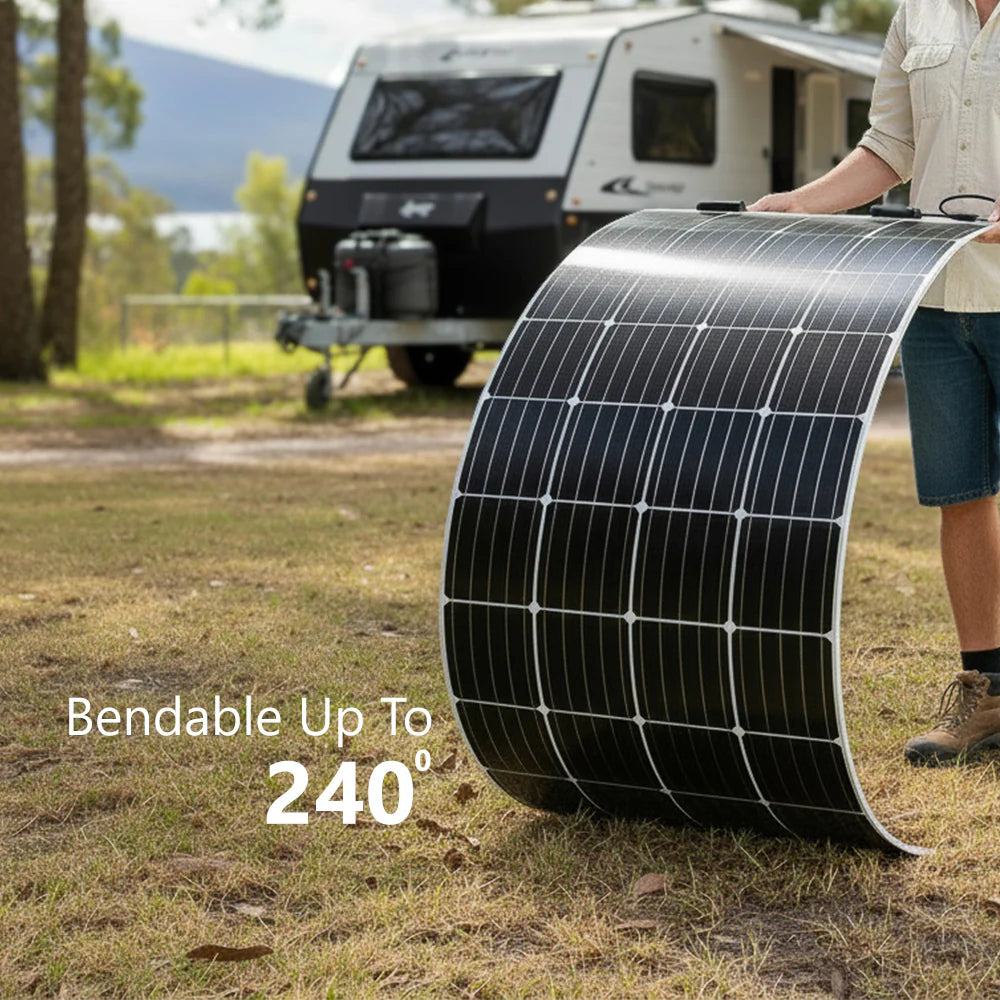

Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, and buses.

  • Vented Gap Kit: Improves panel efficiency and reduces surface heating. Includes high bond double-sided adhesive tape and polycarbonate strips. (Height increase of approximately 15mm)
  • High Bond Double-Sided Adhesive Tape: Provides a low-profile, secure bond for smooth surfaces. (2.3mmH x 12mmW x 16.5mL)
  • Bi-Adhesive Backing: We can fit a continuous sheet of 1mm bi-adhesive material on the back of the panel for easy peel-and-stick installation on smooth surfaces.
  • Structural Silicone (Fix8): Can be used to adhere the panel to a surface.
  • Eyelets: We can press eyelets into the panel so it can be secured using bolts or screws.

Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass.

Solar cells 72 (4x9x2)
Maximum Power (Pmax) 215
Maximum Power Voltage (Vmp) 21.08
Maximum Power Current (Imp) 10.67
Open-circuit Voltage (Voc) 24.72
Short-circuit Current (Isc) 11.2
Operating Temperature (°C) -40 °C to 85 °C
Maximum System Voltage 1000 V DC (IEC)
Maximum Series Fuse Rating 20 A
Application Class Class A
Power Tolerance 0/+5 W

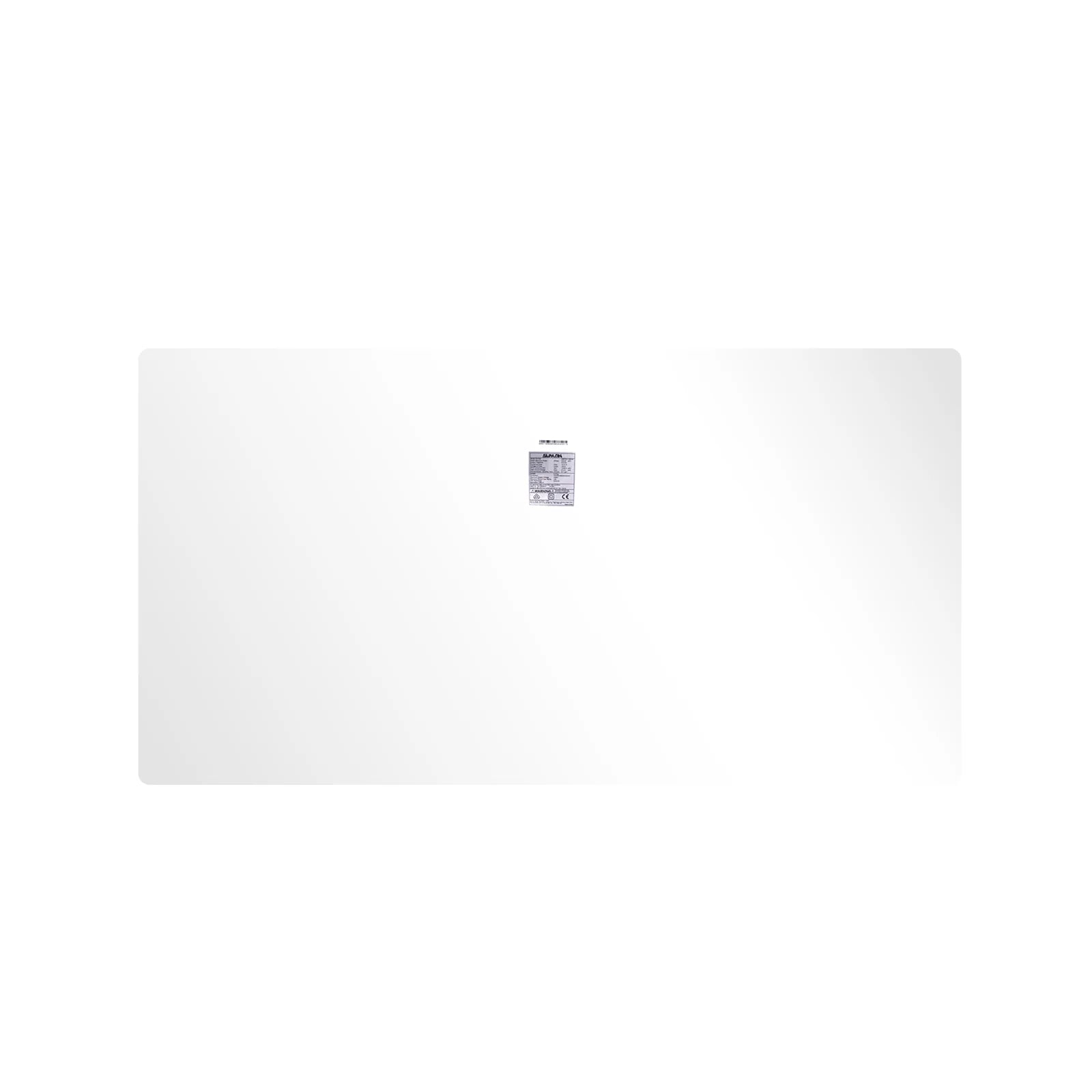

Backsheet White

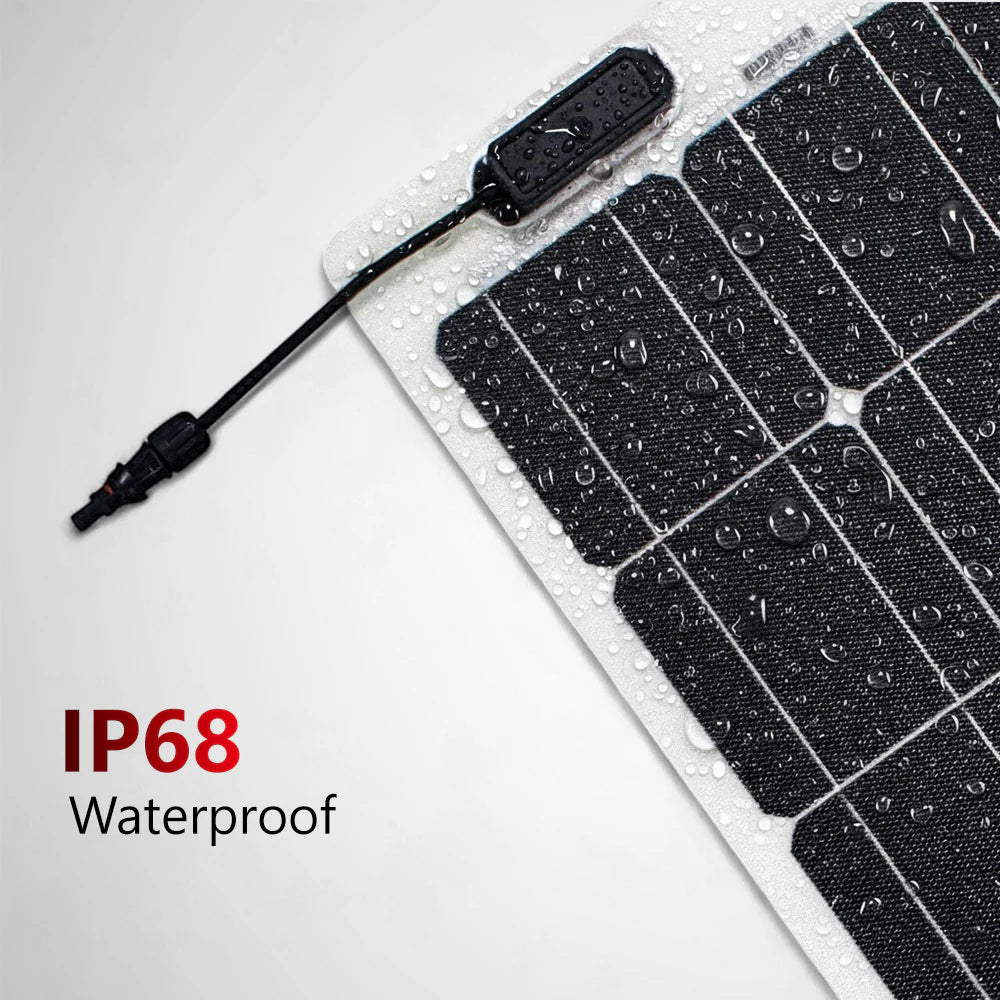

Junction box IP 68 rated (each j-box has one by-pass diode)
Output Cables Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
Connector MC4 compatible

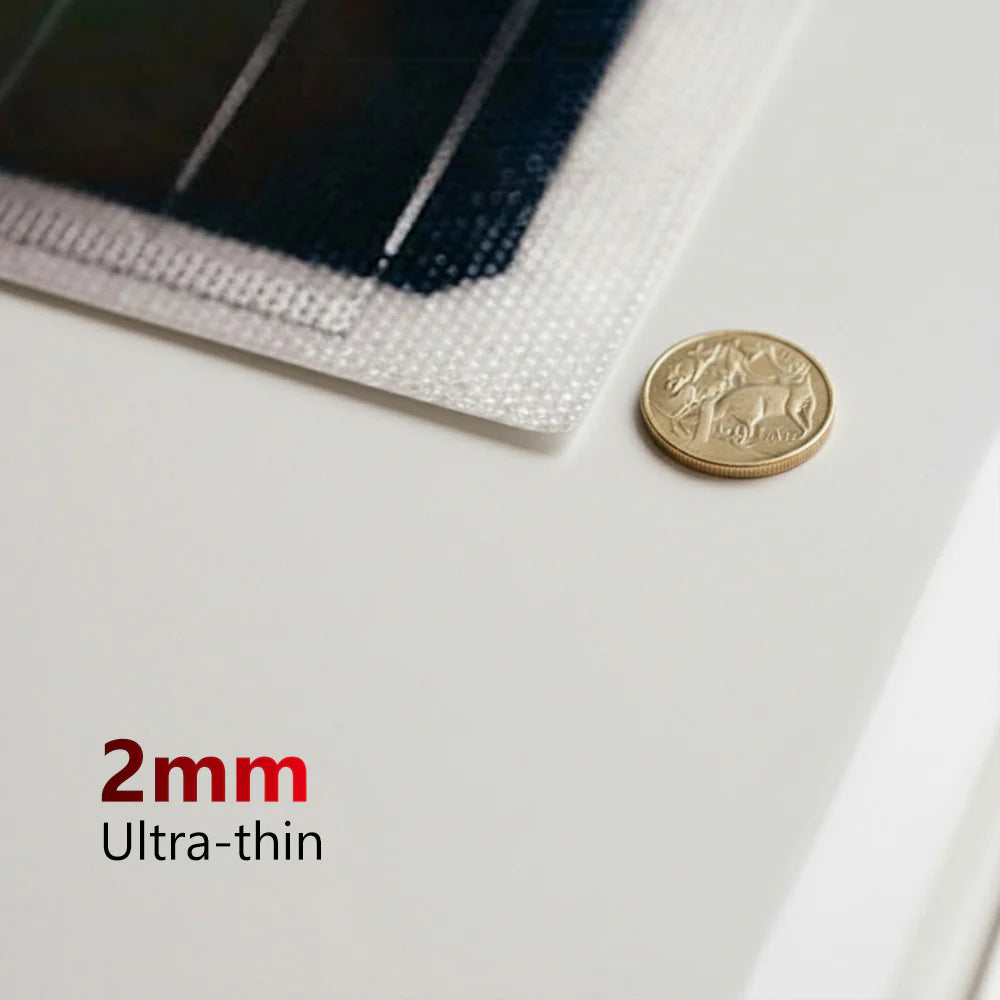

Dimensions (L x W x H) 1615 x 710 x 2mm
Dimensions Incl JB (L x W x H) 1615 x 710 x 22mm
