EXOTRONIC

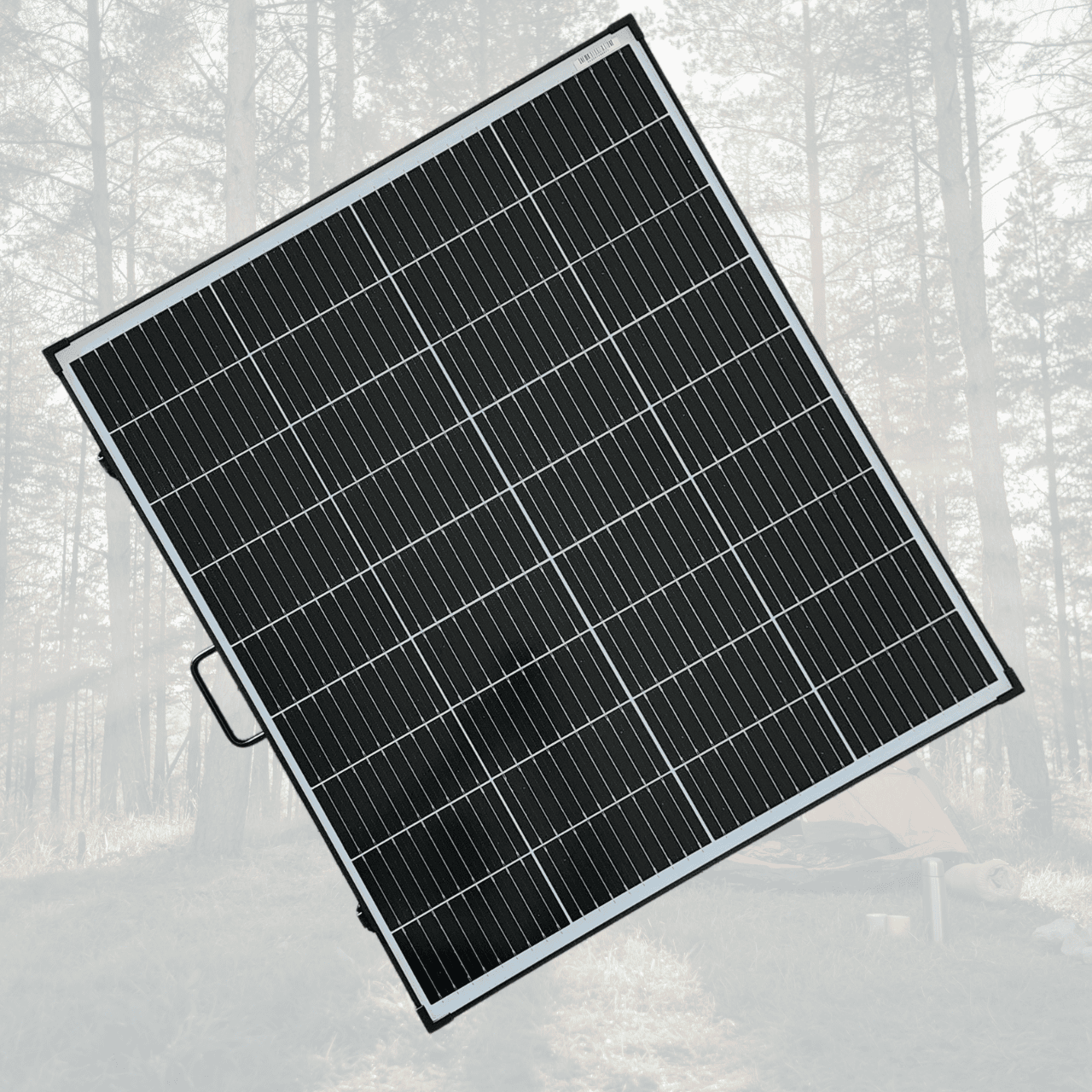

200W FOLDING SOLAR PANEL
200W FOLDING SOLAR PANEL
SKU:Exo-FP-200
Exotronic Foldable 200W Portable Solar Solution
When camping, parking under shade, or need access to free power to charge your battery, Exotronic has you covered with a strong but small form-factor foldable glass solar panel solution. The 200W briefcase is made up from two 100W solar modules using Trina half-cut 23% PERC monocrystalline solar cells with 9-wire busbars to maximise module efficiency.
Easy Setup and Transport
Weighing only 11.2kg, this panel can be manoeuvred with minimal effort.
These modules include bumpers on the corners and fold-away legs,
Shade Resistant
Each folded section is wired independently, so if one side is shaded the other side will still operate.
Premium Cable Set
Also included is an array of premium quality cables to suit any situation:
- 5m 4mm2 PV1-F heavy duty tinned copper (marine) MC4 to 50A grey Anderson cable between the solar panel and solar charge controller (this can be connected directly to your existing DC-DC charger solar input or solar controller) - do not connect the panel directly to a battery without a controller
- 2x 50A grey Anderson tails, to connect to your existing MPPT or PWM solar controller
- Alligator to 50A grey Anderson with 30A fuse (this can be used to jump start a lithium battery BMS or charge a starter battery when needed)
Protective Canvas Bag Included
The included padded canvas bag helps protect the solar module from scratches when stored away and includes a carry handle and pocket to store the cables and controller when not in use.
High-Efficiency Solar Power
Using 23% efficient Trina monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.
PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.
The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.
Dimensions Folded | 775x675x40mm |
Dimensions Unfolded | 775x1350x19mm |
Weight | 11.2kg |
Vmp | 19.8 |
Imp | 10.12A |
Voc | 24.1V |
Isc | 10.5A |
Module Efficiency | 19.3% |
Temperature Ratings | |
NMOT | 41C +/-3C |
Temperature Coefficient of Pmax | -0.37%/C |
Temperature Coefficient of Voc | -0.29%/C |
Temperature Coefficient of Voc | 0.05%/C |
Maximum Ratings | |
Operating Temperature | -40 - +85C |
Maximum System Voltage | 1000VDC |
Maximum Fuse Rated Current | 15A |
Mechanical Characteristics | |
Front | 3.2mm Tempered Glass |
Frame | Black Anodized Aluminium Alloy |
Junction Box | IP65/IP67 |
Connectors | MC4 Compatible |
