ENERDRIVE
2000W/80A 12V INVERTER CHARGER
2000W/80A 12V INVERTER CHARGER
SKU:EN220080-12
Couldn't load pickup availability

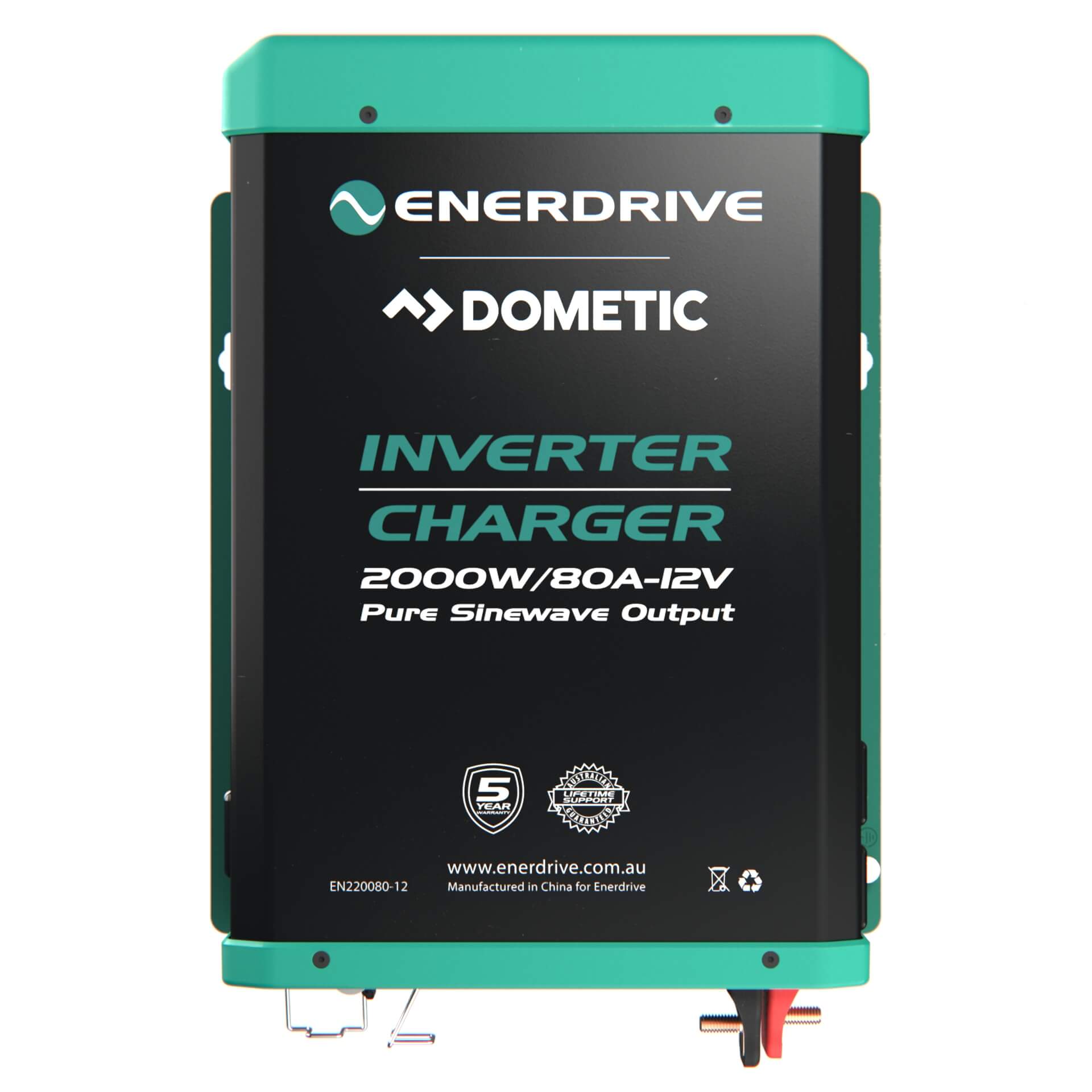

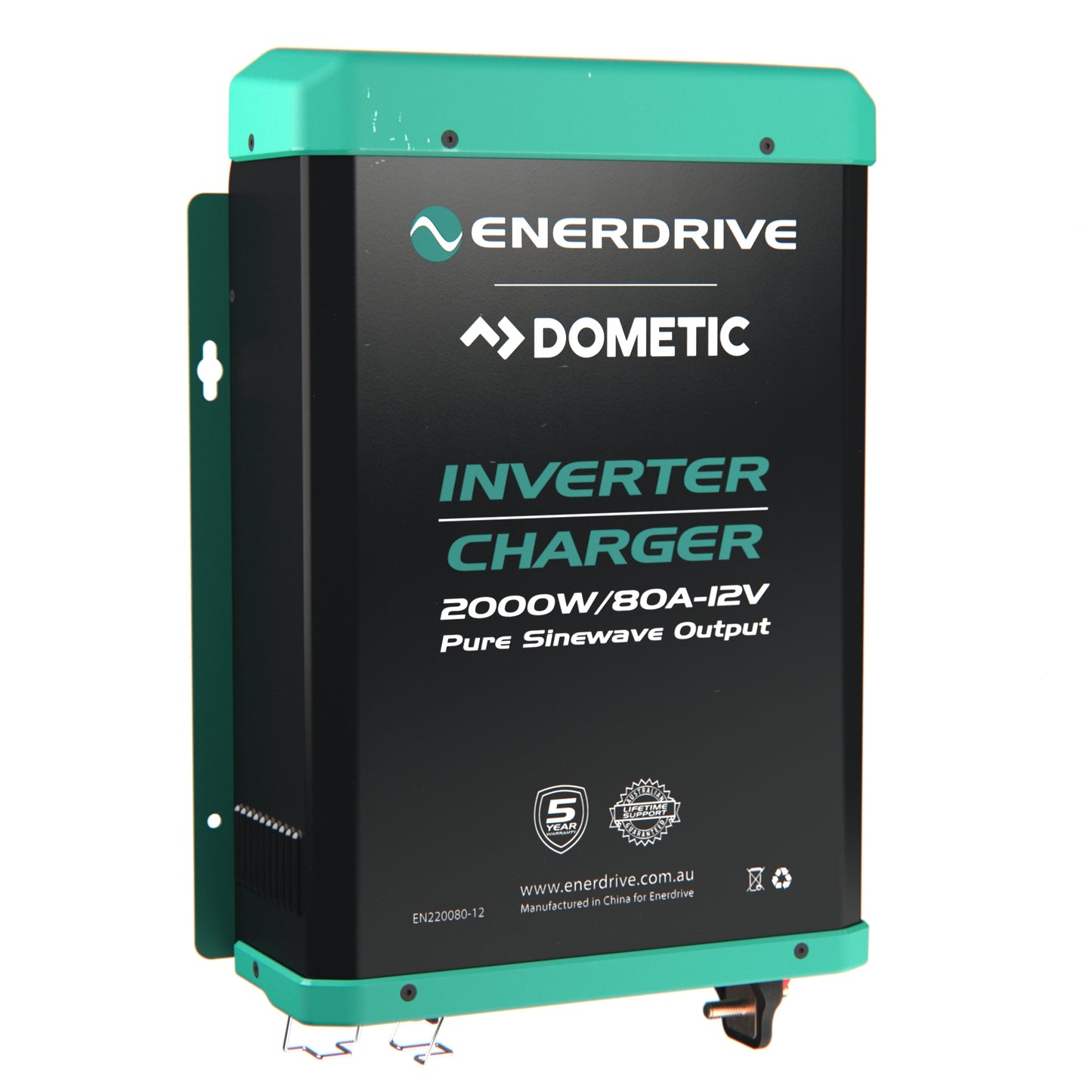

Enerdrive Inverter/Charger (Combi) 2000W/80A - 12V
The Enerdrive 2000W/80A 12V Inverter-Charger is the ultimate solution for off-grid power systems in caravans, 4WDs, boats, and remote power setups. This all-in-one unit provides true sinewave AC power for 240V appliances, while automatically charging your batteries when mains power is available. It features a built-in RCD safety switch, remote control display, and compatibility with all major battery types.
Whether you're powering a microwave, coffee machine, or induction cooktop, the Enerdrive Combi delivers reliable, regulated performance in a lightweight, compact design.
Key Features
- 2000W True Sinewave Inverter (8.7A, 230VAC output)
- 80A Multi-Stage Smart Battery Charger
- 16A Seamless AC Internal Transfer Switch
- RCD Safety Switch with Test Button (switches off in 0.03 seconds)

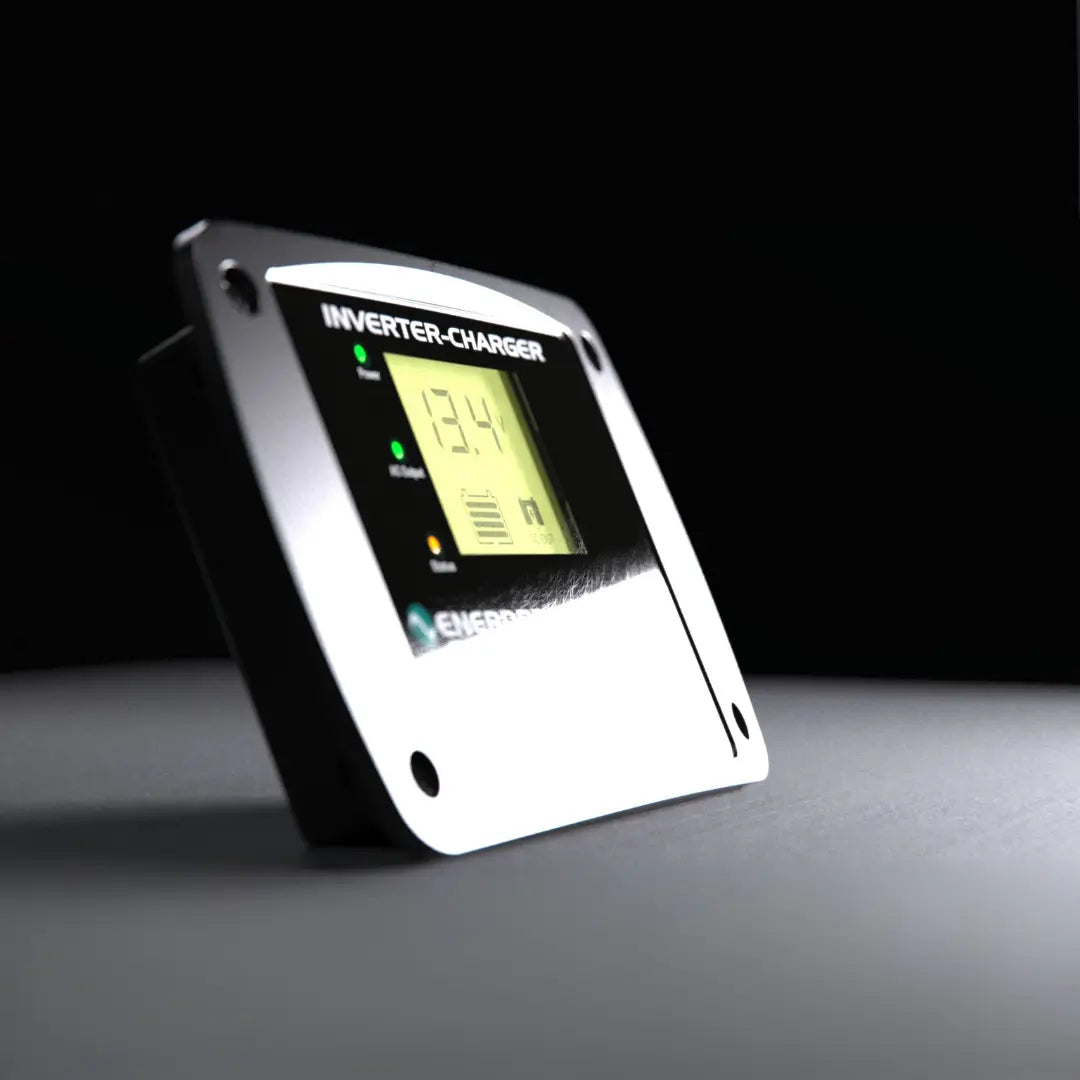

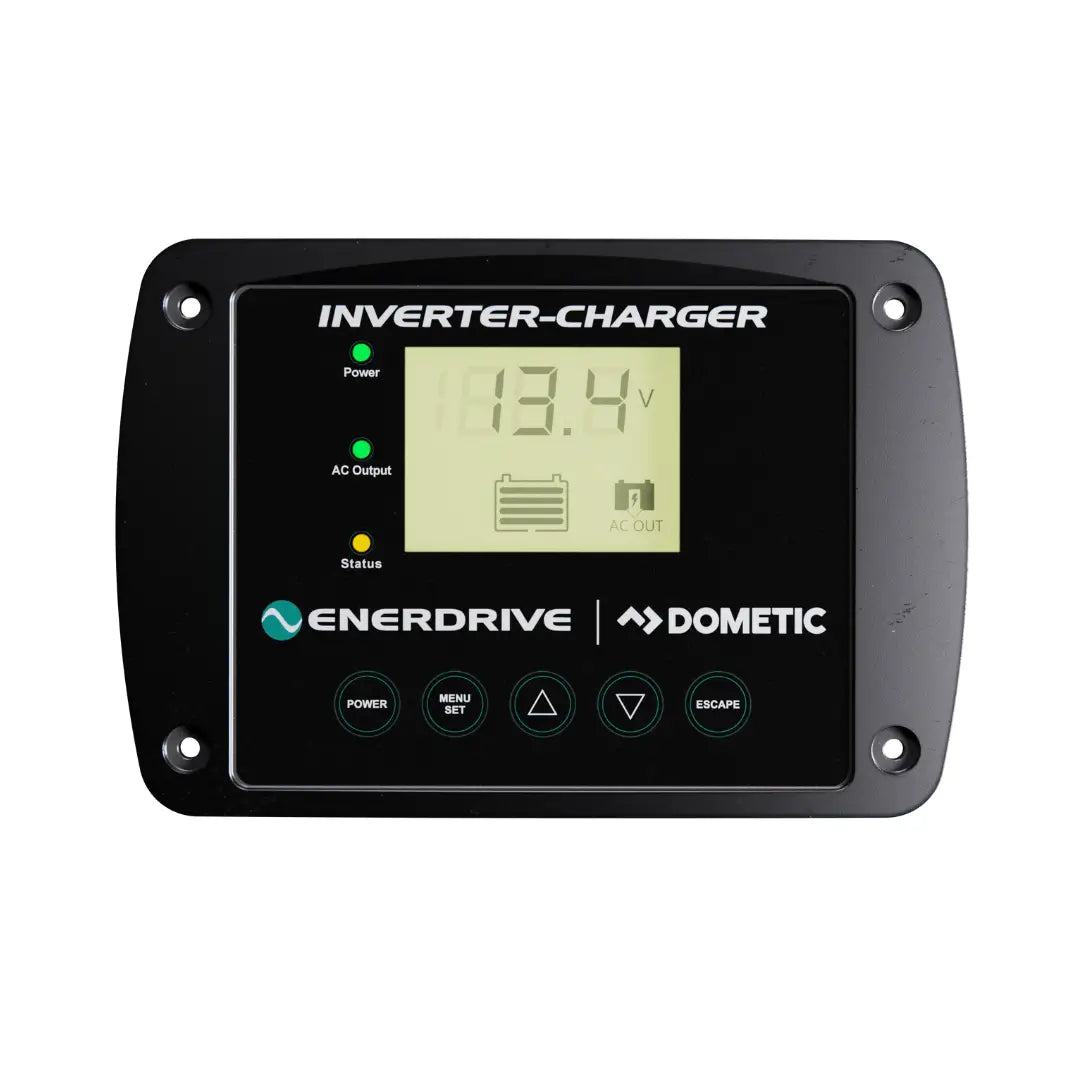

- Remote Display Panel Included
- Battery Type Compatibility – Gel, AGM, Flooded, Lithium
- Built-in Load Sense – Minimises battery drain when not in use
- Quiet Operation with efficient heat control
- Compact & Lightweight – Easy to install in tight spaces
Note: Check IEC plugs are fully inserted after off-road use, and every 6 months as part of regular maintenance.
Applications
Perfect for:
- Off-grid 12V caravans and campers
- Marine systems
- 4WD setups
- Remote cabins or mobile workshops
- Backup power systems
Technical Specifications
Specification | Details |
---|---|
DC Input Voltage (Nominal) | 12.5V DC |
DC Operating Range | 10.5 – 16.5V DC |
Charger Output (Max) | 80A |
AC Output Power | 2000W (8.7A @ 230VAC) |
Waveform | True Sinewave (<3% THD) |
Transfer Switch | Built-in, <30ms transfer time |
Transfer Relay Rating | 16A |
Efficiency (Peak) | 90% |

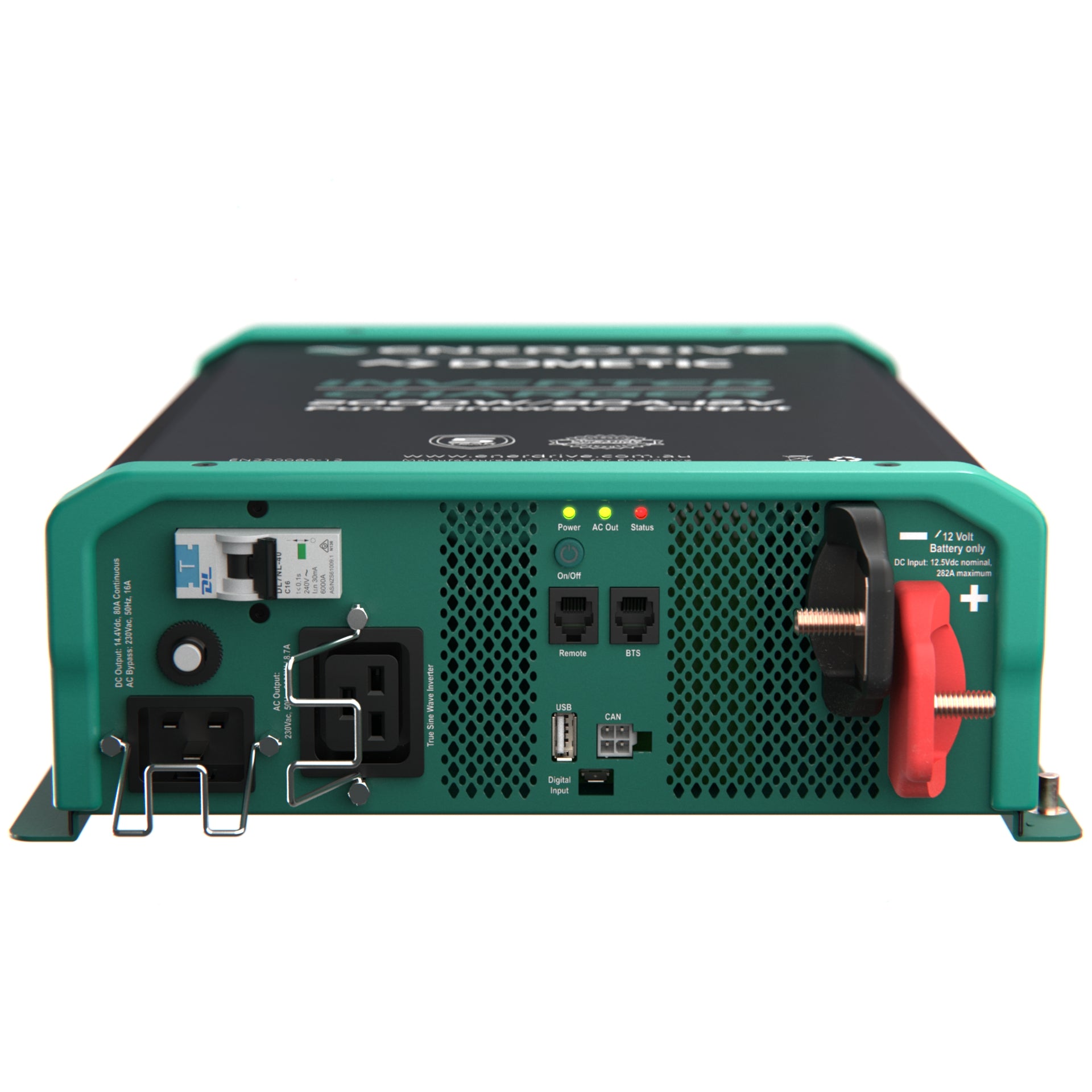

Input/Output Connectors | IEC-C20 Input / IEC-C19 Output |
Safety Compliance | LVD: EN/IEC 62040-1, IEC 61558-2-16 |
Environmental Rating | CE Marked, 0°C to 40°C operation |
Altitude Rating | Up to 3000m |
Relative Humidity | 5 - 90% (non-condensing) |
Weight | 8 kg |
Dimensions (W x H x D) | 307 x 440.7 x 108 mm |
Storage Temp Range | -20°C to 60°C |
