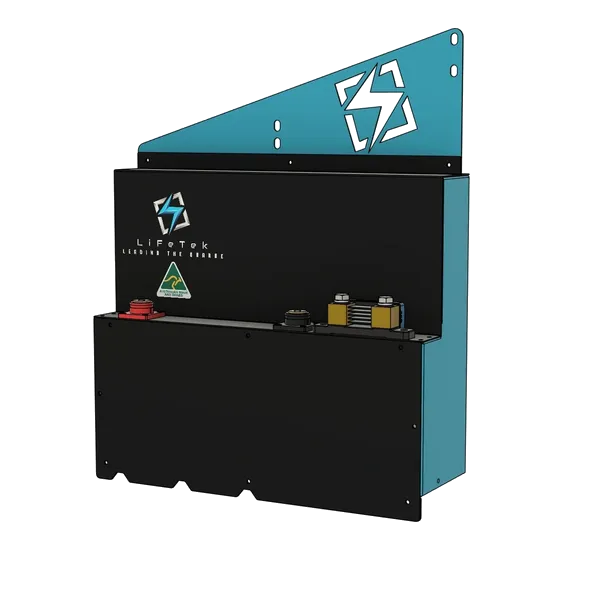

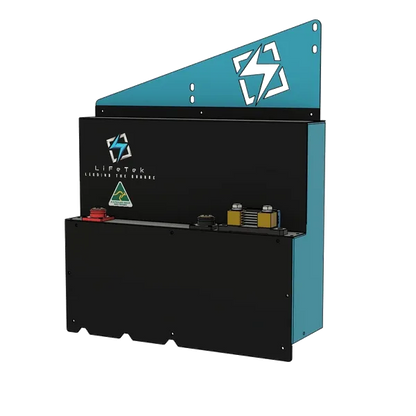

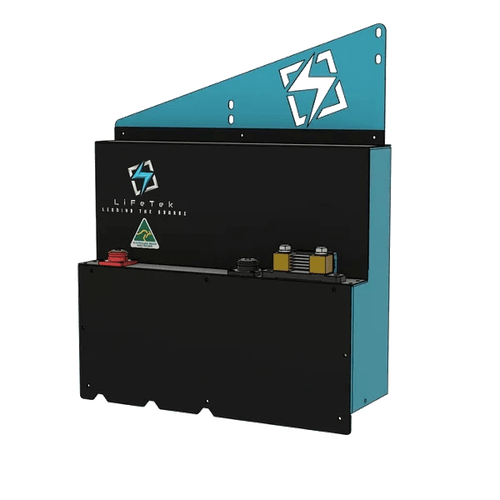

Ford Ranger/Raptor Behind Seat LiFePO4 Battery

🔋 LiFeTek Next-Gen & PX Ranger / Raptor Behind-Seat Lithium Battery

Up to 330Ah | LiFePO4 12.8V | 300A BMS | No Battery Tray Required

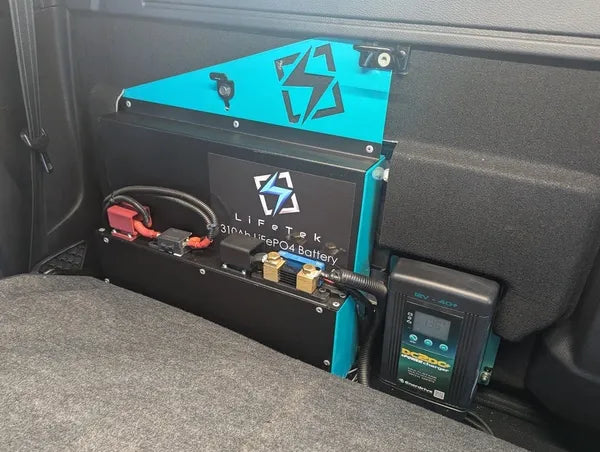

The LiFeTek Behind-Seat Lithium Battery is purpose-built for the Ford Next-Gen Ranger, Ranger Raptor, and PX Ranger, delivering serious 12V power in a clean, space-saving behind-seat installation.

Designed and hand-built in Australia, this system sets a new benchmark with an industry-leading 330Ah capacity option — giving Ranger owners massive lithium storage without sacrificing canopy, tub, or engine bay space.

Whether you’re running a fridge, inverter, lighting, compressor, canopy power system, or full touring setup, this all-in-one battery solution delivers the performance, protection, and reliability needed for serious off-grid travel.

---

🚙 Vehicle Compatibility

Designed to suit:

✔ Ford Next-Gen Ranger
✔ Ford Ranger Raptor
✔ Ford PX Ranger
✔ 2011-current models
✔ Vehicles with or without Premium Pack

---

⚡ Key Features

🔋 Up to 330Ah Behind-Seat Capacity
LiFeTek has developed one of the largest capacity lithium batteries designed specifically to fit behind the rear seat of the Ranger platform.

🚫 No Battery Tray Required
A complete all-in-one system that eliminates the need for an additional battery tray.

⚡ Up to 300A Continuous Discharge BMS
Built for serious power systems, including large inverters, fridge setups, pumps, compressors, and touring accessories.

🔩 Laser-Welded Bus Bar Connections
Provides strong, reliable, high-current connections directly to the cell pack.

🚫 Cable-Free Internal Construction
Clean, durable internal design for improved strength, safety, and reliability.

🇦🇺 Designed & Hand Built in Australia
Locally built and individually quality checked for dependable performance.

🧪 Twice QC Checked & Tested
Every battery is individually tested before dispatch.

🛡️ Zinc-Plated Powder-Coated Steel Enclosure
Strong, durable construction designed for vehicle use and harsh Australian conditions.

📱 Victron Shunt Ready
Built-in RivNut provisions allow easy installation of a Victron battery monitor or shunt.

---

🔋 Capacity Options

---

🔥 Built for High-Demand 12V Systems

Perfect for running:

✔ Fridges and freezers
✔ Inverters
✔ Camp lighting
✔ Water pumps
✔ Air compressors
✔ Coffee machines
✔ Canopy power systems
✔ Touring accessories
✔ Off-grid solar storage

---

🔒 BMS Protection

The integrated Battery Management System provides protection against:

✔ Over-current
✔ Over-voltage
✔ Under-voltage
✔ Low temperature
✔ High temperature

Discharge Protection

• BMS Continuous Discharge: 300A
• Discharge Over-Current Protection: 320A for 10 seconds
• Reset Time: 35 seconds

Charge Over-Current Protection

310Ah & 330Ah Models:

• 320A for 10 seconds
• Reset: 35 seconds

100Ah, 200Ah & 225Ah Models:

• 205A for 10 seconds
• Reset: 35 seconds

---

🌡️ Temperature Protection

• Low Temp Charge Disconnect: 1°C
• Low Temp Charge Reset: 2°C
• Low Temp Discharge Disconnect: -20°C
• Low Temp Discharge Reset: -15°C
• High Temp Charge Disconnect: 55°C
• High Temp Charge Reset: 50°C
• High Temp Discharge Disconnect: 60°C
• High Temp Discharge Reset: 55°C

---

🔌 Charging Profile

For best performance, use a lithium-compatible charger with the following settings:

• Bulk Charge: 14.2V – 14.6V
• Ideal Bulk Charge: 14.4V
• Absorption: 14.2V – 14.6V
• Ideal Absorption: 14.4V
• Float: 13.4V – 13.6V
• Ideal Float: 13.5V

---

📊 Technical Specifications

---

📱 Victron Monitor Compatibility

Designed with mounting provisions for:

✔ Victron BMV-712
✔ Victron IP65 Smart Shunt
✔ Victron SmartShunt

⚠️ Note: Standard Victron SmartShunt will fit, but the battery input/output direction may need to be switched in the settings.

---

🛠️ Installation Notes

Installation may require:

⚠️ Cutting or removing the rear wall carpet
⚠️ Relocating the vehicle jack
⚠️ Fitting the supplied replacement vent on RA models
⚠️ Removing jack mount brackets on some models by drilling the spot welds

Professional installation is recommended for best fitment and performance.

---

✅ Why Choose the LiFeTek Behind-Seat Ranger Battery?

✔ Purpose-built for Ranger / Raptor / PX platforms
✔ Up to 330Ah of lithium storage behind the seat
✔ No additional battery tray required
✔ Keeps tub, canopy, and engine bay space free
✔ Supports serious inverter and accessory loads
✔ Australian designed and hand built
✔ Automotive-grade IEC 62619 certified cells
✔ Victron shunt ready
✔ Heavy-duty steel enclosure

---

🛒 Serious Power Without Losing Storage Space

Upgrade your Ranger or Raptor with a high-capacity lithium system designed to fit where traditional battery systems can’t.
