24V 310Ah/330Ah Vanlife LiFePO4 Slimline Battery

🔋 24V VanLiFe Slimline 310Ah / 330Ah Lithium Battery

LiFePO4 25.6V | 250A BMS | Australian Built | High-Capacity Slimline 24V Power

The 24V VanLiFe Slimline 310Ah / 330Ah Lithium Battery is designed for serious 24V off-grid, caravan, marine, commercial, and backup power systems where high capacity and space efficiency matter.

Built with automotive-grade IEC 62619 certified cells, active and passive cell balancing, laser-welded bus bar connections, and a rugged zinc-plated powder-coated steel enclosure, this slimline battery delivers dependable high-output performance in demanding installations.

Designed and hand built in Australia, each battery is individually quality checked and tested twice before dispatch for maximum confidence and reliability.

⚡ Key Features

🔋 310Ah / 330Ah Capacity Options
Choose between high-capacity 310Ah or upgraded 330Ah lithium storage for extended runtime in demanding 24V systems.

📏 Slimline Design
Perfect for installations where space is limited, including caravans, motorhomes, marine compartments, service bodies, and custom off-grid builds.

⚡ 250A Continuous Charge & Discharge
Built to support serious 24V loads including inverters, appliances, pumps, tools, and off-grid power systems.

⚖️ Active + Passive Cell Balancing
Helps maintain cell health, improve charging efficiency, and support longer battery life.

🔩 Laser-Welded Bus Bar Connections
Delivers strong, reliable high-current connections directly to the cell pack.

🚫 Cable-Free Internal Construction
Reduces internal failure points while improving durability and long-term reliability.

🛡️ Sealed Steel Enclosure with Vent Outlet
Zinc-plated and powder-coated steel case with vent outlet, designed to satisfy installation requirements under AS/NZS3001.2:2022.

🌡️ Full Protection System
Includes high and low temperature protection, voltage protection, and over-current protection.

🇦🇺 Designed & Hand Built in Australia
Built locally for Australian touring, marine, commercial, and off-grid environments.

🛠️ 7 + 3 Year Warranty Support
Includes a 7 + 3 year warranty structure with after-warranty repair service available.

🔒 BMS Protection

🌡️ Temperature Protection

🔌 Charging Profile

For best performance, use a compatible 24V lithium charger with the following settings:

• Bulk Charge: 28.4V – 29.2V
• Ideal Bulk Charge: 28.8V
• Absorption: 28.4V – 29.2V
• Ideal Absorption: 28.8V
• Float: 26.8V – 27.2V
• Ideal Float: 27.0V

🔄 Long Cycle Life

The automotive-grade LiFePO4 cells used in this battery are rated to 8000 cycles at 70% depth of discharge, making it ideal for long-term, high-use applications.

Perfect for daily cycling in demanding off-grid, caravan, marine, commercial, and backup power systems.

📊 Technical Specifications

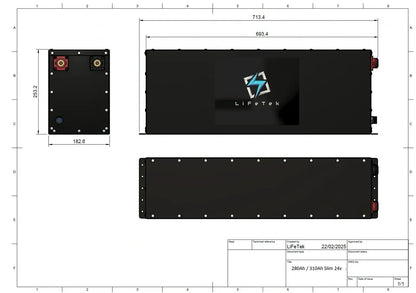

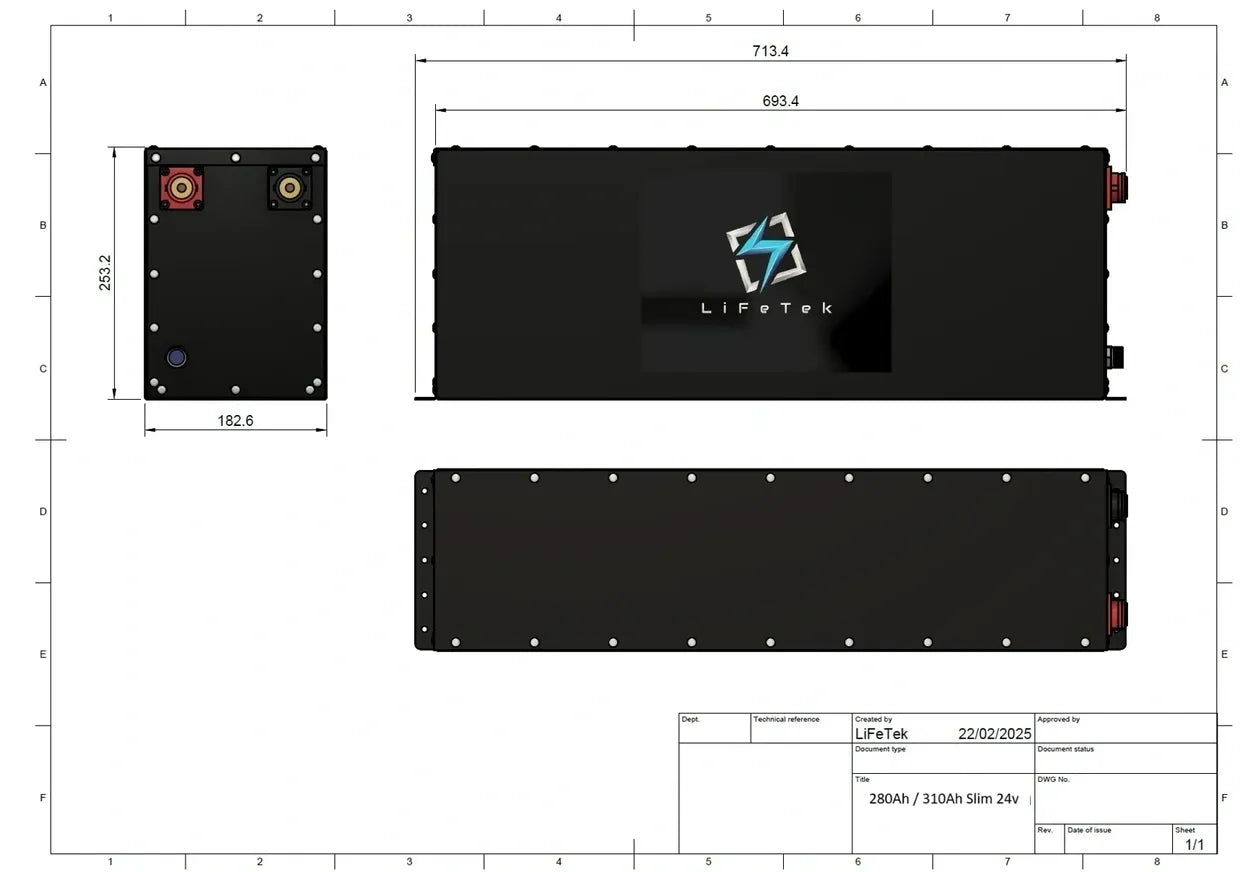

📏 Dimensions

24V 310Ah Slimline Model

• Dimensions to be confirmed before publishing
• Mounting feet include 8mm mounting holes

⚠️ Mounting feet tabs may be trimmed if space is limited, but do not cut into the battery case itself, as this will void warranty.

🏕️ Ideal Applications

🚐 Caravans & motorhomes
☀️ 24V off-grid solar systems
⛵ Marine power systems
🚚 Commercial vehicles
🏕 Remote touring setups
🔌 High-output inverter systems
🏡 Backup and storage power systems
⚙️ Industrial and mobile power applications

✅ Why Choose the 24V VanLiFe Slimline 310Ah / 330Ah?

✔ Slimline design for space-limited installs
✔ High-capacity lithium power for serious 24V systems
✔ Powerful 250A continuous charge and discharge capability
✔ Active and passive cell balancing
✔ Automotive-grade IEC 62619 certified cells
✔ Long-life 8000-cycle cell rating
✔ Laser-welded bus bar construction
✔ Cable-free internal design
✔ Rugged sealed steel enclosure
✔ Designed and hand built in Australia
✔ Individually QC checked and tested twice
✔ 7 + 3 year warranty with after-warranty repair support

🛒 Built for Serious 24V Slimline Power

Upgrade your 24V system with an Australian-built slimline lithium battery engineered for high output, long cycle life, and dependable off-grid performance.
