12V/24V Volt Control Box - 2x Merit 1x 50A Anderson

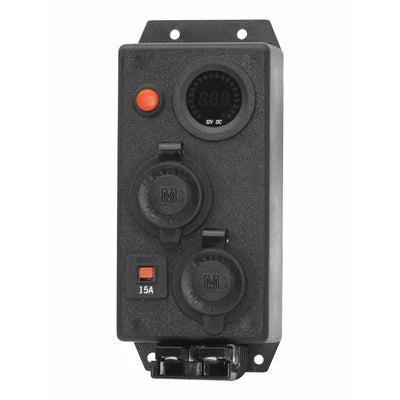

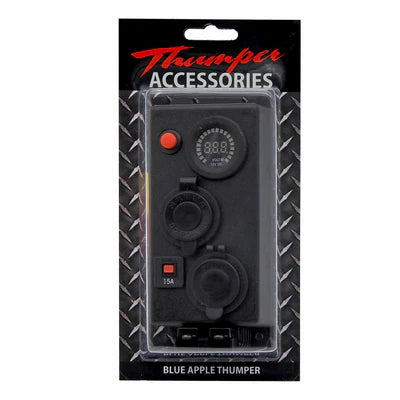

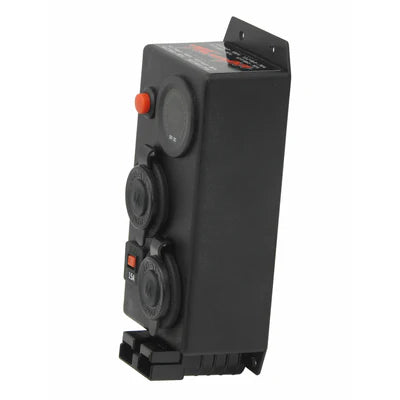

🔌 12V/24V Volt Control Box — 2 x Merit Sockets & 50A Anderson

Premium 12V/24V volt control box with 2 x Merit/Hella type sockets, genuine 50A Anderson connector, LCD digital volt meter, push-button display control, built-in 15A circuit breaker, pre-wired 6mm twin core cable, and internally soldered oxygen-free wiring.

The 12V/24V Volt Control Box is a compact power outlet and voltage monitoring solution designed for caravans, campers, 4WDs, ute canopies, trailers, service bodies, and auxiliary battery systems.

This control box includes 2 Merit / Hella type sockets, 1 genuine 50A Anderson connector, and an LCD digital volt meter for 12V voltage monitoring. The twin Merit outlets are protected by an in-built 15A circuit breaker, while the Anderson connector provides a high-current connection point for compatible equipment.

Home of 12 Volt control boxes are internally soldered and wired with 4mm and 6mm automotive twin sheathed oxygen-free cable, helping reduce voltage drop and improve long-term reliability in harsh environments.

✅ Key Benefits

🔌 Compact Volt Control Box
Combines Merit/Hella power outlets, Anderson connectivity, and voltage monitoring in one compact unit.

⚡ 2 x Merit / Hella Type Sockets
Includes 2 Merit / Hella type sockets rated to 16A.

🔋 Genuine 50A Anderson Connector
Includes 1 genuine 50 Amp Anderson connector for compatible power connections.

📟 LCD Digital Volt Meter
Includes a 12V LCD digital volt meter for battery voltage monitoring.

🔋 Improved Lithium Battery Voltage Reading
Volt meter is more accurate than previous models for lithium batteries as well as standard lead acid batteries.

🔘 Push Button Display Control
Push button turns the volt meter ON / OFF.

🛡️ Built-In Circuit Protection
In-built 15A circuit breaker is wired to protect the twin Merit outlets.

🔧 Pre-Wired for Installation
Supplied with approximately 250mm of 6mm twin core cable and yellow crimp joiners.

🧵 Oxygen-Free Cable Wiring
Internally wired with automotive twin sheathed oxygen-free cable to help reduce voltage drop.

🚐 Suitable Applications

🚙 4WD canopy power systems
🚐 Caravan electrical setups
🏕️ Camper trailer power systems
🛻 Ute tray and service body installations
🚚 Work vehicle accessory power
🔋 Auxiliary battery systems
📟 Battery voltage monitoring
🔌 Anderson plug power connection points
⚡ Merit / Hella style accessory connections
🔋 Lithium and lead acid battery systems

🔌 Outlet Configuration

⚠️ Merit Socket Note

The Merit / Hella type sockets are not standard accessory sockets.

Please confirm plug compatibility before purchase.

📟 Voltage Monitoring

🛡️ Circuit Protection

The genuine 50A Anderson connector is not fused within the box, so external fuse protection must be installed where required.

🔧 Wiring Details

📏 Dimensions

All measurements include sockets.

📋 Technical Specifications

⚠️ Fitment & Installation Note

Please confirm your required mounting location, voltage system, Merit plug compatibility, accessory load, circuit protection, cable sizing, external fuse protection, Anderson connection requirements, battery type, volt meter requirements, and clearance before purchase or installation.

Important:

✅ 2 x Merit / Hella type sockets
✅ Merit sockets rated to 16A
✅ 1 x genuine 50A Anderson connector
✅ LCD digital volt meter included
✅ Volt meter suitable for lithium and standard lead acid batteries
✅ Push button turns volt meter ON / OFF
✅ In-built 15A circuit breaker protects the twin outlets
✅ Internally soldered wiring
✅ Wired with automotive twin sheathed oxygen-free cable
✅ Supplied with approx. 250mm 6mm twin core cable
✅ Yellow crimp joiners included
⛔ Merit / Hella sockets are not standard accessory sockets
⛔ Anderson connector is not fused within the box
⛔ External fuse protection may be required for the Anderson circuit
⛔ Do not exceed outlet or circuit breaker ratings
⛔ Confirm plug compatibility before purchase
⛔ Ensure wiring and fuse protection suit the connected load
⛔ Professional installation is recommended where wiring, fusing, or load calculations are required

🔎 Why Choose This 12V/24V Volt Control Box?

The 12V/24V Volt Control Box is a practical outlet and voltage monitoring solution for users who need twin Merit / Hella power outlets, Anderson connectivity, and battery voltage display in one compact unit.

With 2 Merit / Hella type sockets, a genuine 50A Anderson connector, LCD digital volt meter, push-button display control, in-built 15A circuit breaker, and oxygen-free internal wiring, it is well suited to caravans, campers, 4WDs, ute canopies, trailers, service vehicles, and auxiliary battery systems.

📦 What’s Included

🔌 1 x 12V/24V Volt Control Box
⚡ 2 x Merit / Hella Type Sockets
🔋 1 x Genuine 50A Anderson Connector
📟 1 x LCD Digital Volt Meter
🔘 1 x Push Button for LCD Display
🛡️ 1 x In-Built 15A Circuit Breaker
🔧 Approx. 250mm 6mm Twin Core Cable
🟡 Yellow Crimp Joiners

🛒 Order with Confidence

Choose the 12V/24V Volt Control Box for compact Merit / Hella power, Anderson connectivity, voltage monitoring, built-in circuit protection, and reliable use in vehicle, caravan, canopy, and auxiliary battery systems.
