LIFETEK

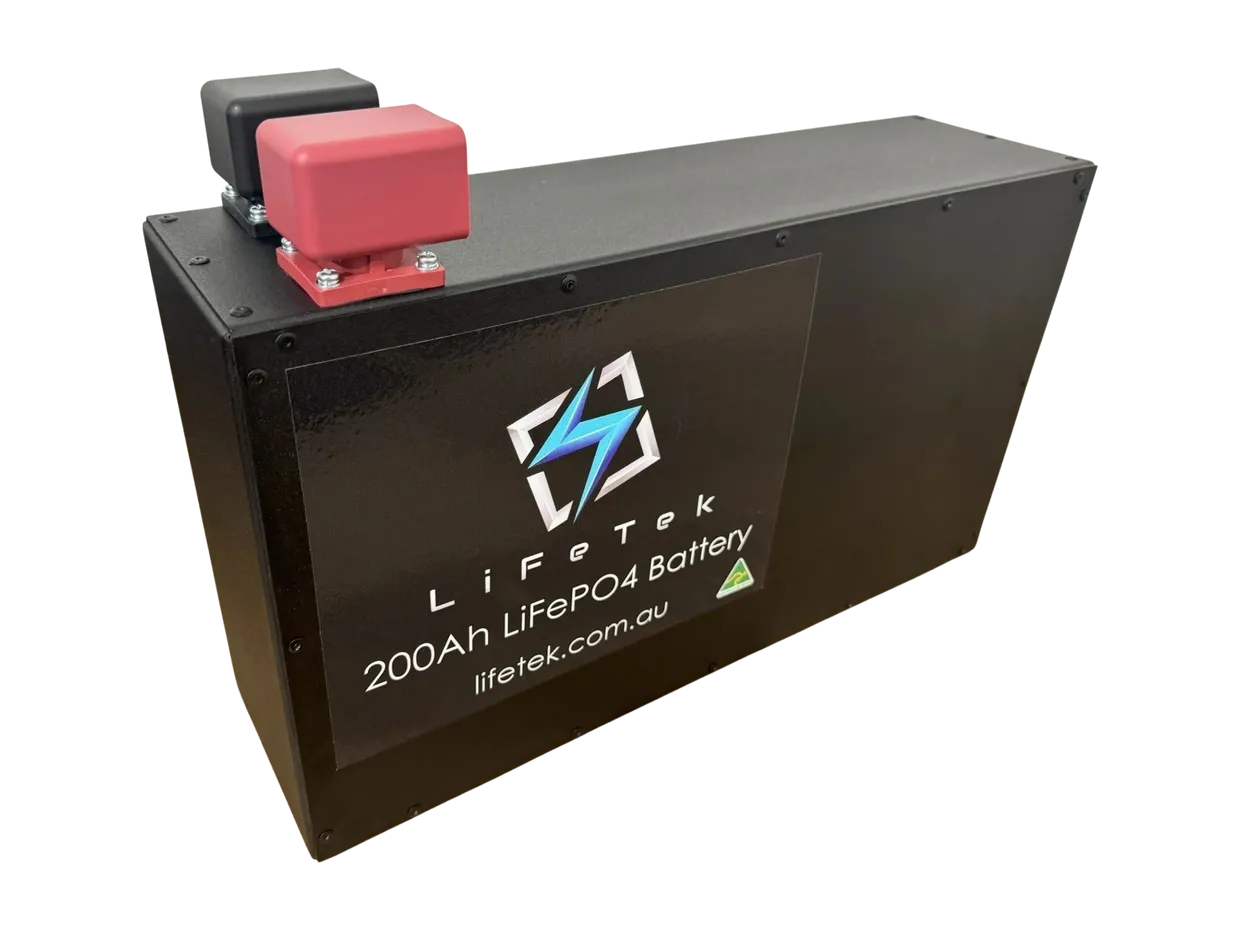

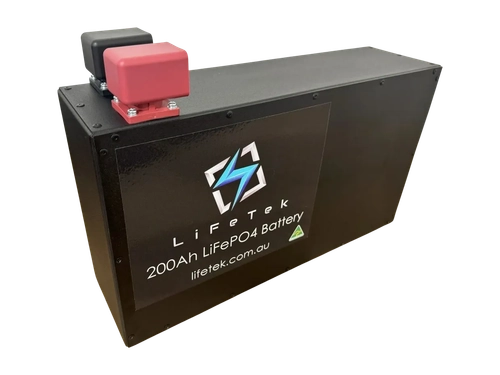

12v 200/225AH SLIM LIFEPO4 BATTERY
12v 200/225AH SLIM LIFEPO4 BATTERY
SKU:200SLIM
Couldn't load pickup availability
This beast unleashes 300A continuous discharge and accepts 200A charging pure raw power for systems that demand maximum output.
Dual cell balancing keeps every amp flowing perfectly while intelligent BMS protection triggers at 320A, giving you headroom to push limits without breaking stride.
Temperature extremes don't faze it: charge from 1°C, discharge to -20°C, and thermal cutoffs at 55-60°C ensure nothing gets out of hand.
Built for adventurers who refuse to compromise on performance or reliability.
Engineered with automotive-grade cells that endure 3000 cycles at 80% depth of discharge, this battery is built for the long haul.
Cycle it daily from 20% to full charge and you'll get over 8 years of relentless service before reaching end-of-life capacity.
In lighter-duty applications like caravan storage, longevity stretches even further.
This is the kind of staying power that transforms your power system from temporary fix to permanent solution.
Forged in zinc-plated and powder-coated steel, this battery's exterior is as uncompromising as its performance.
The dual-protection finish shrugs off corrosion, salt spray, and harsh elements that would destroy lesser batteries.
Whether you're conquering remote terrain or battling coastal conditions, the case stands guard keeping your power source safe and ready for anything.
SPECIFICATIONS |
| Battery capacity | 200Ah |
| BMS continuous discharge | 300A |
| BMS Max Charge Rate | 200A |
| Recommended Standard Constant Charge Rate | 100A |
| BMS over current protection | 320A for 10 seconds, reset 35 seconds |
| BMS over current protection | 205A for 10 seconds, reset 35 seconds |
| Low voltage discharge shut down | 10v restart 10.5v |
| High Voltage charge disconnect | 15v restart 14.8v |
| Low temp charge disconnect | 1c reset 2c |
| Low temp discharge disconnect | -20c reset -15c |
| High temp charge disconnect | 55c reset 50c |
| High temp discharge disconnect | 60c reset 55c |
| Terminal size | M10 |
| Dimensions (LxWxH) | 440 x 120 x 271mm |
| Weight | 22.6kgs |
CHARGING |
| Bulk Charge | 14.2V – 14.6V (ideal: 14.4V) |
| Absorption | 14.2V – 14.6V (ideal: 14.4V) |
| Float | 13.4V – 13.6V (ideal: 13.5V) |
