12V 130AH LIFEPO4 BATTERY + BLUETOOTH + PDC25 CHARGER
12V 130AH LIFEPO4 BATTERY + BLUETOOTH + PDC25 CHARGER
SKU:RM12-130LFPPDC25
Couldn't load pickup availability
Smart Lithium Power | Built-in Bluetooth Monitoring | Reliable 25A Charging

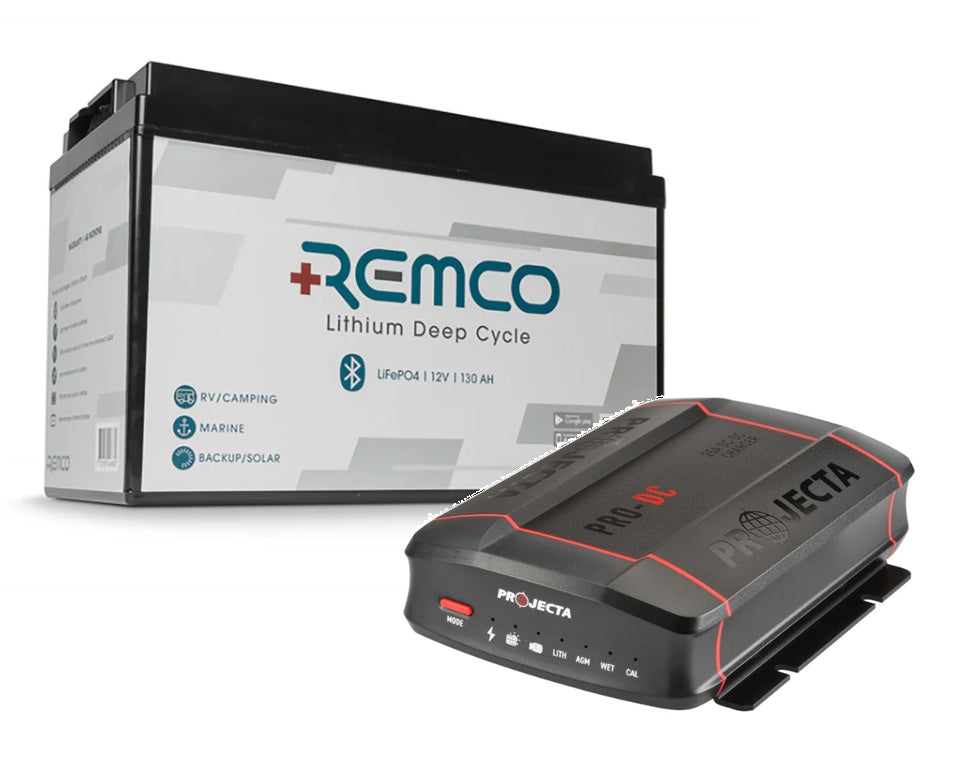

This powerful, compact lithium bundle is perfect for anyone looking to upgrade their 12V system. Featuring the high-performance REMCO 130Ah LiFePOβ Battery with Bluetooth and the dependable PDC25 25A DC-DC Charger, this setup delivers dependable energy storage and efficient charging β ideal for 4WDs, caravans, camper trailers, and off-grid adventures.
Whatβs Included:
REMCO 130Ah LiFePOβ Battery with Bluetooth
- Capacity: 130Ah | Voltage: 12.8V
- Bluetooth Enabled: Monitor charge level, voltage, current, and temperature in real time via smartphone app
- Smart BMS (Battery Management System): Protection against overcharge, deep discharge, high temperature, and short circuits
- Cycle Life: 2,000+ cycles at 100% DoD
- Lightweight: Approx. 13kg β much lighter than traditional AGM batteries
- Maintenance-Free: No acid, no fumes, no ongoing servicing required
PDC25 DC-DC Charger β 25A Output
- Vehicle Input Charging: Charges from 12V vehicle alternators
- Lithium-Compatible: Optimised charging profile for LiFePOβ batteries
- Multi-Stage Smart Charging: Ensures safe and efficient battery health
- Compact & Easy to Install: Great for canopy, behind-seat, or under-bonnet setups
- Optional Solar Input Ready
Perfect For:
- 4WD dual battery setups
- Camper trailers & canopy builds
- Caravan power systems
- Fridges, lights, pumps, and inverters
- Off-grid lithium power with Bluetooth control
Why Buy from Home of 12 Volt Northern?
We only stock quality brands like REMCO, known for performance, safety, and smart functionality. With expert advice, friendly support, and professional installation available at our fully equipped Mawson Lakes workshop, weβll help you build a 12V system that lasts.
The REMCO 12V 130AH LiFePO4 battery employs lithium iron phosphate technology, recognized for its superior safety and extended lifespan compared to conventional lithium-ion batteries. Its non-toxic, stable chemistry makes it ideal for applications prioritizing safety and durability over maximum energy density. Integrated Bluetooth functionality provides real-time monitoring of battery status and health, enabling precise management and maintenance. This battery offers a reliable, safe, and smart energy solution for demanding environments where longevity and user safety are essential.
Β High cycle life
Β > 3000 cycles @80% DoD
Longer service life
Β Low maintenance batteries with stable chemistry. Β
Easily monitor state of charge (SoC) of smart modelsΒ
Built in circuit protection
Β Battery Management Systems (BMS) are incorporated
Β against abuse
Better storage
Β Up to 6 months thanks to its extremely low self
Β discharge (LSD) rate and no risk of sulphation
Fast recharge
Β Save time and increase productivity with less down time
Β thanks to superior charge/discharge efficiency
Extreme heat tolerance
Β Suitable for use in a wider range of applications where
Β ambient temperature is unusually high: up to +60Β°C
Lightweight
Β Lithium batteries provide more Wh/Kg while also beingΒ
up to 1/3 the weight of its SLA equivalent
|
ELECTRICAL PERFORMANCE |
Β
|
Nominal Voltage |
12.8 V |
|
Nominal Capacity |
130 Ah |
|
Capacity @ 15.6A |
300 min |
|
Energy |
1689.6 Wh |
|
Resistance |
β€20 mΞ© @ 50% SOC |
|
Self Discharge |
<3% / Month |
|
Cells |
Cell 3.2V6Ah |
Β
|
CHARGE PERFORMANCE |
Β
|
Recommended Charge Current |
20 A |
|
Max Charge Current |
50 A |
|
Recommended Charge Voltage |
14.6 V |
|
Charge Cut-Off Voltage |
<14.8 V (0.5 ~ 1.5 s) |
|
Reconnect Voltage |
>14.4 V |
|
Balancing Voltage |
<14 V |
|
Maximum Batteries in Series |
4 |
|
Maximum Batteries in Parallel |
4 |
Β
|
DISCHARGE PERFORMANCE |
Β
|
Continuous Discharge Current |
50 A |
|
Maximum continuous Discharge Current |
120 A |
|
Peak Discharge Cut-Off Current |
360 A (5 ~15 ms) |
|
Recommended Low Voltage Disconnect |
10 V |
|
Discharge Cut-Off Voltage |
8.4 V (50 ~ 150 ms) |
|
Reconnect Voltage |
10 V |
|
Short Circuit Protection |
200 ~ 600 ΞΌs |
Β
|
MECHANICAL PERFORMANCE |
Β
|
Dimension (L x W x H) |
330 x 172 x 223 mm |
|
Approx. Weight |
13 kg |
|
Terminal Type |
M8 |
|
Terminal Torque |
80 ~ 100 in-lbs (9 ~ 11 N-m) |
|
Bluetooth Test Window |
Yes |
|
Case Material |
ABS |
|
Enclosure Protection |
IP65 |
Β
|
TEMPERATURE PERFORMANCE |
Β
|
Discharge Temperature |
-4 ~ 140 ΒΊF (-20 ~ 60 ΒΊC) |
|
Charge Temperature |
32 ~ 113 ΒΊF (0 ~ 45 ΒΊC) |
|
Storage Temperature |
23 ~ 95 ΒΊF (-5 ~ 35 ΒΊC) |
|
High Temperature Cut-Off |
149 ΒΊF (65 ΒΊC) |
|
Reconnect Temperature |
118 ΒΊF (48 ΒΊC) |
The PDC25 converts your vehicle's 12VDC/24VDC alternator power or Solar power to the required voltage level allowing your batteries to be fully charged, prolonging battery life.
TOTAL ENVIRONMENTAL PROTECTION
Fully sealed to IP67 and resistant to dust, water and heat, making PDC25 ideal for mounting anywhere

PLUG AND PLAY
Pre-wired, colour-coded 50A HD Connectors for easy installation. Includes extra 50A connectors for input/output wires

DUAL INPUT OPERATION
Simultaneous dual battery charging from both solar and alternator inputs

TOTAL SAFEGUARD PROTECTION
Over temperature, reverse connection, over/under and spark-free protection
| Operating Conditions |
| Alternator Input Voltage | 11.9 β 32Vdc |
| Maximum Solar Input Voltage | 28Vdc |
| Maximum Input Current | 40A |
| Input Current (No Load) | 20mA |
| Back Drain on Auxiliary Battery | 9.5 β 10.5mA |
| External LED Output β Constant Current | 4 mA |
| Maximum Output Current |
Input 9β11Vdc: Input 11V-32dc: |
20A 25A |
| Input Fuse Rating | 50A (Not supplied) |
| Output Fuse Rating | 50A (Not supplied) |
| Maximum Output Power | 385W |
| Solar Input Turn On Voltage | 11V |
| Size | 173 x 122 x 42.5 mm |
| Weight | 920g |
| Operating Temperature (Derated from 55oC) | Β -10 to +80oC Β (Ambient Temperature) |
| Charge Control |
| Charge Type | 3 Stage |
| Bulk *20A at 9-11Vdc, 25A at 11-32VdcΒ | *Constant Current up to: |
| Β | LITHIUM | AGM | WET | CALCIUM |
| 14.2V | 14.4V | 14.7V | 14.7V |
| Absorption | Constant Voltage until current drop to 3.8A |
| LITHIUM | AGM | WET | CALCIUM | |
| 14.2V | 14.4V | 14.7V | 14.7V |
| Float | Keep Constant Voltage at 13.7VΒ |
|
Equalisation (Calcium mode and periodic use only) |
3.8A Constant Current Charge up to 16V then hold for 1 hour (5 hour timeout) |
| Battery Range |
| Battery Capacity | 75-300Ah |
| Type of Batteries Supported | LITHIUM, AGM, WET & CALCIUM |
| Operating Mode |
| Β | 12V Vehicle | 24V Vehicle |
| VSR Mode β Default (Ignition OverrideΒ Not Connected)Β |
Turn on 13.4-20V |
Turn off <12.8VΒ |
Turn on 26.8-32V |
Turn off < 25.6V |
| Low Voltage Mode β Ignition Override cable connected to ignition switch (ignition on) |
Turn on 12.2-20V |
Turn off <11.9V |
Turn on 24.4-32V |
Turn off <24V |
| Standards |
| EMC | C-Tick, CISPR 11, ECE R10 |
| IP Rating | IP67 |
