REMCO

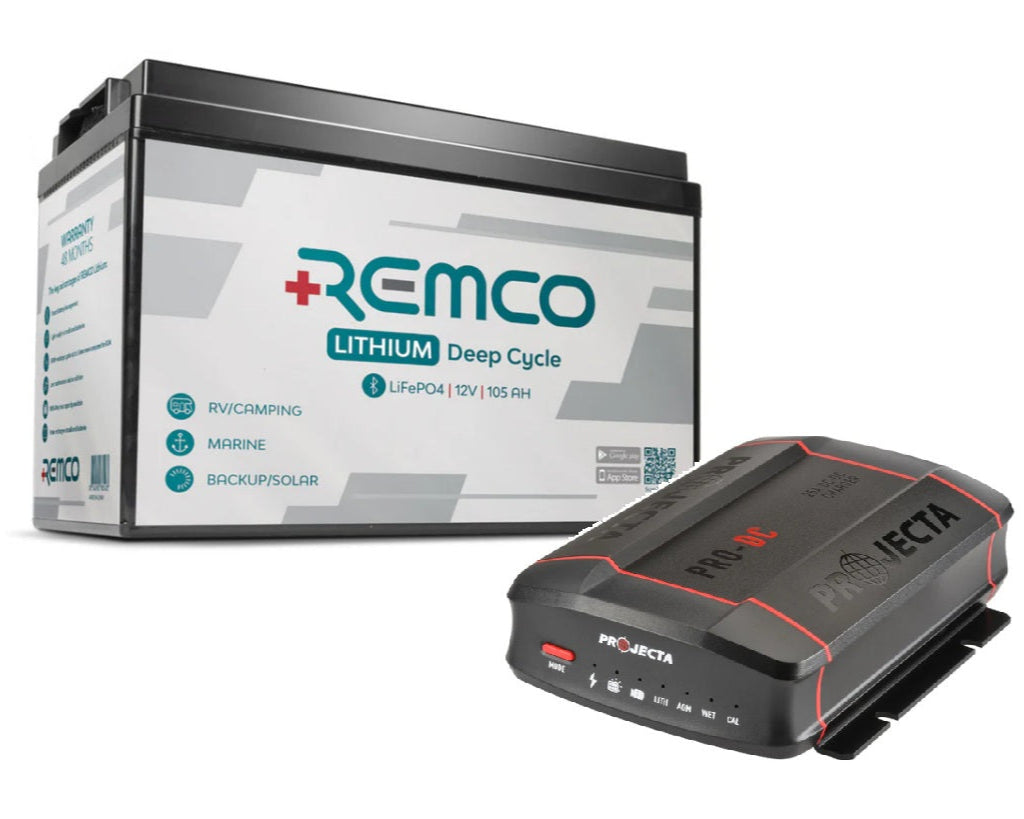

REMCO 105AH LIFEPO4 BATTERY + BLUETOOTH + PDC25 CHARGER
REMCO 105AH LIFEPO4 BATTERY + BLUETOOTH + PDC25 CHARGER
SKU:RM12-105LFPPDC25
Couldn't load pickup availability
Compact Power Combo | Smart Lithium Battery | Reliable 25A Charging
Power up your 12V system with confidence using this efficient and space-saving bundle — featuring the Remco 105Ah LiFePO₄ Battery with Bluetooth and the dependable PDC25 25A DC-DC Battery Charger. It’s the ideal match for 4WD setups, camper trailers, and off-grid adventures where smart power and simplicity matter.
What’s Included:
Remco 105Ah Lithium Iron Phosphate (LiFePO₄) Battery
- Voltage: 12.8V | Capacity: 105Ah
- Bluetooth Enabled: Monitor battery status via mobile app (voltage, current, state of charge, temp)
- Built-in Smart BMS: Protects against overcharge, deep discharge, over-temp, and short circuit
- Weight: Approx. 12kg — lighter than AGM
- Cycle Life: 2,000+ cycles @ 100% DoD
- Maintenance-Free: No acid, no fumes, no mess
PDC25 25A DC-DC Battery Charger
- Input: Compatible with 12V vehicle systems
- Output: 25A charging – suitable for lithium batteries
- Multi-Stage Charging: Ensures safe and efficient battery management
- Compact & Durable: Easy to install in engine bays, under seats or canopies
- Built for Lithium: Optimised for LiFePO₄ charging profiles
- Optional Solar Input: Supports solar charging when set up
Perfect For:
- 4WD & Dual Battery Setups
- Camper Trailers & Canopies
- Off-Grid Solar Power
- Running fridges, lights, pumps & inverters
- Compact spaces where weight and performance matter
Why Shop with Home of 12 Volt Northern?
We stock only trusted brands like Remco and offer expert advice, quality customer support, and professional installation from our Mawson Lakes workshop. Whether you're building a new setup or upgrading your battery system, we've got you covered.
The REMCO 12V 105AH LiFePO4 battery employs lithium iron phosphate technology, recognized for its superior safety and extended lifespan compared to conventional lithium-ion batteries. Its non-toxic, stable chemistry makes it ideal for applications prioritizing safety and durability over maximum energy density. Integrated Bluetooth functionality provides real-time monitoring of battery status and health, enabling precise management and maintenance. This battery offers a reliable, safe, and smart energy solution for demanding environments where longevity and user safety are essential.
High cycle life
> 3000 cycles @80% DoD
Longer service life
Low maintenance batteries with stable chemistry.
Easily monitor state of charge (SoC) of smart models
Built in circuit protection
Battery Management Systems (BMS) are incorporated
against abuse
Better storage
Up to 6 months thanks to its extremely low self
discharge (LSD) rate and no risk of sulphation
Fast recharge
Save time and increase productivity with less down time
thanks to superior charge/discharge efficiency
Extreme heat tolerance
Suitable for use in a wider range of applications where
ambient temperature is unusually high: up to +60°C
Lightweight
Lithium batteries provide more Wh/Kg while also being
up to 1/3 the weight of its SLA equivalent
| ELECTRICAL PERFORMANCE |
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 105 Ah |
| Capacity @ 15.6A | 300 min |
| Energy | 1344 Wh |
| Resistance | ≤20 mΩ @ 50% SOC |
| Self Discharge | <3% / Month |
| Cells | Prismatic Cell 105Ah |
| CHARGE PERFORMANCE |
| Recommended Charge Current | 20 A |
| Max Charge Current | 50 A |
| Recommended Charge Voltage | 14.6 V |
| Charge Cut-Off Voltage | <14.6 V |
| Reconnect Voltage | >14 V |
| Balancing Voltage | <13.6 V |
| Maximum Batteries in Series | 4 |
| Maximum Batteries in Parallel | 4 |
| DISCHARGE PERFORMANCE |
| Continuous Discharge Current | 50 A |
| Maximum continuous Discharge Current | 100 A |
| Peak Discharge Cut-Off Current | 300 A (5 ~15 ms) |
| Recommended Low Voltage Disconnect | 10 V |
| Discharge Cut-Off Voltage | 10 V |
| Reconnect Voltage | 11.2 V |
| Short Circuit Protection | 200 ~ 600 μs |
| MECHANICAL PERFORMANCE |
| Dimension (L x W x H) | 307 x 168 x 221 mm |
| Approx. Weight | 11 kg |
| Terminal Type | M8 |
| Terminal Torque | 80 ~ 100 in-lbs (9 ~ 11 N-m) |
| Bluetooth Test Window | Yes |
| Case Material | ABS |
| Enclosure Protection | IP65 |
| TEMPERATURE PERFORMANCE |
| Discharge Temperature | -4 ~ 140 ºF (-20 ~ 60 ºC) |
| Charge Temperature | 32 ~ 113 ºF (0 ~ 45 ºC) |
| Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| High Temperature Cut-Off | 149 ºF (65 ºC) |
| Reconnect Temperature | 118 ºF (48 ºC) |

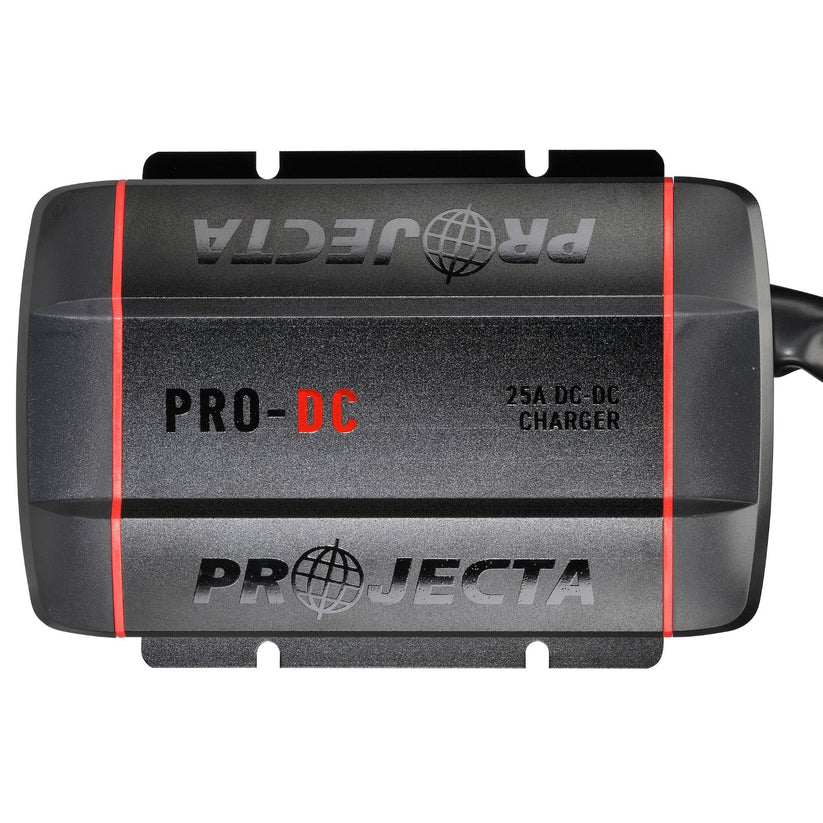

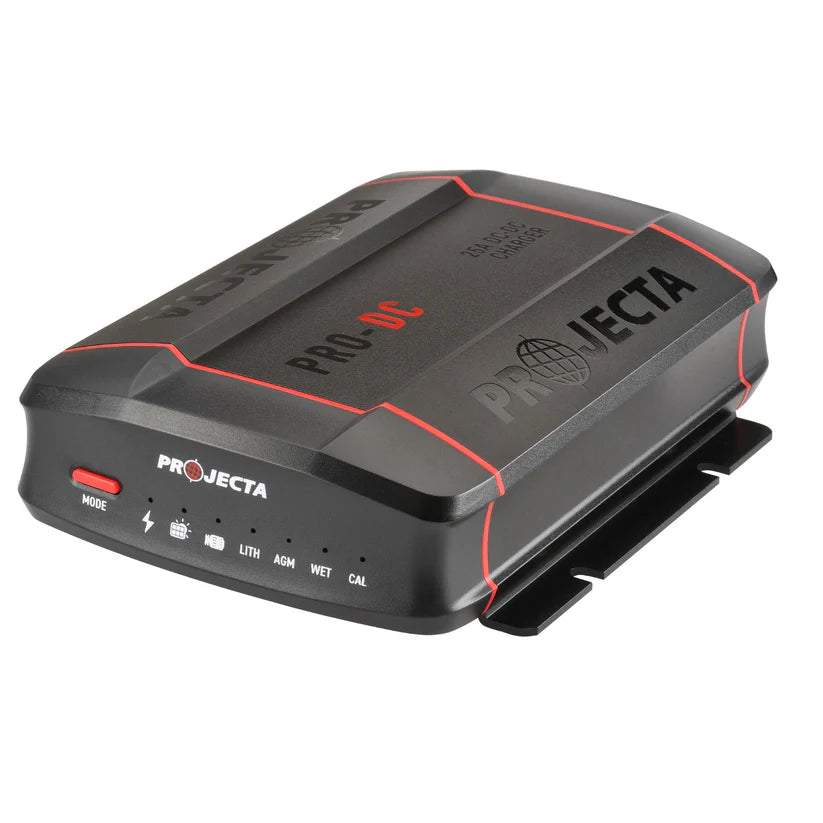

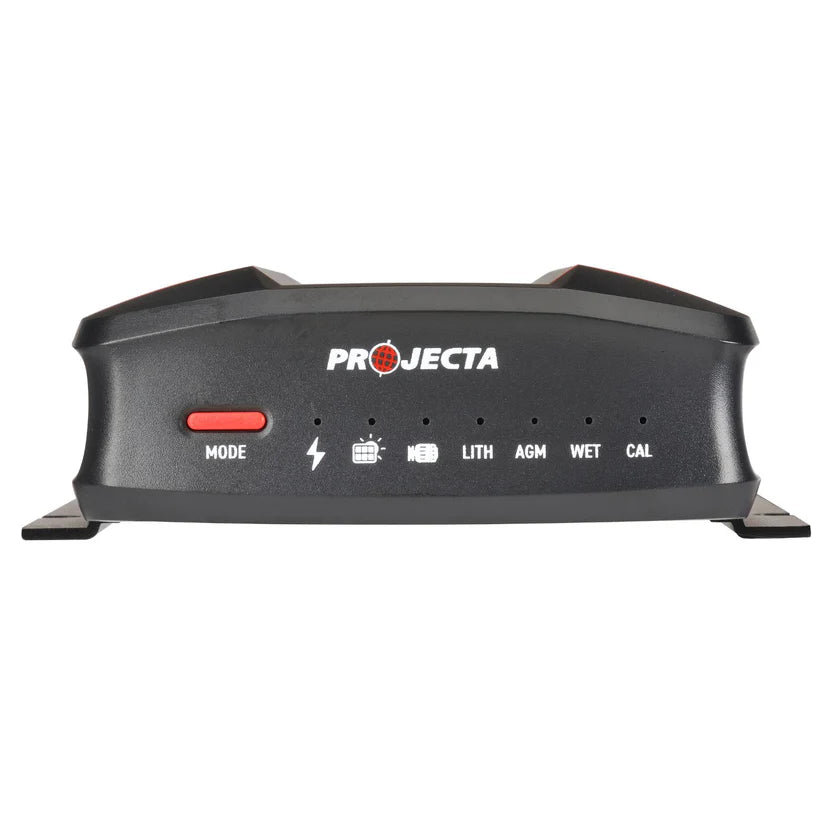

The PDC25 converts your vehicle's 12VDC/24VDC alternator power or Solar power to the required voltage level allowing your batteries to be fully charged, prolonging battery life.
TOTAL ENVIRONMENTAL PROTECTION
Fully sealed to IP67 and resistant to dust, water and heat, making PDC25 ideal for mounting anywhere
PLUG AND PLAY
Pre-wired, colour-coded 50A HD Connectors for easy installation. Includes extra 50A connectors for input/output wires
DUAL INPUT OPERATION
Simultaneous dual battery charging from both solar and alternator inputs
TOTAL SAFEGUARD PROTECTION
Over temperature, reverse connection, over/under and spark-free protection
| Operating Conditions |
| Alternator Input Voltage | 11.9 – 32Vdc |
| Maximum Solar Input Voltage | 28Vdc |
| Maximum Input Current | 40A |
| Input Current (No Load) | 20mA |
| Back Drain on Auxiliary Battery | 9.5 – 10.5mA |
| External LED Output – Constant Current | 4 mA |
| Maximum Output Current |
Input 9–11Vdc: Input 11V-32dc: |
20A 25A |
| Input Fuse Rating | 50A (Not supplied) |
| Output Fuse Rating | 50A (Not supplied) |
| Maximum Output Power | 385W |
| Solar Input Turn On Voltage | 11V |
| Size | 173 x 122 x 42.5 mm |
| Weight | 920g |
| Operating Temperature (Derated from 55oC) | -10 to +80oC (Ambient Temperature) |
| Charge Control |
| Charge Type | 3 Stage |
| Bulk *20A at 9-11Vdc, 25A at 11-32Vdc | *Constant Current up to: |
| LITHIUM | AGM | WET | CALCIUM | |
| 14.2V | 14.4V | 14.7V | 14.7V |
| Absorption | Constant Voltage until current drop to 3.8A |
| LITHIUM | AGM | WET | CALCIUM | |
| 14.2V | 14.4V | 14.7V | 14.7V |
| Float | Keep Constant Voltage at 13.7V |
|
Equalisation (Calcium mode and periodic use only) |
3.8A Constant Current Charge up to 16V then hold for 1 hour (5 hour timeout) |
| Battery Range |
| Battery Capacity | 75-300Ah |
| Type of Batteries Supported | LITHIUM, AGM, WET & CALCIUM |
| Operating Mode |
| 12V Vehicle | 24V Vehicle |
| VSR Mode – Default (Ignition Override Not Connected) |
Turn on 13.4-20V |
Turn off <12.8V |
Turn on 26.8-32V |
Turn off < 25.6V |
| Low Voltage Mode – Ignition Override cable connected to ignition switch (ignition on) |
Turn on 12.2-20V |
Turn off <11.9V |
Turn on 24.4-32V |
Turn off <24V |
| Standards |
| EMC | C-Tick, CISPR 11, ECE R10 |
| IP Rating | IP67 |
