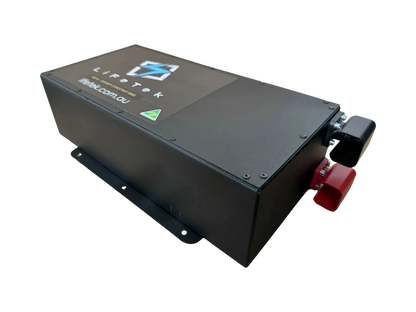

12V 100Ah Side Mount Slim LiFePO4 Battery

🔋 LiFeTek 100Ah Slim Side Mount Lithium Battery

LiFePO4 12.8V | 200A BMS | Space-Saving Side Mount Design

The LiFeTek 100Ah Slim Side Mount is purpose-built for tight installations where traditional battery layouts won’t fit.

With a compact footprint, side-mount capability, and a powerful 200A BMS, it delivers reliable off-grid power for caravans, 4WDs, and custom builds.

⚡ Key Features

🔧 Side Mount Design

• Designed for vertical or side mounting applications
• Ideal for:
  • Behind seats
  • Inside cabinets
  • Narrow battery compartments

🔥 High Output Performance

• 200A continuous discharge
• 100A max charge rate
• Recommended charge: 50A

Perfect for:

• Inverters
• 12V appliances
• Fridges & camping gear

⚖️ Advanced Cell Balancing

• Active + Passive balancing
• Provides:
  • Better efficiency
  • Improved longevity
  • Stable performance

🔒 Full BMS Protection

Built-in protection against:

• Over current:
  • 220A (10 sec), auto reset
• Over / under voltage
• High & low temperature

🌡️ Temperature Protection

• Low temp charge cut-off: 1°C (reset 2°C)
• Low temp discharge cut-off: -20°C (reset -15°C)
• High temp charge cut-off: 55°C (reset 50°C)
• High temp discharge cut-off: 60°C (reset 55°C)

🔄 Long Cycle Life

• 3000 cycles @ 80% DoD
• Approx:
  • 8+ years of daily cycling
• Even longer in lighter-use setups

🔌 Charging Profile

• Bulk / Absorption: 14.2V – 14.6V (ideal 14.4V)
• Float: 13.4V – 13.6V (ideal 13.5V)

🛠️ Durable Construction

• Zinc plated & powder coated steel case
• Built for:
  • Off-road vibration
  • Harsh environments
  • Long-term reliability

📊 Specifications

• Voltage: 12.8V
• Capacity: 100Ah
• Weight: 12kg
• Terminal: M8

Protection Limits:

• Low voltage cut-off: 10V (restart 10.5V)
• High voltage cut-off: 15V (restart 14.8V)

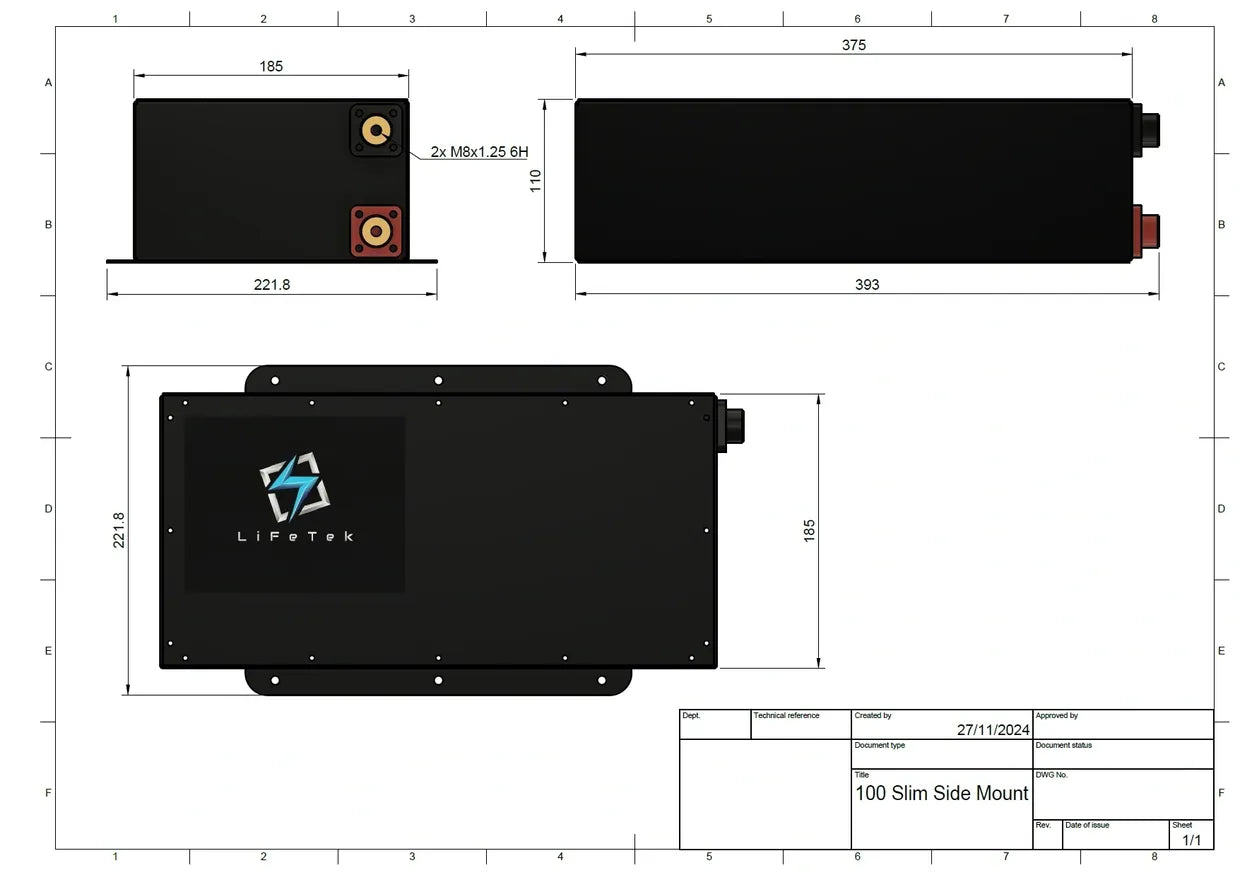

📏 Dimensions

• Length: 393mm
• Width: 110mm
• Height: 221.8mm (including mounting feet)

🏕️ Ideal Applications

✔ Caravan & camper builds
✔ 4WD touring setups
✔ Canopy installs
✔ Behind-seat mounting
✔ Compact off-grid systems

✅ Why Choose the Side Mount Version?

✔ Fits where standard batteries won’t
✔ Clean, professional install in tight spaces
✔ Same power as standard 100Ah — smaller footprint
✔ High discharge capability for demanding loads
✔ Built tough for Australian conditions
