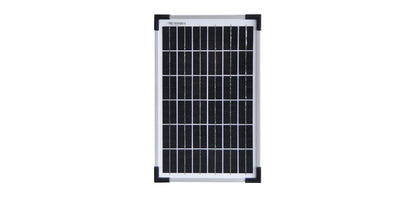

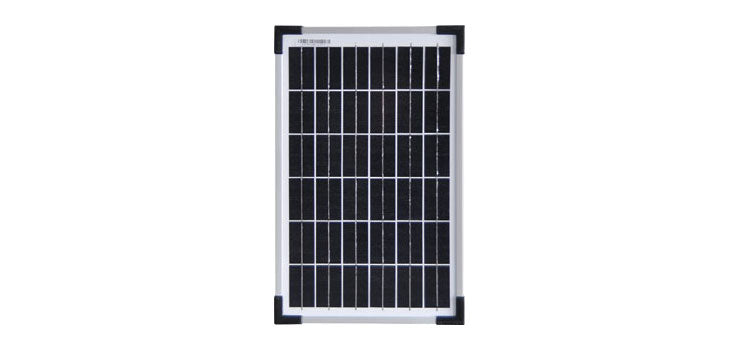

10W 12V MONOCRYSTALLINE SOLAR PANEL

This quality 10W 12V monocrystalline solar panel module is designed for direct connection to a solar charge controller for use in remote power systems. The compact size makes it perfect for battery maintenance in low power equipment. It is constructed with an extruded aluminium framing and tempered dust resistant glass panel for installation in the most demanding of Australian conditions. Backed by a 25 year output warranty and a 5 year manufacturer defect warranty these panels are manufactured to a high standard by one of the worlds leading suppliers since 1992.

Typical Applications Include:
Power for remote cameras
Electric fence battery banks
Parking meters
Remote sensors and monitoring
Battery powered lighting systems and much more

Maximum power: 10W
Nominal voltage: 12V
Short circuit current (ISC): 0.65A
Open circuit voltage: 21.5V
Maximum power current (IMP): 0.56A
Maximum power voltage: 18.00V
Connection: 0.5m bare end fly lead

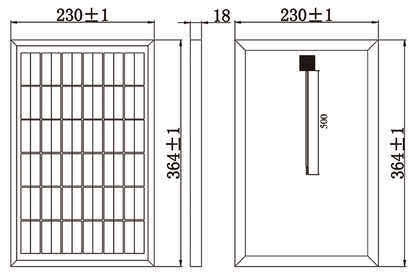

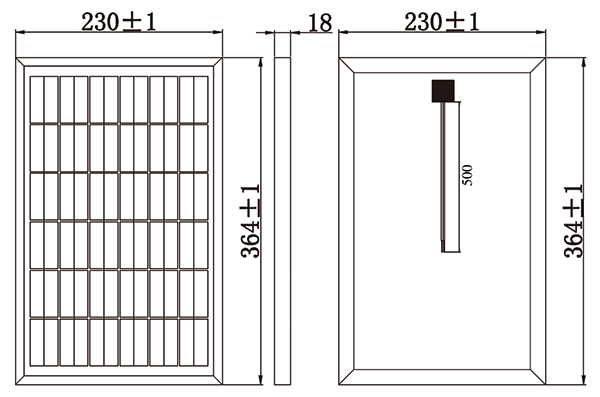

Dimensions: 364 x 230 x 18 mm
Operating temperature: -40°C to +85°C
