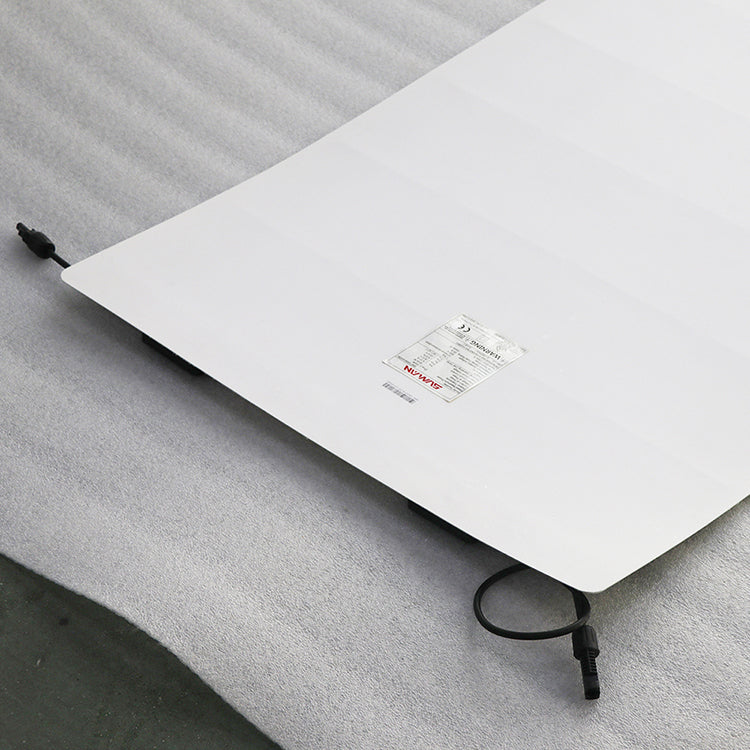

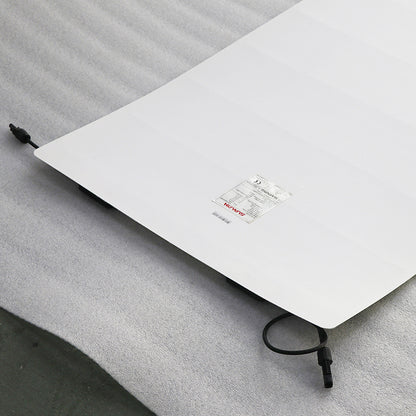

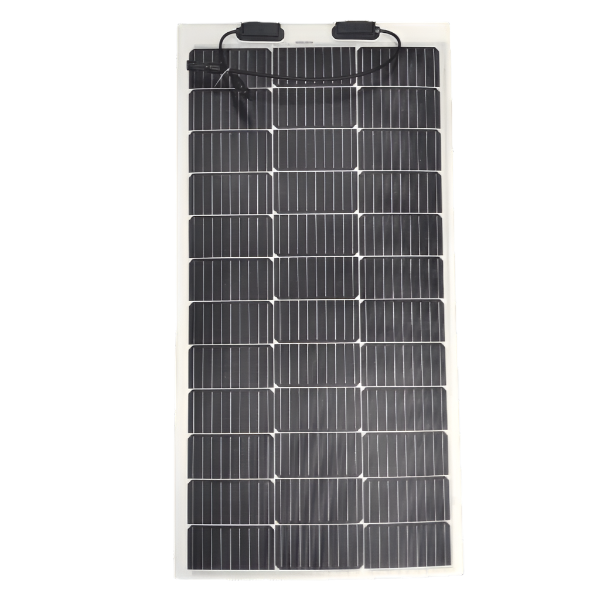

New Version: Compact and Efficient Mono-PERC Solar Panels
Superior solar technology with the newly improved, compact Mono-PERC solar panels. These lightweight yet robust panels are perfect for various applications, includingcaravans, motorhomes, yachts, trains, and buses.
Lightweight and durable construction with cutting-edge technology
Highly efficient monocrystalline cells for optimal energy production
Flexible design for easy installation on various surfaces
Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency
CEC-approved for residential and commercial use
10-year product warranty for buildings and 5 years for mobile applications
Crafted using a patent-pending composite material akin to airplane windows, Sunman solar panels offer unmatched durability. Approved by the Clean Energy Council for residential use, these panels are tough without the need for a heavy, rigid frame or glass.
Solar cells
36 (3x12)
Maximum Power (Pmax)
100
Maximum Power Voltage (Vmp)
21.2
Maximum Power Current (Imp)
4.75
Open-circuit Voltage (Voc)
25.2
Short-circuit Current (Isc)
5.12
Operating Temperature (°C)
-40 °C to 85 °C
Maximum System Voltage
1000 V DC (IEC)
Maximum Series Fuse Rating
20 A
Application Class
Class A
Power Tolerance
0/+5 W
Backsheet
White
Junction box
IP 68 rated (each j-box has one by-pass diode)
Output Cables
Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
