ATX970S 3.0dBi Heavy-Duty UHF Radome Antenna Kit | Black

📡 UNIDEN ATX970S 3.0dBi HEAVY-DUTY RADOME UHF ANTENNA KIT – BLACK

702mm Ground-Independent UHF Antenna with Heavy-Duty Stainless Steel Barrel Spring

The Uniden ATX970S is a rugged 3.0dBi heavy-duty fibreglass radome UHF antenna designed for 4WDs, trucks, touring vehicles and demanding commercial applications.

Featuring a ground-independent design, aluminium ferrule, large stainless steel barrel spring and compact 702mm mounted height, the ATX970S provides a durable UHF antenna solution for town, country and varied-terrain driving.

⚡ KEY FEATURES

📡 3.0dBi Gain
Lower-gain UHF antenna configuration with a broader vertical radiation pattern, making it particularly useful across mixed, hilly and undulating terrain.

🚙 Ground-Independent Design
Provides greater flexibility when selecting a suitable mounting location on a 4WD, truck or work vehicle.

🛡️ Heavy-Duty Fibreglass Radome
Rugged construction designed for demanding touring, transport and off-road environments.

〰️ Heavy-Duty Stainless Steel Spring
Large barrel-style spring helps the antenna cope with vibration and movement in harsh vehicle applications.

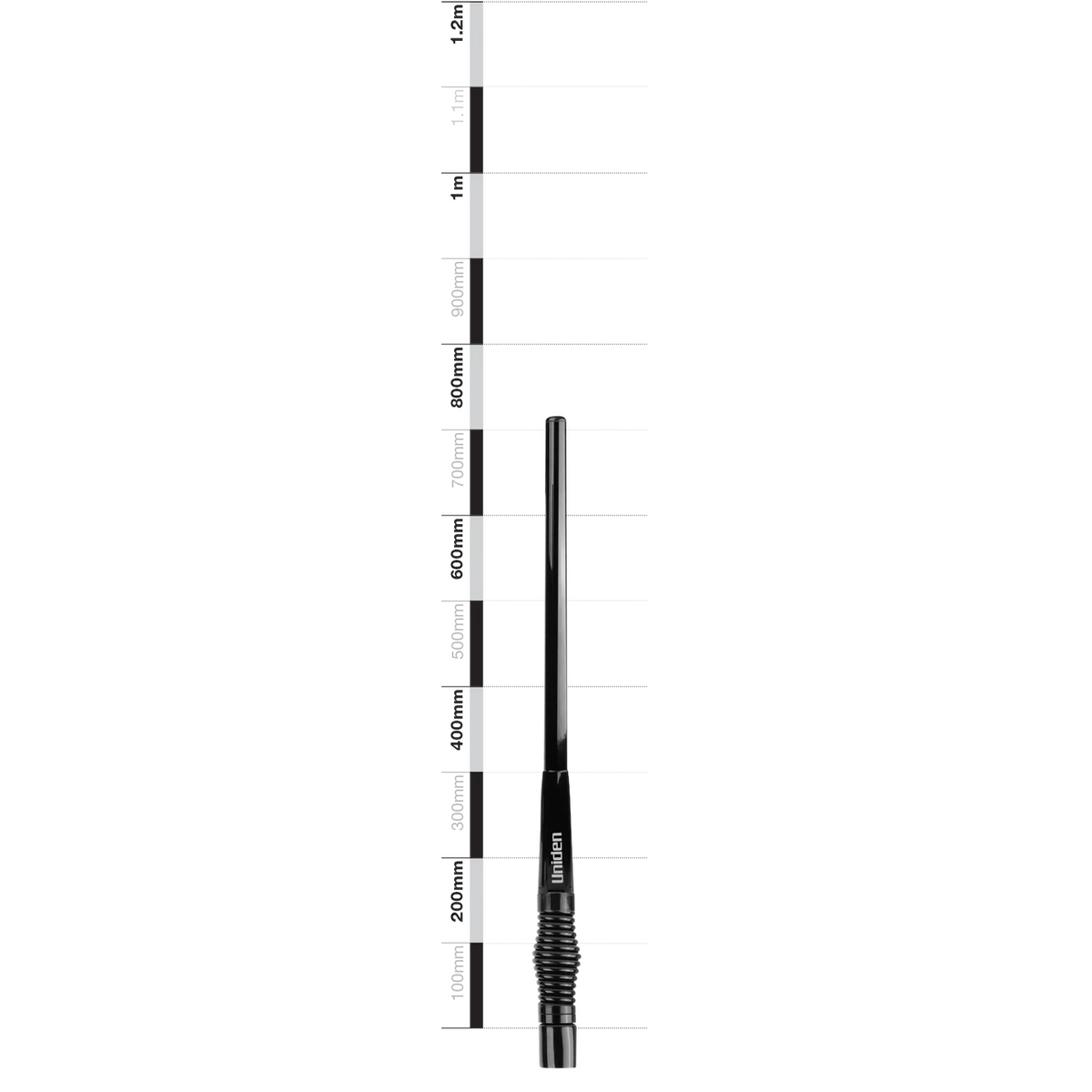

📏 702mm Mounted Height
The ATX970S uses a 570mm whip, providing a more compact overall profile than taller high-gain radome antennas.

🔩 Aluminium Ferrule & Ø8mm Thread
Heavy-duty antenna construction incorporating an aluminium ferrule and 8mm threaded connection.

🔌 Low-Loss Coaxial Cable
Supplied with low-loss coaxial cable for connection to your compatible UHF CB radio.

🔧 FME Female Connector & PL259 Adaptor
Cable is terminated with an FME female connector and supplied with a PL259 adaptor.

🔑 Locking Key & Weather Cap
Includes a locking key and weather cap for added practicality when the antenna is removed.

📦 PACK FEATURES

• 📡 Heavy-Duty Black Fibreglass Radome Antenna
• 🛡️ Aluminium Ferrule
• 〰️ Heavy-Duty Stainless Steel Barrel Spring
• 🔌 Low-Loss Coaxial Cable
• 🔧 FME Female Connector
• 🔌 PL259 Adaptor
• 🔑 Locking Key
• 🌦️ Weather Cap

📋 TECHNICAL SPECIFICATIONS

Model: ATX970S

Type: Heavy-Duty UHF Radome Antenna Kit

Operating Frequency: 477MHz

Gain: 3.0dBi

Ground Independent: Yes

Colour: Black

Whip Length: 570mm

Mounted Height: 702mm

Ferrule: Aluminium

Spring: Heavy-Duty Stainless Steel Barrel Style

Spring Style: Ø44-55-44mm Barrel

Thread: Ø8mm

Connector: FME Female

Adaptor: PL259 Included

Locking Key: Included

Weather Cap: Included

⚠️ Antenna gain does not guarantee a specific communication range. Actual UHF performance depends on terrain, antenna position, installation quality, surrounding obstacles and radio conditions.

🚙 IDEAL FOR

• 🚙 4WD & touring vehicles
• 🚛 Trucks & transport vehicles
• 🛻 Work utes & commercial vehicles
• ⛰️ Hilly & undulating terrain
• 🏘️ Town & country driving
• 🏕️ Off-road & remote touring

❓ QUICK FAQ

Is the ATX970S ground independent?

Yes. The ATX970S is specified as a ground-independent UHF antenna, providing greater flexibility when selecting a suitable mounting position.

How tall is the antenna when mounted?

The whip measures 570mm, with an overall mounted height of approximately 702mm.

What terrain is a 3.0dBi antenna suited to?

A 3.0dBi antenna generally provides a broader vertical radiation pattern, making it well suited to mixed, hilly and undulating terrain as well as general town and country driving.

Does it include a PL259 adaptor?

Yes. The coaxial cable is terminated with an FME female connector and a PL259 adaptor is included.

📡 COMPACT HEAVY-DUTY UHF PERFORMANCE FOR 4WDS & TRUCKS

With its 3.0dBi gain, compact 702mm mounted height, ground-independent design and heavy-duty stainless steel spring, the Uniden ATX970S is built for demanding touring, transport and off-road UHF installations.
