RWL7470C 70W Stealth LED Work Light | Combo Beam

💡 ROADVISION RWL7470C 70W STEALTH SERIES LED WORK LIGHT – COMBO BEAM

3445 Lumens • Spot + Flood Beam • 257m @ 1 Lux • 115° Spread • 10–30V DC

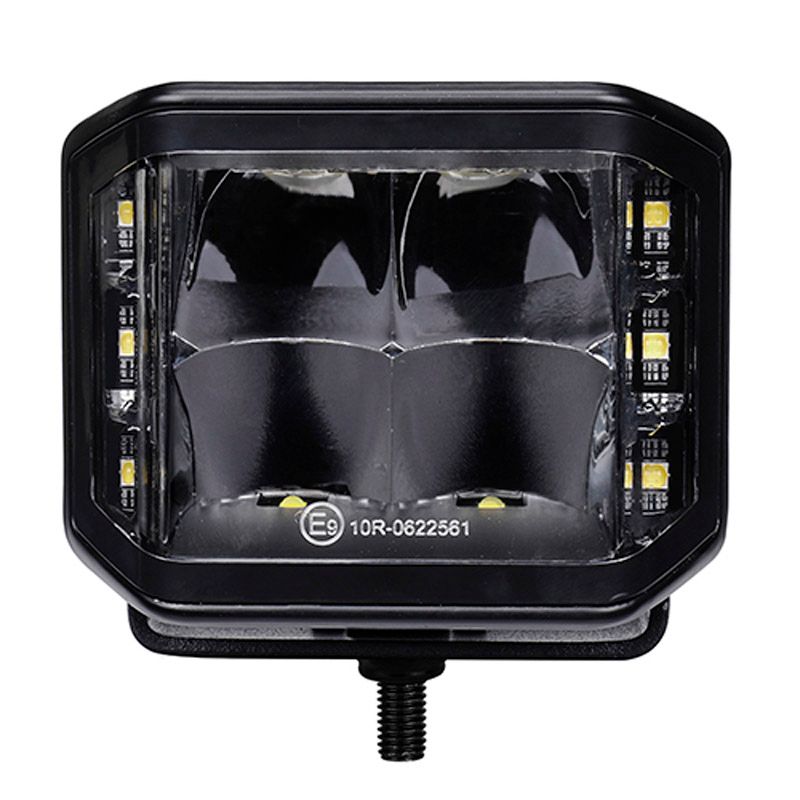

The Roadvision RWL7470C Stealth Series combines long-range spot lighting and wide flood illumination in one compact 70W LED work lamp.

Using 4 × 10W long-range LEDs together with 6 × 5W flood LEDs, the RWL7470C delivers a combination beam reaching approximately 257 metres at 1 lux while still providing a broad 115° spread.

⚡ KEY FEATURES

🎯 Combination Spot & Flood Beam
Combines concentrated long-range lighting with wide-area illumination, giving you useful forward reach without sacrificing close-range coverage.

💡 3445 Lumen Output
Produces up to 3445 lumens of LED light from a compact 70W work-lamp housing.

📏 257m @ 1 Lux
Roadvision specifies a maximum beam distance of approximately 257 metres at 1 lux.

↔️ 115° Spread Beam
Provides a broad spread of light to complement the long-range centre beam.

⚙️ 4 × 10W + 6 × 5W LEDs
Dedicated long-range and flood LEDs work together to create the combination beam pattern.

🌡️ Thermal Management
Helps manage lamp temperature to support reliable LED performance in demanding applications.

🔋 Multi-Volt Operation
Suitable for compatible 12V and 24V vehicle and machinery electrical systems.

🛡️ Tough Stealth-Series Construction
Features a lightweight die-cast aluminium housing with a modern bezel-less polycarbonate lens.

🔌 2-Pin Deutsch Plug
Provides a robust electrical connection for vehicle and machinery installations.

⚡ Electrical Protection
Includes over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise radio-frequency interference in compatible electrical systems.

🛡️ 5 Year Warranty
Backed by Roadvision's supplied 5-year warranty.

🎯 BEST OF BOTH WORLDS – SPOT + FLOOD

The RWL7470C is designed for applications where you need both distance and width from a single lamp.

• 🎯 Long-range centre beam for forward visibility
• ↔️ Wide 115° flood spread for surrounding work areas
• 💡 3445 maximum lumens
• 📏 Approximately 257m at 1 lux

📋 TECHNICAL SPECIFICATIONS

Part Number: RWL7470C

Description: LED Work Light – 70W Square Combo Beam

Beam Pattern: Combination

Maximum Lumens: 3445lm

Maximum Power: 70W

LEDs: 4 × 10W + 6 × 5W

Maximum Lux @ 10m: 663lx

Maximum Distance @ 1 Lux: Approximately 257m

Beam Spread: Approximately 115°

Input Voltage: 10–30V DC

Current Draw @ 13.8V: Approximately 2.9–5A as supplied

Lens: Polycarbonate

Housing: Die-Cast Aluminium

Wiring: 2-Pin Deutsch Plug

LED Lifespan: Up to 50,000 Hours

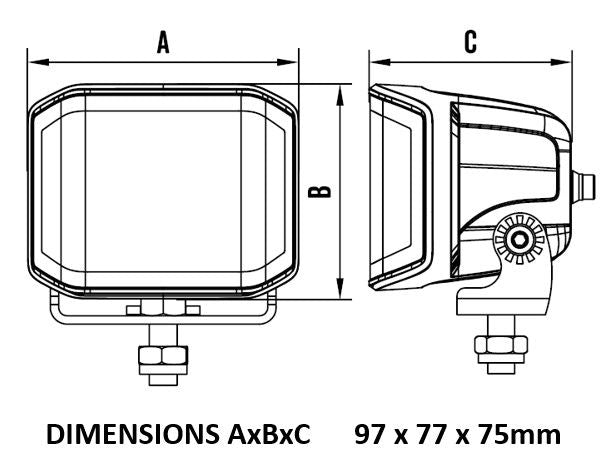

Dimensions: Approximately 97 × 77 × 75mm

Warranty: 5 Years

⚠️ The supplied feature graphic lists multi-volt operation as 10–24V DC, while the detailed range features and technical specification state 10–30V DC. This listing uses the detailed 10–30V specification but the source contains this inconsistency.

🚜 IDEAL FOR

• 🚙 4WDs & touring vehicles
• 🛻 Work utes
• 🚜 Agricultural machinery
• 🚚 Trucks & heavy vehicles
• 🏗️ Construction equipment
• 🧰 Service vehicles
• 🌙 Night-time work areas

❓ QUICK FAQ

Is the RWL7470C a spot or flood light?

It uses a combination beam, combining long-range spot lighting with wide flood illumination in the same lamp.

How far does the beam reach?

Roadvision specifies approximately 257 metres at 1 lux, with a maximum beam intensity of 663 lux at 10 metres.

How wide is the beam?

The supplied information states an approximately 115° spread beam.

Can it run on 12V and 24V systems?

Yes. The detailed specification lists a 10–30V DC input range.

💡 LONG-RANGE REACH + WIDE WORK LIGHTING IN ONE COMPACT LAMP

With a 257m spot reach, 115° flood spread, 3445 lumens and a compact Stealth Series housing, the Roadvision RWL7470C gives you useful distance and broad-area illumination from a single 70W work light.
