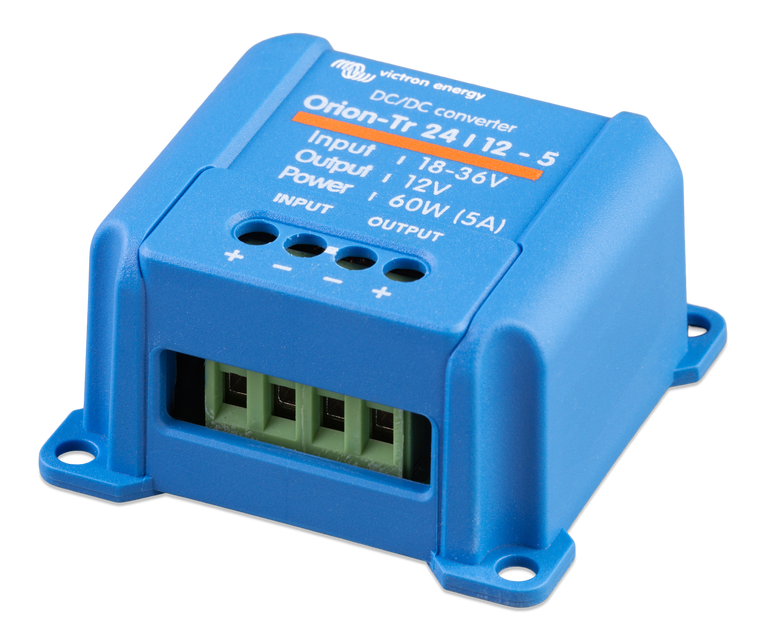

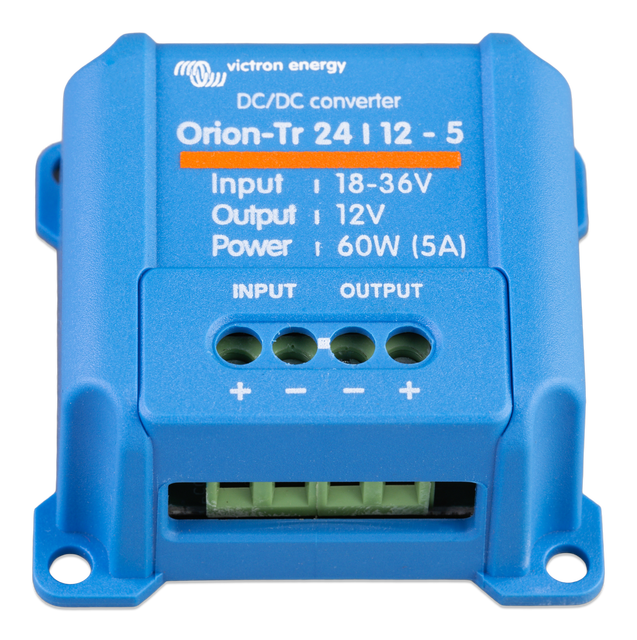

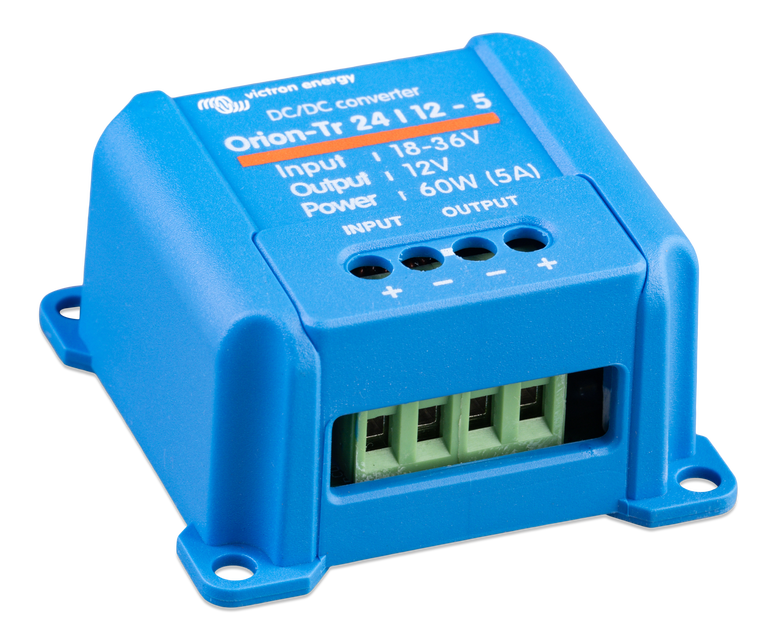

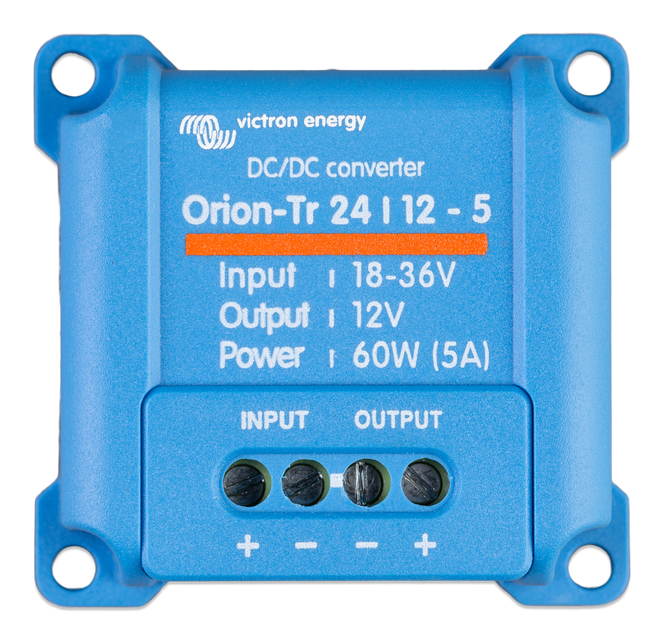

Orion-Tr 24V to 12V-5A 60W DC-DC Converter

⚡ ORION-TR 24V TO 12V-5 (60W) DC-DC CONVERTER

24V to 12.7V Non-Isolated DC-DC Converter – 5A Continuous Output, 7A Maximum Output, 95% Efficiency & Compact IP43 Design

⚡ The Orion-Tr 24V to 12V-5 (60W) DC-DC Converter provides a compact and efficient way to operate compatible 12V equipment from a 24V DC electrical system.

Accepting an input voltage from 18V to 35V DC, the converter provides a regulated 12.7V output with a continuous output-current rating of 5A and a maximum output-current rating of 7A.

Using synchronous rectification technology, full-load efficiency exceeds 95%, helping minimise wasted energy and heat in compatible vehicle, marine, industrial and auxiliary electrical installations.

The compact converter measures only 53 × 51 × 27mm and weighs approximately 90g, making it suitable for installations where available mounting space is limited.

---

⚡ KEY FEATURES

🔌 24V to 12.7V DC Conversion
Designed to power compatible 12V equipment from a 24V electrical system.

⚡ 5A Continuous Output
Provides up to 5A continuous output current for compatible 12V loads.

🚀 7A Maximum Output
Maximum output-current capability is rated at 7A.

🔋 60W Converter
Designed as a compact 60W-class DC-DC converter for compatible low-voltage applications.

📈 95% Efficiency
Synchronous rectification provides full-load efficiency exceeding 95% according to the supplied specifications.

🔄 Wide 18–35V Input Range
Accepts a broad DC input-voltage range suitable for compatible nominal 24V systems.

🛡️ IP43 Protection
Provides IP43 protection when installed with the screw terminals facing downwards.

🔩 Screw-Terminal Connections
Straightforward screw terminals allow installation without specialised connector tools.

📏 Compact 53 × 51 × 27mm Size
The small enclosure makes the converter easy to integrate into space-restricted electrical installations.

🪶 Lightweight 90g Construction
Weighs only approximately 0.09kg.

🌡️ -20°C to +55°C Operating Range
Designed for operation across a broad temperature range.

---

🔌 CONVERT 24V DC TO 12.7V DC

The Orion-Tr converter is designed for electrical systems where a nominal 24V supply is available but compatible equipment requires approximately 12V DC.

Input voltage range:

18V–35V DC

Output voltage:

12.7V DC

This makes the converter suitable for compatible 24V vehicle and auxiliary electrical systems requiring a regulated lower-voltage supply for selected 12V accessories.

⚠️ IMPORTANT: Confirm that the connected appliance or accessory is suitable for a 12.7V DC supply before installation.

---

⚡ 5A CONTINUOUS OUTPUT

The converter provides a continuous output-current rating of 5A.

At the stated 12.7V output voltage, this provides approximately 63.5W based on voltage × current, while the product is identified as a 60W converter.

Maximum output current is rated at 7A.

⚠️ IMPORTANT: Size connected loads according to the continuous 5A rating for normal operation. The 7A maximum figure should not automatically be treated as a continuous operating rating.

---

📈 HIGH-EFFICIENCY SYNCHRONOUS RECTIFICATION

The Orion-Tr uses synchronous rectification to achieve high conversion efficiency.

Supplied efficiency:

95%

The supplied product information states that full-load efficiency exceeds 95%.

Higher conversion efficiency helps reduce wasted electrical energy and heat compared with less efficient conversion methods.

---

🛡️ IP43 PROTECTION

The converter provides IP43 ingress protection when installed with the screw terminals oriented downwards.

Correct mounting orientation is therefore important to achieving the stated protection rating.

⚠️ IMPORTANT: The IP43 rating applies when the unit is installed with the screw terminals facing downwards. IP43 does not mean waterproof or suitable for immersion.

---

🔩 EASY SCREW-TERMINAL CONNECTION

The converter uses screw terminals for its DC connections.

This allows straightforward installation without specialised proprietary connectors or dedicated crimping tools for the converter terminals themselves.

Maximum cable cross-section:

3.3mm² / AWG12

⚠️ IMPORTANT: Cable size must still be selected according to current, cable length, voltage drop and installation conditions. Do not exceed the converter’s maximum terminal cable size.

---

🔌 NON-ISOLATED DESIGN

Galvanic isolation:

No

The input and output sides of this converter are therefore not galvanically isolated from each other.

⚠️ IMPORTANT: If the application specifically requires galvanic isolation between the 24V input system and 12V output system, this non-isolated model is not suitable.

---

🔋 LOW OFF-LOAD CURRENT

Supplied off-load current:

<20mA

This is the current consumed by the converter when powered but not supplying a significant connected load.

For installations that may remain unused for extended periods, the effect of standby consumption should be considered as part of the overall battery-management strategy.

---

🌡️ OPERATING TEMPERATURE RANGE

Operating temperature:

-20°C to +55°C

The converter is designed to operate across a broad range of ambient temperatures when installed within its specified limits.

⚠️ IMPORTANT: Installation location, airflow, connected load and surrounding heat sources can affect operating temperature. Keep the converter away from excessive heat and install it in accordance with the manufacturer’s requirements.

---

🚚 SUITABLE FOR COMPATIBLE 24V VEHICLE SYSTEMS

The Orion-Tr can provide a practical voltage-conversion solution in compatible 24V vehicles where selected accessories require approximately 12V DC.

Potential applications can include compatible:

• 💡 12V lighting
• 📡 Communications equipment
• 📱 Low-current electronics
• 🎛️ Control equipment
• 🔌 Selected 12V accessories

⚠️ IMPORTANT: Total connected current must remain within the converter’s output limits.

---

🚤 MARINE & MOBILE ELECTRICAL SYSTEMS

The compact design may also suit compatible mobile or marine electrical systems using a nominal 24V DC supply and requiring a lower-voltage 12.7V output.

Installation must still respect the converter’s IP43 rating, mounting orientation, electrical limits and environmental requirements.

---

🏗️ INDUSTRIAL & EQUIPMENT APPLICATIONS

The broad 18–35V input range and compact form factor can make the converter useful for compatible machinery, control equipment and industrial DC systems where a regulated 12.7V supply is required from a nominal 24V source.

Confirm the connected load, required isolation, operating environment and voltage requirements before use.

---

📏 COMPACT DIMENSIONS

Height: 53mm

Width: 51mm

Depth: 27mm

Weight: Approximately 0.09kg

The small enclosure allows the converter to be integrated into compact electrical panels and equipment spaces where larger converters may be difficult to install.

---

📋 TECHNICAL SPECIFICATIONS

Product: Orion-Tr 24V to 12V-5 (60W) DC-DC Converter

Converter type: DC-DC voltage converter

Nominal application: 24V to 12V conversion

Input voltage range: 18V–35V DC

Output voltage: 12.7V DC

Continuous output current: 5A

Maximum output current: 7A

Efficiency: 95%

Full-load efficiency: Greater than 95% according to supplied information

Rectification type: Synchronous rectification

Galvanic isolation: No

Off-load current: <20mA

Operating temperature range: -20°C to +55°C

Ingress protection: IP43 when screw terminals are oriented downwards

DC connection: Screw terminals

Maximum cable cross-section: 3.3mm² / AWG12

Weight: Approximately 0.09kg

Dimensions: 53mm × 51mm × 27mm

---

⚠️ INSTALLATION & COMPATIBILITY CHECKLIST

Before purchasing or installing the Orion-Tr 24V to 12V-5 converter, confirm that it matches the electrical and environmental requirements of your system.

• 18–35V DC input supply
• 12.7V DC output suitable for the connected equipment
• Maximum 5A continuous load requirement
• Maximum 7A output-current specification
• No requirement for galvanic isolation
• Correct cable size
• Maximum 3.3mm² / AWG12 terminal cable size
• Correct input and output polarity
• Appropriate fuse or circuit protection
• Suitable mounting location
• Terminals oriented downwards where IP43 protection is required
• Operating temperature within -20°C to +55°C
• Sufficient clearance around the converter

⚠️ IMPORTANT: This converter is non-isolated. Do not use it where galvanic isolation between input and output is required.

⚠️ IMPORTANT: Use the 5A continuous-current rating when calculating normal connected loads.

⚠️ IMPORTANT: Confirm correct polarity before connecting the converter. Incorrect wiring can damage the converter or connected equipment.

⚠️ IMPORTANT: Appropriate circuit protection should be installed according to the system design and cable capacity.

---

❓ FREQUENTLY ASKED QUESTIONS

What does the Orion-Tr 24V to 12V-5 do?

It converts a compatible 18–35V DC input supply to a regulated 12.7V DC output.

Is it designed for a 24V system?

Yes. Its 18–35V DC input range is designed to accommodate compatible nominal 24V electrical systems.

What is the output voltage?

The supplied output voltage is 12.7V DC.

What is the continuous output current?

The continuous output-current rating is 5A.

What is the maximum output current?

The supplied maximum output current is 7A.

Can I continuously draw 7A from it?

The supplied continuous rating is 5A, while 7A is listed as the maximum output current. Normal system design should therefore be based on the 5A continuous rating.

What power is the converter rated for?

The product is identified as a 60W DC-DC converter.

How efficient is it?

The supplied efficiency is 95%, with the product information stating that full-load efficiency exceeds 95%.

What is synchronous rectification?

It is the conversion method used by the unit to achieve high electrical efficiency. The supplied information specifically attributes its greater-than-95% full-load efficiency to synchronous rectification.

Is the converter galvanically isolated?

No. The supplied specification states that galvanic isolation is not provided.

What does non-isolated mean?

It means the input and output electrical circuits are not galvanically separated. If electrical isolation is required by the installation, a suitable isolated converter should be selected instead.

What is the input voltage range?

The supplied input range is 18V to 35V DC.

Can it run from a 12V battery?

No. A 12V battery is below the supplied 18V minimum input specification.

Can it be used on a 24V truck?

Potentially, provided the vehicle's supply remains within the 18–35V input range and the connected 12V load remains within the converter's output limits.

Can it run 12V lights?

Potentially, provided the lighting is compatible with a 12.7V supply and the combined current draw remains within the 5A continuous rating.

Can it run a fridge?

Only if the fridge's continuous and startup current requirements remain within the converter's specifications. Many compressor fridges can have higher startup demands, so the appliance specifications should be checked before installation.

Can it charge a 12V battery?

The supplied information identifies this product as a DC-DC converter with a fixed 12.7V output. It is not described as a multi-stage battery charger, so it should not be treated as a dedicated 12V battery charger unless the battery manufacturer and system design specifically allow it.

Can it be used to charge a lithium battery?

The supplied information does not describe the converter as a lithium battery charger. A dedicated charger with the correct lithium charging profile should be used where battery charging is required.

What type of electrical connections does it use?

It uses screw terminals.

Do I need a special crimping tool for the converter?

The supplied information states that no special tools are required for installation of the screw terminals. Correct cable preparation and system wiring practices are still required.

What is the largest cable that can fit?

The supplied maximum cable cross-section is 3.3mm², equivalent to AWG12.

What is the IP rating?

The supplied rating is IP43 when the unit is installed with the screw terminals facing downwards.

Does mounting orientation matter?

Yes. The supplied IP43 rating applies when the screw terminals are oriented downwards.

Is the converter waterproof?

No. IP43 does not mean waterproof or suitable for immersion.

What is the off-load current?

The supplied off-load current is less than 20mA.

What is the operating temperature range?

The supplied operating range is -20°C to +55°C.

How large is the converter?

The supplied dimensions are 53mm high × 51mm wide × 27mm deep.

How much does it weigh?

The supplied weight is approximately 0.09kg, or 90g.

Can I use it for multiple 12V accessories?

Potentially. Add the current consumption of all connected accessories together and ensure the total remains within the 5A continuous output rating.

Can I connect a 60W load?

Potentially, depending on the actual current drawn at 12.7V. The converter is identified as a 60W model, but the supplied continuous current limit of 5A should be used when checking compatibility.

Does it need external fusing?

The supplied information does not specify built-in external circuit protection. Appropriate system fuse or circuit-breaker protection should be selected according to the wiring and installation design.

What should I check before ordering?

Confirm that your supply is within 18–35V DC, your equipment is suitable for 12.7V, the continuous load is no more than 5A, galvanic isolation is not required, the available cable fits the 3.3mm² terminal limit and the mounting location is suitable for the converter and required IP43 orientation.

---

⚡ COMPACT & EFFICIENT 24V TO 12V DC POWER CONVERSION

Choose the Orion-Tr 24V to 12V-5 (60W) DC-DC Converter when you need a compact and efficient way to operate compatible 12V equipment from a nominal 24V electrical system.

With an 18–35V input range, regulated 12.7V output, 5A continuous current capability, 7A maximum output, greater than 95% full-load efficiency, screw-terminal connections and a compact 53 × 51 × 27mm enclosure, it provides a straightforward voltage-conversion solution for compatible vehicle, marine, industrial and auxiliary applications.

Confirm the connected load, input voltage, required isolation, cable size, circuit protection and installation environment before installation to ensure the Orion-Tr 24V to 12V-5 is correct for your system.
