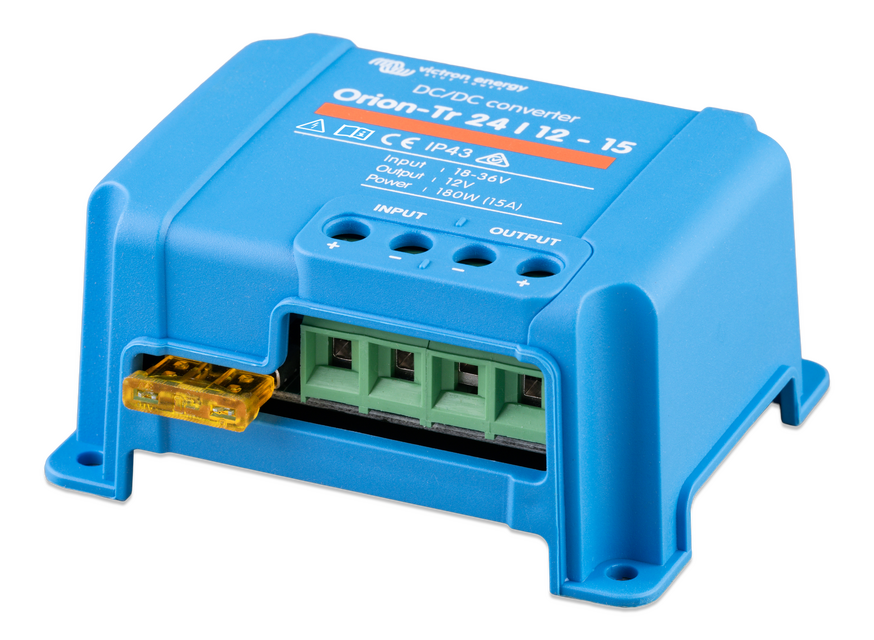

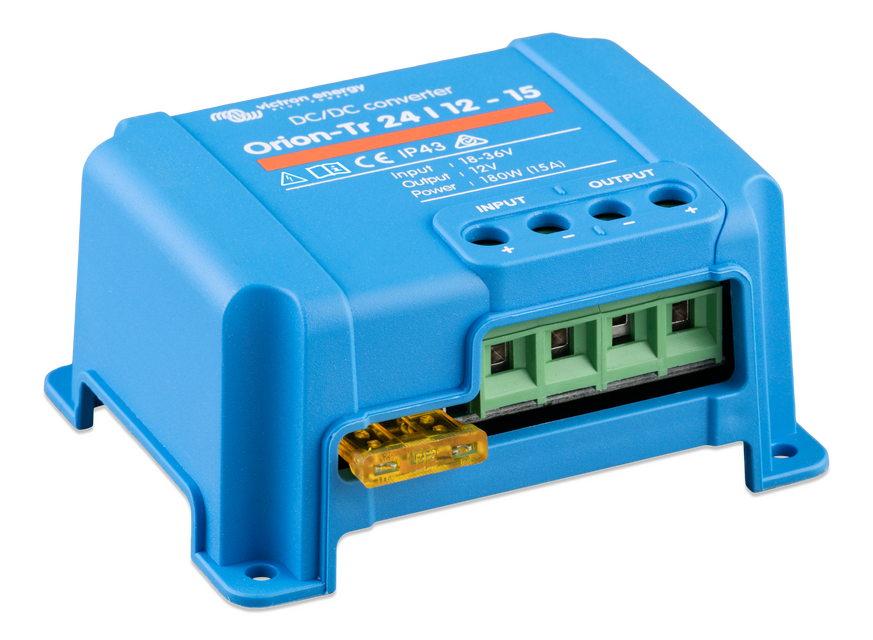

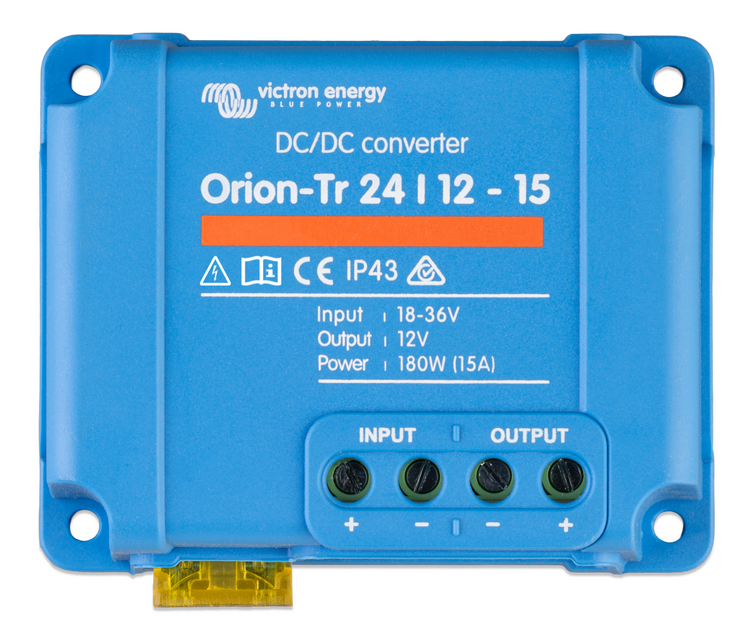

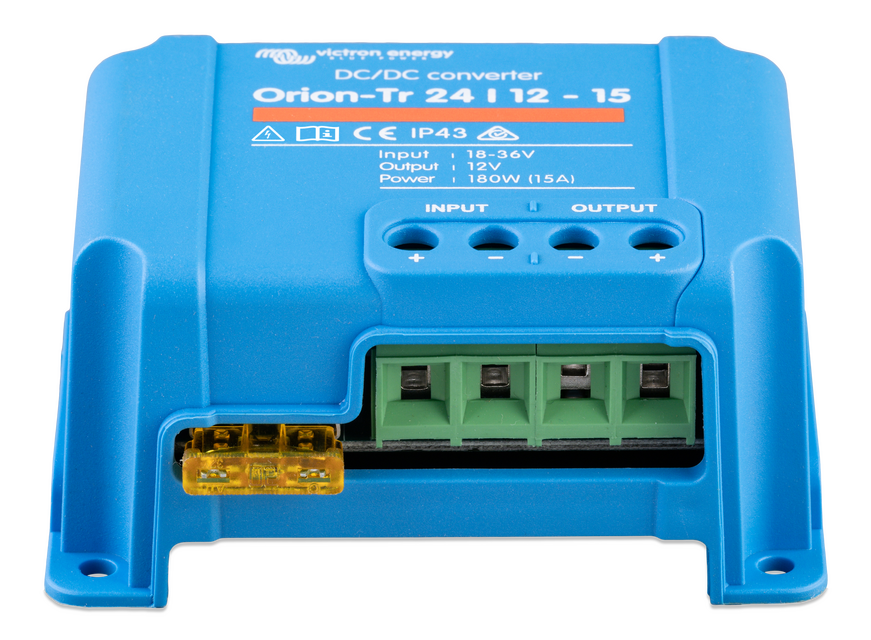

Orion-Tr 24V to 12V-15A 180W DC-DC Converter

⚡ ORION-TR 24V TO 12V-15A (180W) DC-DC CONVERTER

24V to 12.5V Non-Isolated DC-DC Converter – 15A Continuous Output, 20A Maximum Output, 97% Efficiency & IP43 Protection

⚡ The Orion-Tr 24V to 12V-15A (180W) DC-DC Converter provides an efficient and compact solution for operating compatible 12V equipment from a nominal 24V DC electrical system.

Accepting an input voltage from 18V to 35V DC, the converter delivers a regulated 12.5V output with a continuous output-current rating of 15A and a maximum output-current rating of 20A.

Using synchronous rectification technology, the converter achieves a supplied efficiency of 97%, helping minimise wasted electrical energy and heat in compatible vehicle, marine, industrial and auxiliary-power installations.

Screw-terminal connections allow straightforward installation, while cable up to 6mm² / AWG10 can be accommodated. The unit also provides IP43 protection when installed with the screw terminals oriented downwards.

---

⚡ KEY FEATURES

🔌 24V to 12.5V DC Conversion
Designed to operate compatible 12V equipment from a nominal 24V DC electrical system.

⚡ 15A Continuous Output
Provides up to 15A continuous output current for compatible 12V accessories and electrical equipment.

🚀 20A Maximum Output
Maximum output current is rated at 20A.

🔋 180W-Class Converter
The product is identified as an Orion-Tr 24V to 12V-15A 180W DC-DC converter.

📈 97% Efficiency
High-efficiency synchronous rectification helps reduce power losses during voltage conversion.

🔄 Wide 18–35V Input Range
Accepts a broad DC input range suitable for compatible nominal 24V battery and electrical systems.

🛡️ IP43 Protection
Provides IP43 ingress protection when installed with the screw terminals facing downwards.

🔩 Screw-Terminal Connections
Simple screw-terminal connections eliminate the need for proprietary electrical connectors.

🔌 Up to 6mm² / AWG10 Cable
Supports a maximum cable cross-section of 6mm² / AWG10.

🌡️ -20°C to +55°C Operating Range
Designed to operate across a broad range of ambient temperatures when correctly installed.

📏 Compact 73 × 94 × 45mm Design
Compact dimensions make the converter easy to integrate into suitably protected electrical installations.

🪶 Lightweight 250g Construction
Weighs approximately 0.25kg.

---

🔌 CONVERT 24V DC TO 12.5V DC

The Orion-Tr converter is designed for electrical systems where a nominal 24V supply is available but selected accessories or equipment require approximately 12V DC.

Input voltage range:

18V–35V DC

Output voltage:

12.5V DC

This makes the converter suitable for compatible trucks, buses, commercial vehicles, marine systems, machinery and other 24V installations requiring a regulated lower-voltage power supply.

⚠️ IMPORTANT: Confirm that the connected appliance or accessory is suitable for operation from a 12.5V DC supply before installation.

---

⚡ 15A CONTINUOUS OUTPUT

The Orion-Tr provides a supplied continuous output-current rating of 15A.

Continuous output current:

15A

Maximum output current:

20A

The 15A continuous rating should be used when calculating normal sustained accessory loads.

⚠️ IMPORTANT: The 20A specification is listed as maximum output current and should not be treated as the normal continuous operating rating.

---

🔋 180W PRODUCT RATING

The product is designated as the Orion-Tr 24V to 12V-15A (180W) DC-DC Converter.

The supplied technical specifications separately list a 12.5V output and 15A continuous output-current capability.

For system design, use the manufacturer's stated voltage, continuous-current and maximum-current limits rather than relying on wattage alone.

---

📈 HIGH-EFFICIENCY SYNCHRONOUS RECTIFICATION

The Orion-Tr uses synchronous rectification to achieve high conversion efficiency.

Supplied efficiency:

97%

The supplied product information also states that full-load efficiency exceeds 95%.

Higher efficiency reduces wasted electrical energy and unnecessary heat generation, which is particularly useful in battery-powered vehicle and auxiliary electrical systems.

---

🛡️ IP43 PROTECTION

The converter provides IP43 ingress protection when installed with the screw terminals oriented downwards.

Correct mounting orientation is therefore important to achieving the stated IP rating.

⚠️ IMPORTANT: IP43 does not mean waterproof or suitable for immersion. Install the converter in an appropriately protected location.

---

🔩 EASY SCREW-TERMINAL CONNECTION

The converter uses screw terminals for its DC electrical connections.

The supplied product information states that no special tools are required for installation of the screw terminals.

Maximum cable cross-section:

6mm² / AWG10

⚠️ IMPORTANT: Cable size must still be selected according to circuit current, cable length, voltage drop, installation temperature and circuit-protection requirements.

---

🔌 NON-ISOLATED DESIGN

Galvanic isolation:

No

The input and output circuits of this converter are therefore not galvanically isolated from each other.

⚠️ IMPORTANT: If your installation requires electrical isolation between the 24V input circuit and the 12V output circuit, this non-isolated Orion-Tr model is not suitable.

---

🔋 LOW OFF-LOAD CURRENT

Supplied off-load current:

<35mA

This represents the converter's current consumption while powered but not supplying a significant connected load.

For battery-powered systems left unused for extended periods, this standby consumption should be considered as part of the overall electrical-system design.

---

🌡️ OPERATING TEMPERATURE RANGE

Supplied operating temperature:

-20°C to +55°C

The Orion-Tr is designed to operate across this temperature range when installed and operated within its electrical specifications.

⚠️ IMPORTANT: Avoid mounting the converter close to engines, exhaust systems, heaters or other sources of excessive heat.

---

🚚 24V TRUCK & COMMERCIAL VEHICLE APPLICATIONS

The Orion-Tr can provide a practical solution in compatible trucks, buses and commercial vehicles that use a nominal 24V electrical system but require power for selected 12V equipment.

Potential compatible loads can include:

• 💡 12V lighting
• 📡 Communications equipment
• 📱 Electronics and charging accessories
• 🎛️ Control equipment
• 🔌 Selected 12V vehicle accessories
• 🧰 Compatible auxiliary equipment

⚠️ IMPORTANT: Add together the continuous current requirements of all connected accessories and ensure the total remains within the converter's 15A continuous output rating.

---

🚤 MARINE & MOBILE ELECTRICAL SYSTEMS

The Orion-Tr may also suit compatible marine and mobile electrical systems where a nominal 24V supply needs to operate selected 12V equipment.

The complete installation must remain within the converter's input-voltage range, output-current limits, temperature range and environmental protection requirements.

---

🏗️ INDUSTRIAL & CONTROL APPLICATIONS

The broad 18–35V input range and regulated 12.5V output can make the converter useful in compatible industrial equipment, machinery and control systems operating from nominal 24V DC supplies.

Confirm connected-load current, required isolation, installation environment and cable requirements before installation.

---

💡 MULTIPLE 12V ACCESSORIES

The 15A continuous output provides greater accessory capacity than smaller Orion-Tr converters and can support multiple compatible 12V loads from a single converter.

For example, several low-current accessories may be connected where their combined continuous current remains within the 15A rating.

⚠️ IMPORTANT: Always calculate combined current demand rather than relying on the number of accessories connected.

---

🧊 COMPATIBLE 12V REFRIGERATION

The converter may be capable of powering compatible 12V refrigeration equipment where both running current and compressor startup demand remain within the converter's specifications.

⚠️ IMPORTANT: Compressor fridges can draw substantially more current during startup than during normal operation. Check the appliance manufacturer's maximum current or startup-current specification before connection.

---

🔋 NOT A DEDICATED BATTERY CHARGER

The supplied information identifies the Orion-Tr as a DC-DC voltage converter with a regulated 12.5V output.

It is not described as a multi-stage battery charger.

⚠️ IMPORTANT: Do not automatically use this converter to charge a 12V lead-acid or lithium battery. Where battery charging is required, use an appropriate charger with the correct charging profile for the battery chemistry.

---

📏 COMPACT DIMENSIONS

Height: 73mm

Width: 94mm

Depth: 45mm

Weight: Approximately 0.25kg

The compact enclosure makes the converter suitable for integration into appropriately protected electrical panels, cabinets and equipment spaces.

---

📋 TECHNICAL SPECIFICATIONS

Product: Orion-Tr 24V to 12V-15A (180W) DC-DC Converter

Converter type: DC-DC voltage converter

Nominal application: 24V to 12V conversion

Input voltage range: 18V–35V DC

Output voltage: 12.5V DC

Continuous output current: 15A

Maximum output current: 20A

Product power designation: 180W

Efficiency: 97%

Full-load efficiency: Greater than 95% according to supplied information

Rectification type: Synchronous rectification

Galvanic isolation: No

Off-load current: <35mA

Operating temperature range: -20°C to +55°C

Ingress protection: IP43 when screw terminals are oriented downwards

DC connection: Screw terminals

Maximum cable cross-section: 6mm² / AWG10

Weight: Approximately 0.25kg

Dimensions: 73mm × 94mm × 45mm

---

⚠️ INSTALLATION & COMPATIBILITY CHECKLIST

Before purchasing or installing the Orion-Tr 24V to 12V-15A converter, confirm that it matches the electrical and environmental requirements of your system.

• 18–35V DC input supply
• 12.5V DC output suitable for connected equipment
• Continuous load within the 15A rating
• Maximum current requirement within the supplied 20A specification
• No requirement for galvanic isolation
• Correct input and output polarity
• Correct cable sizing
• Maximum 6mm² / AWG10 cable size at the terminals
• Appropriate input circuit protection
• Appropriate output circuit protection where required
• Suitable protected mounting location
• Screw terminals oriented downwards where IP43 protection is required
• Operating temperature within -20°C to +55°C
• Sufficient installation clearance

⚠️ IMPORTANT: This converter is non-isolated. Do not use it where galvanic isolation between input and output circuits is required.

⚠️ IMPORTANT: Confirm correct polarity before connection. Incorrect wiring can damage the converter or connected equipment.

⚠️ IMPORTANT: Use appropriately rated fuses or circuit breakers based on the cable capacity and system design.

⚠️ IMPORTANT: Do not exceed the 15A continuous output-current rating during normal sustained operation.

---

❓ FREQUENTLY ASKED QUESTIONS

What does the Orion-Tr 24V to 12V-15A converter do?

It converts a compatible 18–35V DC input supply to a regulated 12.5V DC output for suitable 12V equipment.

Is it designed for a 24V electrical system?

Yes. Its supplied 18–35V input range is designed to suit compatible nominal 24V systems.

What is the output voltage?

The supplied output voltage is 12.5V DC.

What is the continuous output current?

The supplied continuous output-current rating is 15A.

What is the maximum output current?

The supplied maximum output-current rating is 20A.

Can I continuously draw 20A?

No. The supplied 20A figure is identified as maximum output current. Normal sustained loads should remain within the 15A continuous rating.

What power is the converter rated for?

The product is identified as a 180W DC-DC converter.

How efficient is it?

The supplied technical specification lists 97% efficiency.

What is synchronous rectification?

It is the conversion method used by the converter to achieve high efficiency. The supplied information states that full-load efficiency exceeds 95%.

What input voltage can it accept?

The supplied input voltage range is 18V to 35V DC.

Can it operate from a 12V battery?

No. A nominal 12V battery is below the supplied 18V minimum input specification.

Can it be used on a 24V truck?

Potentially. Its 18–35V input range can suit compatible 24V vehicle systems, provided the connected 12V load remains within the converter's output limits.

Can it be used in a 24V bus or commercial vehicle?

Potentially, provided the electrical system and connected accessories meet the converter's voltage, current and installation requirements.

Can it power 12V lights?

Yes, provided the lighting is compatible with a 12.5V supply and the combined current remains within the 15A continuous output rating.

Can it run multiple 12V accessories?

Yes, provided the combined continuous current of all connected equipment remains within the 15A rating.

Can it run a 10A accessory?

Potentially. A 10A continuous load is within the supplied 15A continuous output rating, provided all other installation requirements are met.

Can it run a 15A accessory?

Potentially. A 15A load is at the supplied continuous-current limit, so correct cable sizing, installation temperature and system design are particularly important.

Can it run a 12V fridge?

Potentially, provided the fridge's normal running and compressor startup-current requirements remain within the converter's output limits.

Can it run a compressor fridge with a high startup current?

Potentially, but the startup-current requirement must remain within the converter's maximum output capability. Check the fridge manufacturer's electrical specifications before connection.

Can it charge a 12V battery?

The supplied information identifies this product as a fixed-output DC-DC converter rather than a multi-stage battery charger. It should not automatically be used as a dedicated battery charger.

Can it charge a lithium battery?

The supplied information does not describe the converter as a lithium battery charger. Use an appropriate lithium-compatible charging system where controlled battery charging is required.

Is the converter galvanically isolated?

No. The supplied specification states that galvanic isolation is not provided.

What does non-isolated mean?

It means there is no galvanic electrical isolation between the converter's input and output circuits. An isolated converter should be selected where electrical separation is required.

What type of electrical connections does it use?

The Orion-Tr uses screw terminals.

Do I need special connector tools?

The supplied product information states that no special tools are required for installation of the screw terminals.

What is the maximum cable size?

The supplied maximum cable cross-section is 6mm² / AWG10.

Does cable size still need to be calculated?

Yes. Cable should be selected according to continuous current, cable length, voltage drop, ambient temperature and required circuit protection.

What is the IP rating?

The supplied ingress-protection rating is IP43 when the screw terminals are installed facing downwards.

Does mounting orientation matter?

Yes. The supplied IP43 rating specifically requires the screw terminals to be oriented downwards.

Is the converter waterproof?

No. IP43 does not mean waterproof or suitable for immersion.

What is the off-load current?

The supplied off-load current is less than 35mA.

Does the converter consume power when nothing is running?

Yes. When powered with no significant connected load, the supplied off-load consumption is less than 35mA.

What is the operating temperature range?

The supplied operating-temperature range is -20°C to +55°C.

How large is the converter?

The supplied dimensions are 73mm high × 94mm wide × 45mm deep.

How much does it weigh?

The supplied weight is approximately 0.25kg.

Does it require external circuit protection?

Appropriate system fusing or circuit-breaker protection should be selected according to the wiring, source supply and intended load.

What should I check before ordering?

Confirm the 18–35V input range, 12.5V output compatibility, 15A continuous-current requirement, maximum load, need for galvanic isolation, cable size, circuit protection, available mounting space and required IP43 mounting orientation before purchase.

---

⚡ RELIABLE 24V TO 12V POWER FOR HIGHER-CURRENT ACCESSORIES

Choose the Orion-Tr 24V to 12V-15A (180W) DC-DC Converter when you need an efficient way to operate compatible 12V equipment from a nominal 24V electrical system.

With an 18–35V input range, regulated 12.5V output, 15A continuous current capability, 20A maximum output, 97% efficiency, 6mm² screw-terminal capacity and compact 73 × 94 × 45mm enclosure, the Orion-Tr provides a practical voltage-conversion solution for compatible vehicle, marine, industrial and auxiliary-power applications.

Confirm the connected load, input voltage, required isolation, cable size, circuit protection and mounting environment before installation to ensure the Orion-Tr 24V to 12V-15A is correct for your system.
