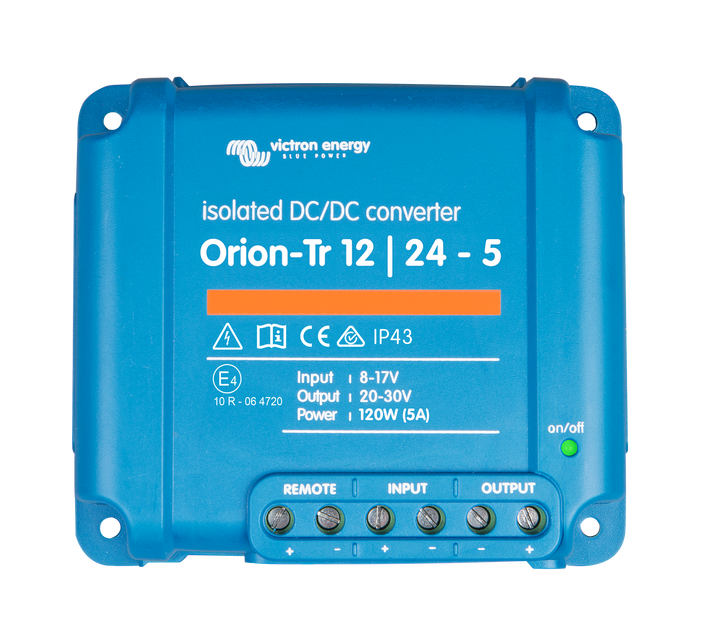

Orion-Tr 12V to 24V-5A 120W Isolated DC-DC Converter

⚡ ORION-TR 12V TO 24V-5A (120W) ISOLATED DC-DC CONVERTER

12V to 24V Isolated DC-DC Converter – Adjustable 20–30V Output, 5A Continuous Current, Remote On/Off, Short-Circuit Protection & IP43

⚡ The Orion-Tr 12V to 24V-5A (120W) Isolated DC-DC Converter is designed to step up a compatible nominal 12V DC supply to a regulated 24V-class output while providing galvanic isolation between the input, output and case.

Accepting an input voltage from 8V to 17V DC, the converter provides a nominal 24.2V output with an adjustable range from 20V to 30V. It delivers up to 5A continuous output current at nominal output voltage and 25°C, with a supplied maximum output of 6.3A for up to 10 seconds.

The Orion-Tr includes a remote on/off terminal, allowing the converter to be controlled using a low-power switch or compatible engine run/stop signal without placing a high-current switch directly in the main input cable.

Built-in short-circuit protection, high-temperature protection, IP43 ingress protection when correctly mounted, screw-terminal connections and the ability to parallel compatible units make this converter suitable for a wide range of vehicle, marine, industrial and auxiliary electrical systems.

⚠️ IMPORTANT: Although the output voltage is adjustable, the supplied product information specifically states that this model is not intended for battery charging. Consider an appropriate Orion-Tr Smart or dedicated charger where battery charging is required.

---

⚡ KEY FEATURES

🔌 12V to 24V DC Conversion
Designed to step up a compatible nominal 12V supply to a regulated 24V-class output.

🛡️ 200V DC Galvanic Isolation
Provides electrical isolation between the input, output and case according to the supplied specification.

🎛️ Adjustable 20–30V Output
Allows output voltage to be adjusted to suit compatible equipment within the supplied range.

⚡ 5A Continuous Output
Provides 5A continuous output current at nominal output voltage and 25°C.

🚀 6.3A Maximum Output for 10 Seconds
Provides additional short-duration current capability for compatible transient loads.

🔋 120W Continuous Output at 25°C
The supplied specification lists continuous output power of 120W at 25°C.

🌡️ 110W Continuous Output at 40°C
The supplied output-power rating reduces to 110W at 40°C.

🎛️ Remote On/Off Terminal
Allows low-current control of the converter without requiring a high-current switch in the main input wiring.

🛡️ Short-Circuit Proof
The supplied product information states that the Orion-Tr models are short-circuit proof.

🔥 High-Temperature Protection
Output current automatically reduces when ambient temperature becomes high.

🔗 Parallel Capability
Compatible units can be connected in parallel to increase total available output current.

🛡️ IP43 Protection
Provides IP43 ingress protection when installed with the screw terminals facing downwards.

🔩 Screw-Terminal Connections
Straightforward screw terminals allow installation without specialised proprietary connectors.

⚡ Internal Input Fuse
This 12V-input model includes an internal input fuse. The supplied information states that the fuse is not replaceable.

🔌 Up to 6mm² / AWG10 Cable
Supports a maximum cable cross-section of 6mm² / AWG10.

---

🔌 STEP UP 12V DC TO 24V-CLASS POWER

The Orion-Tr is designed for systems where a nominal 12V DC supply is available but connected equipment requires a higher 24V-class DC voltage.

Input voltage range: 8V–17V DC

Nominal output voltage: 24.2V DC

Adjustable output range: 20V–30V DC

This allows compatible 24V equipment to be operated from an appropriate 12V source while maintaining galvanic isolation between the two circuits.

⚠️ IMPORTANT: Confirm the required input voltage of the connected equipment before setting the converter output. Incorrect output voltage can damage connected equipment.

---

🎛️ ADJUSTABLE 20–30V OUTPUT

Nominal output voltage: 24.2V

Output-voltage adjustment range: 20V–30V

Output-voltage tolerance: ±0.2V

The adjustable output makes the converter suitable for compatible electrical equipment requiring a specific regulated supply within the 20V to 30V range.

⚠️ IMPORTANT: Measure and confirm the output voltage before connecting sensitive equipment.

---

🛡️ GALVANICALLY ISOLATED INPUT & OUTPUT

The Orion-Tr provides galvanic isolation between its input, output and case.

Supplied galvanic-isolation rating:

200V DC between input, output and case

This electrically separates the input-side and output-side circuits rather than using a direct common electrical path.

Galvanic isolation can be important in compatible marine, vehicle, communications and industrial applications where electrical separation or independent circuit referencing is required.

⚠️ IMPORTANT: Confirm that the supplied 200V DC isolation rating is suitable for the requirements of your complete electrical system.

---

⚡ 5A CONTINUOUS OUTPUT

Continuous output current at nominal output voltage and 25°C:

5A

Maximum output current at nominal output voltage:

6.3A for 10 seconds

Short-circuit output current:

23A

The 5A rating should be used when calculating normal sustained output loads at the stated conditions.

⚠️ IMPORTANT: The 6.3A figure is a maximum 10-second output rating and should not be treated as a continuous-current specification.

⚠️ IMPORTANT: The 23A short-circuit current is a protection-related specification and is not an allowable equipment load.

---

🔋 120W CONTINUOUS OUTPUT AT 25°C

Continuous output power at 25°C:

120W

Continuous output power at 40°C:

110W

The reduction in rated continuous output as ambient temperature increases is important when designing installations in hot vehicles, machinery compartments or enclosed electrical cabinets.

⚠️ IMPORTANT: Do not assume the converter can continuously provide its 120W at 25°C rating when operating in a hotter environment.

---

🔥 HIGH-TEMPERATURE PROTECTION

The Orion-Tr incorporates high-temperature protection.

When ambient temperature increases, the converter reduces output current to help protect itself.

Actual available output may therefore be lower than the nominal specification in hot installation environments.

⚠️ IMPORTANT: Install the converter where heat can dissipate effectively and avoid mounting it next to exhaust components, engines, heaters or other major heat sources.

---

🎛️ REMOTE ON/OFF TERMINAL

The Orion-Tr includes a remote on/off terminal.

This allows the converter to be switched without placing a high-current switch directly in the main DC input cable.

The remote on/off can be controlled using a suitable low-power switch or, where appropriate, a compatible engine run/stop signal.

Current consumption when disabled via the remote port:

<200µA

This extremely low disabled-current consumption can be useful in battery-powered vehicle and auxiliary systems where the converter may remain switched off for extended periods.

⚠️ IMPORTANT: Follow the applicable manufacturer wiring instructions when connecting the remote on/off terminal or integrating it with an engine run/stop circuit.

---

⚡ UNDER-VOLTAGE SHUTDOWN & RESTART

Under-voltage shutdown:

7V

Under-voltage restart:

7.5V

The converter is designed to shut down when input voltage falls below the supplied threshold and restart once adequate input voltage returns.

This helps prevent continued converter operation when the input supply falls outside its intended operating range.

---

🛡️ SHORT-CIRCUIT PROOF

The supplied product information states that the Orion-Tr models are short-circuit proof.

This provides built-in protection against output short-circuit conditions within the converter's designed operating limits.

⚠️ IMPORTANT: Built-in short-circuit protection does not replace correctly sized external fuses or circuit breakers used to protect the installation wiring and connected equipment.

---

🔗 PARALLEL FOR MORE OUTPUT CURRENT

The supplied product information states that compatible Orion-Tr converters can be connected in parallel to increase total available output current.

An unlimited number of compatible units can be connected in parallel according to the supplied information.

This can provide additional current capacity where a single 5A converter is insufficient.

⚠️ IMPORTANT: Parallel installations must follow the manufacturer's requirements. Output-voltage matching, cable sizing, circuit protection and load sharing should all be considered.

---

📈 88% EFFICIENCY

Supplied efficiency:

88%

The converter's input-side power requirement will be higher than its output power because of normal conversion losses.

This is particularly important in step-up applications because input current from the 12V source can be substantially higher than the 24V-side output current.

⚠️ IMPORTANT: Size the 12V input wiring and source protection according to actual input-current requirements rather than assuming the 5A output-current figure also applies to the input side.

---

🔋 NO-LOAD CURRENT

No-load input current:

<80mA

This represents the current consumed when the converter remains powered but is not supplying a significant load.

When disabled through its remote port, supplied current consumption reduces to less than 200µA.

---

🔊 LOW OUTPUT NOISE

Supplied output noise:

2mV RMS

The low supplied output-noise figure can be useful for compatible communications, control and electronic equipment requiring a stable DC power supply.

---

⛔ NOT INTENDED FOR BATTERY CHARGING

The Orion-Tr provides an adjustable output voltage, but the supplied product information specifically states that this model is not intended for battery charging.

For battery-charging applications, the supplied information recommends considering an Orion-Tr Smart.

⚠️ IMPORTANT: Do not use the adjustable output as a substitute for a dedicated battery charger. Battery charging requires a product and charging profile suitable for the battery chemistry, voltage and application.

---

🛡️ IP43 PROTECTION

The Orion-Tr provides IP43 ingress protection when installed with the screw terminals oriented downwards.

Correct mounting orientation is therefore required to achieve the stated IP43 rating.

⚠️ IMPORTANT: IP43 does not mean waterproof or suitable for immersion. Install the converter in an appropriately protected location.

---

🔩 SCREW-TERMINAL CONNECTIONS

The converter uses screw terminals for its DC electrical connections.

The supplied product information states that no special tools are required for installation of the screw terminals.

Maximum cable cross-section:

6mm² / AWG10

⚠️ IMPORTANT: 6mm² / AWG10 is the maximum cable size accepted by the terminals. Actual cable size must be selected according to current, cable length, voltage drop and circuit-protection requirements.

---

⚡ INTERNAL INPUT FUSE

The supplied information states that 12V and 24V input Orion-Tr models are fitted with an input fuse.

As this is a 12V-input model, the internal input fuse applies.

The fuse is specified as non-replaceable.

⚠️ IMPORTANT: The internal input fuse does not automatically replace the need for external fuse or circuit-breaker protection in the supply wiring.

---

🌡️ OPERATING CONDITIONS

Operating temperature:

-20°C to +55°C

Maximum humidity:

95% non-condensing

Output current reduces at high ambient temperatures as part of the converter's thermal protection behaviour.

⚠️ IMPORTANT: Avoid condensation and provide a suitable installation environment within the supplied temperature and humidity limits.

---

🚙 12V VEHICLE TO 24V ACCESSORY APPLICATIONS

The Orion-Tr may suit compatible vehicle electrical systems where a 12V source needs to supply electrically isolated 24V-class equipment.

Potential compatible applications include:

• 📡 24V communications equipment
• 🎛️ 24V control equipment
• 💡 Compatible 24V lighting
• 🔌 Selected 24V accessories
• 🏗️ Industrial equipment
• 📱 Compatible electronics requiring isolated power

⚠️ IMPORTANT: Confirm both operating voltage and current requirements of connected equipment before installation.

---

🚤 MARINE ELECTRICAL SYSTEMS

Galvanic isolation can make the Orion-Tr relevant to compatible marine systems where electrical separation between the source circuit and output circuit is required.

Suitability still depends on the complete system design, environmental exposure, required isolation level and connected electrical load.

---

📡 COMMUNICATIONS & ELECTRONICS

The combination of galvanic isolation, adjustable output voltage and supplied 2mV RMS output-noise specification can make the converter useful for compatible communications and electronic equipment.

Always verify the required voltage, current and electrical-isolation requirements of the equipment before use.

---

🏗️ INDUSTRIAL & CONTROL APPLICATIONS

The Orion-Tr can suit compatible industrial and control systems where a regulated 24V-class output must be generated from a nominal 12V source.

The adjustable 20–30V output provides additional flexibility for equipment with specific DC supply-voltage requirements.

---

📏 DIMENSIONS & WEIGHT

Height: 100mm

Width: 113mm

Depth: 47mm

Weight: Approximately 0.42kg

---

🔧 SUITABLE APPLICATIONS

• 🚙 Compatible 12V vehicle electrical systems
• 🚤 Marine electrical systems
• 📡 Communications equipment
• 🎛️ Control systems
• 🏗️ Industrial equipment
• 🔌 Electrically isolated DC circuits
• 💡 Compatible 24V lighting
• 📱 Compatible electronic equipment
• ⚡ 12V systems requiring an isolated 24V-class supply

---

📋 TECHNICAL SPECIFICATIONS

Product: Orion-Tr 12V to 24V-5A (120W) Isolated DC-DC Converter

Converter type: Isolated step-up DC-DC converter

Input voltage range: 8V–17V DC

Under-voltage shutdown: 7V

Under-voltage restart: 7.5V

Nominal output voltage: 24.2V DC

Adjustable output-voltage range: 20V–30V DC

Output-voltage tolerance: ±0.2V

Output noise: 2mV RMS

Continuous output current at nominal voltage and 25°C: 5A

Maximum output current at nominal voltage: 6.3A for 10 seconds

Short-circuit output current: 23A

Continuous output power at 25°C: 120W

Continuous output power at 40°C: 110W

Efficiency: 88%

No-load input current: <80mA

Current consumption when disabled via remote port: <200µA

Remote on/off terminal: Yes

Galvanic isolation: 200V DC between input, output and case

Short-circuit protection: Yes

High-temperature protection: Yes – output current reduces at elevated ambient temperature

Parallel connection: Yes

Maximum number of parallel units: Unlimited according to supplied product information

Battery charging: Not intended for battery charging

Recommended battery-charging alternative: Orion-Tr Smart according to supplied product information

Input fuse: Integrated and non-replaceable

Operating temperature range: -20°C to +55°C

Humidity: Maximum 95% non-condensing

Ingress protection: IP43 when screw terminals are oriented downwards

DC connection: Screw terminals

Maximum cable cross-section: 6mm² / AWG10

Weight: Approximately 0.42kg

Dimensions: 100mm × 113mm × 47mm

---

⚠️ INSTALLATION & COMPATIBILITY CHECKLIST

Before purchasing or installing the Orion-Tr 12V to 24V-5A Isolated DC-DC Converter, confirm that it matches the electrical and environmental requirements of your system.

• 8–17V DC input supply
• Required output within the adjustable 20–30V range
• Correct output voltage set before connecting equipment
• Continuous load within the 5A rating at stated conditions
• Short-duration load within the 6.3A / 10-second maximum
• 200V DC galvanic isolation suitable for the application
• No requirement to use the unit as a battery charger
• Correct input and output polarity
• Correct input cable sizing for the step-up converter load
• Maximum 6mm² / AWG10 terminal cable size
• Appropriate external circuit protection
• Correct remote on/off wiring where used
• Suitable protected mounting location
• Screw terminals facing downwards where IP43 protection is required
• Operating temperature within -20°C to +55°C
• Humidity below 95% and non-condensing
• Adequate clearance for heat dissipation

⚠️ IMPORTANT: This is a step-up converter. The 12V-side input current may be substantially higher than the 24V-side output current. Size input wiring and circuit protection accordingly.

⚠️ IMPORTANT: This converter provides 200V DC galvanic isolation between input, output and case.

⚠️ IMPORTANT: This model is specifically stated as not intended for battery charging. Consider an appropriate Orion-Tr Smart or dedicated battery charger where charging is required.

⚠️ IMPORTANT: Output capability reduces at elevated ambient temperatures. Allow suitable heat dissipation in the installation.

⚠️ IMPORTANT: The internal input fuse is not replaceable. Appropriate external wiring protection should still be provided where required.

---

❓ FREQUENTLY ASKED QUESTIONS

What does the Orion-Tr 12V to 24V-5A converter do?

It steps up a compatible nominal 12V DC supply to a regulated, galvanically isolated 24V-class output.

Is this converter isolated?

Yes. The supplied specification states 200V DC galvanic isolation between the input, output and case.

What is the input voltage range?

The supplied input-voltage range is 8V to 17V DC.

What is the nominal output voltage?

The nominal output voltage is 24.2V DC.

Can the output voltage be adjusted?

Yes. The supplied adjustment range is 20V to 30V DC.

What is the output-voltage tolerance?

The supplied tolerance is ±0.2V.

What is the continuous output current?

The supplied continuous output-current rating is 5A at nominal output voltage and 25°C.

What is the maximum output current?

The supplied maximum output current is 6.3A for up to 10 seconds.

Can I continuously draw 6.3A?

No. The 6.3A rating applies for up to 10 seconds. Sustained operation should be based on the supplied 5A continuous rating at the stated conditions.

What is the short-circuit output current?

The supplied short-circuit output-current figure is 23A. This is a protection-related specification, not an allowable continuous load.

Is it short-circuit proof?

Yes. The supplied product information states that the Orion-Tr models are short-circuit proof.

How much continuous power does it provide?

The supplied ratings are 120W continuous at 25°C and 110W continuous at 40°C.

Why does available power reduce as temperature increases?

The converter includes high-temperature protection and reduces output current at elevated ambient temperatures.

What is the efficiency?

The supplied efficiency rating is 88%.

Will the 12V input side draw more than 5A?

Yes. Because the converter is stepping approximately 12V up to approximately 24V and is not 100% efficient, input current can be substantially higher than the 5A output current. Input wiring must be sized for the actual input requirement.

What is the under-voltage shutdown point?

The supplied under-voltage shutdown threshold is 7V.

At what voltage will it restart?

The supplied under-voltage restart point is 7.5V.

Does it have remote on/off?

Yes. The supplied product information specifies a remote on/off terminal.

What is the benefit of remote on/off?

It allows the converter to be controlled using a low-power switch or compatible control signal rather than installing a high-current switch in the main input cable.

Can the remote on/off be connected to an engine run signal?

The supplied product information states that the remote on/off can be operated by, for example, an engine run/stop switch. Follow the applicable wiring instructions for the exact installation.

How much current does it use when disabled?

The supplied specification states less than 200µA when disabled via the remote port.

What is the no-load input current?

The supplied no-load input current is less than 80mA.

Can this converter charge a battery?

No. The supplied information specifically states that this model is not intended for battery charging.

What should I use for battery charging?

The supplied product information recommends considering an Orion-Tr Smart for battery-charging applications.

Why would I use an isolated converter?

An isolated converter electrically separates the input and output circuits. This can be useful where the electrical-system design requires galvanic separation or independent electrical references.

Can multiple converters be connected in parallel?

Yes. The supplied product information states that compatible units can be connected in parallel to increase output current.

How many can be connected in parallel?

The supplied product information states that an unlimited number of compatible units may be connected in parallel.

Does the converter have temperature protection?

Yes. Output current reduces when ambient temperature becomes high.

Does it have an internal input fuse?

Yes. The supplied information states that 12V input models include an internal input fuse.

Can the internal input fuse be replaced?

No. The supplied information states that the input fuse is not replaceable.

Does the internal fuse mean I do not need an external fuse?

Not necessarily. Appropriate external circuit protection should still be selected for the supply wiring according to cable size and system design.

What type of connections does it use?

The converter uses screw terminals.

What is the maximum cable size?

The supplied maximum cable cross-section is 6mm² / AWG10.

Should I automatically use 6mm² cable?

No. The 6mm² specification is the maximum size accepted by the terminals. Cable size should be calculated according to actual current, cable length, voltage drop and circuit protection.

What is the IP rating?

The supplied ingress-protection rating is IP43 when installed with the screw terminals facing downwards.

Does mounting orientation matter?

Yes. The supplied IP43 rating applies when the screw terminals are oriented downwards.

Is the converter waterproof?

No. IP43 does not mean waterproof or suitable for immersion.

What is the output-noise specification?

The supplied output-noise figure is 2mV RMS.

What is the operating-temperature range?

The supplied operating-temperature range is -20°C to +55°C.

What is the humidity rating?

The supplied maximum humidity is 95% non-condensing.

How large is the converter?

The supplied dimensions are 100mm high × 113mm wide × 47mm deep.

How much does it weigh?

The supplied weight is approximately 0.42kg.

Can it run 24V accessories in a 12V vehicle?

Potentially. The converter is specifically designed to step a compatible 12V input up to a 24V-class output. Confirm the accessory voltage and ensure its sustained load remains within the converter's output capability.

Can it power multiple 24V accessories?

Potentially. Add the current requirements of all connected accessories and ensure the total remains within the applicable continuous-output limits.

Can it power sensitive electronic equipment?

Potentially. The converter provides galvanic isolation, adjustable regulated output and a supplied 2mV RMS output-noise specification. Confirm the exact voltage, current and noise requirements of the connected equipment.

What should I check before ordering?

Confirm the 8–17V input range, required 20–30V output voltage, 5A continuous-output requirement, 6.3A short-duration maximum, galvanic-isolation requirements, input-current demand, cable sizing, circuit protection, remote on/off requirements and mounting environment before purchase.

---

⚡ ISOLATED 12V TO 24V POWER CONVERSION WITH REMOTE CONTROL & ADJUSTABLE OUTPUT

Choose the Orion-Tr 12V to 24V-5A (120W) Isolated DC-DC Converter when you need to operate compatible 24V-class equipment from a nominal 12V electrical system while maintaining galvanic separation between the input and output circuits.

With an 8–17V input range, adjustable 20–30V output, 5A continuous output capability, 6.3A short-duration maximum, 200V DC galvanic isolation, remote on/off, short-circuit protection, parallel capability and IP43 protection when correctly mounted, the Orion-Tr provides a versatile solution for compatible vehicle, marine, communications and industrial systems.

Confirm the required output voltage, connected load, input-current demand, isolation requirement, cable size, circuit protection, mounting orientation and operating temperature before installation. For battery charging, select an appropriate dedicated charging product rather than this converter.
