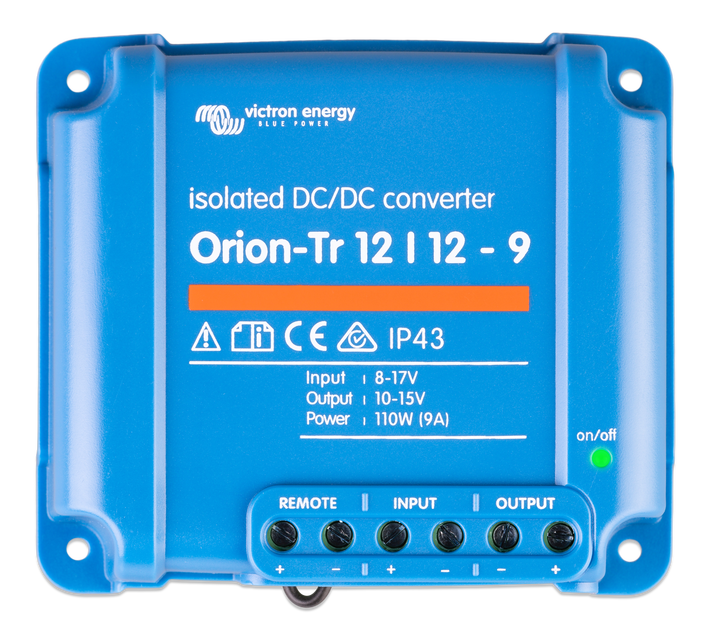

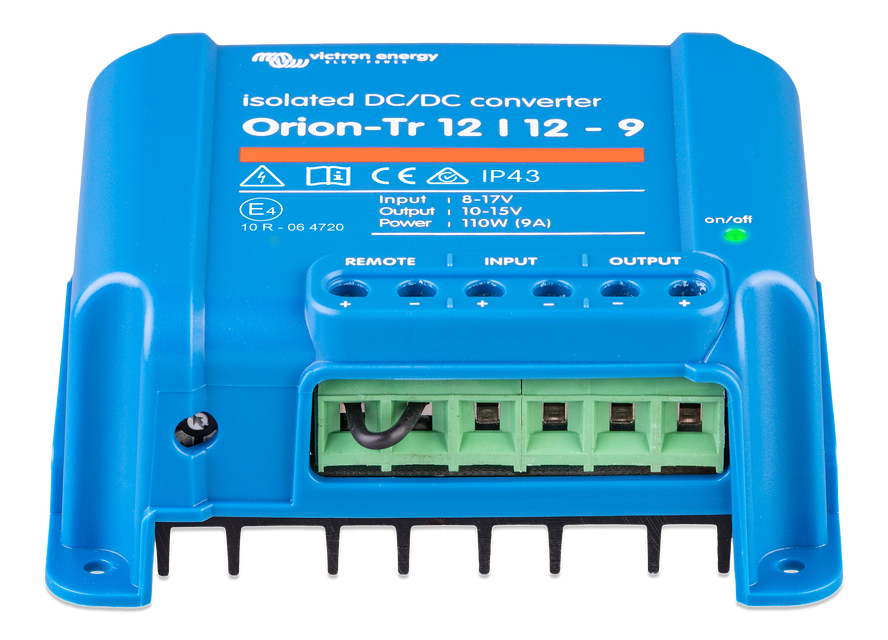

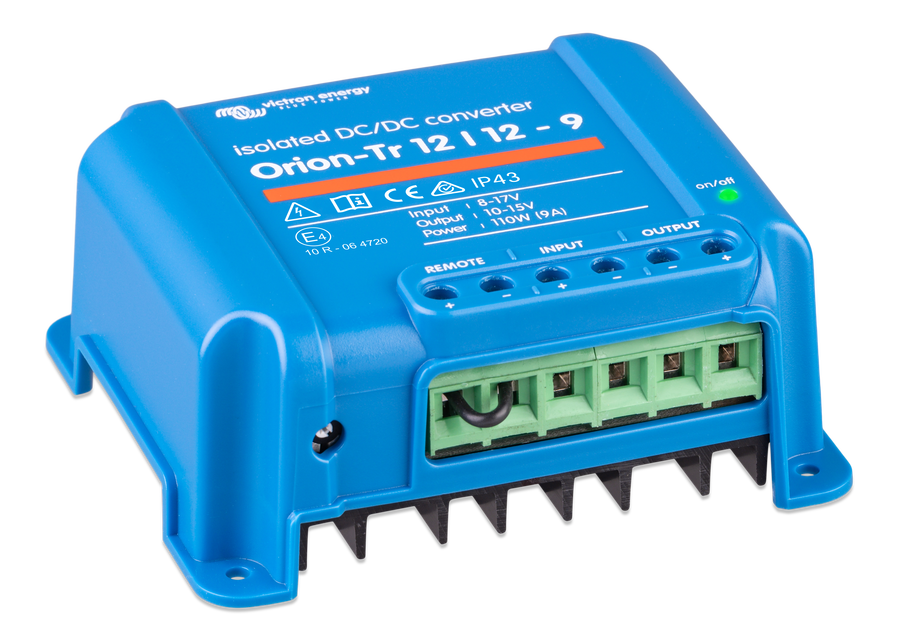

Orion-Tr 12V to 12V-9A 110W Isolated DC-DC Converter

⚡ ORION-TR 12V TO 12V-9A (110W) ISOLATED DC-DC CONVERTER

Galvanically Isolated 12V DC-DC Converter – Adjustable 10–15V Output, 9A Continuous Current, Short-Circuit Protection & IP43

⚡ The Orion-Tr 12V to 12V-9A (110W) Isolated DC-DC Converter provides a regulated and galvanically isolated DC supply for compatible 12V electrical systems.

Accepting an input voltage from 8V to 17V DC, the converter provides a nominal 12.2V output that can be adjusted between 10V and 15V. It supplies up to 9A continuous output current at nominal output voltage and 40°C, with a maximum output current of 12.5A for up to 10 seconds.

Unlike non-isolated converters, this Orion-Tr provides 200V DC galvanic isolation between the input, output and case, making it suitable for compatible applications where electrical separation between circuits is required.

The converter is short-circuit proof, high-temperature protected and can be connected in parallel with additional compatible units to increase available output current. The supplied product information states that an unlimited number of units may be connected in parallel.

With adjustable output voltage, screw-terminal connections, an integrated non-replaceable input fuse and IP43 protection when correctly mounted, the Orion-Tr provides a robust solution for vehicle, marine, industrial and auxiliary DC electrical systems.

---

⚡ KEY FEATURES

🔌 Isolated 12V to 12V DC Conversion
Designed to provide a regulated and electrically isolated output from a compatible nominal 12V DC supply.

🛡️ 200V DC Galvanic Isolation
Provides 200V DC isolation between input, output and case according to the supplied specification.

🎛️ Adjustable 10–15V Output
Allows the output voltage to be adjusted from 10V to 15V for compatible equipment requirements.

⚡ 9A Continuous Output
Provides 9A continuous output current at nominal output voltage and 40°C.

🚀 12.5A Maximum Output for 10 Seconds
Provides additional short-duration current capability for compatible transient loads.

🔋 110W Continuous Output at 25°C
Provides a supplied continuous output-power rating of 110W at 25°C.

🌡️ 85W Continuous Output at 40°C
The supplied specification lists 85W continuous output power at 40°C.

🛡️ Short-Circuit Proof
Designed to withstand output short-circuit conditions within the manufacturer's operating parameters.

🔥 High-Temperature Protection
Output current automatically reduces at elevated ambient temperatures.

🔗 Parallel Operation
Compatible units can be connected in parallel to increase available output current.

🛡️ IP43 Protection
Provides IP43 ingress protection when installed with the screw terminals facing downwards.

🔩 Screw-Terminal Connections
Straightforward screw terminals allow installation without specialised connector systems.

🔌 Up to 16mm² / AWG6 Cable
Supports a maximum cable cross-section of 16mm² / AWG6.

⚡ Integrated Input Fuse
12V input models include an internal input fuse. The supplied information states that this fuse is not replaceable.

📉 Low Disabled Consumption
Current consumption is listed at less than 200µA when disabled via the remote port.

---

🛡️ GALVANICALLY ISOLATED DC-DC CONVERSION

One of the key features of this Orion-Tr model is galvanic isolation between the input, output and case.

Supplied galvanic isolation:

200V DC between input, output and case

Galvanic isolation electrically separates the input-side circuit from the output-side circuit rather than sharing a common direct electrical path.

This can be important in compatible vehicle, marine, communications and industrial systems where electrical separation, ground-loop management or independently referenced circuits are required.

⚠️ IMPORTANT: Galvanic isolation requirements depend on the complete electrical-system design. Confirm that the supplied 200V DC isolation specification is appropriate for your application.

---

🔌 8–17V DC INPUT RANGE

Input voltage range:

8V–17V DC

This allows the converter to operate from compatible nominal 12V electrical systems where supply voltage varies during normal operation.

Under-voltage shutdown: 7V

Under-voltage restart: 7.5V

The converter is designed to shut down when the input voltage becomes too low and automatically restart once sufficient voltage is restored.

---

🎛️ ADJUSTABLE 10–15V OUTPUT

Nominal output voltage:

12.2V DC

Output-voltage adjustment range:

10V–15V DC

Output-voltage tolerance:

±0.2V

The adjustable output allows the converter to be configured for compatible electrical equipment requiring a specific regulated voltage within this range.

⚠️ IMPORTANT: Verify the required input voltage of the connected equipment and correctly set the converter output before connection.

---

⛔ NOT INTENDED FOR BATTERY CHARGING

Although the output voltage is adjustable, the supplied product information specifically states that this Orion-Tr model is not intended for battery charging.

For battery-charging applications, the supplied information recommends considering an Orion-Tr Smart instead.

⚠️ IMPORTANT: Do not use this converter as a substitute for a dedicated battery charger. Battery charging requires appropriate voltage control, charging stages and chemistry compatibility.

---

⚡ 9A CONTINUOUS OUTPUT

Continuous output current at nominal output voltage and 40°C:

9A

Maximum output current:

12.5A for 10 seconds

Short-circuit output current:

32A

The 9A specification should be used when calculating normal sustained current requirements under the stated conditions.

⚠️ IMPORTANT: The 12.5A figure is a 10-second maximum output rating and should not be treated as a continuous operating specification.

⚠️ IMPORTANT: The 32A short-circuit current is a protection-related specification, not an allowable appliance load.

---

🔋 OUTPUT POWER & TEMPERATURE

Continuous output power at 25°C:

110W

Continuous output power at 40°C:

85W

The reduction in available continuous output power as ambient temperature rises is important when designing installations expected to operate in warm environments.

⚠️ IMPORTANT: Do not assume the converter can continuously provide its 110W 25°C rating at higher ambient temperatures.

---

🔥 HIGH-TEMPERATURE PROTECTION

The Orion-Tr includes high-temperature protection.

At elevated ambient temperature, the converter reduces output current to protect itself.

This means actual available output can be lower than the nominal rating when the converter is operating in a hot enclosure or near other heat-producing equipment.

⚠️ IMPORTANT: Install the converter where heat can dissipate appropriately. Avoid mounting it close to exhaust components, heaters or other significant heat sources.

---

🛡️ SHORT-CIRCUIT PROOF

The supplied product information states that all models are short-circuit proof.

This provides built-in protection against output short-circuit conditions within the product's designed operating parameters.

⚠️ IMPORTANT: Short-circuit protection inside the converter does not replace correctly sized external circuit protection for the input wiring, output wiring or connected equipment.

---

🔗 UNLIMITED PARALLEL CONNECTION

The supplied product information states that an unlimited number of compatible Orion-Tr units can be connected in parallel to increase available output current.

Parallel installation can therefore provide greater total current capability where a single 9A converter is insufficient.

⚠️ IMPORTANT: Parallel converters must be installed according to the manufacturer's requirements, with appropriate cable sizing, circuit protection and voltage adjustment.

---

📈 87% EFFICIENCY

Supplied efficiency:

87%

Efficiency determines how much input power is converted into useful output power, with the remainder primarily becoming heat.

The converter's input-side current will therefore be higher than the output-side current would suggest when accounting for conversion losses.

---

🔋 LOW NO-LOAD CURRENT

No-load input current:

<50mA

This represents input current consumed while the converter remains powered without a significant output load.

Current consumption when disabled via its remote port:

<200µA

This very low disabled consumption can be useful in battery-powered applications where the converter is switched off for extended periods.

---

⚡ REMOTE PORT DISABLE FUNCTION

The supplied specifications state that the converter consumes less than 200µA when disabled via its remote port.

This indicates provision for remotely disabling the converter while maintaining extremely low current consumption.

⚠️ IMPORTANT: The supplied information does not provide the detailed wiring arrangement or operating logic for the remote port. Refer to the applicable manufacturer instructions before connection.

---

🛡️ IP43 PROTECTION

The Orion-Tr provides IP43 ingress protection when installed with the screw terminals oriented downwards.

Correct mounting orientation is therefore required to achieve the supplied IP43 rating.

⚠️ IMPORTANT: IP43 does not mean waterproof or suitable for immersion. Install the converter in an appropriately protected location.

---

🔩 SCREW-TERMINAL CONNECTIONS

The converter uses screw terminals for its DC electrical connections.

The supplied product information states that no special tools are required for installation.

Maximum cable cross-section:

16mm² / AWG6

The large terminal capacity provides flexibility when selecting suitable cable for higher-current or longer cable-run installations.

⚠️ IMPORTANT: 16mm² is the maximum cable size accepted by the terminals. Actual cable size should be selected according to input current, output current, cable length, voltage drop and circuit-protection requirements.

---

⚡ INTERNAL INPUT FUSE

The supplied product information states that 12V and 24V input Orion-Tr models include an input fuse.

For this 12V-input model, the internal input fuse is therefore applicable.

The fuse is specified as non-replaceable.

⚠️ IMPORTANT: The internal fuse does not eliminate the need for appropriately positioned external circuit protection in the supply wiring where required by the installation.

---

🔊 VERY LOW OUTPUT NOISE

Supplied output noise:

2mV RMS

The low supplied output-noise specification can be beneficial for compatible electronics, communications and control equipment requiring a stable DC supply.

---

🌡️ OPERATING CONDITIONS

Operating temperature:

-20°C to +55°C

Maximum humidity:

95% non-condensing

⚠️ IMPORTANT: Avoid condensation and ensure the converter is installed within the supplied temperature and humidity limits.

---

🚙 VEHICLE AUXILIARY APPLICATIONS

The Orion-Tr may suit compatible 12V vehicle systems where regulated, isolated power is required for selected equipment.

Potential applications include compatible:

• 📡 Communications equipment
• 🎛️ Control systems
• 💡 Sensitive auxiliary lighting circuits
• 📱 Electronic equipment
• 🔌 Electrically isolated accessory circuits

⚠️ IMPORTANT: Confirm both voltage and current requirements of connected equipment before installation.

---

🚤 MARINE APPLICATIONS

Galvanic isolation can make the Orion-Tr particularly relevant to compatible marine and vessel electrical systems where separation between DC circuits is required.

Suitability still depends on the complete system design, environmental exposure, required isolation level and connected load.

---

📡 COMMUNICATIONS & ELECTRONICS

The combination of galvanic isolation, adjustable regulated output and supplied 2mV RMS output-noise specification can make the converter useful for compatible communications and electronic equipment.

Always confirm the device's required supply voltage, current consumption and permitted electrical noise before use.

---

🏗️ INDUSTRIAL & CONTROL SYSTEMS

The Orion-Tr can also suit compatible industrial and control installations requiring electrical isolation between a 12V source and regulated 12V-class equipment.

The adjustable 10–15V output provides flexibility for equipment with specific supply-voltage requirements.

---

📏 COMPACT DIMENSIONS

Height: 100mm

Width: 113mm

Depth: 47mm

Weight: Approximately 0.42kg

The compact enclosure allows the converter to be incorporated into suitable electrical panels, cabinets, vehicles and equipment installations.

---

🔧 SUITABLE APPLICATIONS

• 🚙 Compatible vehicle auxiliary systems
• 🚤 Marine electrical systems
• 📡 Communications equipment
• 🎛️ Control systems
• 🏗️ Industrial equipment
• 🔌 Electrically isolated DC circuits
• 💡 Compatible 12V lighting systems
• 📱 Sensitive electronics
• 🔋 Battery-powered equipment requiring regulated isolated DC power

---

📋 TECHNICAL SPECIFICATIONS

Product: Orion-Tr 12V to 12V-9A (110W) Isolated DC-DC Converter

Converter type: Isolated DC-DC voltage converter

Input voltage range: 8V–17V DC

Under-voltage shutdown: 7V

Under-voltage restart: 7.5V

Nominal output voltage: 12.2V DC

Adjustable output-voltage range: 10V–15V DC

Output-voltage tolerance: ±0.2V

Output noise: 2mV RMS

Continuous output current at nominal voltage and 40°C: 9A

Maximum output current: 12.5A for 10 seconds

Short-circuit output current: 32A

Continuous output power at 25°C: 110W

Continuous output power at 40°C: 85W

Efficiency: 87%

No-load input current: <50mA

Current consumption when disabled via remote port: <200µA

Galvanic isolation: 200V DC between input, output and case

Short-circuit protection: Yes

High-temperature protection: Yes – output current reduces at elevated ambient temperature

Parallel connection: Yes

Maximum number of parallel units: Unlimited according to supplied product information

Battery charging: Not intended for battery charging

Recommended battery-charging alternative: Orion-Tr Smart according to supplied product information

Input fuse: Integrated, non-replaceable

Operating temperature range: -20°C to +55°C

Humidity: Maximum 95% non-condensing

Ingress protection: IP43 when screw terminals are oriented downwards

DC connection: Screw terminals

Maximum cable cross-section: 16mm² / AWG6

Weight: Approximately 0.42kg

Dimensions: 100mm × 113mm × 47mm

---

⚠️ INSTALLATION & COMPATIBILITY CHECKLIST

Before purchasing or installing the Orion-Tr 12V to 12V-9A Isolated Converter, confirm that it matches the electrical and environmental requirements of your system.

• 8–17V DC input supply
• Required output between 10V and 15V
• Correct output voltage set before connecting equipment
• Continuous load within the 9A rating at stated conditions
• Short-duration load within the 12.5A / 10-second maximum
• 200V DC galvanic isolation suitable for the application
• No requirement to use the unit as a battery charger
• Correct input and output polarity
• Correct cable sizing
• Maximum 16mm² / AWG6 terminal cable size
• Appropriate external circuit protection
• Suitable protected mounting location
• Screw terminals facing downwards where IP43 protection is required
• Operating temperature within -20°C to +55°C
• Humidity below 95% and non-condensing
• Adequate space for heat dissipation

⚠️ IMPORTANT: This converter is isolated, providing 200V DC galvanic isolation between input, output and case.

⚠️ IMPORTANT: This model is specifically stated as not intended for battery charging. Consider an appropriate Orion-Tr Smart or dedicated charger for battery-charging applications.

⚠️ IMPORTANT: Output current reduces at high ambient temperatures. Allow sufficient ventilation and do not rely on the 25°C power rating in hot installations.

⚠️ IMPORTANT: The internal input fuse is not replaceable. Appropriate external circuit protection should still be provided where required by the installation.

---

❓ FREQUENTLY ASKED QUESTIONS

What does the Orion-Tr 12V to 12V-9A converter do?

It provides a regulated and galvanically isolated DC output from a compatible nominal 12V input supply.

Is this converter isolated?

Yes. The supplied specification states 200V DC galvanic isolation between the input, output and case.

What is the input voltage range?

The supplied input-voltage range is 8V to 17V DC.

What is the nominal output voltage?

The nominal output voltage is 12.2V DC.

Can the output voltage be adjusted?

Yes. The supplied adjustment range is 10V to 15V DC.

What is the output-voltage tolerance?

The supplied output-voltage tolerance is ±0.2V.

What is the continuous output current?

The supplied continuous output-current rating is 9A at nominal output voltage and 40°C.

What is the maximum output current?

The supplied maximum output current is 12.5A for up to 10 seconds.

Can I continuously draw 12.5A?

No. The 12.5A rating applies for up to 10 seconds. Normal sustained operation should be based on the supplied continuous rating.

What is the short-circuit output current?

The supplied short-circuit output-current figure is 32A. This is a protection-related specification and not a normal appliance-load rating.

Is the converter short-circuit proof?

Yes. The supplied product information states that the Orion-Tr models are short-circuit proof.

What continuous power does it provide?

The supplied rating is 110W at 25°C and 85W at 40°C.

Why does the power rating reduce at higher temperature?

The converter includes high-temperature protection and reduces available output current as ambient temperature increases.

What is the efficiency?

The supplied efficiency rating is 87%.

What is the under-voltage shutdown point?

The supplied under-voltage shutdown threshold is 7V.

What is the under-voltage restart point?

The supplied restart voltage is 7.5V.

Can this converter charge a battery?

No. The supplied product information specifically states that the adjustable output of this model is not intended for battery charging.

What should I use if I need to charge a battery?

The supplied information recommends considering an Orion-Tr Smart for battery-charging applications.

Why would I need an isolated converter?

An isolated converter electrically separates the input and output circuits. This can be useful where the system design requires galvanic separation or independent electrical references.

Can multiple units be connected in parallel?

Yes. The supplied product information states that compatible units can be connected in parallel to increase output current.

How many units can be connected in parallel?

The supplied information states that an unlimited number of units may be connected in parallel.

Does it have high-temperature protection?

Yes. The supplied information states that output current reduces at high ambient temperature.

Does it have an input fuse?

Yes. The supplied information states that 12V input models include an internal input fuse.

Can the internal fuse be replaced?

No. The supplied information states that the input fuse is not replaceable.

Does the internal fuse mean I do not need external fusing?

Not necessarily. Appropriate external circuit protection should still be selected according to the supply wiring, cable capacity and installation requirements.

What electrical connections does it use?

The converter uses screw terminals.

What is the maximum cable size?

The supplied maximum cable cross-section is 16mm² / AWG6.

Should I automatically use 16mm² cable?

No. The 16mm² specification is the maximum size accepted by the terminals. Actual cable size should be calculated from circuit current, cable length, allowable voltage drop and protection requirements.

What is the IP rating?

The supplied ingress-protection rating is IP43 when installed with the screw terminals facing downwards.

Does mounting orientation matter?

Yes. The supplied IP43 rating applies when the screw terminals are oriented downwards.

Is it waterproof?

No. IP43 does not mean waterproof or suitable for immersion.

What is the no-load input current?

The supplied no-load input current is less than 50mA.

How much current does it use when disabled?

The supplied specification lists less than 200µA current consumption when disabled through its remote port.

What is the output-noise specification?

The supplied output-noise specification is 2mV RMS.

What is the operating temperature range?

The supplied operating-temperature range is -20°C to +55°C.

What is the humidity rating?

The supplied maximum humidity is 95% non-condensing.

How large is the converter?

The supplied dimensions are 100mm high × 113mm wide × 47mm deep.

How much does it weigh?

The supplied weight is approximately 0.42kg.

Can it be used in a vehicle?

Potentially. It can suit compatible nominal 12V vehicle electrical systems where a regulated and galvanically isolated output is required.

Can it be used in a marine system?

Potentially. Its galvanically isolated design may be useful in compatible marine electrical systems, provided the environmental, electrical and isolation requirements are met.

Can it power sensitive electronics?

Potentially. The converter provides adjustable regulated output, galvanic isolation and a supplied output-noise figure of 2mV RMS. Confirm the exact voltage, noise and current requirements of the equipment first.

What should I check before ordering?

Confirm the 8–17V input range, required 10–15V output setting, 9A continuous-current requirement, 12.5A short-duration maximum, need for galvanic isolation, cable size, circuit protection, mounting environment and whether battery charging is required before purchase.

---

⚡ ISOLATED & ADJUSTABLE 12V POWER FOR VEHICLE, MARINE & INDUSTRIAL SYSTEMS

Choose the Orion-Tr 12V to 12V-9A (110W) Isolated DC-DC Converter when you need a regulated DC supply with genuine galvanic separation between the input, output and case.

With an 8–17V input range, adjustable 10–15V output, 9A continuous current capability, 12.5A short-duration maximum output, 200V DC galvanic isolation, short-circuit protection, parallel capability and IP43 protection when correctly mounted, the Orion-Tr provides a versatile solution for compatible vehicle, marine, communications and industrial electrical systems.

Confirm the connected load, required output voltage, isolation requirement, cable size, circuit protection, mounting orientation and operating temperature before installation. For battery charging, select an appropriate dedicated charging product rather than this converter.
