48V 100Ah Stackable LiFePO4 Battery

🔋 VanLiFe 48V 100Ah Stackable Lithium Battery

LiFePO4 51.2V | 200A BMS | Stackable Steel Case | Australian Built

The VanLiFe 48V 100Ah Stackable Lithium Battery is a premium high-voltage lithium power solution designed for serious 48V off-grid, backup, caravan, marine, and commercial power systems.

With 51.2V LiFePO4 chemistry, a powerful 200A continuous discharge BMS, cable-free internal construction, laser-welded bus bars, and a rugged stackable steel enclosure, this battery is built for demanding applications where reliability, safety, and performance matter.

Designed and hand built in Australia, each unit is individually quality checked and tested twice before dispatch.

⚡ Key Features

🔋 100Ah 48V Lithium Capacity
Delivers approximately 5.12kWh of stored energy, making it ideal for serious off-grid and backup power systems.

⚡ Suitable for 8000W Inverter Systems
Capable of supporting high-demand inverter setups when correctly installed with suitable cabling, fusing, inverter, and charging equipment.

🔌 200A Continuous Discharge
Designed for large 48V loads, high-output inverters, and demanding appliance systems.

🔋 100A Max Charge Rate
Supports efficient charging from compatible lithium chargers, inverter chargers, and solar systems.

⚖️ Active + Passive Cell Balancing
Helps maintain battery health, improve charge efficiency, and support long-term performance.

🔩 Laser-Welded Bus Bar Connections
Strong, high-current internal connections directly to the cell pack.

🚫 Cable-Free Internal Construction
Reduces internal failure points while improving durability and reliability.

🛡️ Stackable Steel Enclosure
Sealed zinc-plated and powder-coated steel case with integrated mounting holes for secure installation and stacking.

📘 AS/NZS3001.2:2022 Installation-Focused Design
Includes vent outlet plus high/low temperature, voltage, and over-current protection features required for modern compliant installations.

🔥 Built for High-Demand Applications

The VanLiFe 48V 100Ah Stackable Battery is ideal for powering:

✔ Large inverter systems
✔ Off-grid solar systems
✔ Caravan and RV electrical systems
✔ Marine power systems
✔ Backup power setups
✔ Food vans and mobile businesses
✔ Pumps, tools, and high-load appliances
✔ Commercial and industrial mobile power systems

🔒 BMS Protection Specifications

🌡️ Temperature Protection

🔌 Charging Profile

For best performance, use a compatible 48V lithium charger with the following settings:

• Bulk Charge: 56.8V – 58.4V
• Ideal Bulk Charge: 57.6V
• Absorption: 56.8V – 58.4V
• Ideal Absorption: 57.6V
• Float: 53.6V – 54.4V
• Ideal Float: 54V

🔄 Long Cycle Life

The automotive-grade cells used in this battery are designed to withstand 3000 cycles at 80% depth of discharge under heavy electric vehicle use.

That means daily cycling from full charge down to 20% state of charge would take approximately 8.2 years to reach 3000 cycles. In lighter applications such as caravan storage, RV systems, and backup power, service life may be even longer.

📊 Technical Specifications

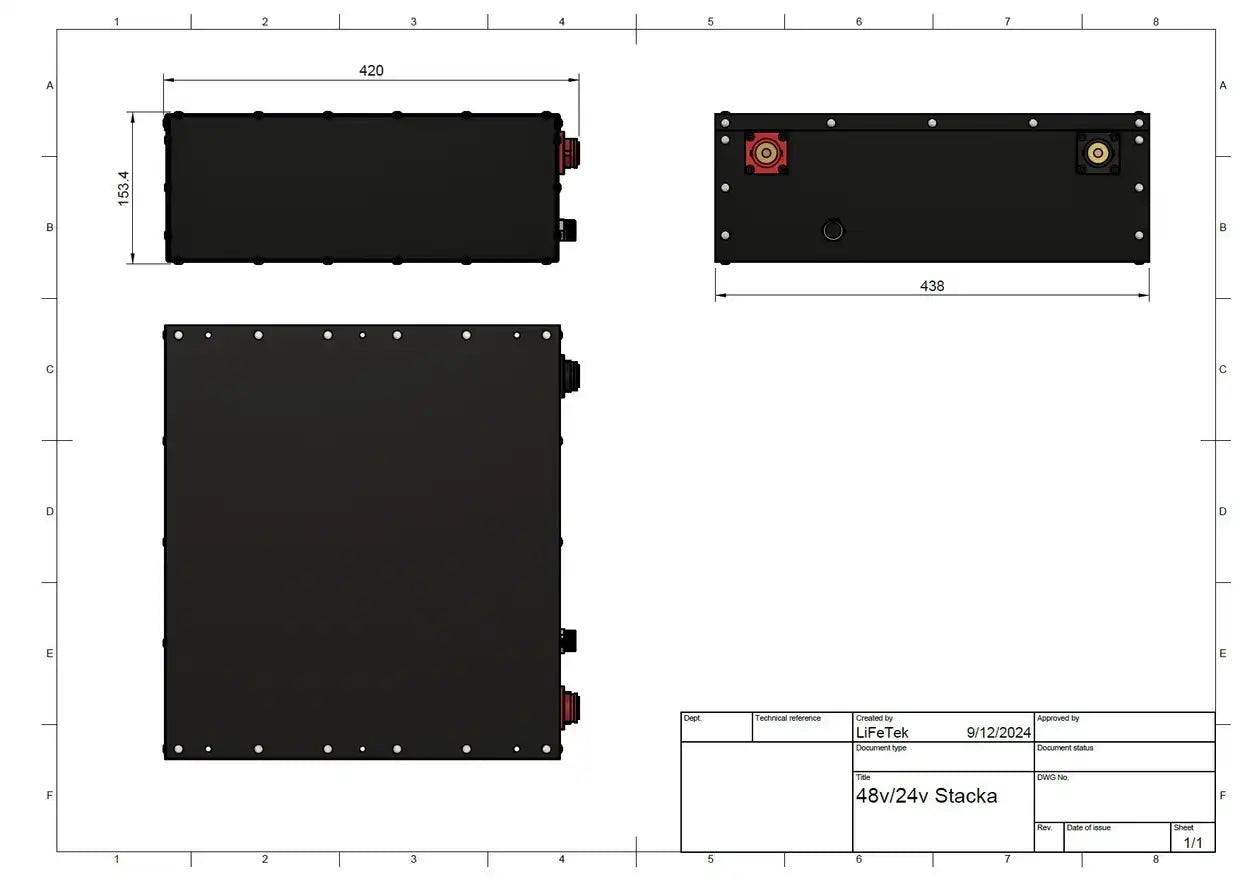

📏 Dimensions

• Length: 438mm
• Width: 420mm
• Height: 153.4mm

🏕️ Ideal Applications

🚐 Caravan and motorhome systems
☀️ 48V off-grid solar storage
⛵ Marine power systems
🚚 Commercial vehicles
🏕 Remote touring setups
🔌 High-output inverter systems
🏡 Backup and storage power systems
⚙️ Industrial and mobile power applications

✅ Why Choose the VanLiFe 48V 100Ah Stackable?

✔ Powerful 48V lithium energy storage
✔ Suitable for inverter systems up to 8000W when correctly installed
✔ Strong 200A continuous discharge capability
✔ Active and passive cell balancing
✔ Automotive-grade IEC 62619 certified cells
✔ Laser-welded bus bar construction
✔ Cable-free internal design
✔ Rugged sealed steel enclosure
✔ Stackable design for expandable systems
✔ Designed and hand built in Australia
✔ Individually QC checked and tested twice
✔ 7 + 3 year warranty with after-warranty repair service available

🛒 Build a Serious 48V Power System

Upgrade to the VanLiFe 48V 100Ah Stackable Lithium Battery and power your system with high-capacity, high-output lithium performance built for demanding off-grid and mobile applications.
