24V 200Ah/225Ah Vanlife LiFePO4 Battery

🔋 24V VanLiFe 200Ah / 225Ah LiFePO4 Lithium Battery

25.6V | 250A BMS | Australian Built | Heavy-Duty 24V Power

The 24V VanLiFe 200Ah / 225Ah Lithium Battery is a premium high-capacity LiFePO4 battery designed for serious 24V power systems.

Built with automotive-grade IEC 62619 certified cells, a sealed powder-coated steel enclosure, laser-welded bus bars, and cable-free internal construction, this battery is engineered for caravans, off-grid systems, marine applications, commercial vehicles, and high-demand 24V setups.

Available in 200Ah or upgraded 225Ah capacity, this system delivers dependable lithium performance with strong safety protection, long service life, and Australian-built quality.

⚡ Key Features

🔋 200Ah / 225Ah Capacity Options
Choose the standard 200Ah model or upgrade to 225Ah for more usable power in the same class of system.

⚡ 24V LiFePO4 System
Designed for 25.6V nominal / 24V electrical systems, making it ideal for larger off-grid and commercial setups.

🔥 250A BMS Option
Supports high-demand 24V loads with:

• 250A continuous discharge
• 250A continuous charge
• 270A over-current protection for 10 seconds

⚖️ Active + Passive Cell Balancing
Helps maintain cell health, improve efficiency, and extend battery service life.

🔩 Laser-Welded Bus Bars
Strong, reliable, high-current connections directly to the cell pack.

🚫 Cable-Free Internal Construction
Clean internal layout designed for reliability, durability, and reduced failure points.

🇦🇺 Designed & Hand Built in Australia
Individually quality checked and tested twice before dispatch.

🛡️ Sealed Steel Enclosure
Zinc-plated and powder-coated steel case with sealed riveted construction and vent outlet.

📘 AS/NZS3001.2:2022 Installation-Focused Design
Built with high/low temperature, voltage, and over-current protection features required for compliant installation setups.

🔒 BMS Protection

The integrated Battery Management System provides essential protection for demanding 24V applications.

🌡️ Temperature Protection

🔌 Charging Profile

For best performance, use a compatible 24V lithium charger with the following settings:

• Bulk Charge: 28.4V – 29.2V
• Ideal Bulk Charge: 28.8V
• Absorption: 28.4V – 29.2V
• Ideal Absorption: 28.8V
• Float: 26.8V – 27.2V
• Ideal Float: 27.0V

🔄 Long Cycle Life

Built with automotive-grade lithium cells designed to withstand 3000 cycles at 80% depth of discharge under heavy use.

That means if the battery was cycled daily from full charge down to 20% state of charge, it would take approximately 8.2 years to reach 3000 cycles, with the battery still operational beyond that point.

In lighter applications such as caravans, storage systems, and intermittent off-grid use, service life may be even longer.

📊 Technical Specifications

⚖️ Weight

• 200Ah Model: 40.5kg
• 225Ah Model: 44.5kg

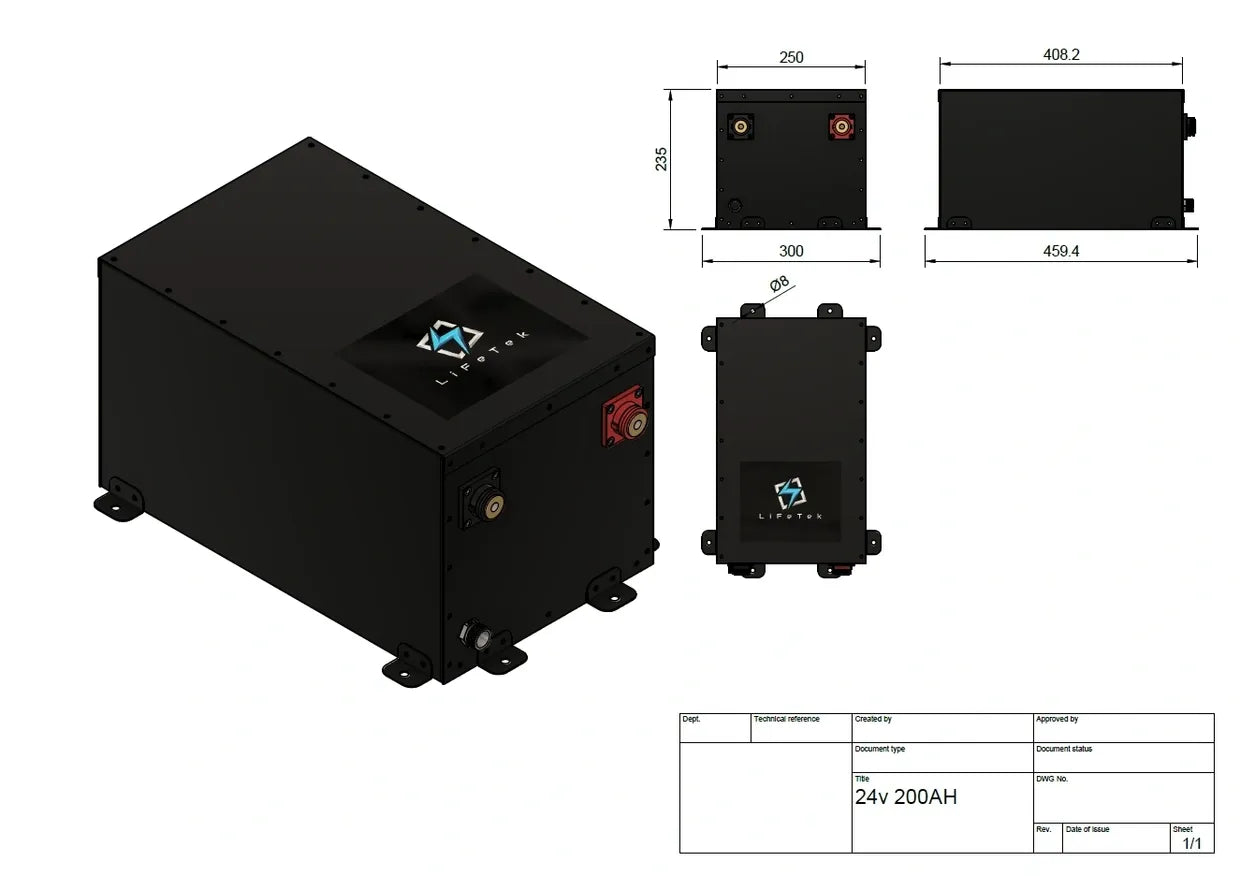

📏 Dimensions

24V 200Ah/225Ah Model

• Length: 459.40mm
• Width: 300mm
• Height: 235mm

Mounting feet include 8mm mounting holes.

⚠️ Mounting feet tabs may be trimmed if space is limited, but do not cut into the battery case itself, as this will void warranty.

🏕️ Ideal Applications

🚐 Caravans & motorhomes
☀️ 24V off-grid solar systems
⛵ Marine power systems
🚚 Commercial vehicles
🏕 Remote touring setups
🔌 High-output inverter systems
🏡 Backup and storage power systems

✅ Why Choose the 24V VanLiFe 200Ah / 225Ah?

✔ Purpose-built for 24V systems
✔ High-capacity 200Ah / 225Ah lithium options
✔ Powerful 250A continuous charge and discharge capability
✔ Active and passive cell balancing
✔ Automotive-grade IEC 62619 certified cells
✔ Laser-welded bus bar construction
✔ Cable-free internal design
✔ Sealed powder-coated steel enclosure
✔ Designed and hand built in Australia
✔ Individually twice QC checked and tested
✔ 7 + 3 year warranty structure with after-warranty repair service available

🛒 Serious 24V Power, Built Properly

Upgrade your 24V setup with a rugged Australian-built lithium battery designed for high output, long cycle life, and reliable off-grid performance.
